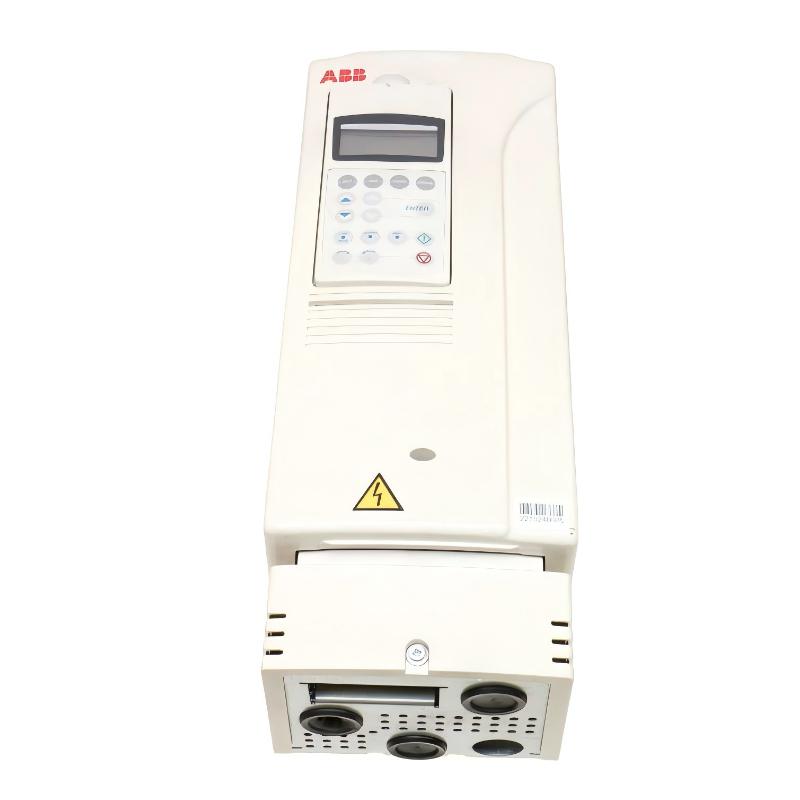

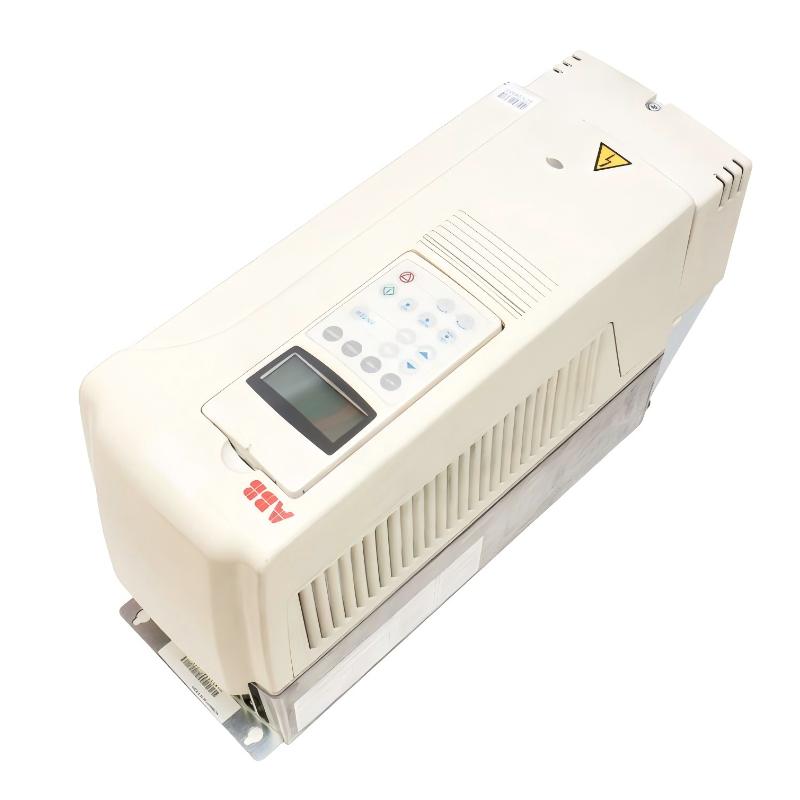

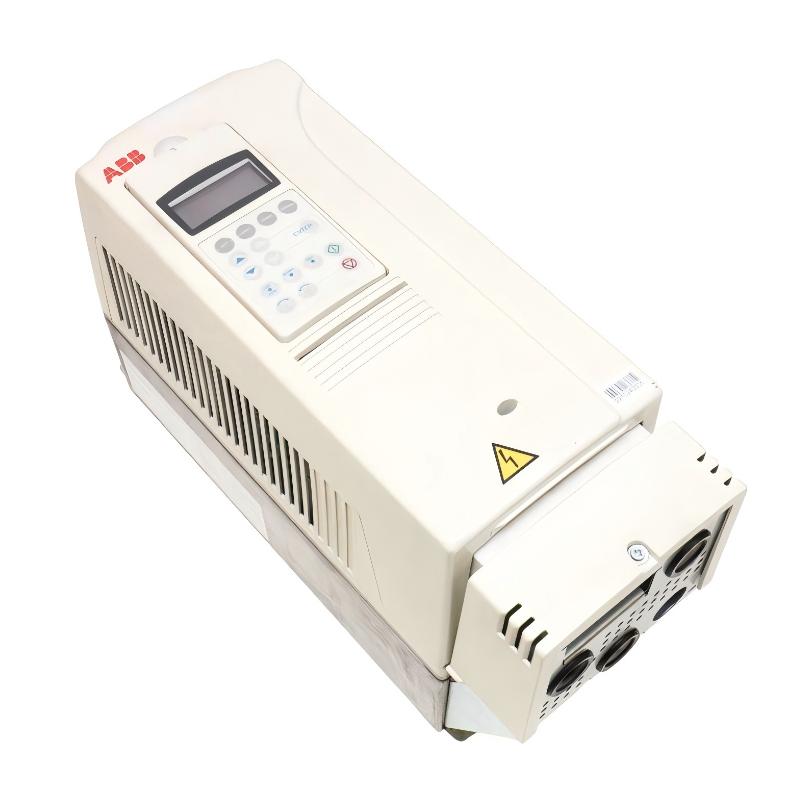

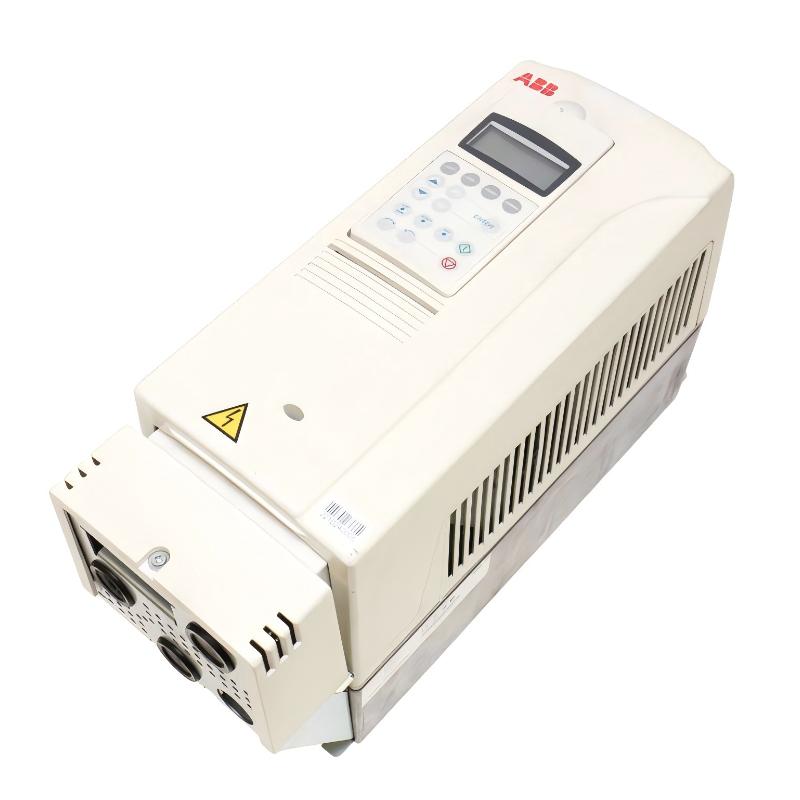

1. What are the main features and advantages of the ABB ACS800-01-0165-3 Variable Frequency Drive?

The ABB ACS800-01-0165-3 is a high-performance industrial variable frequency drive designed for demanding motor control applications that require high power capacity, precise speed regulation, and reliable continuous operation. It uses ABB’s advanced Direct Torque Control (DTC) technology, which provides extremely fast torque response and accurate motor control without requiring an encoder in most applications. Compared with traditional control methods, DTC enables excellent low-speed torque performance, stable operation under rapidly changing loads, and improved dynamic response during acceleration and deceleration.

The drive is designed for heavy industrial environments and provides comprehensive motor protection, advanced diagnostics, flexible parameter configuration, and multiple communication options. With strong overload capability and high output performance, the ACS800-01-0165-3 is suitable for large pumps, compressors, fans, conveyors, cranes, mixers, and other industrial machines where stable operation and minimum downtime are critical.

2. What types of motors can be controlled by the ACS800-01-0165-3, and why is motor identification necessary?

The ACS800-01-0165-3 supports standard three-phase induction motors as well as permanent magnet synchronous motors (PMSM). To achieve the best control performance, ABB recommends performing an Identification Run (ID Run) during commissioning or after replacing the connected motor.

The ID Run function measures important motor characteristics and creates an accurate motor model inside the drive. This allows the DTC control system to optimize torque generation, improve speed accuracy, reduce current fluctuations, and provide smoother operation. For applications involving high starting torque, frequent load changes, or precise speed requirements, completing the motor identification process is especially important because it ensures the drive parameters match the actual motor characteristics and improves overall system reliability.

3. How should an overcurrent fault on the ACS800-01-0165-3 be diagnosed and corrected?

An overcurrent fault usually occurs when the output current exceeds the allowable limit due to electrical problems, incorrect parameters, or excessive mechanical load. The first troubleshooting step is to disconnect the motor and check whether the drive can operate normally without a connected load.

If the drive works correctly without the motor, inspect the motor cables for insulation damage, short circuits, incorrect phase connections, and loose terminals. The motor winding resistance and insulation resistance should also be measured to confirm the motor condition. In addition, verify that the motor nameplate parameters entered into the drive are accurate, including rated voltage, current, frequency, power, and speed.

For applications with large inertia loads, such as large fans or compressors, the acceleration time may need to be increased to reduce starting current. Mechanical problems such as bearing damage, blocked equipment, misalignment, or excessive friction should also be checked because they can increase motor torque demand and trigger overcurrent protection.

4. How can the operating reliability of the ACS800-01-0165-3 be improved in industrial applications?

To achieve long-term reliable operation, proper installation and preventive maintenance are essential. The drive should be installed in a clean and well-ventilated environment with sufficient airflow around the cooling system. The power cables and control cables should be separated to reduce electromagnetic interference, and grounding connections must be properly maintained according to industrial installation requirements.

Regular maintenance should include cleaning cooling fans, checking ventilation paths, inspecting electrical terminals, and monitoring operating conditions. Dust accumulation, poor ventilation, or loose electrical connections can increase internal temperature and shorten component life.

For industrial sites with unstable power supplies or high harmonic levels, additional protection measures such as input reactors, EMC filters, or harmonic mitigation equipment can improve system stability. Maintaining parameter backups and service records also helps reduce downtime during troubleshooting or equipment replacement.

5. Which communication protocols are supported by the ACS800-01-0165-3?

The ACS800-01-0165-3 provides flexible communication capabilities for integration into modern automation systems. Besides the standard RS-485 interface, optional communication modules allow connection through industrial protocols such as PROFIBUS DP, PROFINET, Modbus RTU, CANopen, DeviceNet, and EtherNet/IP.

These communication options enable the drive to communicate with PLC systems, DCS platforms, SCADA systems, HMIs, and industrial computers. Operators can remotely monitor operating parameters, adjust drive settings, collect diagnostic information, receive fault alarms, and perform maintenance analysis without accessing the drive directly.

The flexible communication structure makes the ACS800-01-0165-3 suitable for automated production lines, process control systems, and smart manufacturing environments where reliable data exchange is required.

6. What causes motor overheating when using the ACS800-01-0165-3, and how can it be prevented?

Motor overheating can be caused by several factors, including continuous overload operation, insufficient cooling, incorrect motor parameters, high ambient temperatures, frequent acceleration cycles, or prolonged low-speed operation with high torque demand.

The first step is to compare the actual motor current with the rated motor current to determine whether the motor is operating beyond its capacity. The cooling system should be inspected to ensure that fans are working properly and ventilation passages are not blocked by dust or debris.

If motor parameters are incorrect, performing a new Identification Run can improve control accuracy and reduce unnecessary current loading. For applications requiring continuous low-speed operation, an independent cooling fan may be required to maintain proper motor temperature.

Mechanical factors should also be considered, including bearing condition, shaft alignment, coupling problems, and excessive load conditions, because mechanical resistance can significantly increase motor heating.

7. How can parameters be backed up and restored on the ACS800-01-0165-3?

ABB provides convenient methods for parameter backup and restoration through the control panel and DriveWindow software. After completing commissioning, users should save a complete copy of the drive parameters to ensure quick recovery in the future.

Parameter backup is especially important before replacing control boards, performing maintenance, or installing replacement drives. By restoring the saved parameter file, technicians can quickly return the drive to its previous operating configuration without manually entering every setting.

For factories operating multiple ACS800 drives, maintaining organized parameter files improves maintenance efficiency, ensures consistent configuration between machines, and reduces commissioning time during equipment upgrades or replacements.

8. What industrial applications are suitable for the ABB ACS800-01-0165-3 Variable Frequency Drive?

The ABB ACS800-01-0165-3 is designed for high-power industrial applications requiring reliable motor control, strong overload capability, and continuous operation. It is widely used in industries such as water treatment, oil and gas, mining, metallurgy, chemical processing, pulp and paper, cement production, marine systems, power generation, and large manufacturing facilities.

Typical applications include large pumps, compressors, ventilation systems, conveyors, crushers, mixers, hoists, cranes, extruders, and heavy-duty process equipment. The drive’s advanced DTC control technology, powerful protection functions, flexible communication options, and robust industrial design make it an excellent choice for applications requiring high efficiency and stable performance.

By improving motor control accuracy, reducing energy consumption, and minimizing unexpected downtime, the ACS800-01-0165-3 helps industrial users achieve higher productivity and lower operating costs in demanding production environments.
