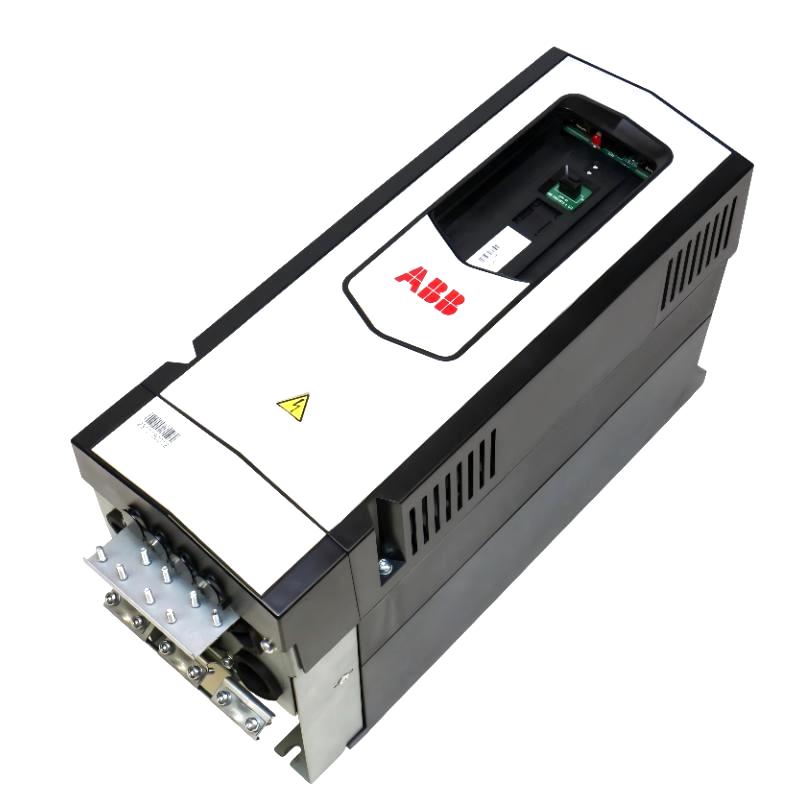

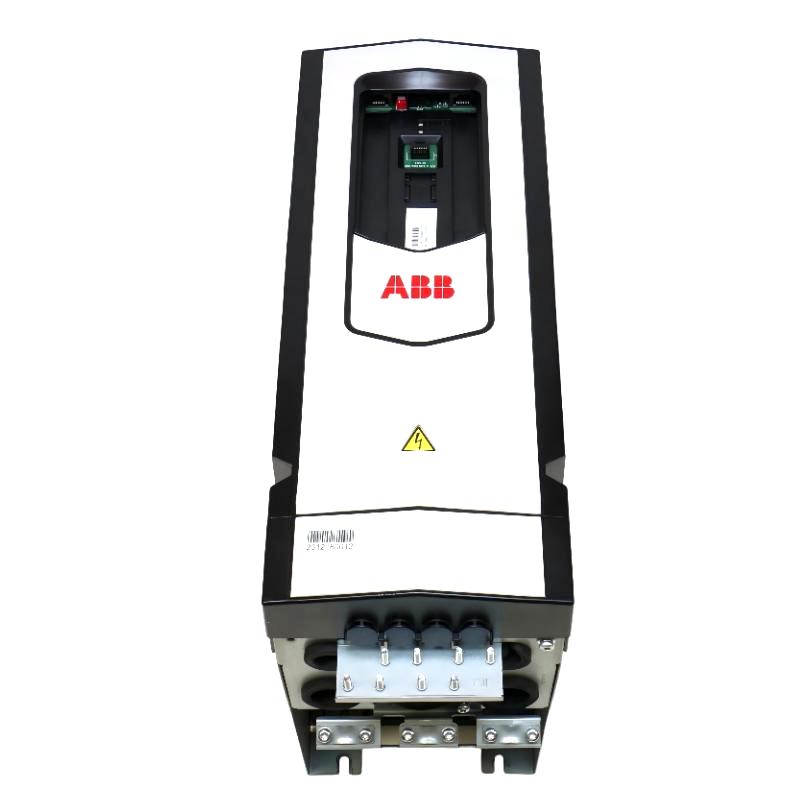

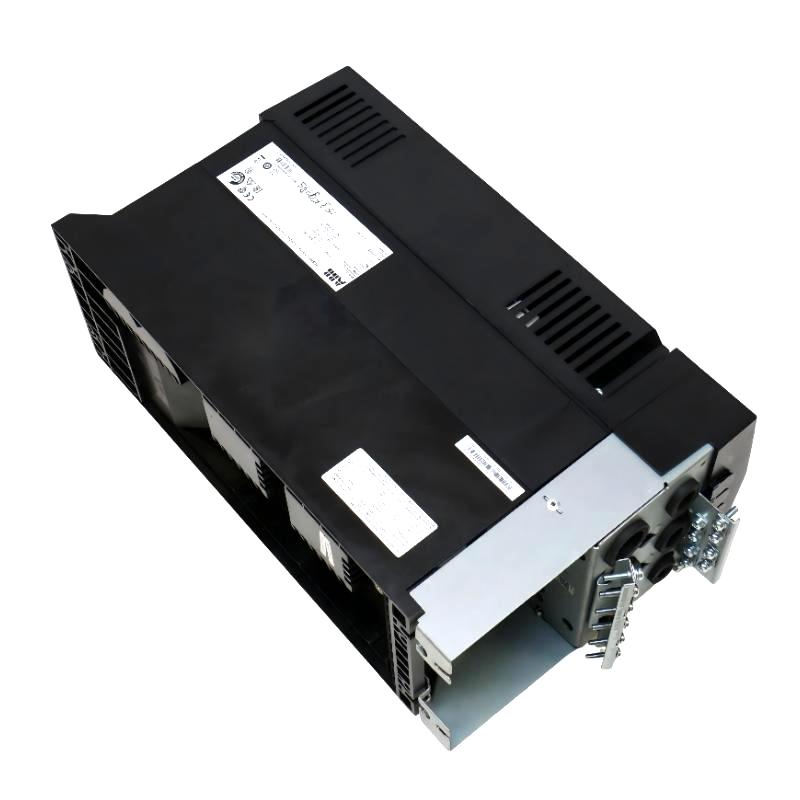

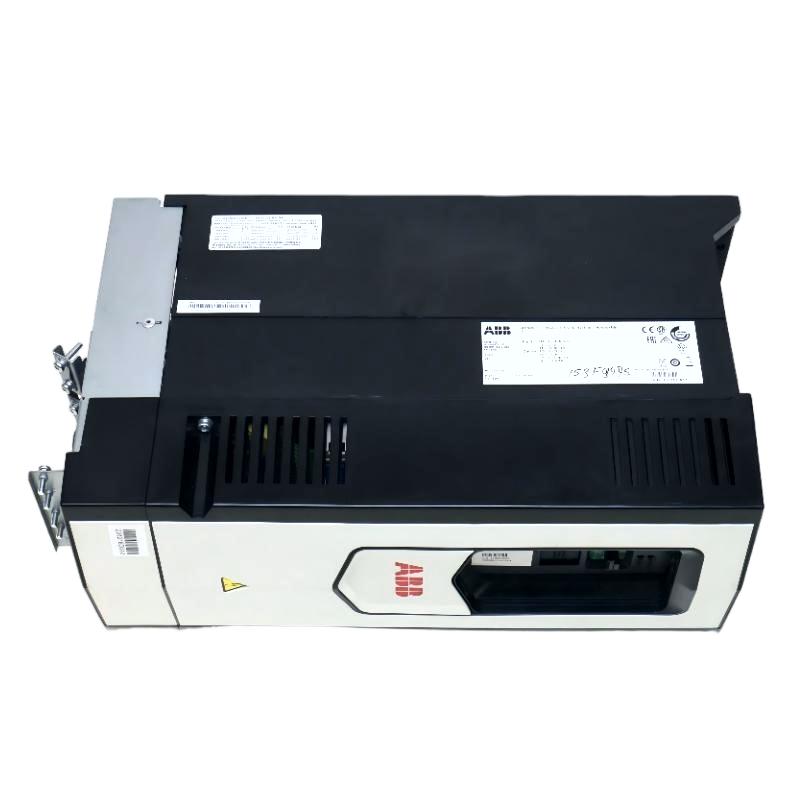

1. What are the main technical advantages of the ABB ACS880-01-017A-3 Variable Frequency Drive?

The ABB ACS880-01-017A-3 is a high-performance AC variable frequency drive from the ACS880 product family, designed for industrial automation and machinery applications that require accurate motor control, reliable operation, and high efficiency.

The drive uses ABB’s advanced Direct Torque Control (DTC) technology, which provides precise control of motor torque and magnetic flux. Compared with traditional V/f control methods, DTC delivers faster response, improved low-speed performance, and better stability during load changes, acceleration, and deceleration processes.

The ACS880-01-017A-3 also includes comprehensive protection and diagnostic functions, including overcurrent protection, overvoltage protection, undervoltage protection, motor thermal protection, short-circuit protection, and fault monitoring. With flexible communication options and advanced parameter management functions, the drive can be easily integrated into PLC, DCS, and modern industrial automation systems.

2. What applications are suitable for the ACS880-01-017A-3 drive?

The ABB ACS880-01-017A-3 is mainly used for medium-power industrial motor control applications where accurate speed adjustment, energy efficiency, and stable operation are required.

Typical applications include packaging machines, conveyor systems, pumps, fans, processing equipment, textile machinery, printing machines, food production equipment, and automated production lines.

For machines requiring frequent starts and stops, variable speeds, or changing loads, the ACS880-01-017A-3 provides fast control response and stable motor performance. By adjusting motor speed according to actual process requirements, it can also help reduce energy consumption and improve overall equipment efficiency.

The drive is especially suitable for industrial environments where reliable operation and precise control are important for maintaining production quality.

3. How should an overcurrent fault on the ACS880-01-017A-3 be handled?

When an overcurrent fault occurs on the ACS880-01-017A-3, troubleshooting should begin by checking the motor, cables, parameter settings, and mechanical load conditions.

First, inspect the motor output cables for short circuits, grounding faults, damaged insulation, incorrect wiring, or loose terminals. Electrical problems in the motor circuit are common causes of excessive current and drive protection activation.

Next, verify that the motor parameters configured in the drive match the actual motor specifications, including rated voltage, current, frequency, power, and speed. Incorrect motor data may affect the control algorithm and result in unstable operation.

If the fault occurs during startup, check whether the acceleration time is too short. Large inertia loads may require longer acceleration and deceleration times to reduce current stress. Mechanical problems such as blocked equipment, bearing damage, or abnormal load increases should also be inspected.

4. How can the operating stability of the ACS880-01-017A-3 be improved?

To ensure stable long-term operation of the ACS880-01-017A-3, proper installation, environmental control, and preventive maintenance are essential.

The drive should be installed in a location with sufficient ventilation and protection from excessive heat, moisture, dust, and corrosive substances. Good airflow around the cooling system helps maintain reliable operation and extends the service life of internal components.

Regular inspections should include checking power connections, motor wiring, control terminals, and cooling passages. Loose electrical connections can cause abnormal heating and unexpected faults.

In environments with strong electromagnetic interference, proper cable routing and grounding methods should be applied to improve system reliability. Regular parameter backups and fault history reviews are also recommended to simplify maintenance and reduce downtime.

5. Which communication protocols are supported by the ACS880-01-017A-3?

The ABB ACS880-01-017A-3 provides flexible communication capabilities for integration with industrial automation systems.

The standard RS-485 interface supports Modbus RTU communication, while optional communication modules enable support for industrial protocols such as PROFIBUS DP, PROFINET, CANopen, DeviceNet, and EtherNet/IP.

Through these communication networks, users can achieve remote start and stop control, motor status monitoring, parameter adjustment, alarm reading, and operational data collection.

The communication capability allows the drive to connect easily with PLC systems, DCS platforms, SCADA systems, and HMIs, improving centralized control and equipment management efficiency in automated production environments.

6. Why does the motor overheat when operating with the ACS880-01-017A-3?

Motor overheating can be caused by several factors, including excessive load, incorrect parameter settings, insufficient cooling, low-speed operation, or mechanical problems.

The first step is to check whether the motor operating current exceeds the rated value. Continuous overload operation increases motor losses and causes excessive temperature rise.

The cooling system should also be inspected to ensure that ventilation paths are clear and cooling fans are functioning properly. Applications requiring continuous low-speed operation with high torque may require additional cooling methods.

If the motor has been replaced or important parameters have been changed, performing motor identification is recommended. This allows the drive to create a more accurate motor model and improve control performance.

Mechanical components such as bearings, couplings, and transmission systems should also be checked because increased mechanical resistance can raise motor load and temperature.

7. How can parameters be backed up and restored on the ACS880-01-017A-3?

The ACS880-01-017A-3 supports parameter backup, configuration, and restoration through ABB Drive Composer commissioning software.

After completing commissioning, users should save a complete backup file containing motor data, control parameters, communication settings, and protection configurations. This backup can be used when replacing components, performing maintenance, or configuring a replacement drive.

For factories using multiple ACS880 drives, maintaining standardized parameter files improves maintenance efficiency and ensures consistent operation between different machines.

Regular parameter backups also help prevent extended downtime caused by configuration loss and allow technicians to restore normal operation more quickly after service activities.

8. What improvements does the ACS880-01-017A-3 provide compared with the ACS800 series?

The ABB ACS880-01-017A-3 is part of ABB’s newer generation of industrial drives and provides improvements in control performance, communication capability, user interface, and system integration compared with earlier ACS800 series products.

The ACS880 platform uses advanced motor control technology to achieve higher speed accuracy, faster dynamic response, and improved energy efficiency. It also supports modern industrial communication networks, making integration with intelligent manufacturing systems easier.

The Drive Composer software and updated control panel provide a more convenient commissioning and diagnostic experience, allowing engineers to configure parameters, monitor operation, and troubleshoot faults more efficiently.

With advanced control technology, flexible expansion options, and reliable industrial design, the ACS880-01-017A-3 is well suited for modern automation systems requiring efficient, stable, and intelligent motor control.
