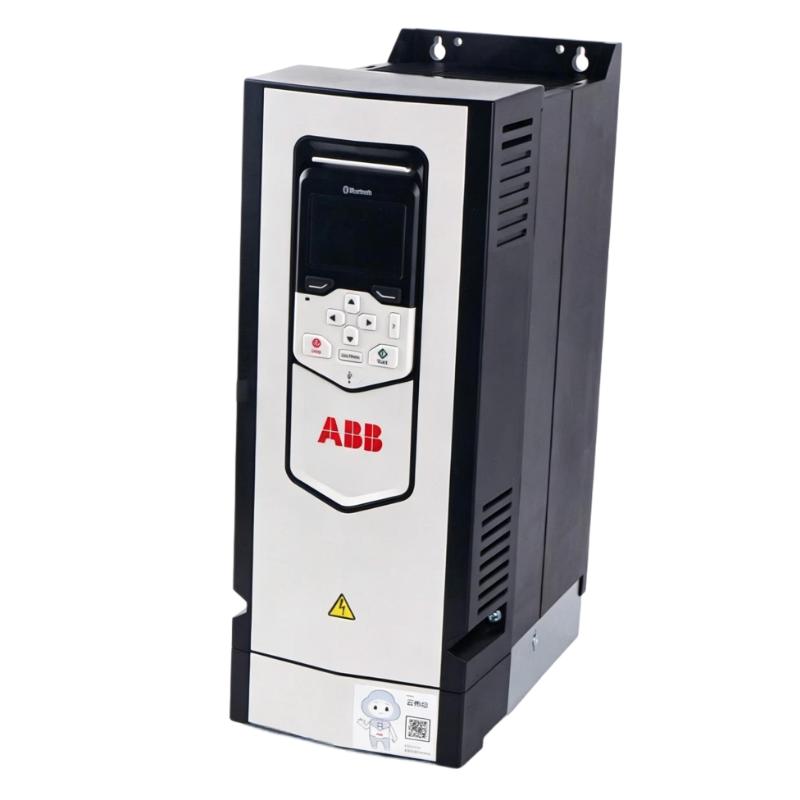

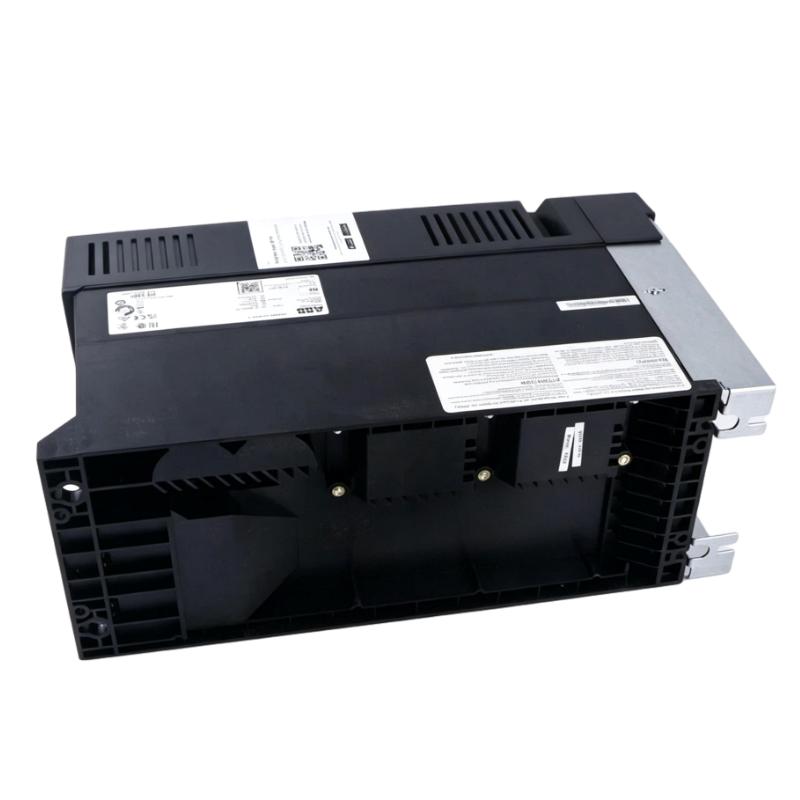

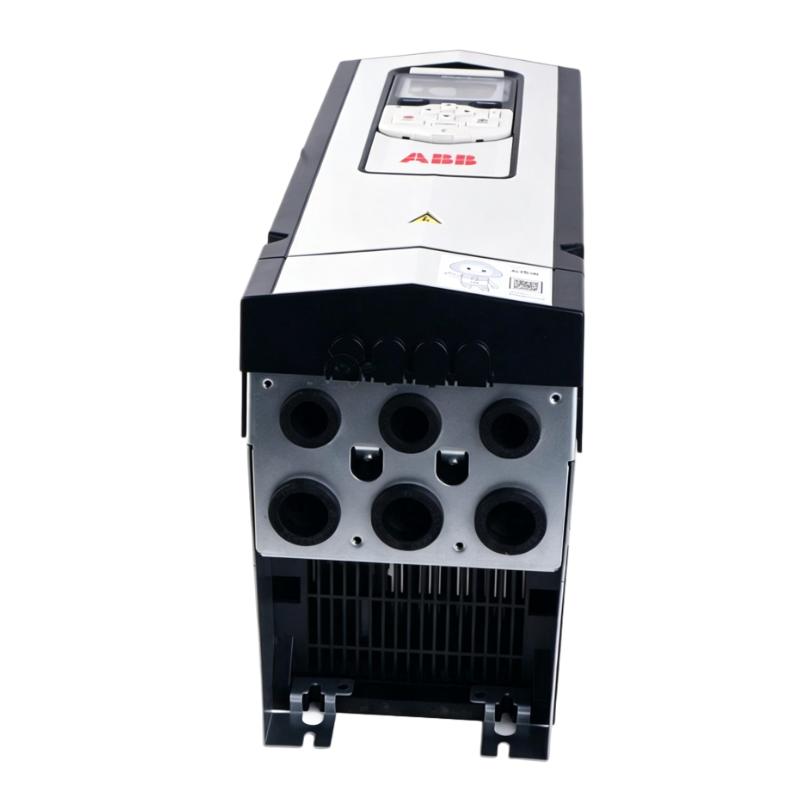

1. What are the key performance advantages of the ACS880-01-025A-3 Variable Frequency Drive?

The ACS880-01-025A-3 is designed for demanding industrial motor control applications that require precise speed regulation, rapid torque response, and long-term operational reliability. Equipped with ABB’s Direct Torque Control (DTC) technology, the drive calculates motor torque and magnetic flux in real time, eliminating the need for traditional PWM control methods in many applications. This enables excellent low-speed torque, fast acceleration and deceleration, and outstanding speed stability under varying load conditions. The drive is particularly suitable for pumps, compressors, conveyors, mixers, fans, extruders, packaging equipment, and material handling systems where consistent performance and energy efficiency are essential.

2. Which motor types can be controlled by the ACS880-01-025A-3?

The drive supports a broad range of industrial AC motors, including three-phase squirrel-cage induction motors, permanent magnet synchronous motors (PMSM), synchronous reluctance motors (SynRM), and ABB high-efficiency IE-rated motors. During commissioning, users should enter accurate motor nameplate information and perform an Identification Run (ID Run). This allows the drive to establish a detailed motor model, improving torque accuracy, speed regulation, energy efficiency, and dynamic response. As a result, the drive can maintain stable performance even during rapid load fluctuations or low-speed operation.

3. What are the most common causes of overcurrent faults during operation?

Overcurrent faults generally occur when the motor or drive experiences an abnormal electrical or mechanical load. Typical causes include incorrect motor parameter settings, acceleration times that are too short, mechanical binding of the driven equipment, output cable short circuits, damaged motor insulation, or excessive load inertia. Troubleshooting should begin by inspecting the mechanical system for obstructions, confirming that the motor rotates freely, and verifying that all motor nameplate values have been entered correctly. Users should also inspect the output wiring for insulation damage and review the drive’s fault history to identify recurring operating conditions that may contribute to the problem.

4. Why is performing an Identification Run (ID Run) recommended before commissioning?

The Identification Run is one of the most important commissioning procedures for the ACS880 series. During this process, the drive measures and calculates the electrical characteristics of the connected motor to create an accurate mathematical model. This optimized model enables the Direct Torque Control algorithm to deliver superior torque accuracy, improved low-speed stability, smoother acceleration, and more responsive speed control. Performing an ID Run also reduces the likelihood of unstable operation, unnecessary fault trips, and inefficient energy consumption, making it highly recommended whenever a new motor is installed or replaced.

5. Which industrial communication protocols are available for system integration?

The ACS880-01-025A-3 includes Modbus RTU communication as a standard feature and supports numerous optional communication adapter modules for industrial automation systems. Available protocols include PROFINET, PROFIBUS DP, EtherNet/IP, EtherCAT, CANopen, DeviceNet, and other ABB-supported fieldbus networks. These communication capabilities allow seamless integration with PLCs, DCS platforms, SCADA systems, and industrial monitoring software. Through these networks, operators can remotely configure parameters, monitor operating conditions, collect production data, perform diagnostics, and implement centralized control strategies for multiple drives across an entire production facility.

6. What maintenance practices help ensure reliable long-term operation?

To maximize operational reliability, preventive maintenance should be performed on a regular schedule. The cooling fan, heat sink, and ventilation passages should be cleaned periodically to prevent dust accumulation that could reduce cooling efficiency. Electrical terminals should be inspected for looseness or signs of overheating, while the control cabinet should provide sufficient airflow and maintain ambient temperatures within the specified operating range. Users should also periodically back up parameter settings, inspect motor cable insulation, review fault logs, and install firmware updates when recommended by ABB. These maintenance practices help reduce unexpected downtime and extend the service life of both the drive and connected equipment.

7. How does the integrated Safe Torque Off (STO) function improve machine safety?

The integrated Safe Torque Off (STO) function provides a certified safety mechanism that immediately prevents the motor from generating torque without disconnecting the main electrical supply. This enables maintenance personnel to safely access machinery while keeping communication and diagnostic functions active. STO simplifies machine safety design by reducing the need for external contactors and complex safety circuits, while also shortening restart times after maintenance. It is widely used in automated manufacturing systems, conveyor lines, packaging machines, lifting equipment, and robotic applications where compliance with international functional safety standards is required.

8. What should be checked when the drive generates an overtemperature alarm?

An overtemperature alarm indicates that the internal temperature of the drive has exceeded its safe operating limit. This may result from blocked ventilation, clogged heat sinks, cooling fan failure, insufficient installation clearance, high ambient temperature, or prolonged operation under heavy load. Users should first verify that the cooling fan is operating correctly and clean any accumulated dust from the heat sink and ventilation openings. The installation environment should also be checked to ensure adequate airflow around the drive. In addition, operators should review the operating current and load profile to determine whether the drive is being overloaded continuously. Correcting these issues promptly will help prevent repeated thermal trips, improve equipment reliability, and ensure stable operation throughout the drive’s service life.
