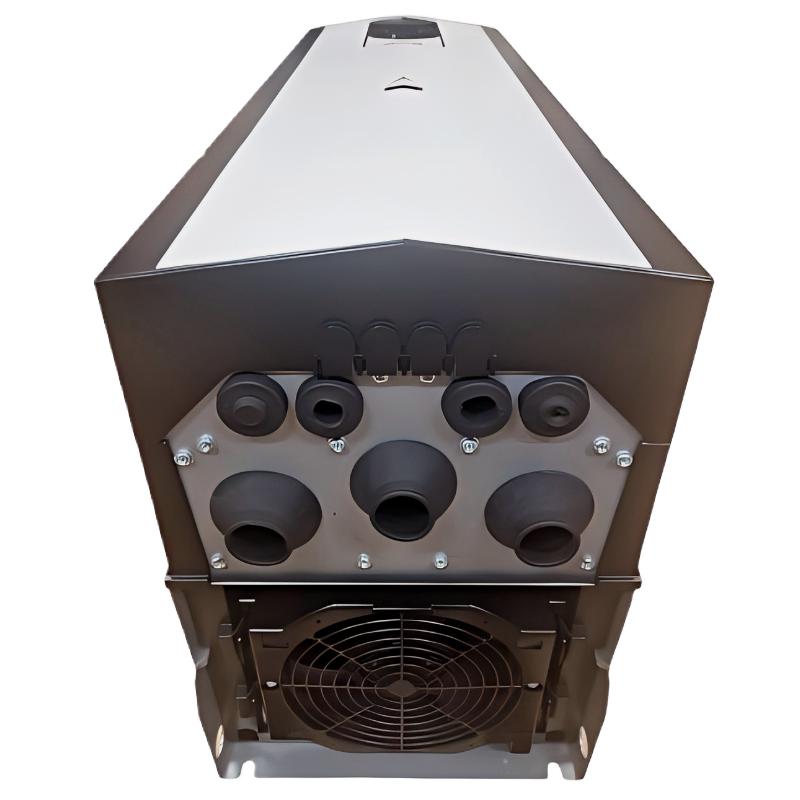

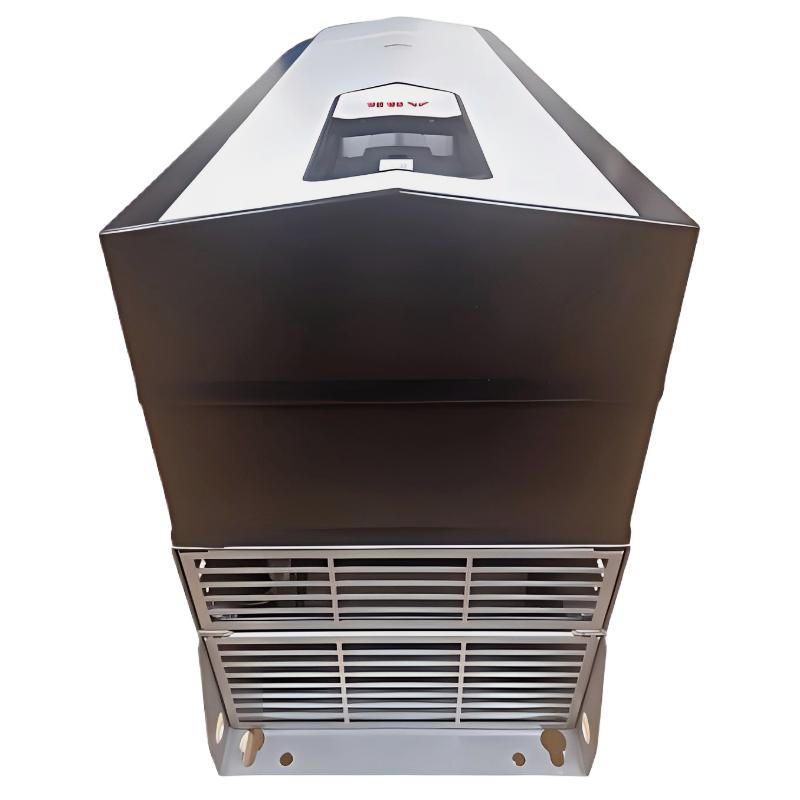

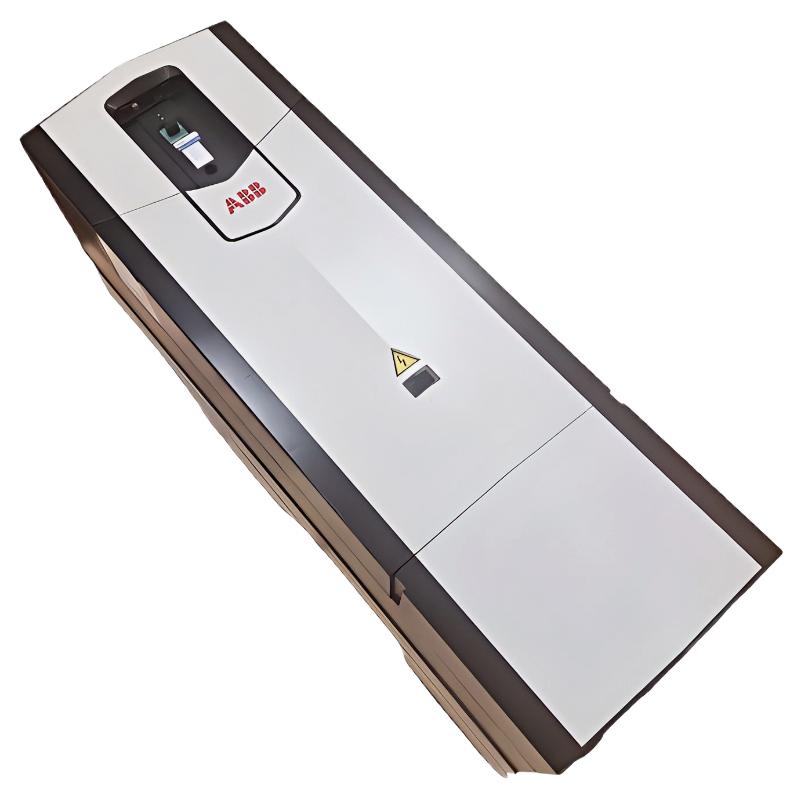

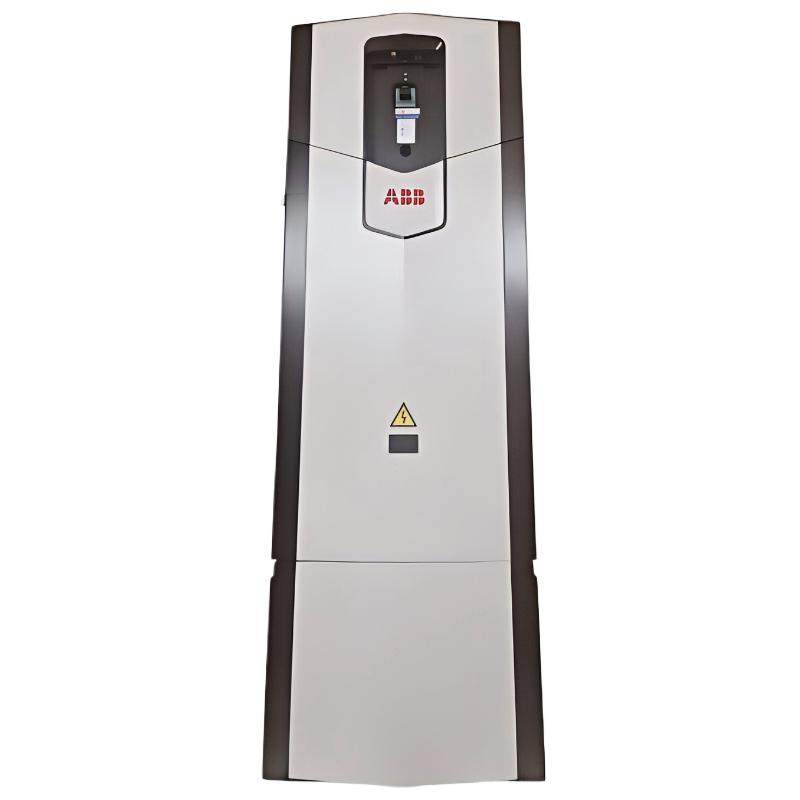

ABB ACS880-01-087A-3 3AUA0000108023 Low-Voltage AC Industrial Wall-Mounted Single Drive
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | ACS880-01-087A-3 |
| Order Number | 3AUA0000108023 |
| Product Type | Low-Voltage AC Industrial Drive |
| Drive Type | Wall-mounted single drive |
| Series | ACS880 Industrial Drives |
| Input Voltage | Three-phase 200–240 V AC |
| Input Frequency | 50/60 Hz |
| Rated Output Current | 87 A |
| Rated Power | Approx. 22 kW (Heavy Duty) / 30 kW (Normal Duty) |
| Output Voltage | 0 to input voltage |
| Output Frequency | 0–500 Hz |
| Control Method | Direct Torque Control (DTC) |
| Overload Capacity | 150% (Heavy Duty), 110% (Normal Duty) |
| Protection Class | IP21 (standard), optional IP55 |
| Cooling Method | Forced air cooling |
| Communication Interface | Built-in fieldbus support (Modbus RTU), expandable |
| I/O Interfaces | Digital inputs/outputs, analog inputs/outputs |
| Safety Features | Safe Torque Off (STO) as standard |
| Control Panel | Detachable control panel |
| Application Programming | Adaptive programming supported |
| Mounting Method | Wall-mounted |
| Operating Temperature | -10 to +50°C (no derating) |
| Storage Temperature | -40 to +70°C |
| Humidity | 5%–95% (non-condensing) |
| Dimensions (W × H × D) | 274 × 732 × 203 mm |
| Weight | 22.8 kg |
FAQ
1. What is the main advantage of the ACS880-01 series drives?
The ACS880-01 series is designed for demanding industrial applications and features ABB’s Direct Torque Control (DTC) technology. This enables precise motor control without the need for encoder feedback in many cases, providing high performance, fast response, and accurate torque and speed control across a wide range of applications.
2. What types of applications is this drive suitable for?
This drive is suitable for a wide variety of industrial applications, including conveyors, mixers, compressors, pumps, and fans. It is particularly useful in processes that require high dynamic performance and reliable operation under varying load conditions.
3. Does the drive support advanced motor control?
Yes, it uses DTC (Direct Torque Control), which allows for highly accurate torque and speed regulation. This control method improves motor efficiency, reduces mechanical stress, and enhances overall system performance compared to traditional V/f control.
4. What communication options are available?
The drive includes built-in Modbus RTU communication via RS-485 and supports additional industrial communication protocols through optional fieldbus adapters. This allows seamless integration with PLCs, DCS, and SCADA systems.
5. What safety features are included?
The ACS880-01 comes with Safe Torque Off (STO) as a standard feature. STO ensures that the motor can be safely stopped without cutting power to the drive, which is essential for maintenance and emergency stop functions in industrial environments.
6. Is the drive easy to configure and program?
Yes, it supports adaptive programming, allowing users to customize control logic directly within the drive. Combined with an intuitive control panel, this simplifies setup, reduces the need for external controllers, and improves flexibility.
7. How does the drive handle overload conditions?
The drive can handle 150% overload in heavy-duty applications and 110% in normal-duty mode. This capability ensures reliable operation during transient load conditions such as startup or sudden load changes.
8. Can the ACS880-01 be expanded or customized?
Yes, the drive supports various expansion modules for additional I/O, communication protocols, and functional enhancements. This makes it highly adaptable to different industrial system requirements and future upgrades.
ABB ACS880-01-087A-3 3AUA0000108023 Low-Voltage AC Industrial Wall-Mounted Single Drive is in stock. Please contact us for a quick quote and competitive pricing.
