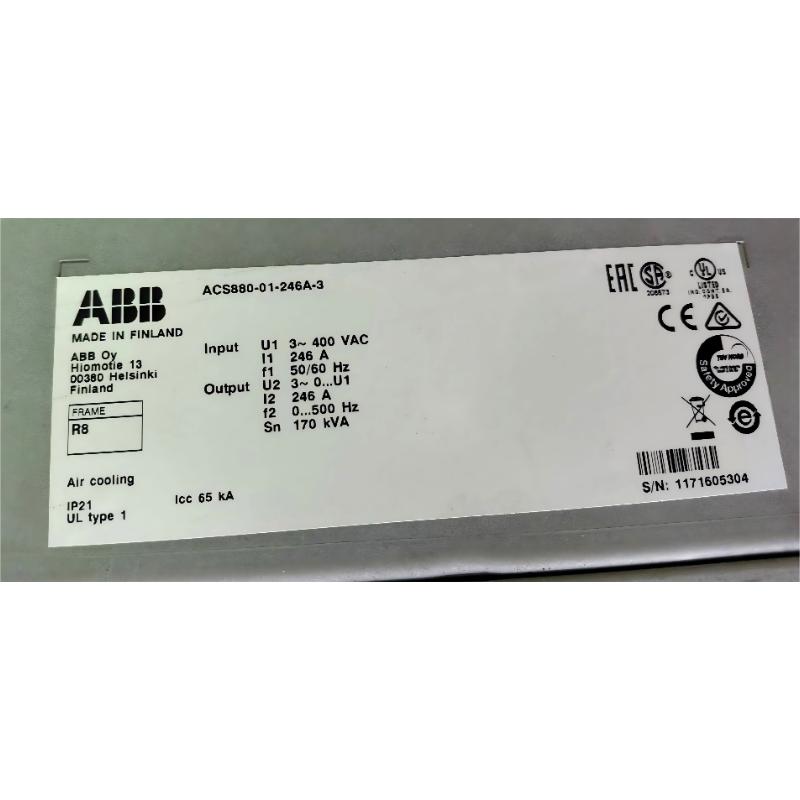

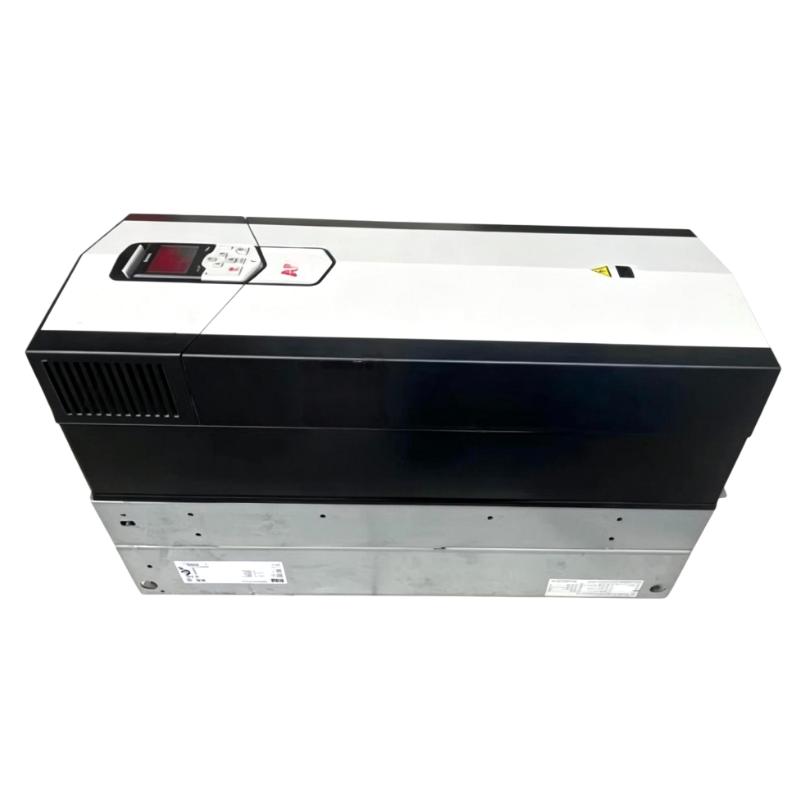

1. What industrial applications is the ACS880-01-246A-3 Variable Frequency Drive suitable for?

The ACS880-01-246A-3 is a high-performance industrial variable frequency drive designed for applications that require powerful motor control, high reliability, and stable operation under demanding conditions. It is commonly used in heavy-duty industrial equipment such as large pumps, industrial fans, compressors, conveyors, crushers, mixers, extruders, mining machinery, metal processing systems, water treatment equipment, and continuous production lines.

With ABB’s advanced Direct Torque Control (DTC) technology, the drive provides fast torque response and accurate speed regulation without requiring encoder feedback in many applications. It can maintain smooth motor operation during acceleration, deceleration, and sudden load changes, making it suitable for processes where stable torque control is essential. The drive also improves energy efficiency by adjusting motor speed according to actual process requirements, reducing unnecessary power consumption and mechanical stress. This helps increase equipment availability, reduce maintenance requirements, and improve the overall efficiency of industrial automation systems.

2. What commissioning procedures should be completed before starting the ACS880-01-246A-3?

Before the drive is placed into operation, a complete commissioning procedure should be performed to ensure safe and reliable performance. First, technicians should verify that the incoming power supply meets the required voltage and frequency specifications. All power connections, motor wiring, control circuits, and grounding connections must be inspected carefully to ensure correct installation.

After electrical verification, the motor parameters should be entered accurately into the drive configuration. Important information such as rated motor voltage, rated current, frequency, speed, and power must match the actual motor nameplate data. Performing a Motor Identification Run (ID Run) is strongly recommended because it allows the drive to create an accurate motor model and optimize control performance.

During commissioning, the motor should first be tested without load to verify rotation direction, control response, and operating status. The load should then be increased gradually while monitoring current, temperature, frequency, and diagnostic information. Proper commissioning ensures stable operation and minimizes the risk of unexpected faults during production.

3. What are the common causes of overcurrent faults in the ACS880-01-246A-3?

Overcurrent faults occur when the output current exceeds the protection limit of the drive. Common causes include excessive mechanical load, motor blockage, damaged motor cables, incorrect parameter settings, short circuits, or unsuitable acceleration and deceleration settings.

For heavy-duty equipment with high inertia, such as crushers, conveyors, and large ventilation systems, the motor may require significant torque during startup. If acceleration time is too short, the current demand can increase rapidly and trigger overcurrent protection. Mechanical problems such as bearing damage, gearbox failure, shaft misalignment, or increased friction can also create abnormal motor loading.

To troubleshoot the problem, technicians should inspect the mechanical system, check motor insulation, verify cable conditions, and confirm that all motor parameters match the actual motor specifications. Adjusting acceleration settings, optimizing current limits, and repeating the motor identification process can improve system performance and reduce repeated overcurrent alarms.

4. How can the ACS880-01-246A-3 maintain reliable operation in harsh industrial environments?

Maintaining reliable operation requires proper installation, regular maintenance, and continuous monitoring of operating conditions. The cooling system should be inspected regularly to ensure that cooling fans operate correctly and that airflow channels remain clean. Dust, oil, and industrial contaminants should be removed to prevent reduced cooling efficiency and excessive thermal stress on internal components.

Electrical terminals and connections should also be checked periodically because loose connections may increase resistance and generate additional heat. Operators should monitor important operating parameters such as output current, internal temperature, DC bus status, and fault history using the drive’s diagnostic functions.

For industrial systems operating continuously, preventive maintenance should include cleaning, electrical inspections, cooling system checks, and operating data analysis. Early identification of abnormal conditions helps reduce unexpected downtime, improve equipment availability, and extend the service life of the drive system.

5. Why does the motor experience unstable speed or insufficient torque during operation?

Unstable speed control or insufficient torque output can result from incorrect motor parameters, incomplete motor identification, improper control settings, unstable power supply, or mechanical problems in the driven equipment.

If the motor model stored inside the drive does not accurately match the actual motor characteristics, the control algorithm may not provide optimal performance, especially during low-speed operation or rapid load changes. Verifying motor parameters and performing a new Motor Identification Run can often improve control accuracy.

Mechanical conditions should also be inspected because worn bearings, gearbox problems, shaft misalignment, or uneven loads can directly affect motor performance. For applications requiring precise speed control or high starting torque, users can optimize speed controller settings, torque parameters, and acceleration profiles to achieve smoother operation and better load response.

6. How can the ACS880-01-246A-3 communicate with PLC, DCS, and SCADA systems?

The ACS880-01-246A-3 supports integration with industrial automation systems through optional communication modules. It can communicate with PLCs, DCS systems, SCADA platforms, and other industrial controllers using common industrial communication protocols.

During integration, engineers need to configure communication settings correctly, including network address, communication speed, data mapping, and control commands. Once communication is established, the automation system can remotely control motor operation, adjust speed references, monitor operating conditions, read alarms, and collect performance data.

For reliable communication in industrial environments, shielded communication cables should be used and installed separately from power cables to reduce electromagnetic interference. Proper grounding and correct network configuration are also important to maintain stable communication performance and ensure reliable automation system operation.

7. What should be checked if the ACS880-01-246A-3 frequently generates overheating alarms?

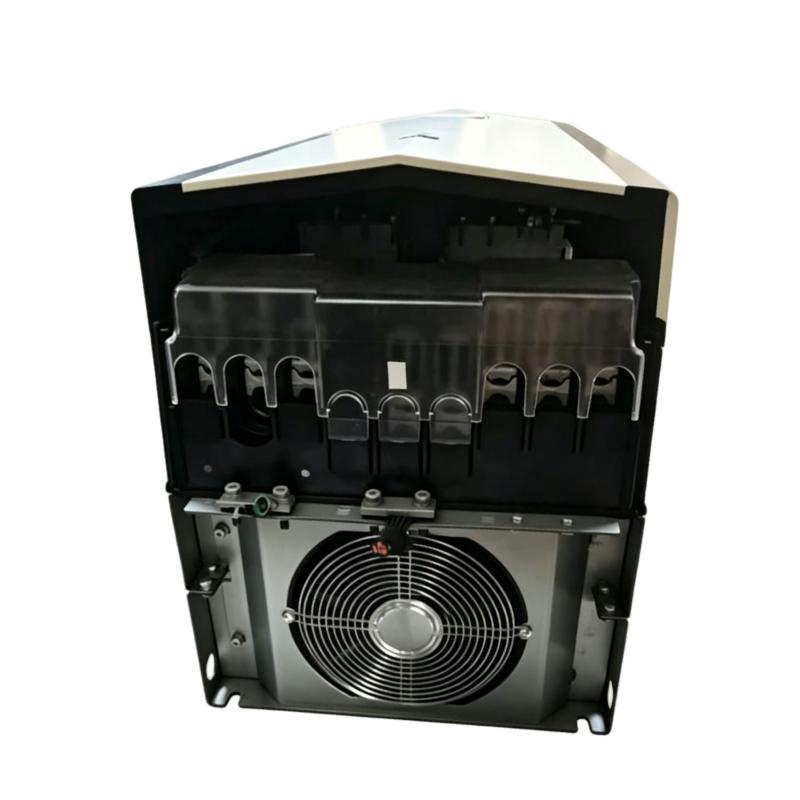

Frequent overheating alarms usually indicate insufficient cooling, excessive load conditions, or unsuitable installation environments. The first inspection should focus on the cooling system, including fan operation, airflow conditions, and possible dust accumulation on heat dissipation components.

The electrical cabinet environment should also be evaluated to ensure sufficient ventilation and effective heat removal. In addition, the actual operating current should be analyzed to determine whether the drive is continuously working under heavy load conditions.

High ambient temperature, blocked ventilation paths, and poor maintenance can increase internal temperature and activate protection functions. Regular monitoring of temperature values, cleaning cooling areas, improving ventilation, and optimizing load conditions can significantly reduce overheating problems and improve long-term operational reliability.

8. What installation practices help reduce electromagnetic interference and improve system stability?

Proper electromagnetic compatibility design is essential for reliable operation in industrial environments. Shielded motor cables should be used and correctly grounded to reduce high-frequency electrical noise generated during switching operations.

Power cables, control cables, and communication cables should be routed separately to prevent interference between high-power circuits and sensitive control signals. For applications with long motor cable distances, output reactors or dv/dt filters can be installed to reduce voltage spikes, protect motor insulation, and improve system performance.

A reliable grounding system should be established throughout the installation to improve noise immunity and communication stability. Correct EMC installation practices help prevent false alarms, communication failures, and unexpected shutdowns while improving the overall reliability of industrial automation systems.
