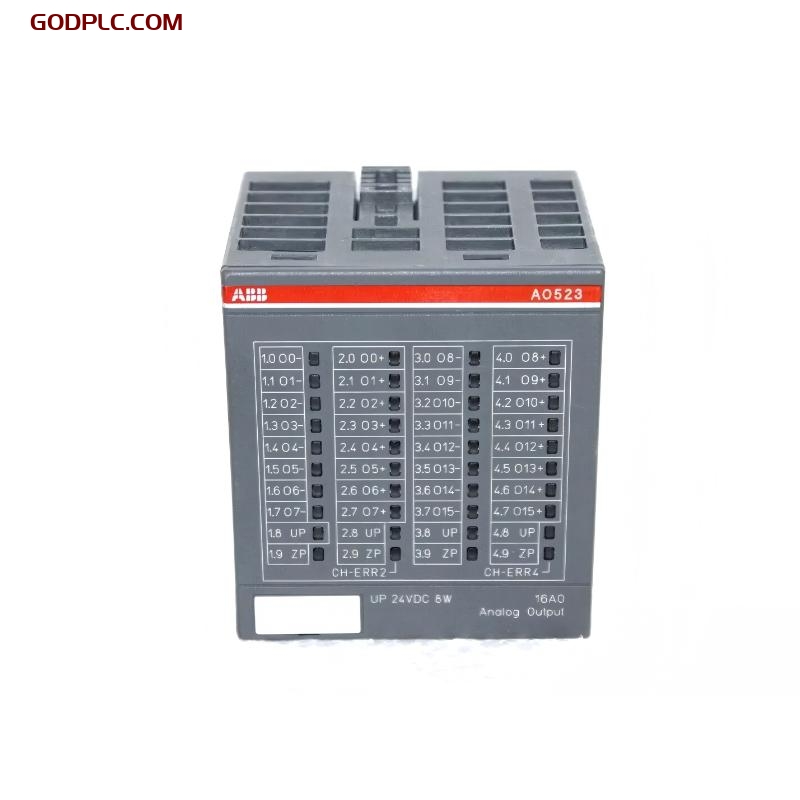

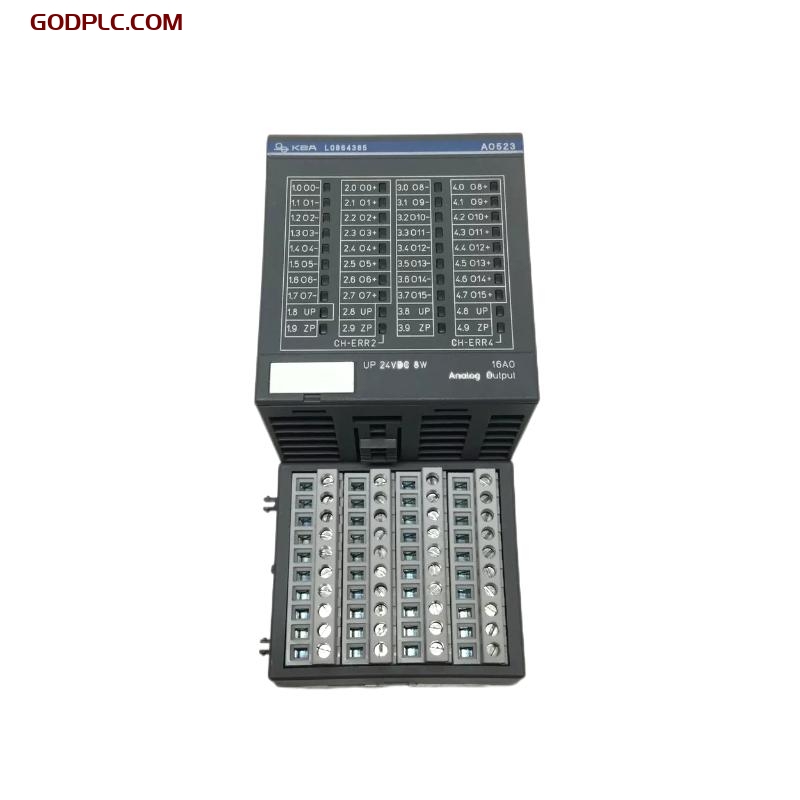

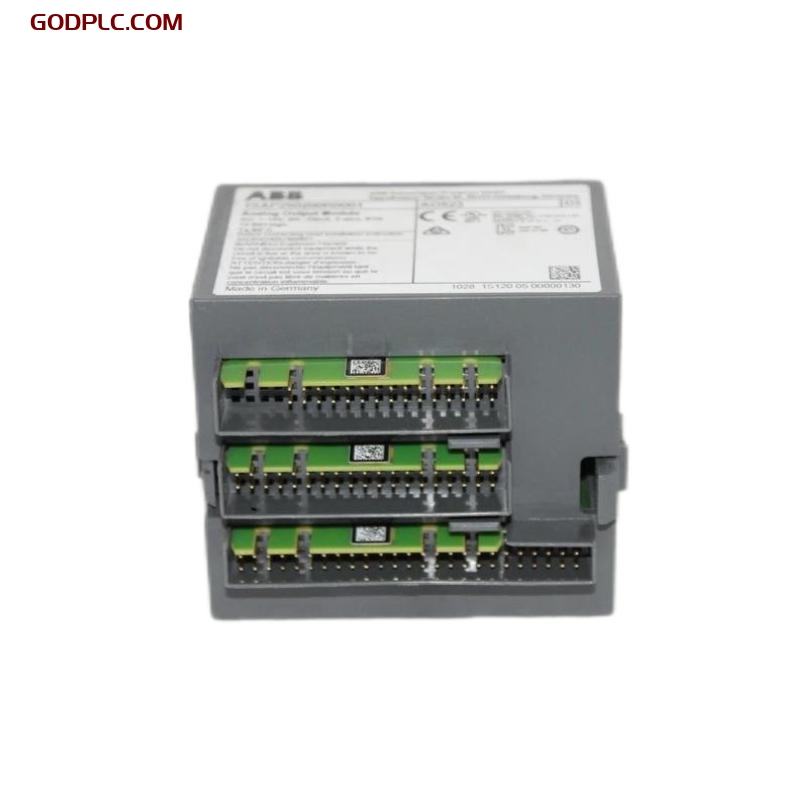

ABB AO523 1SAP250200R0001 Analog Output Module
Product Overview
The ABB AO523 1SAP250200R0001 is a high-precision analog output module designed for ABB’s AC500 series PLCs. This module provides reliable and accurate analog signal output to control field devices such as valves, actuators, and variable speed drives. With 8 individually isolated output channels, flexible voltage and current output ranges, and integrated diagnostics, the AO523 is ideal for demanding industrial automation and process control applications.
Key Features
-
8 Analog Output Channels: Offers multiple output channels for driving analog field devices.
-
Flexible Output Ranges: Supports 0–10 V, ±10 V, 0–20 mA, and 4–20 mA signal ranges.
-
Channel Isolation: Each output channel is galvanically isolated to ensure noise immunity and signal integrity.
-
High Accuracy and Resolution: Provides 12-bit resolution for precise control.
-
Diagnostics Capability: Integrated diagnostics for wire break detection and module status monitoring.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 62 x 76 x 67.5 mm |
| Weight | 0.127 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Channels | 8 (individually isolated) |
| Output Types | Voltage: 0–10 V, ±10 V Current: 0–20 mA, 4–20 mA |
| Resolution | 12-bit |
| Output Load | Voltage: ≥1 kΩ Current: ≤500 Ω |
| Power Supply Voltage | 24 VDC ± 10% |
| Power Consumption | ≤3.5 W |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -25°C to +60°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB AC500 PLC systems |
| Mounting | DIN rail (standard) |
Industry Applications
-
Process Control: Outputs analog signals to control valves, dampers, and actuators in chemical and pharmaceutical plants.
-
Factory Automation: Drives analog actuators and signal converters in manufacturing lines.
-
HVAC & Building Automation: Regulates dampers, variable fans, and temperature control equipment.
-
Water & Wastewater: Controls pump speeds and dosing valves based on analog signal output.
The ABB AO523 1SAP250200R0001 Analog Output Module provides reliable, high-precision analog signal output for a wide range of automation and process control applications. Its modular design, robust channel isolation, and diagnostics features make it a dependable choice for high-performance PLC-based systems.
ABB AO523 1SAP250200R0001 Analog Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
