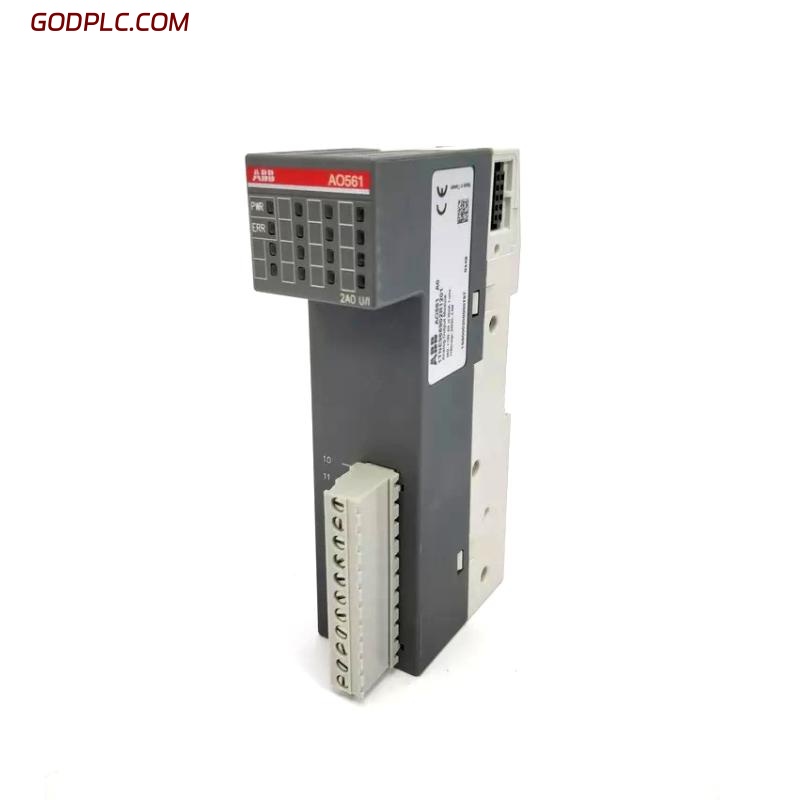

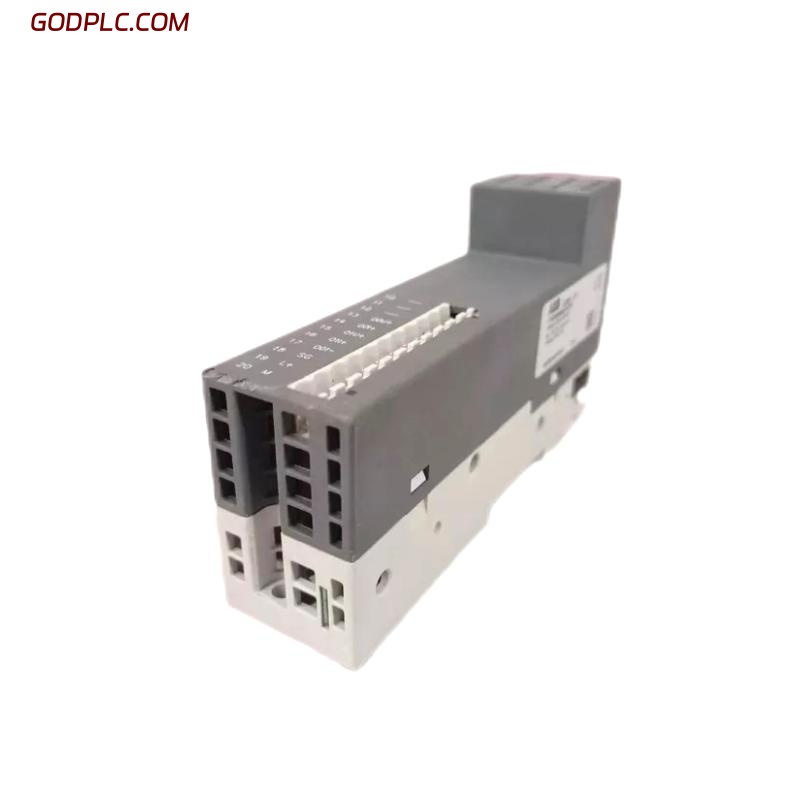

ABB AO561 1TNE968902R1201 Analog Output Module
Product Overview
The ABB AO561 1TNE968902R1201 Analog Output Module is a high-performance output module designed for use with ABB’s AC500 programmable logic controllers (PLCs). This module provides reliable and accurate analog output signals for controlling actuators, valves, and other process elements. It supports multiple output ranges and is ideal for applications requiring precise analog signal generation in industrial automation systems.
Key Features
-
4 Analog Outputs – Delivers high-accuracy analog signals (current or voltage)
-
Flexible Signal Ranges – Supports 0…20 mA, 4…20 mA, ±10 V output types
-
Galvanic Isolation – Ensures signal integrity and system protection
-
Diagnostic Indicators – Integrated LEDs for easy status monitoring
-
Seamless Integration – Optimized for ABB AC500 PLC systems
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 135 x 74 x 34 mm |
| Weight | 0.118 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Channels | 4 analog outputs |
| Output Signal Types | 0…20 mA, 4…20 mA, ±10 V |
| Output Resolution | 12-bit |
| Load Resistance | ≤ 500 Ω (current), ≥ 1 kΩ (voltage) |
| Power Supply | Supplied via backplane from CPU module |
| Isolation | Galvanically isolated from logic and other channels |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -25°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Relative Humidity | 5%–95%, non-condensing |
| Protection Class | IP20 |
| Vibration/Shock | Conforms to IEC/EN 61131-2 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform Support | ABB AC500 Series PLCs |
| Configuration Tool | PS501 Control Builder |
| Installation | DIN-rail mountable (modular structure) |
Industry Applications
-
Process Automation – For continuous control in industries like oil & gas and water treatment
-
Factory Automation – Facilitates precise control of machinery and actuators
-
HVAC Systems – Controls analog devices such as dampers and valves
-
Energy and Utilities – Analog signal control in energy distribution and grid systems
-
Pulp & Paper – Controls processing elements requiring smooth analog modulation
The ABB AO561 1TNE968902R1201 Analog Output Module delivers high signal fidelity, robust isolation, and flexible output range options—making it an excellent choice for demanding industrial applications that rely on accurate analog control.
