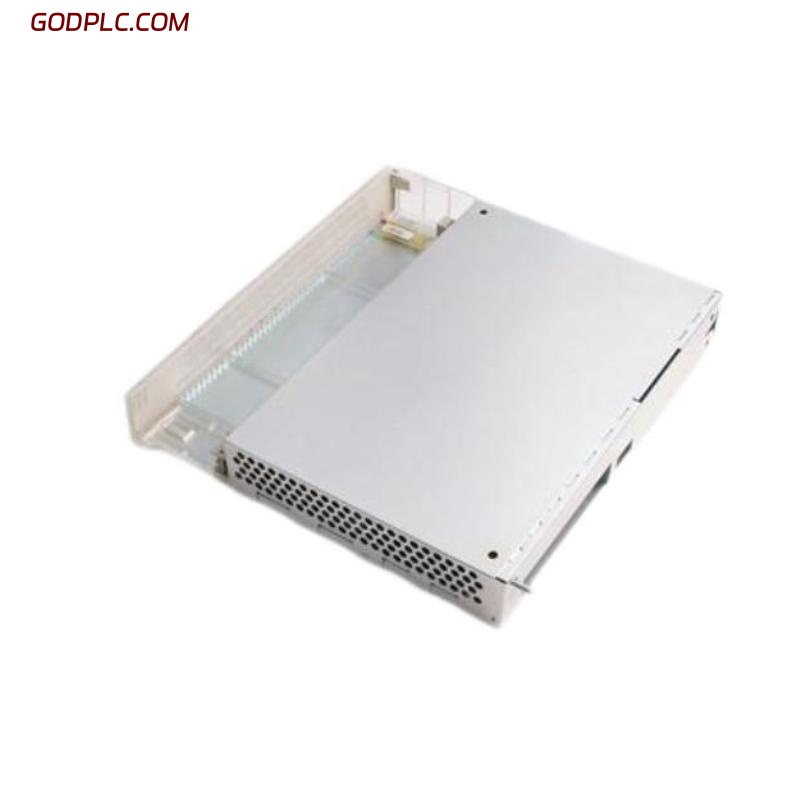

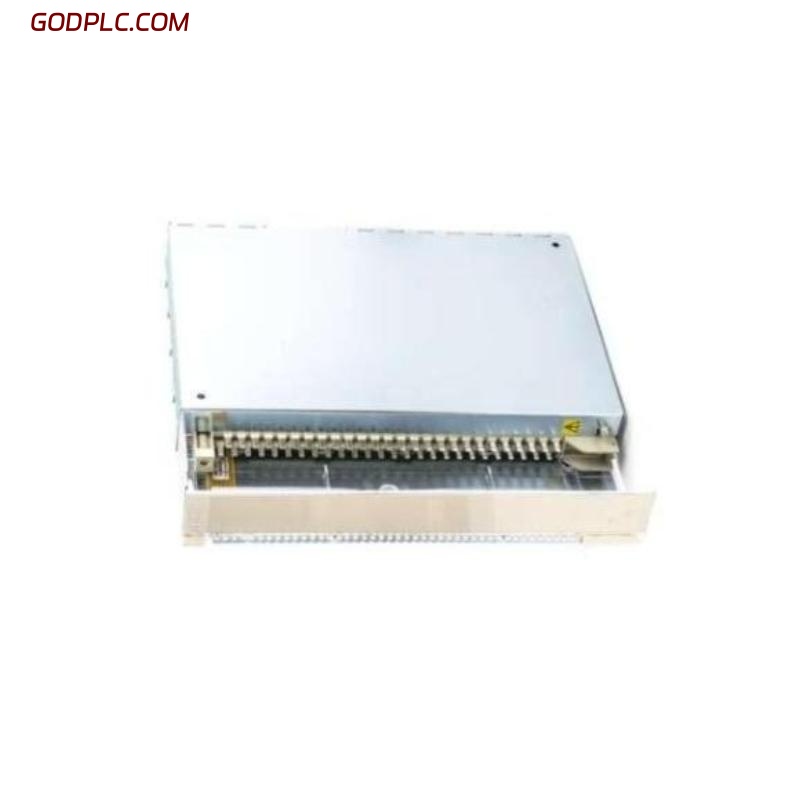

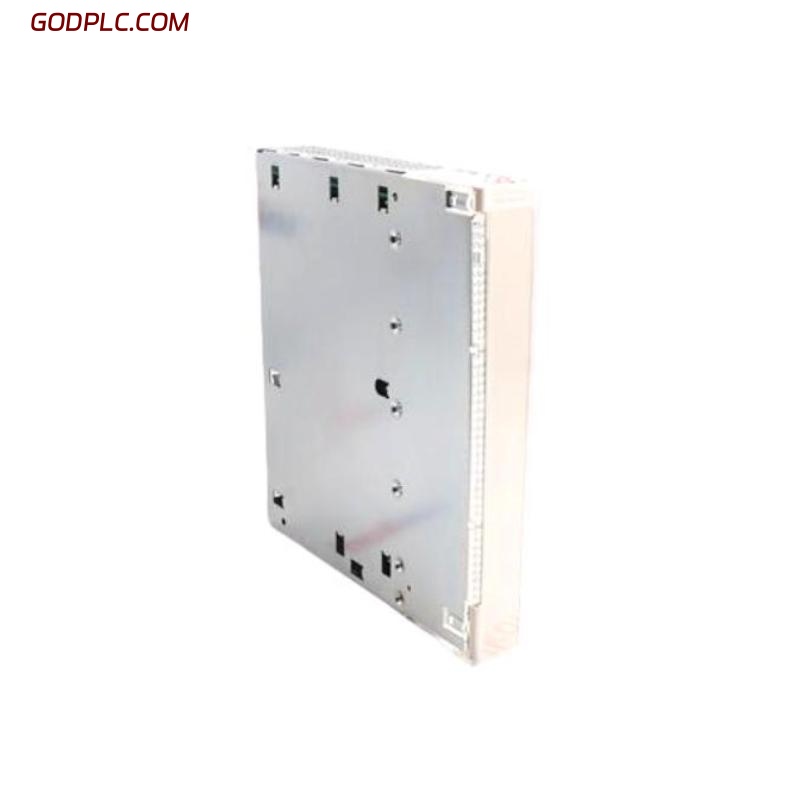

ABB AO610 3BHT300008R1 Analog Output Module
Product Overview
The ABB AO610 3BHT300008R1 is a precision analog output module designed for use in ABB’s control systems. It provides multiple analog output channels for process automation tasks such as valve positioning, actuator control, and analog signal transmission to external devices. The AO610 ensures high signal integrity, stable output, and seamless integration with the ABB AC 800M series and related systems.
Key Features
-
8 Analog Output Channels – Designed for process control applications
-
High Accuracy and Stability – Ensures consistent signal output
-
Flexible Output Range – Supports both current and voltage outputs
-
Seamless Integration – Compatible with ABB AC 800M control systems
-
Diagnostics and Monitoring – Built-in channel diagnostics improve reliability
-
DIN-Rail Mountable – Simplified installation in standard cabinets
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 100 x 50 mm |
| Weight | 0.5 kg |
3.2 General Specifications
| Item | Specification |
|---|---|
| Module Type | Analog Output Module |
| Part Number | AO610 3BHT300008R1 |
| Channels | 8 Analog Outputs |
| Output Type | Configurable: Current or Voltage |
| System Compatibility | ABB AC 800M, Control Builder M |
3.3 Electrical Specifications
| Item | Specification |
|---|---|
| Output Current Range | 0–20 mA / 4–20 mA |
| Output Voltage Range | 0–10 V (depending on configuration) |
| Load Resistance (Current) | Max. 750 Ω |
| Load Resistance (Voltage) | Min. 1 kΩ |
| Resolution | 12 bits |
| Accuracy | ±0.1% of full scale |
| Isolation | Channel-to-bus and channel-to-channel isolation |
3.4 Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5%–95% RH, non-condensing |
| Protection Class | IP20 (when installed in enclosure) |
Industry Applications
-
Power and Utilities – Control of dampers, valves, and actuators
-
Oil and Gas – Analog signal control in distributed systems
-
Chemical Processing – Output for process regulation and feedback loops
-
Pharmaceuticals – Precision dosing and environmental controls
-
Water and Wastewater – Control of pumps and valves in treatment systems
The ABB AO610 3BHT300008R1 provides reliable, precise analog outputs, making it a trusted component in demanding industrial automation systems.
ABB AO610 3BHT300008R1 Analog Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
