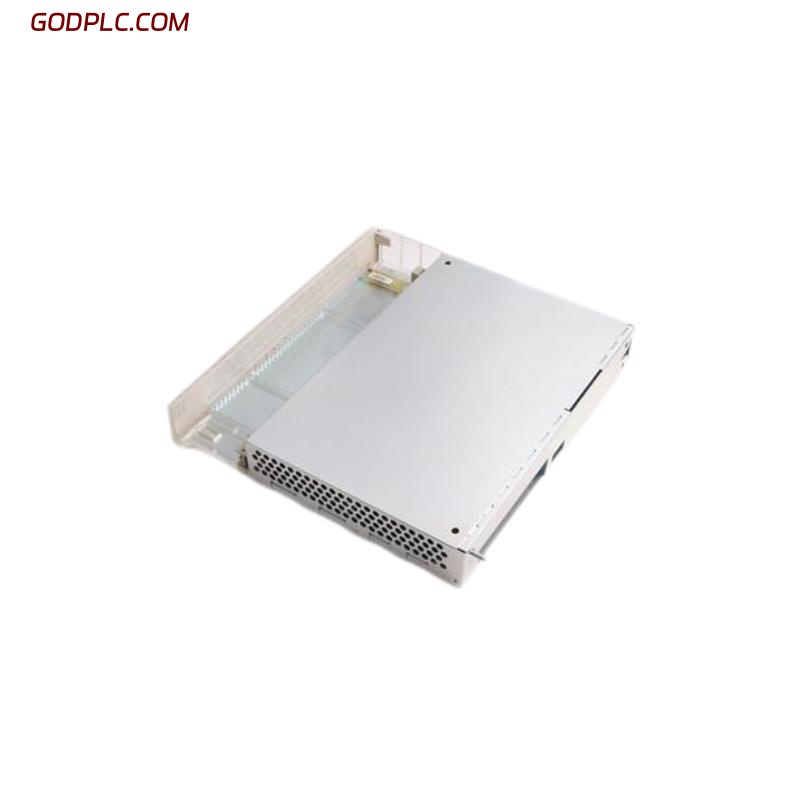

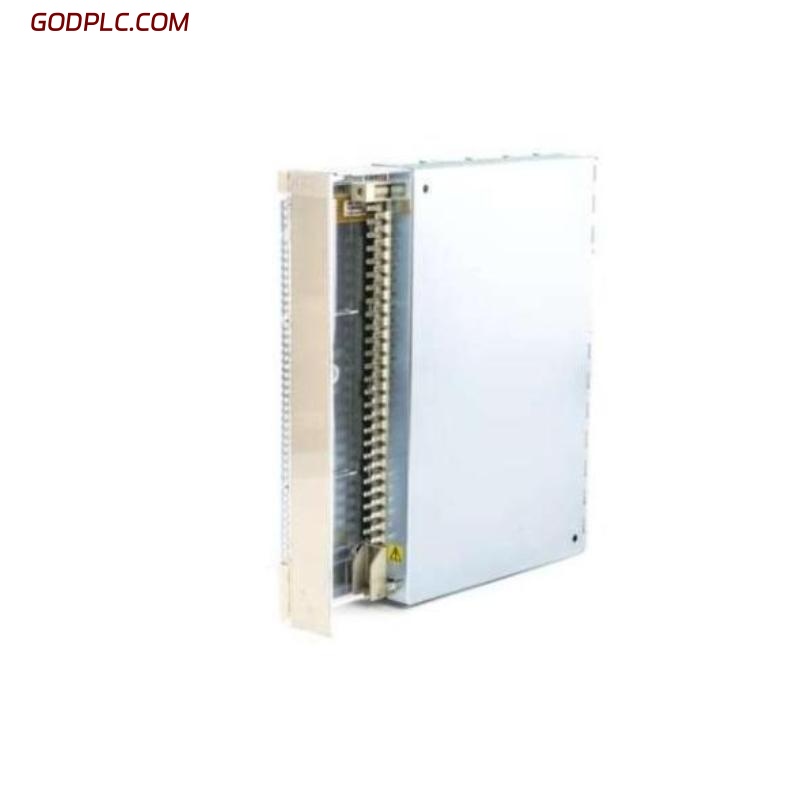

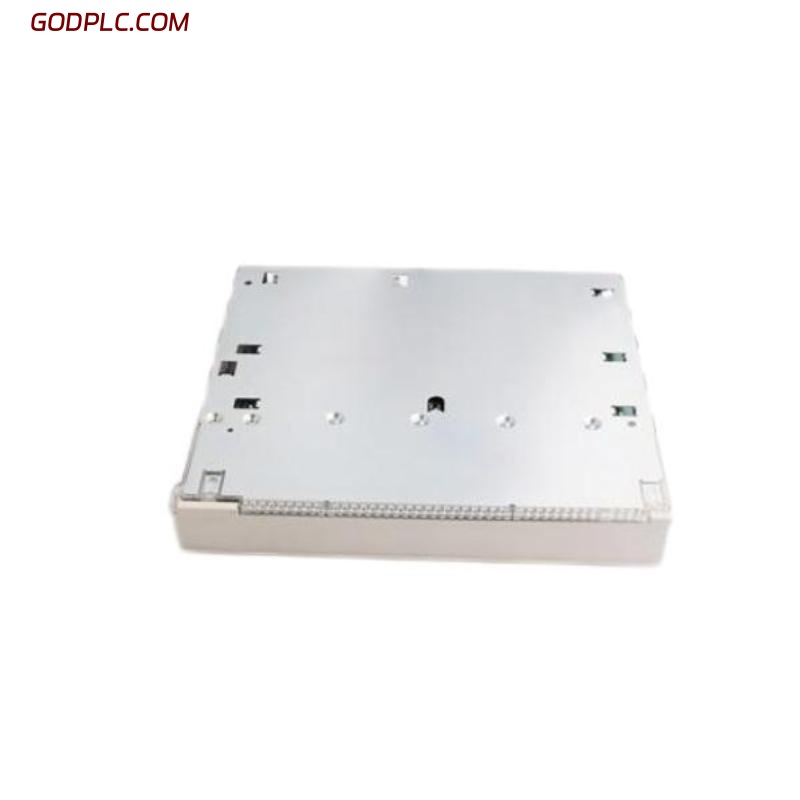

ABB AO610 3BSE018184R1 Analog Output Module
Product Overview
The ABB AO610 3BSE018184R1 is an advanced analog output module designed for the ABB AC 800M control system. It features 8 independent analog output channels that support both current and voltage signal ranges, ideal for delivering precise control signals to actuators, drives, and instrumentation in various industrial automation applications. The module provides high accuracy, robust performance, and integrated diagnostics.
Key Features
-
8 Isolated Analog Output Channels
-
Selectable Output Type: Current (0/4–20 mA) or Voltage (0–10 V)
-
High Signal Accuracy and Resolution
-
Individually Configurable Channels
-
Electrical Isolation Between Channels and System
-
Comprehensive Diagnostic Features
-
Fully Compatible with ABB AC 800M Systems
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 x 100 x 50 mm |
| Weight | 0.5kg |
3.2 General Specifications
| Item | Specification |
|---|---|
| Module Type | Analog Output Module |
| Part Number | AO610 3BSE018184R1 |
| Channels | 8 Analog Outputs |
| Output Type | Configurable per channel |
| System Compatibility | ABB AC 800M, Control Builder M |
3.3 Electrical Specifications
| Item | Specification |
|---|---|
| Output Current Range | 0–20 mA / 4–20 mA |
| Output Voltage Range | 0–10 V |
| Load Resistance (Current) | Max. 750 Ω |
| Load Resistance (Voltage) | Min. 1 kΩ |
| Resolution | 12 bits |
| Accuracy | ±0.1% of full scale |
| Isolation | Galvanic isolation between channels and system bus |
3.4 Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5%–95% RH, non-condensing |
| Protection Class | IP20 (when installed in enclosure) |
Industry Applications
-
Energy and Power Generation – Fine control of regulators and turbines
-
Oil and Gas – Process control in upstream and downstream operations
-
Chemicals and Petrochemicals – Output signal control for reactors and distillation
-
Pharmaceutical Manufacturing – Precision control of equipment and environments
-
Water Treatment – Actuator and dosing pump control
The ABB AO610 3BSE018184R1 provides precise and reliable analog signal output, making it an essential module in high-performance control systems for demanding industrial environments.
ABB AO610 3BSE018184R1 Analog Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
