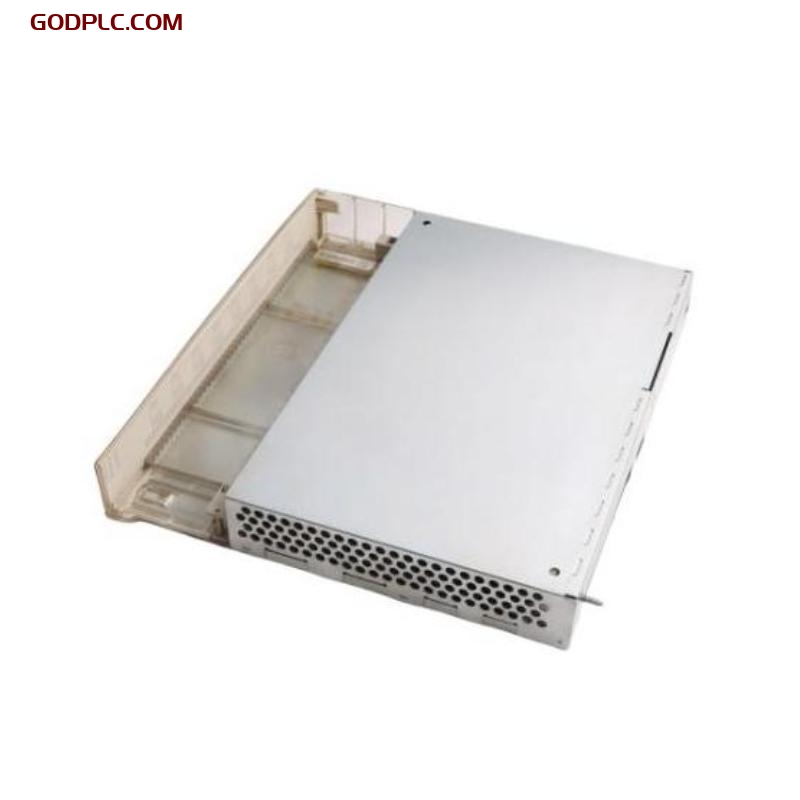

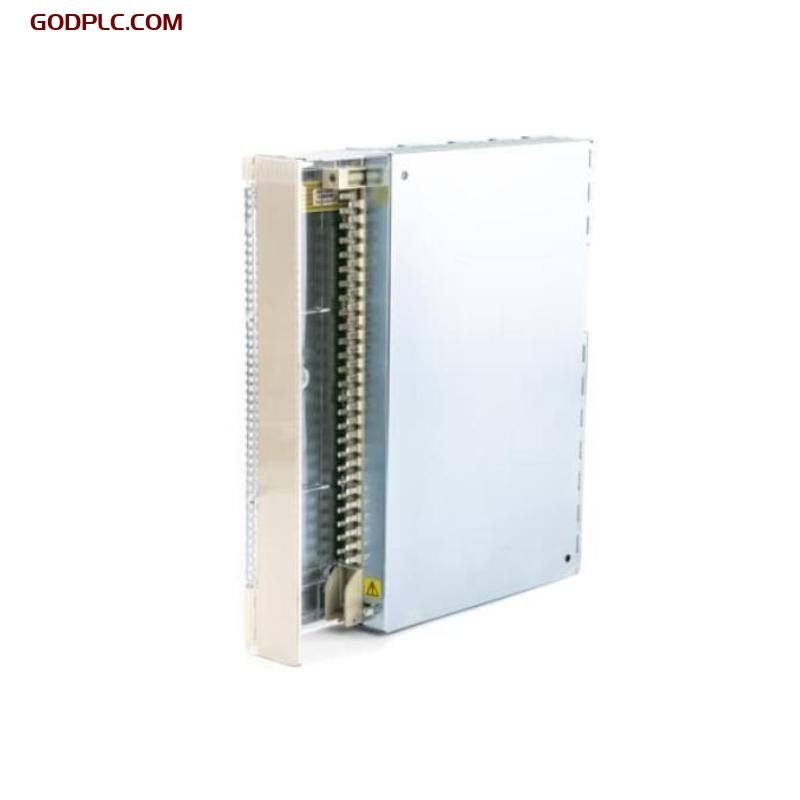

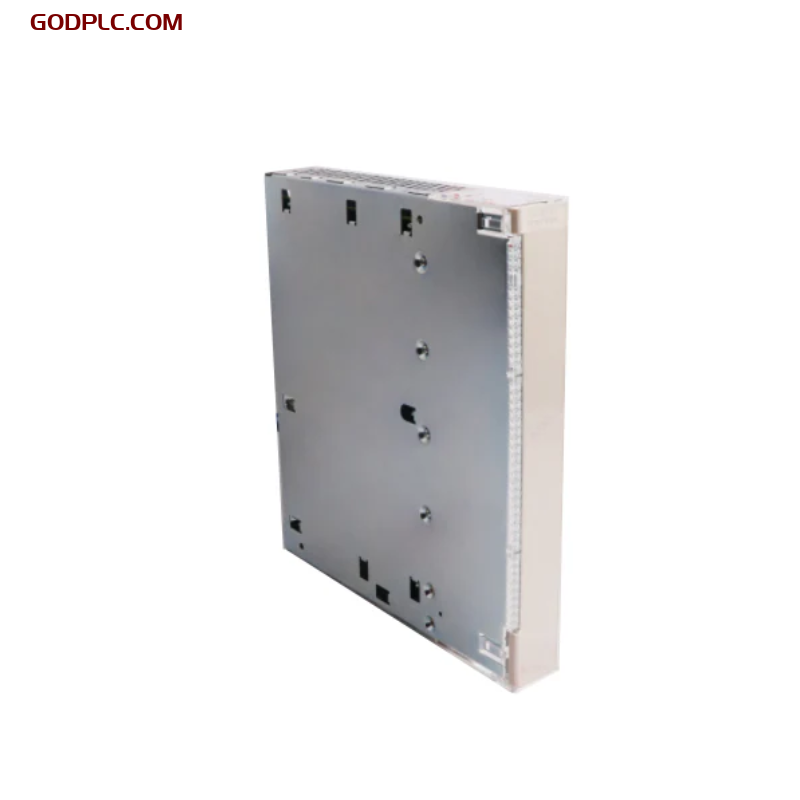

ABB AO650 3BHT300051R1 – Analog Output Module
Product Overview
The ABB AO650 3BHT300051R1 is a high-precision analog output module designed for use in ABB’s automation and control systems. It provides reliable, accurate output signals for controlling field devices such as actuators, valves, and variable speed drives. The module ensures seamless communication between the control system and connected process equipment, delivering robust and precise control over a variety of industrial applications.
Key Features
-
Multiple Output Channels – Typically supports up to 8 output channels for controlling multiple field devices simultaneously
-
High Accuracy – Provides precise analog signals (4–20 mA, 0–10 V) for accurate control of industrial processes
-
Signal Integrity – Ensures stable output with high-resolution conversion (typically 12-bit or higher)
-
Galvanic Isolation – Isolated outputs to protect the system from electrical faults and disturbances
-
Configurable Scaling – Flexible output scaling to accommodate different system requirements
-
Robust Design – Engineered for reliable performance in industrial environments with high resistance to temperature, vibration, and electrical noise
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 252 x 273 x 40 mm |
| Weight | 1.485 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Output Type | Analog (current or voltage) |
| Output Range | 4–20 mA, 0–10 V |
| Output Resolution | 12-bit or higher |
| Output Channels | Typically 8 channels |
| Output Impedance | ≥ 1 kΩ (current); < 100 Ω (voltage) |
| Isolation Voltage | ≥ 500 V between outputs and system |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Vibration | IEC 60068-2-6 compliant |
| Protection | IP20 (module only) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB Symphony, INFI 90, and related systems |
| Mounting | Rack-mounted or panel-mounted, depending on system configuration |
Industry Applications
-
Power Generation – Controls actuators, valves, and control systems for turbine regulation and monitoring
-
Oil & Gas – Operates field equipment like pumps and valves in hazardous environments
-
Water & Wastewater – Manages motor control, valve actuators, and flow regulation systems
-
Chemical Processing – Provides precise control for dosing systems and temperature regulation
-
Manufacturing Automation – Interfaces with servo drives, actuators, and other automation devices for efficient process control
The ABB AO650 3BHT300051R1 Analog Output Module offers precise and reliable analog output control for demanding industrial applications. With its high resolution, flexible signal scaling, and rugged construction, it ensures optimal performance in process control systems.
ABB AO650 3BHT300051R1 Analog Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
