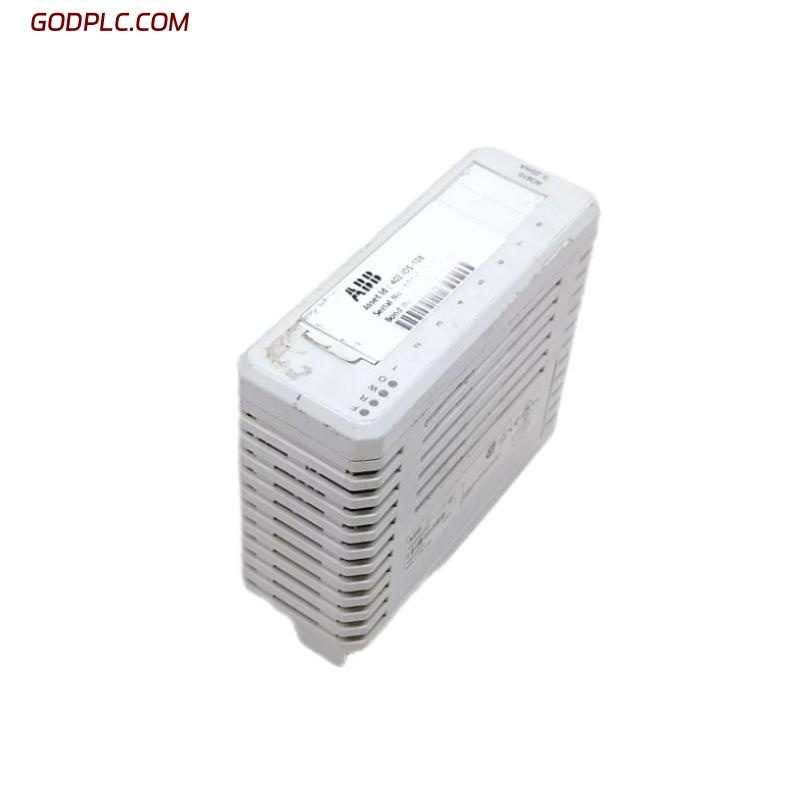

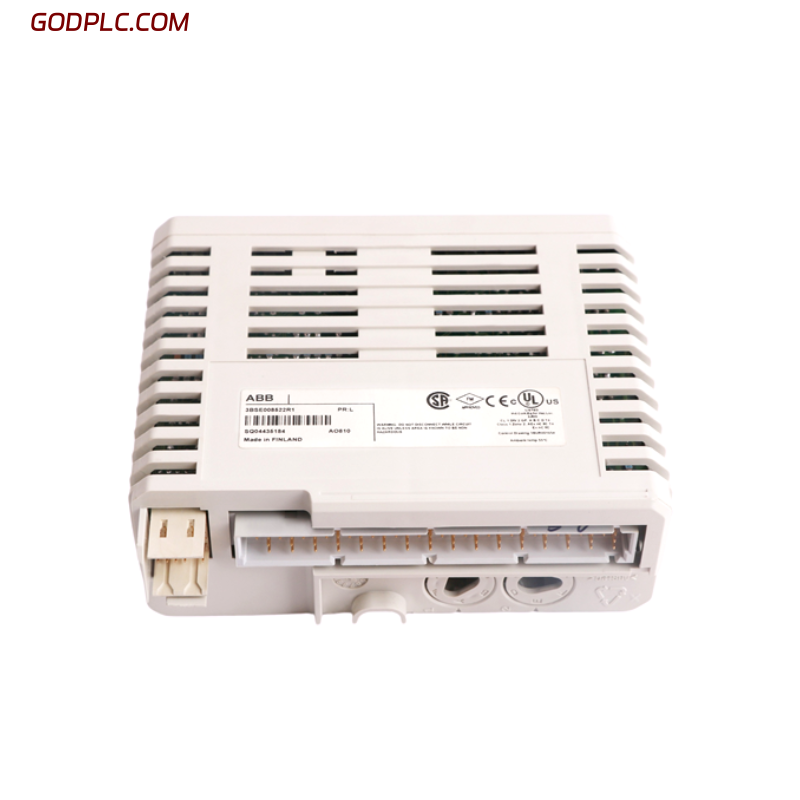

ABB AO810 3BSE008522R1 Analog Output Module
Product Overview
The ABB AO810 3BSE008522R1 Analog Output Module is designed for accurate and reliable analog signal output in automated systems. Ideal for integration into ABB’s industrial control systems, this module offers exceptional performance in controlling processes that require precise analog outputs. Its high-quality design ensures stable operation in demanding environments, making it a trusted solution for applications in manufacturing, process industries, and other automation fields.
Key Features
-
High Precision Output – Provides accurate and stable analog output for precise control of machinery and processes
-
Wide Output Range – Supports a broad range of output signals to accommodate various system requirements
-
Flexible Integration – Compatible with ABB control platforms, allowing for easy system integration and expansion
-
Built-In Diagnostics – Features built-in diagnostic capabilities for enhanced troubleshooting and maintenance
-
Rugged Design – Engineered to withstand harsh industrial conditions, including temperature fluctuations and vibrations
-
Energy Efficient – Designed to minimize power consumption, helping to reduce overall operational costs
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 102 x 119 x 45 mm |
| Weight | 0.184 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | 24 VDC (nominal) |
| Output Signal Range | 0-10 VDC, 4-20 mA (configurable) |
| Output Accuracy | ±0.1% of full scale |
| Power Consumption | 3 W (max) |
| Output Channels | 8 channels (individually configurable) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration Resistance | IEC 60068-2-6 compliant |
| Protection Rating | IP20 (module is designed for installation within a control cabinet) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Communication Protocol | Modbus, Profibus, or Ethernet communication options |
| System Integration | Fully compatible with ABB’s 800xA, S800, and other modular control systems |
| Expansion Capabilities | Can be expanded with additional ABB modules, I/O devices, and sensors |
Industry Applications
-
Manufacturing – Ideal for controlling automated machines and production processes with precise analog output requirements
-
Energy – Used in power generation plants for controlling turbine speeds, generator outputs, and other critical equipment
-
Oil & Gas – Provides reliable signal output for process control in upstream and downstream operations
-
Automation – Facilitates the control of HVAC systems, lighting, and other automated infrastructure
-
Process Industries – Applied in food and beverage, chemical, and pharmaceutical manufacturing to control and regulate process flows
The ABB AO810 3BSE008522R1 Analog Output Module is a versatile and reliable choice for applications where precise control is required. Its high-performance features and compatibility with ABB’s control systems ensure that it meets the demanding needs of industrial automation. Whether for critical process control or general industrial applications, this module delivers outstanding accuracy, stability, and ease of integration.
ABB AO810 3BSE008522R1 Analog Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
