1. Product Overview

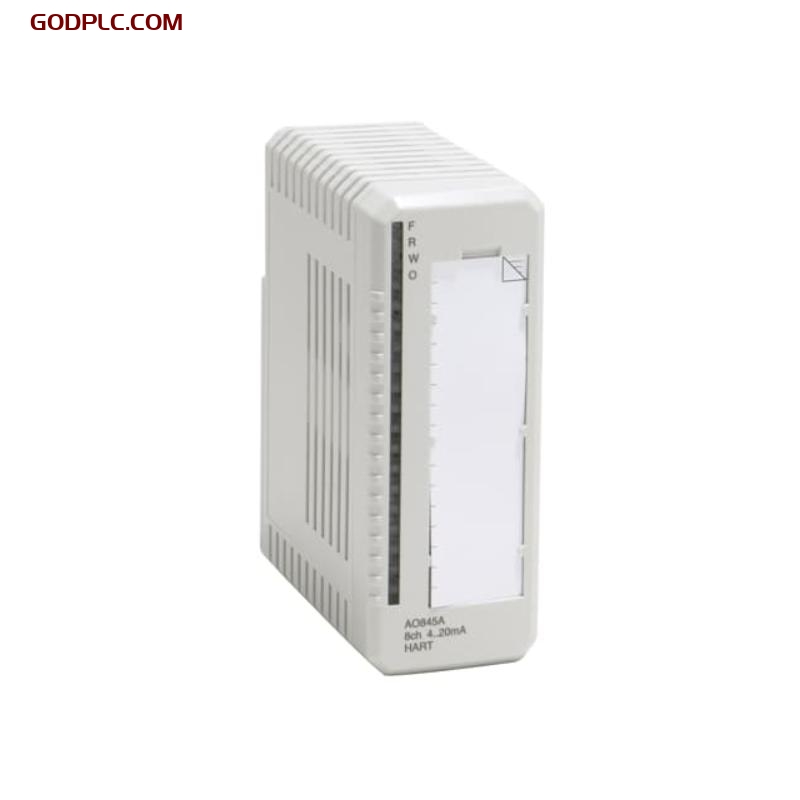

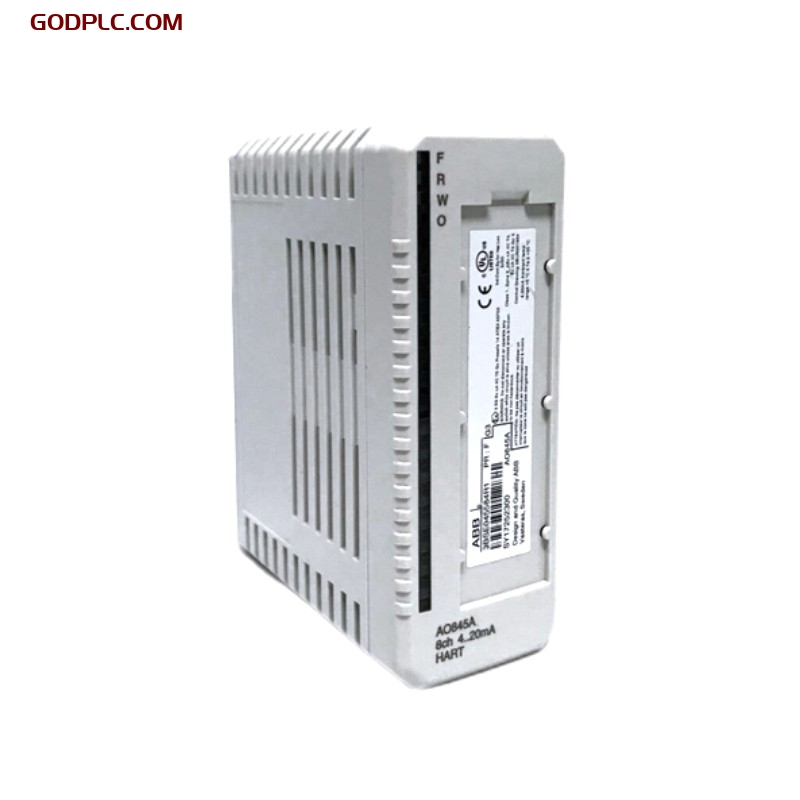

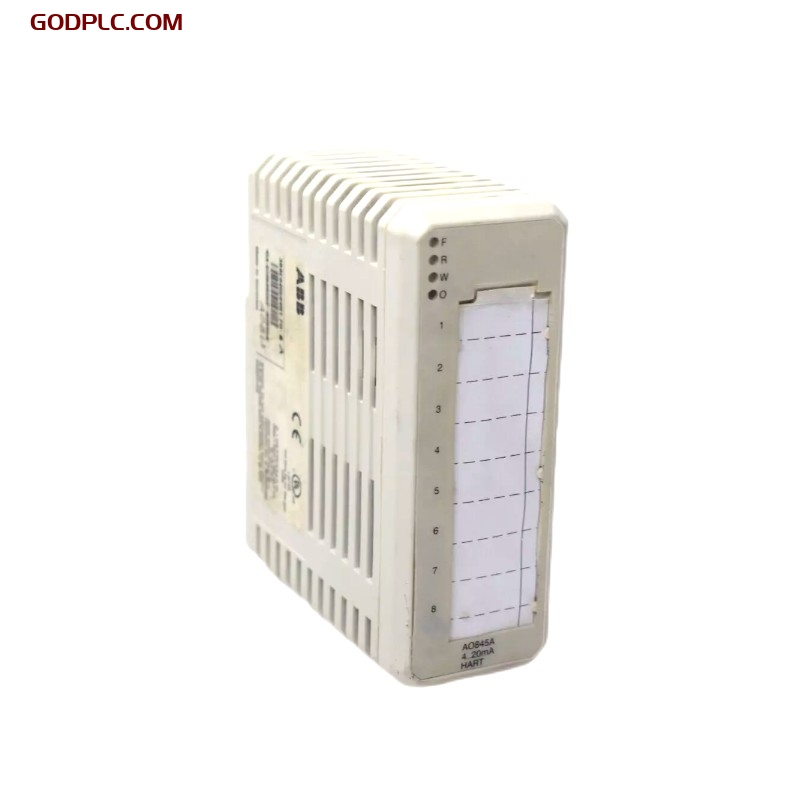

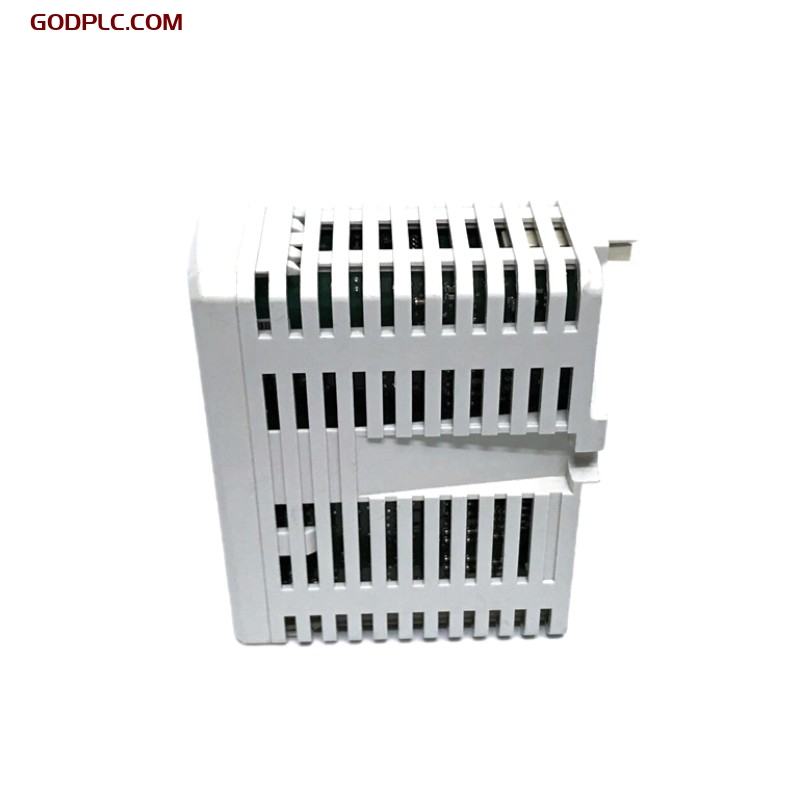

The ABB AO845A 3BSE045584R1 Analog Output Module is designed for single or redundant applications, offering reliable and precise analog output capabilities. With 8 unipolar analog output channels, this module provides high performance in a wide range of industrial automation settings. It features comprehensive diagnostics, ensuring optimal operation and easy maintenance. The module’s robust design makes it suitable for demanding environments, including hazardous locations and marine applications.
2. Key Features
- 8 Unipolar Analog Output Channels: Supports 4…20 mA output signals.
- High Accuracy: Resolution of 12 bits with a maximum error of 0.1%.
- Isolation: Groupwise isolated from ground for enhanced safety.
- Self-Diagnostics: Continuous monitoring with detailed diagnostic information available via front LEDs and status indications.
- HART Pass-Through Communication: Allows seamless integration into existing systems.
- Compact Design: Suitable for compact MTUs and various mounting configurations.
- Wide Operating Range: Operable in temperatures from -40 to +70°C (-40 to +158°F).
- Robust Construction: Rated insulation voltage of 50 V and dielectric test voltage of 500 V AC.
- Safety Certifications: Compliant with international standards such as EN 61010-1, UL 61010-1, and more.
3. Technical Specifications
Dimension & Weight
| Width | 45 mm |
| Depth | 102 mm |
| Height | 119 mm |
| Weight | 0.21 kg |
General Information
| Model Number | AO845A 3BSE045584R1 |
| Type | Analog Output Module |
| Channels | 8 Unipolar |
| Output Signal | 4…20 mA |
| Resolution | 12 Bits |
| Max Output Load | 750 Ω |
| Error | Max 0.1% |
| Temperature Drift | Max 50 ppm/°C |
| Rise Time | Disable: 23 ms, Enable: max 4 mA / 12.5 ms |
| Update Cycle Time | 10 ms |
| Power Dissipation | Typ 3.5 W |
| Field Cable Length | Max 600 meters |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V AC |
| Current Consumption | +5 V Modulebus: Max 125 mA +24 V External: 218 mA |
Environmental Conditions
| Operating Temp | 0 to +55 °C (+32 to +131 °F) |
| Storage Temp | -40 to +70 °C (-40 to +158 °F) |
| Humidity | 5 to 95%, non-condensing |
| Pollution Degree | Degree 2, IEC 60664-1 |
| Corrosion Protection | ISA-S71.04: G3 |
| Max Ambient Temp | 55 °C (131 °F), vertical mounting in compact MTU 40 °C (104 °F) |
| Protection Class | IP20 according to IEC 60529 |
| Mechanical Op Conditions | IEC/EN 61131-2 |
| EMC | EN 61000-6-4 and EN 61000-6-2 |
| Overvoltage Categ | IEC/EN 60664-1, EN 50178 |
| Equipment Class | Class I according to IEC 61140; (earth protected) |
4. Industry Applications
The ABB AO845A 3BSE045584R1 Analog Output Module is ideally suited for a variety of industrial applications, including but not limited to:
- Process Automation
- Manufacturing Lines
- Building Management Systems (BMS)
- Power Generation and Distribution
- Water and Wastewater Treatment Plants
- Oil and Gas Industry
- Pharmaceutical Production
- Food and Beverage Industry
Its compliance with international safety standards such as ATEX, IECEx, and cULus, along with its certifications for use in hazardous locations (C1 Div2, C1 Zone2), makes it a versatile choice for industries requiring stringent safety measures. The module’s robustness against electromagnetic interference (EMC) and its ability to operate in harsh environments further enhance its applicability across diverse sectors.
