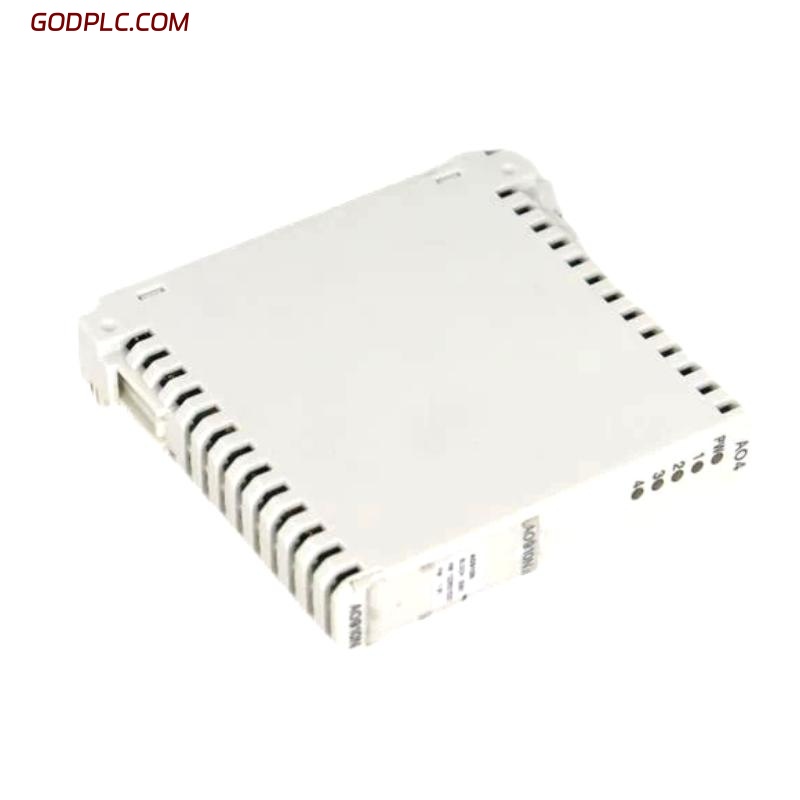

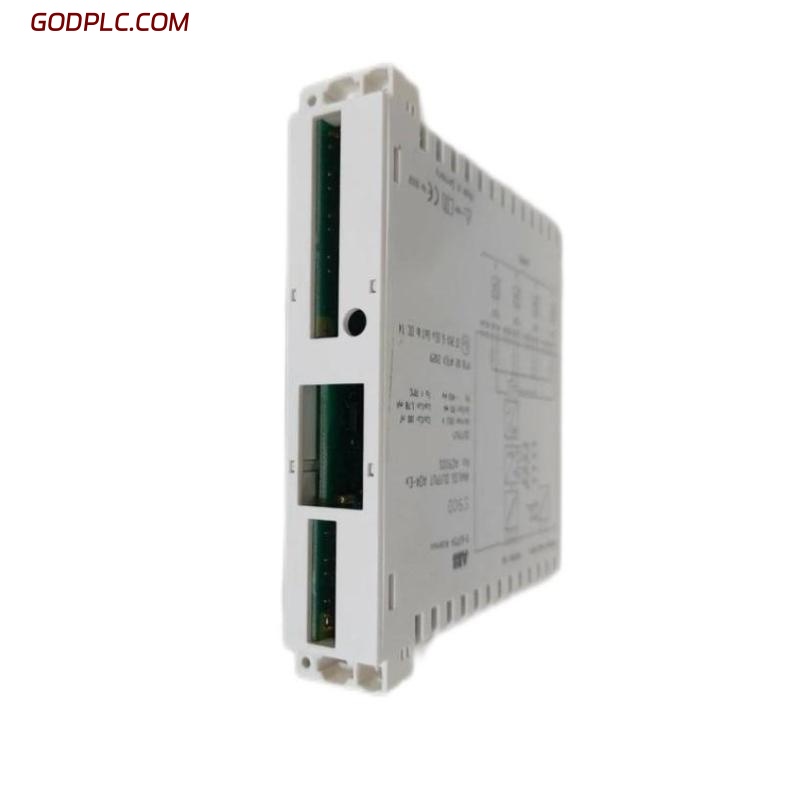

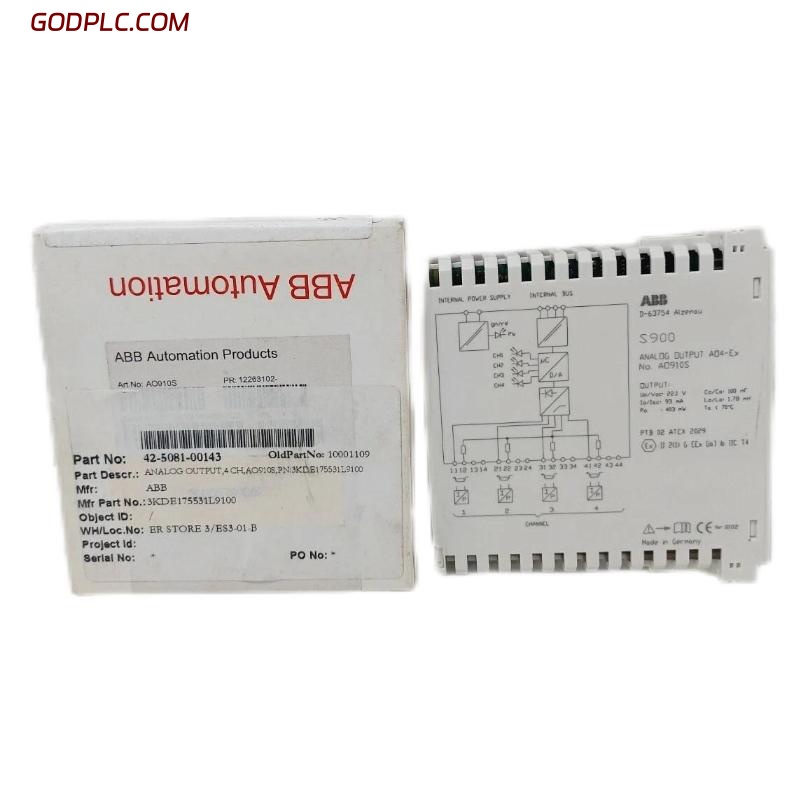

ABB AO910S 3KDE175531L9100 Analog Output Module

Product Overview
The ABB AO910S 3KDE175531L9100 Analog Output Module is a high-performance module designed to provide accurate and reliable analog signal output in industrial automation systems. Ideal for integration into ABB’s control systems, the AO910S module is engineered to ensure precise control of external devices through high-quality analog outputs. It is particularly suitable for applications in process control, robotics, and energy management where accuracy, stability, and real-time performance are essential. With its robust design and compatibility with various industrial protocols, the AO910S module delivers enhanced system integration and flexibility.

Key Features

• High-Precision Output – Offers 16-bit resolution for precise analog output, ensuring high accuracy in process control applications

• Versatile Output Types – Supports a wide range of output signals, including 4–20 mA and 0–10 V, providing flexibility for different system requirements

• Wide Compatibility – Integrates seamlessly with ABB’s industrial control systems and supports communication with other third-party devices via standard industrial protocols

• High Reliability – Built to perform reliably in demanding industrial environments, ensuring minimal downtime and continuous operation

• Compact and Modular – Designed for easy integration into compact control panels, reducing system footprint while maintaining high functionality

• Real-Time Diagnostics – Includes built-in diagnostics and fault detection to monitor the health of the system and improve maintenance efficiency

• Temperature Stability – Designed to operate in a wide temperature range, ensuring stable performance even in harsh environments

Technical Specifications

3.1 Dimensions and Weight

3.2 Electrical Characteristics

3.3 Environmental Characteristics

3.4 System Compatibility

Industry Applications

• Process Control – Provides precise analog control for regulating flow, pressure, temperature, and other critical parameters in industries such as chemicals, oil & gas, and water treatment

• Energy Management – Used in power generation and distribution systems for controlling analog signals that regulate energy output, grid integration, and system performance

• Manufacturing Automation – Ensures accurate control of robotic arms, conveyors, and other manufacturing equipment that require high-precision analog signals for operation

• Building Automation – Controls heating, ventilation, air conditioning (HVAC) systems, and lighting, improving energy efficiency and environmental comfort in buildings

• Test and Measurement – Provides output signals for testing equipment and measurement devices that require highly accurate and stable analog outputs

The ABB AO910S 3KDE175531L9100 Analog Output Module offers superior performance and flexibility, delivering accurate analog outputs for a wide range of industrial applications. Its reliability, modular design, and compatibility with ABB’s control systems make it a critical component for modern automation setups.
