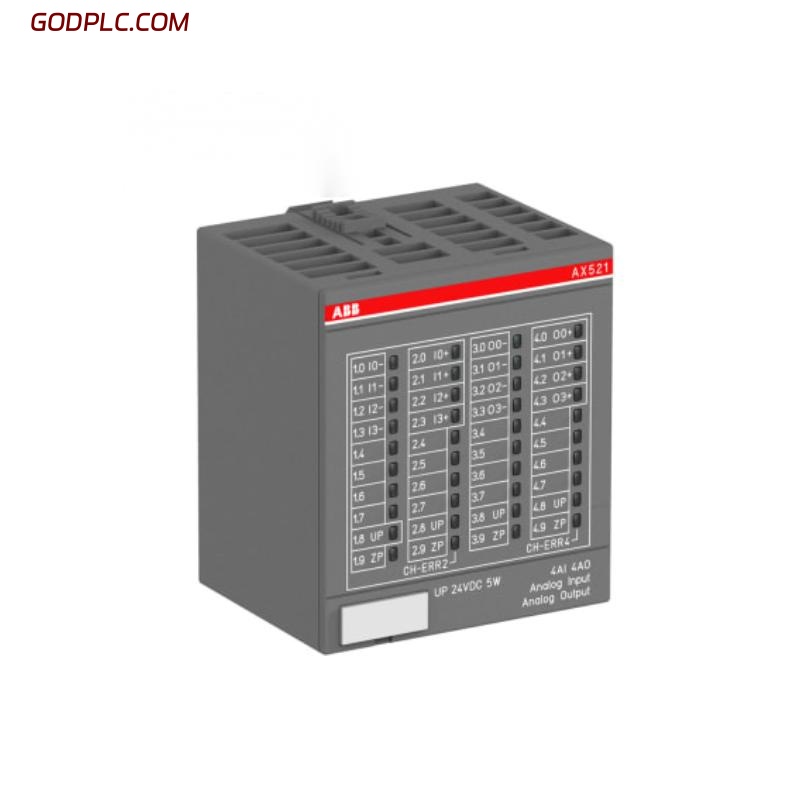

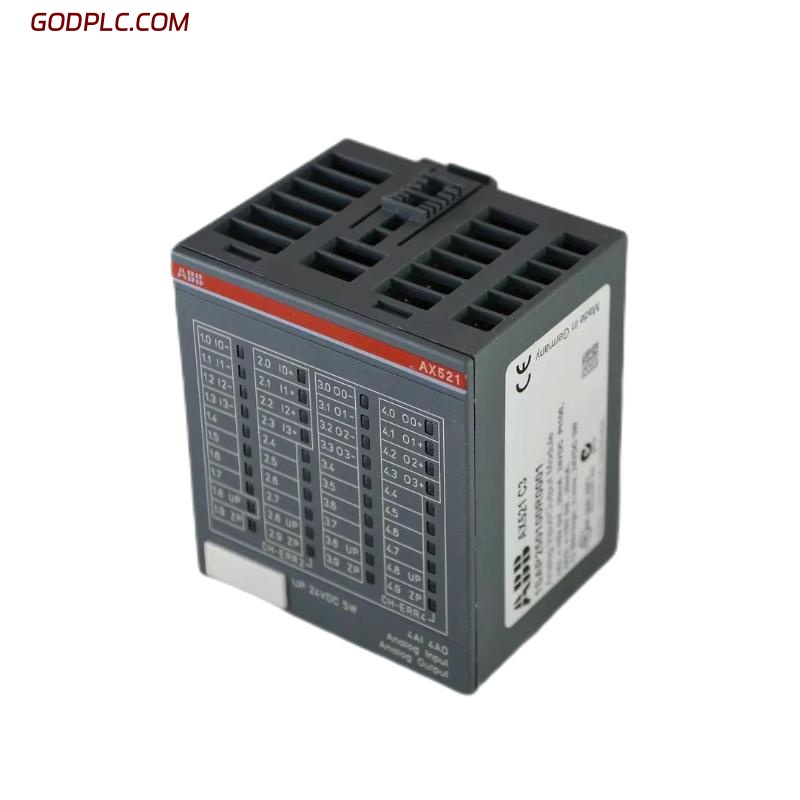

ABB AX521 1SAP250100R0001 Analog Input/Output Module
Product Overview
The ABB AX521 1SAP250100R0001 is a compact and high-performance analog input/output (I/O) module developed for the ABB AC500 PLC platform. Designed for flexible analog signal acquisition and output, it features four analog input channels and two analog output channels, supporting a range of current and voltage signals. The AX521 provides precise data acquisition and control signal generation, making it suitable for applications involving process measurement, closed-loop control, and system monitoring. Its galvanic isolation, diagnostic functions, and easy integration make it a reliable component in energy, manufacturing, water treatment, and building automation systems.
Key Features
-
4 Analog Inputs + 2 Analog Outputs – Combines input and output capabilities in a single, space-saving module.
-
Multi-Type Signal Support – Handles 0–10 V, ±10 V, 0–20 mA, and 4–20 mA signals on both input and output sides.
-
Galvanic Isolation – Enhances electrical protection between channels and system bus.
-
High Accuracy and Resolution – Provides 12-bit resolution for both input and output signals.
-
Built-In Diagnostics – Supports open wire detection and error reporting for improved system reliability.
-
Seamless Integration – Fully compatible with ABB AC500 control systems and engineering tools.
-
DIN Rail Installation – Compact and modular design for easy mounting in control cabinets.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 62 x 76 x 67.5 mm |
| Weight | 0.129 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Inputs | 4 analog input channels |
| Number of Outputs | 2 analog output channels |
| Signal Types Supported | 0–10 V, ±10 V, 0–20 mA, 4–20 mA (inputs & outputs) |
| Input Impedance | >100 kΩ for voltage, <250 Ω for current |
| Output Load Resistance | ≥1 kΩ (voltage), ≤500 Ω (current) |
| Resolution | 12 bits (inputs and outputs) |
| Accuracy | ±0.5% of full scale |
| Isolation | 500 V galvanic isolation channel-to-bus |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Vibration Resistance | 5 g (continuous), 15 g (shock) |
| Enclosure Rating | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with ABB AC500 PLC systems |
Industry Applications
-
Power Generation – Used for analog signal monitoring and control of turbines, valves, and excitation systems.
-
Process Industries – Facilitates both measurement and control in chemical, petrochemical, and refining plants.
-
Water and Wastewater – Enables accurate control of flow, level, and chemical dosing processes.
-
Building Automation – Used in HVAC and energy systems for analog sensor input and actuator control.
-
Manufacturing – Supports analog control loops in automated production environments.
The ABB AX521 1SAP250100R0001 Analog Input/Output Module offers reliable mixed signal processing in a compact form factor, making it an essential and cost-effective solution for complex industrial automation applications requiring both analog inputs and outputs.
ABB AX521 1SAP250100R0001 Analog Input/Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
