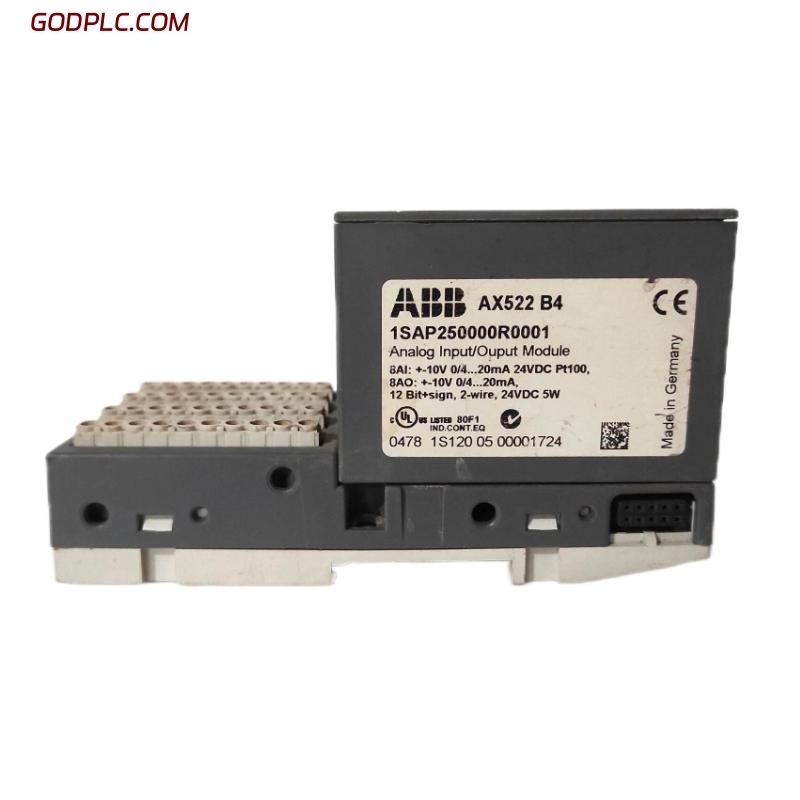

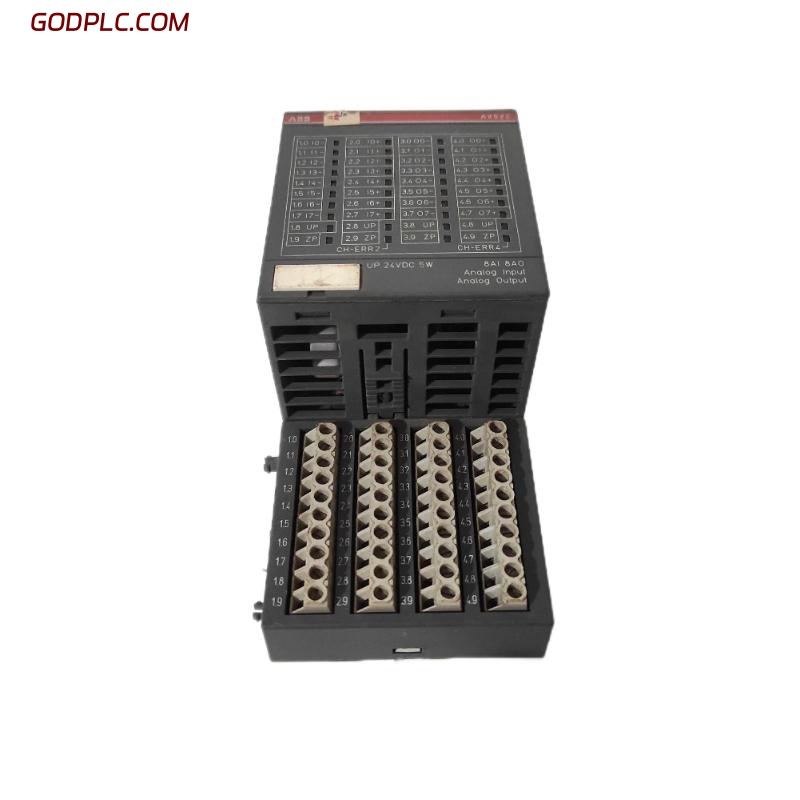

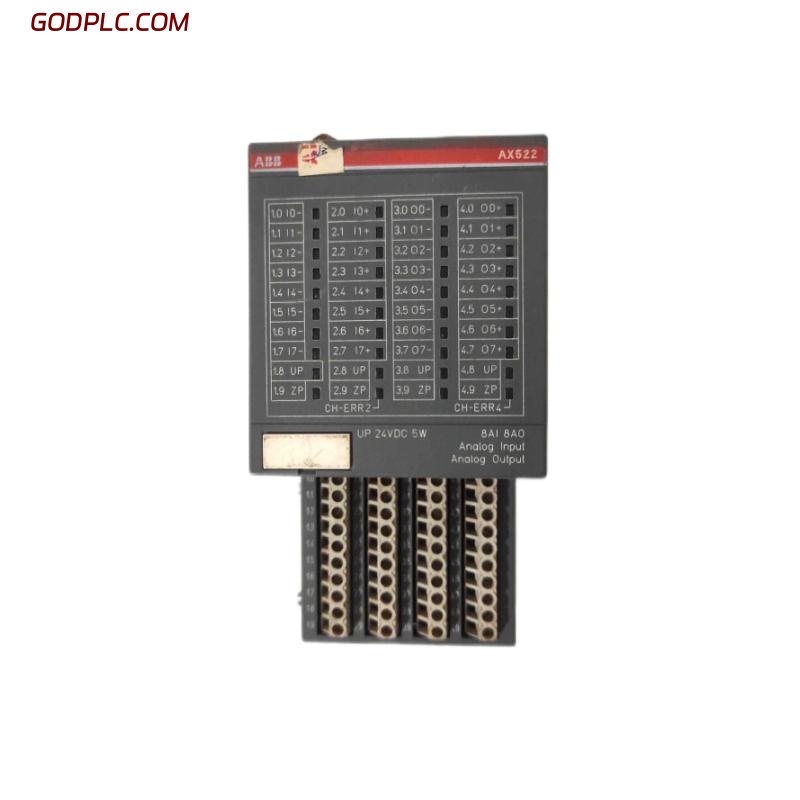

ABB AX522 1SAP250000R0001 Input and Output Modules
Product Overview
The ABB AX522 1SAP250000R0001 is an advanced input and output module designed for use in ABB’s industrial automation systems. It serves as a crucial interface for acquiring signals from field devices and delivering control outputs to actuators, sensors, and other components within a control network. The AX522 module supports a wide range of digital and analog input/output configurations, offering enhanced flexibility for use in applications requiring real-time monitoring and control.
Key Features
-
Versatile I/O Configuration – Supports both digital and analog input/output channels
-
High Integration Density – Compact design with multiple I/O points for efficient use of control rack space
-
Real-Time Signal Processing – Ensures fast and accurate signal conversion for reliable control actions
-
Modular Design – Easily integrates with ABB’s 800xA and Symphony Plus automation platforms
-
Diagnostic and Status Indicators – Built-in monitoring capabilities for easier troubleshooting and system diagnostics
-
Robust and Reliable – Designed to withstand harsh industrial environments
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 62 × 76 × 67.5 mm |
| Weight | 0.126 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Number of I/O Points | 16 (can vary based on configuration) |
| Signal Type | Digital or Analog (depending on model) |
| Input Voltage | 24 VDC nominal (typical) |
| Output Voltage | 24 VDC nominal |
| Output Current | 2 A per channel (max.) |
| Isolation | 1500 V RMS isolation |
| Input/Output Resolution | 16-bit (typical for analog I/O) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | Complies with IEC industrial standards |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB 800xA, Symphony Plus, and other ABB control systems |
| Mounting | Standard DIN rail or panel-mounted |
Industry Applications
-
Industrial Automation – Control and monitoring of plant processes and machinery
-
Power Generation – Real-time signal acquisition for turbine, generator, and auxiliary equipment control
-
Oil and Gas – Signal processing for process control in upstream and downstream operations
-
Water and Wastewater – Monitoring and control of pumps, valves, and filtration systems
-
Pharmaceutical Manufacturing – Critical control in batch processing and continuous manufacturing
The ABB AX522 1SAP250000R0001 Input and Output Module is a highly reliable and flexible solution for integrating I/O signals into ABB control systems. Its ability to support diverse input/output types and provide high-speed, real-time signal processing makes it ideal for use in mission-critical industrial applications.
ABB AX522 1SAP250000R0001 Input And Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
