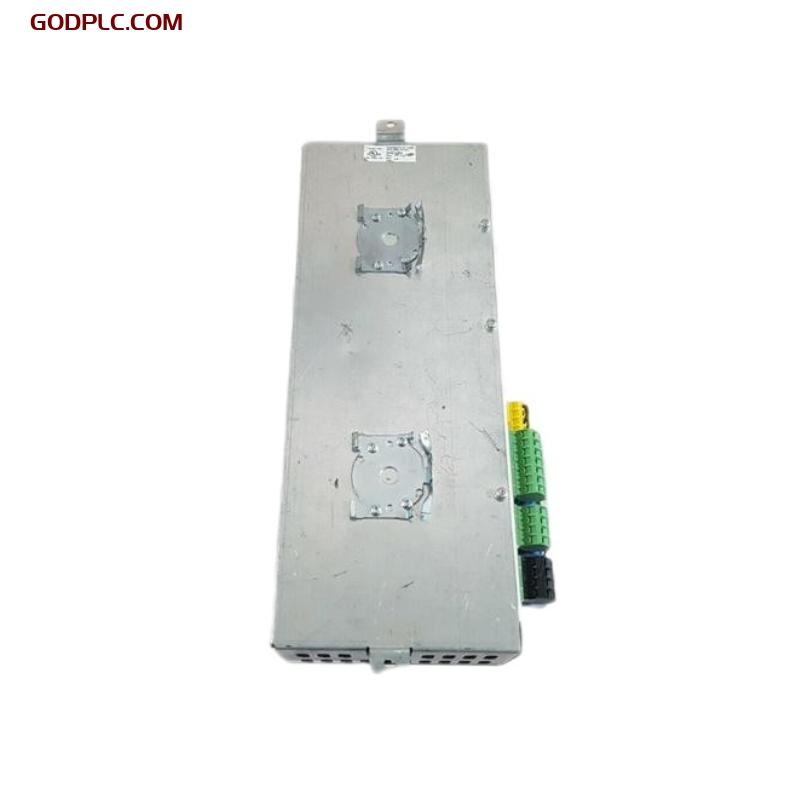

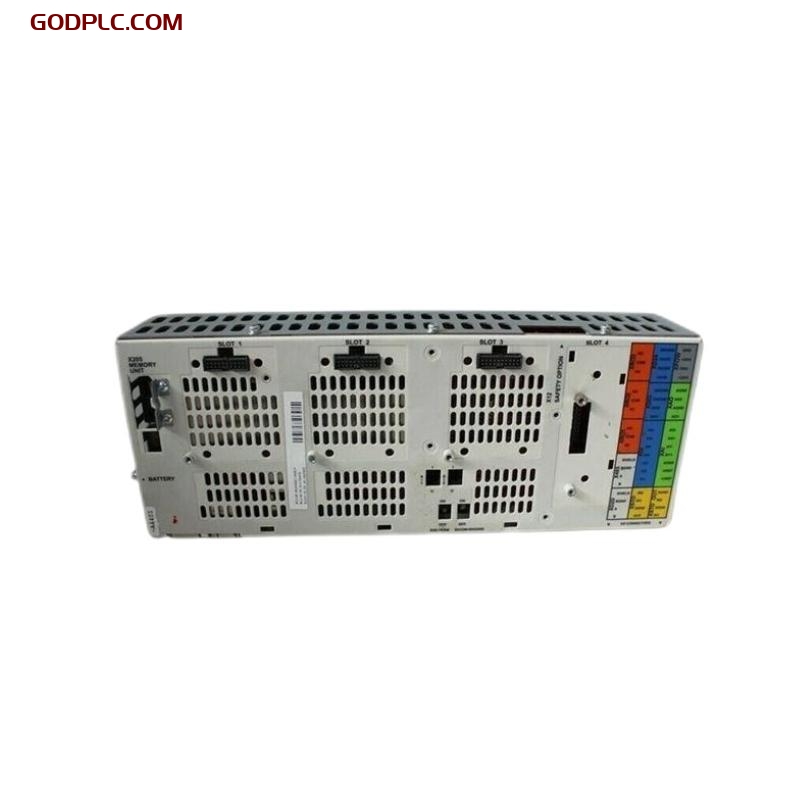

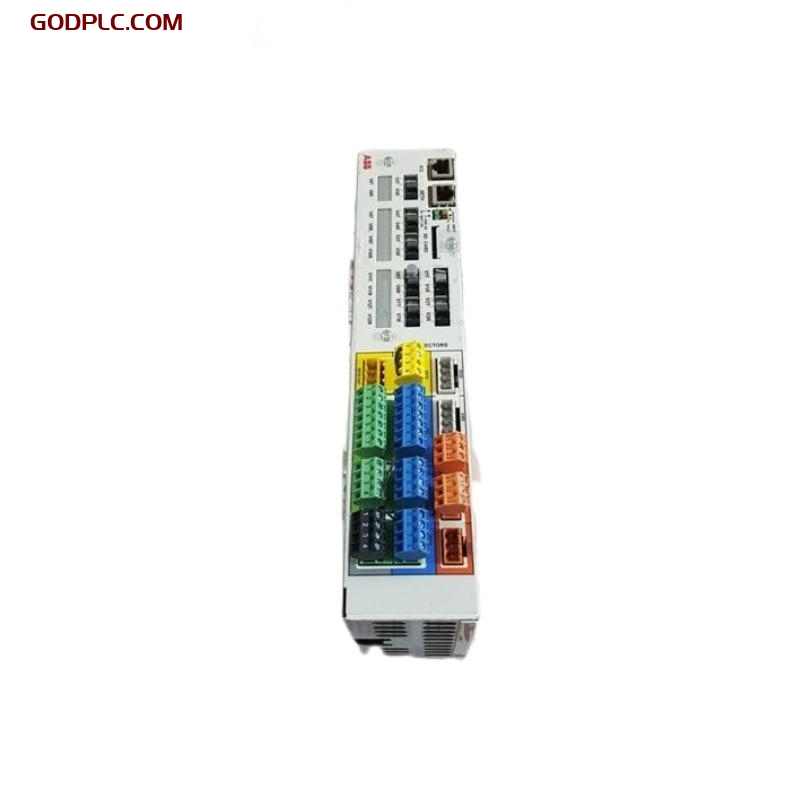

ABB BCU-22 3AUA0000110431 Control Unit (Inverter Accessory)
Product Overview
The ABB BCU-22 (part number 3AUA0000110431) is a control unit designed as an accessory for ABB inverter drive systems, primarily used with ACS600 and ACS800 series variable frequency drives (VFDs). As a core control component, the BCU-22 enables advanced drive control functionalities, including motor operation management, feedback processing, and system interfacing. Its modular design allows seamless integration into inverter systems, enhancing automation flexibility and performance reliability.
Key Features
-
Dedicated for ABB Drives – Engineered for use with ACS600/ACS800 drive series
-
Advanced Control Algorithms – Supports vector control, DTC (Direct Torque Control), and custom configurations
-
Modular Integration – Easily mountable within drive cabinets or system enclosures
-
Diagnostics and Monitoring – Provides onboard LED indicators and supports remote diagnostics via software tools
-
Fieldbus Compatibility – Can interface with optional modules for protocols like Profibus, DeviceNet, CANopen
-
User Configuration Support – Compatible with ABB DriveWindow and other engineering tools for parameter tuning
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 314 x 139 x 115 mm |
| Weight | 0.6 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | Supplied by the inverter drive bus |
| Power Consumption | Approx. 3–5 W |
| Communication Ports | RS-232, TTL, fieldbus interface (via option) |
| Control Functions | Speed, torque, position, process logic |
| Memory Type | Flash memory for firmware and parameters |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +55°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (when enclosed) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Drives | ABB ACS600, ACS800 series |
| Mounting | Internal cabinet installation or module slot |
| Configuration Tools | DriveWindow, DriveStudio |
| Expansion Options | Fieldbus adapters, I/O boards, encoder cards |
Industry Applications
-
Metals & Mining – Controls conveyor drives, hoists, and processing motors
-
Oil & Gas – Provides variable speed control for compressors and pumps
-
Pulp & Paper – Manages precise motor operation in continuous production lines
-
Marine & Offshore – Used in propulsion systems and onboard machinery drives
-
General Industry – Supports automation in fans, compressors, mixers, and more
The ABB BCU-22 Control Unit offers dependable, intelligent control capabilities for ABB drive systems. With flexible communication options and powerful processing, it ensures efficient motor management across a wide range of demanding industrial applications.
ABB BCU-22 3AUA0000110431 Control Unit Inverter Accessories is in stock. Please contact us for a quick quote and competitive pricing.
