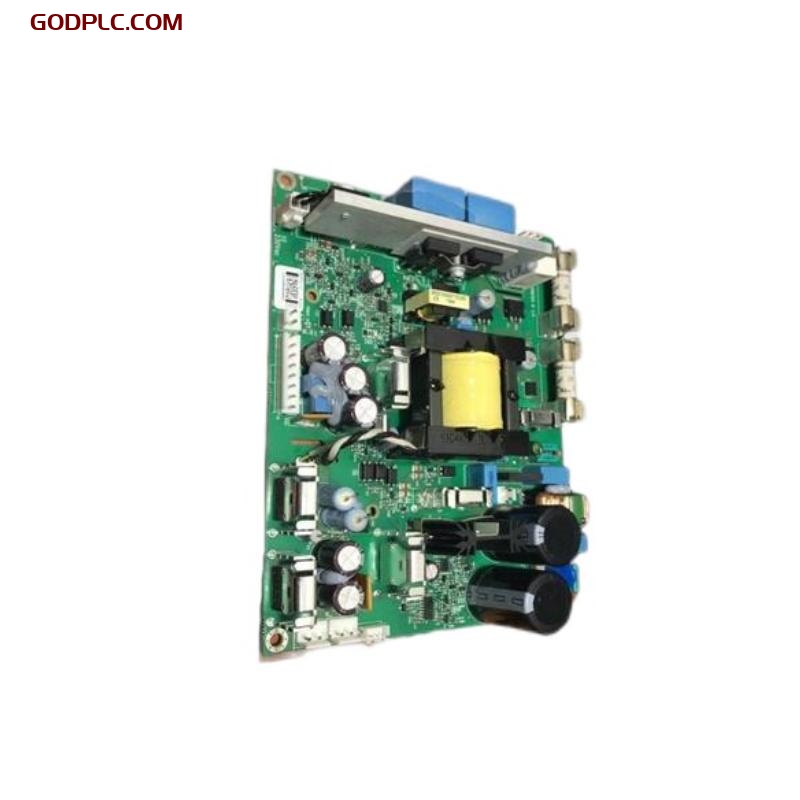

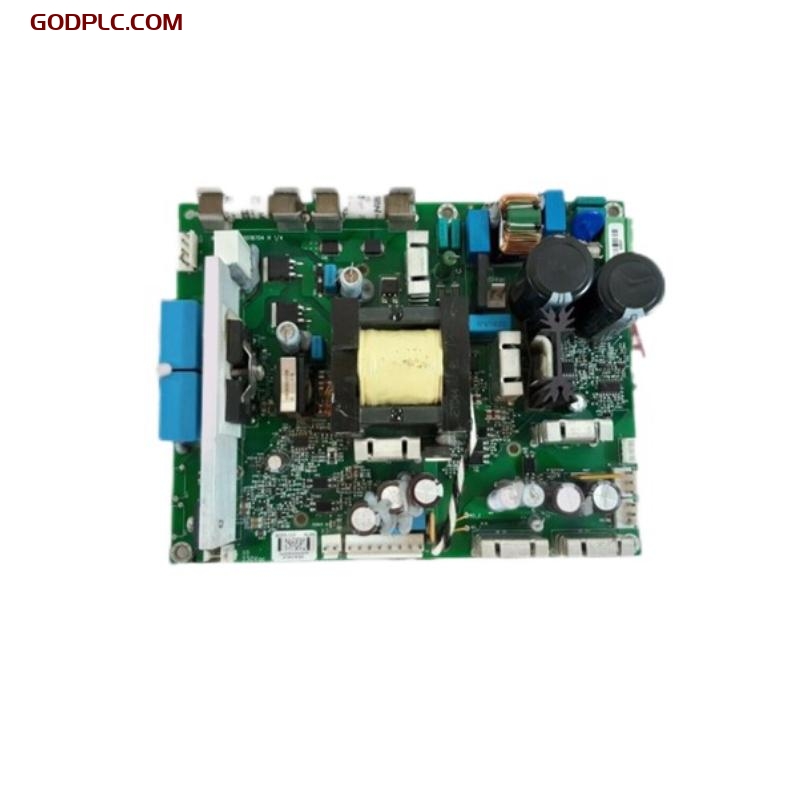

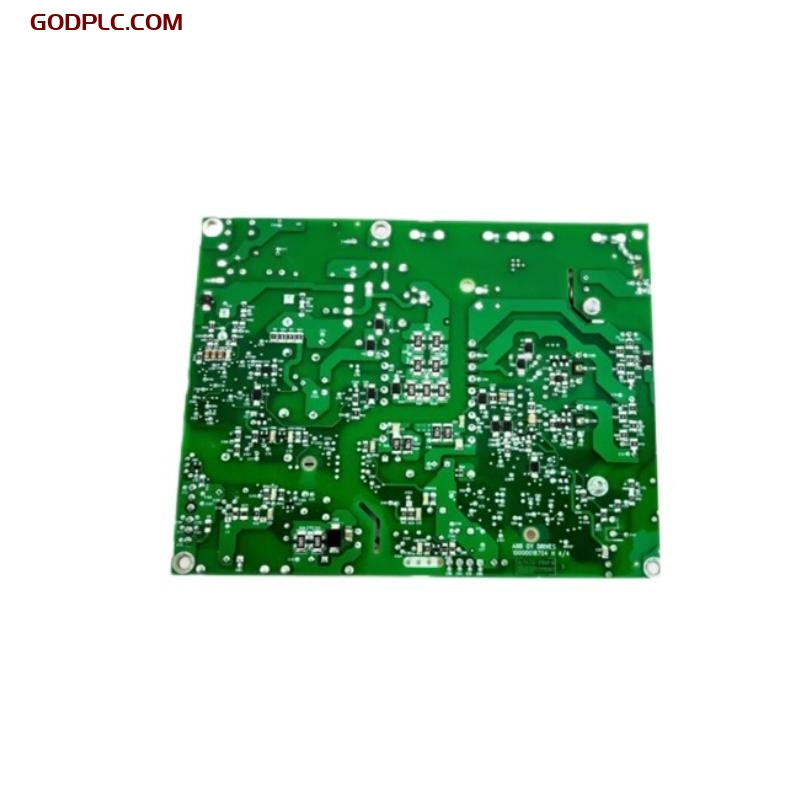

ABB BDPS-11C 3AXD50000000051 Inverter Accessories
Product Overview
The ABB BDPS-11C (part number 3AXD50000000051) is a pulse encoder interface module used with ABB inverter drives, such as the ACS800 series. It allows the inverter to receive high-precision position and speed feedback from incremental encoders. This module is essential in applications that require closed-loop control, such as dynamic motor regulation, accurate speed control, and positioning tasks in demanding industrial environments.
Key Features
-
Incremental Encoder Interface – Supports TTL and HTL signal types for wide encoder compatibility
-
High-Resolution Feedback – Enables precise speed and position control through encoder input
-
Plug-and-Play Integration – Easily installable into supported ABB inverter slots
-
Optical Isolation – Protects internal circuitry from encoder voltage surges and noise
-
Configurable Parameters – Adjustable encoder settings via ABB DriveWindow software
-
Real-Time Diagnostics – LED indicators provide feedback for power, signal, and module status
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 130 x 100 x 30 mm |
| Weight | 0.701 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | Powered internally from the inverter |
| Encoder Input Type | Incremental (TTL/HTL) |
| Signal Format | A, B, Z (with differential signals) |
| Max Input Frequency | Up to 200 kHz |
| Isolation | Optical isolation between encoder and drive |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +55°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (when installed in drive enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Drives | ABB ACS800 and related series |
| Mounting | Slot-mountable inside inverter unit |
| Supported Encoders | Incremental rotary encoders (TTL/HTL) |
| Configuration Tools | ABB DriveWindow or equivalent software |
Industry Applications
-
Metals Processing – Provides precise motor feedback for rolling mills and drives
-
Textiles – Ensures tight speed regulation in weaving and spinning machinery
-
Packaging Machinery – Enables accurate motor positioning for automated lines
-
Cranes and Hoists – Supports reliable load and speed feedback in lifting systems
-
Automated Assembly – Offers encoder-based feedback for robotics and motion control
The ABB BDPS-11C Pulse Encoder Interface Module delivers reliable and high-resolution encoder feedback for ABB inverter systems, supporting advanced motor control functions and precision performance in automation-intensive industries.
ABB BDPS-11C 3AXD50000000051 Inverter Accessories is in stock. Please contact us for a quick quote and competitive pricing.
