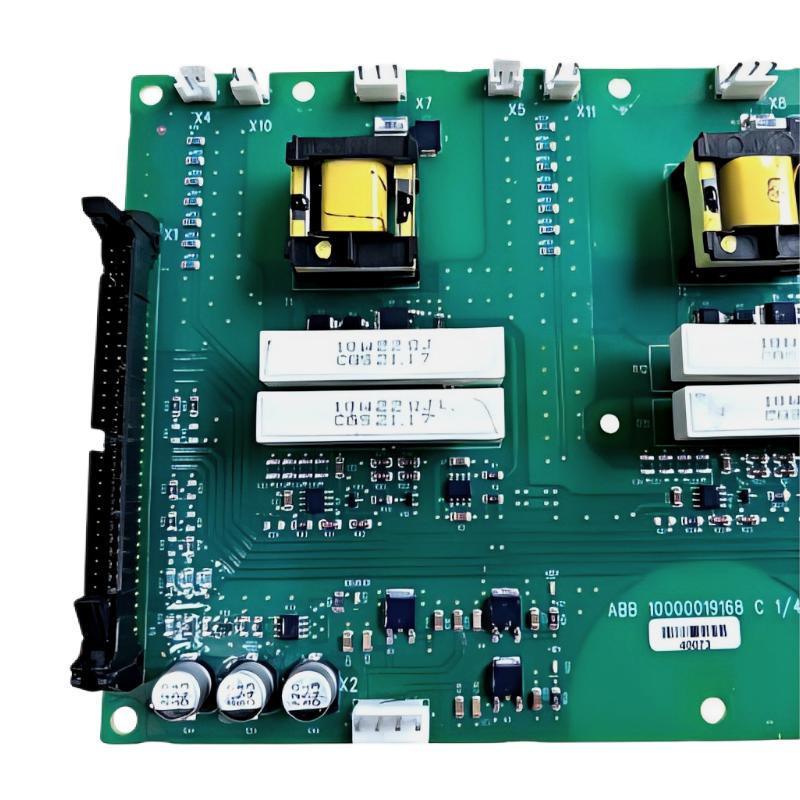

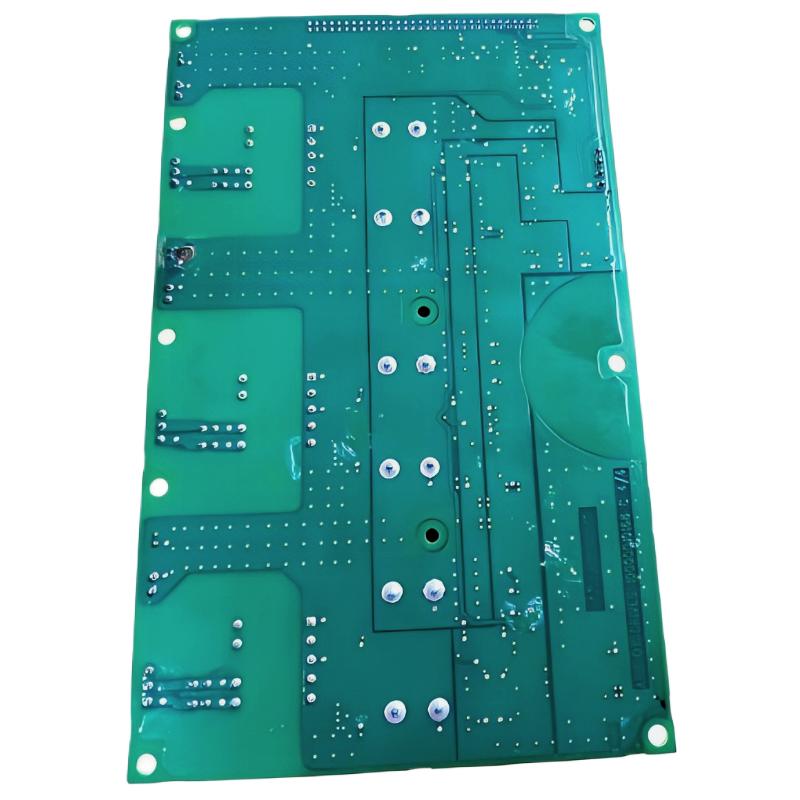

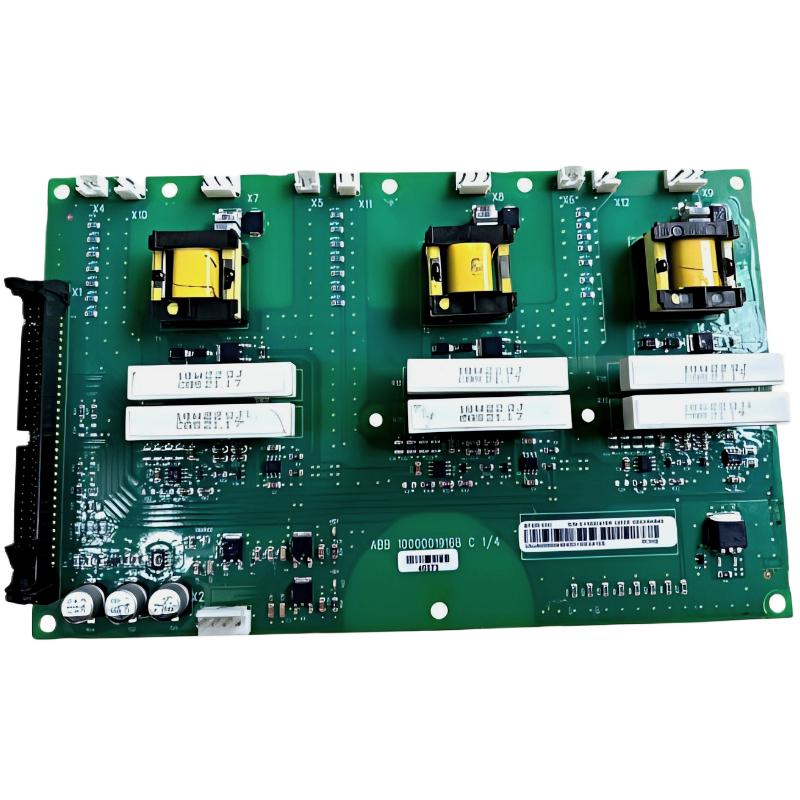

ABB BTDR-01C 3AUA0000094845 Power Supply Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | ABB Power Supply Board |
| Model | BTDR-01C |
| Order Number | 3AUA0000094845 |
| Manufacturer | ABB |
| Product Type | Power Supply Board |
| Function | Provides stable DC power supply and distribution for drive system internal electronic modules |
| Application | ABB industrial drives and inverter systems |
| Input Supply | Derived from rectified internal AC input of the drive system |
| Output Supply | Multiple regulated DC outputs for internal control and communication circuits |
| Protection Functions | Overvoltage, overcurrent, and short-circuit protection |
| Cooling Method | Natural convection or system-assisted cooling |
| Mounting Type | Internal plug-in installation within drive unit |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 22 × 124 × 126 mm |
| Weight | 0.1 kg |
FAQ
1. What is the main function of the BTDR-01C power supply board?
The BTDR-01C is a key power supply module in ABB drive systems. Its main function is to convert incoming power into stable DC voltages required by internal control, communication, and processing circuits. It ensures that all electronic modules receive consistent and reliable power for proper system operation.
2. Where is this power supply board used in the system?
It is typically installed inside ABB drives or inverter units as part of the internal power supply section. It acts as a central distribution point for supplying power to control boards, communication boards, and other electronic subsystems.
3. What protection features does the board provide?
The BTDR-01C includes built-in protection mechanisms such as overvoltage protection, overcurrent protection, and short-circuit protection. These features help prevent damage to both the power supply itself and downstream electronic components in abnormal operating conditions.
4. Is the output voltage adjustable?
No, the output voltages are factory-defined and designed to meet the internal requirements of ABB drive systems. The board is not intended for user adjustment, as it is optimized for stable internal power distribution rather than external tuning.
5. What should be considered during installation?
Installation must be performed with the system completely powered off. Proper electrostatic discharge precautions should be followed, and the board should be securely inserted into its designated slot to ensure proper electrical contact and safe operation.
6. How does this board affect overall system reliability?
As a core power distribution component, its stability directly impacts the entire drive system. A stable and clean power supply ensures correct operation of control electronics, reduces system faults, and improves long-term reliability.
7. How should power-related faults be diagnosed?
First check the input power condition and ensure it is within the specified range. Then verify internal connections and look for signs of overload or short circuit. Diagnostic tools from the drive system can also help identify fault codes related to power issues.
8. Can this board be replaced with a different model?
It is not recommended to replace it with non-specified models. Differences in voltage regulation, protection logic, or interface design may cause system instability or damage. Always use ABB-approved replacement parts for safe and reliable operation.
