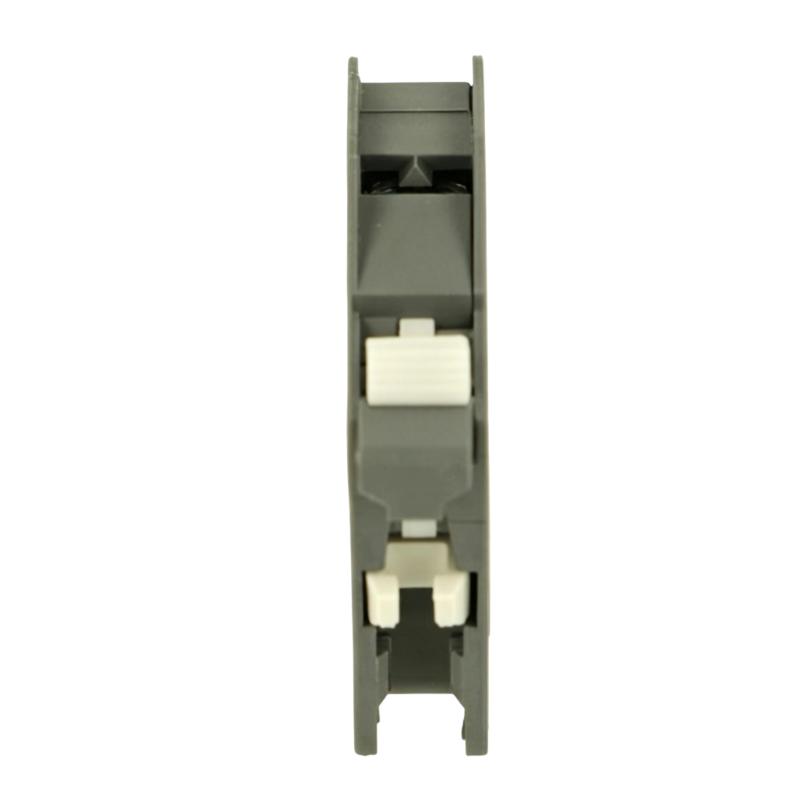

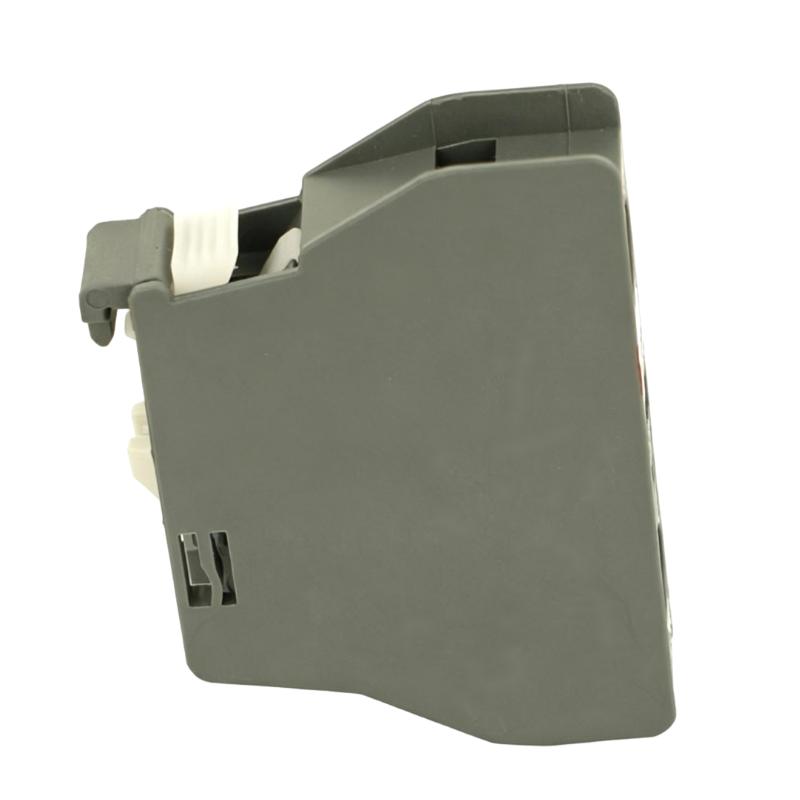

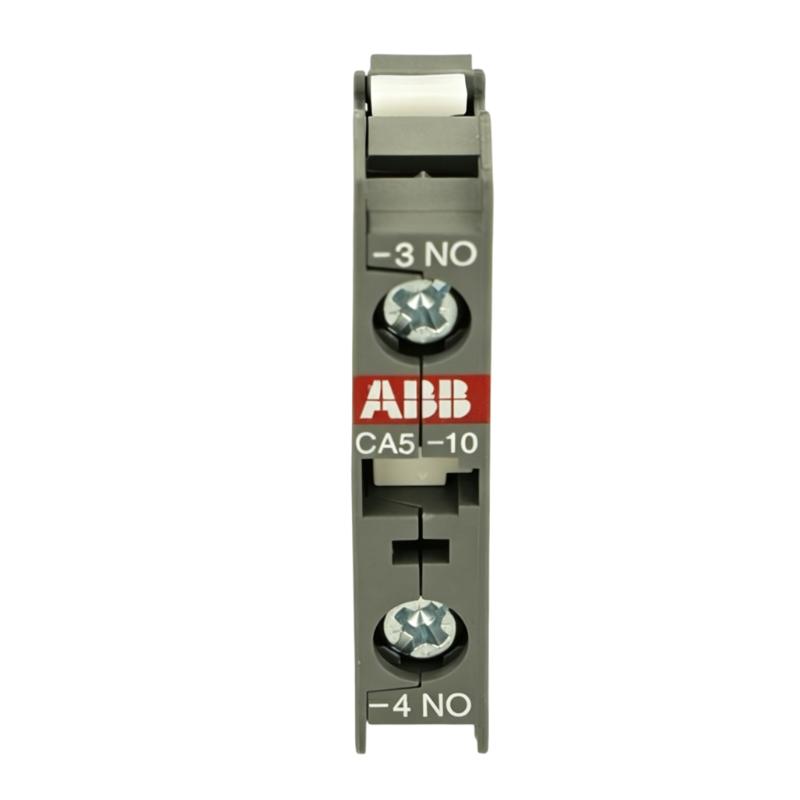

ABB CA5-10 1SBN010010R1010 Auxiliary Contact Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | ABB |
| Model | CA5-10 |
| Ordering Number | 1SBN010010R1010 |
| Product Type | Auxiliary Contact Module |
| Product Category | Auxiliary Contact Block |
| Contact Configuration | 1 NO (Normally Open), 0 NC (Normally Closed) |
| Number of Poles | 1 pole |
| Contact Operation | Instantaneous |
| Mounting Type | Front mounting |
| Compatible Equipment | ABB A-series contactors and N-series contactor relays; verify the specific model |
| Compatible Contactor Range | A9–A110, subject to equipment configuration |
| Terminal Type | Screw terminals |
| Rated Operational Voltage | Up to 690 V AC auxiliary circuit |
| Rated Insulation Voltage | 690 V according to IEC; 600 V according to UL/CSA |
| Rated AC-15 Operational Current | 6 A at 24/127 V; 4 A at 220/240 V; 3 A at 380/400 V; 2 A at 500/690 V |
| Rated DC-13 Operational Current | 6 A at 24 V; 2.8 A at 48 V; 1 A at 72 V; 0.55 A at 110/125 V; 0.3 A at 220/250 V |
| Rated Frequency | 50/60 Hz |
| Maximum Electrical Switching Frequency | 1,200 cycles per hour |
| Maximum Mechanical Switching Frequency | 3,600 cycles per hour |
| Terminal Protection Rating | IP20 |
| Dimensions | 47 × 11 × 32.5 mm |
| Weight | 0.012 kg |
FAQ
Q1: What is the main function of the ABB CA5-10 auxiliary contact module?
A: The CA5-10 adds an auxiliary normally open contact to a compatible contactor. It is commonly used for control logic, status feedback, electrical interlocking, and signaling in industrial control panels.
Q2: What does the 1 NO contact configuration mean?
A: NO means normally open. When the contactor is not actuated, the auxiliary contact remains open. When the contactor operates, the contact closes, allowing the connected control circuit to change state.
Q3: Which ABB contactors are compatible with the CA5-10?
A: The CA5-10 is designed for front mounting on compatible ABB A-series contactors and N-series contactor relays. Check the exact contactor model and its accessory compatibility before installation.
Q4: How is the CA5-10 installed?
A: The module mounts on the front of a compatible contactor. Isolate the power supply before installation, secure the block according to ABB’s instructions, and connect the auxiliary circuit using the designated screw terminals.
Q5: What electrical loads can the CA5-10 switch?
A: Its rated operational current depends on the utilization category and operating voltage. For AC-15 duty, the rating is 6 A at 24/127 V, 4 A at 220/240 V, 3 A at 380/400 V, and 2 A at 500/690 V. Confirm the applicable rating for the actual circuit.
Q6: Can the CA5-10 be used in both AC and DC control circuits?
A: Yes. It has specified AC-15 and DC-13 operational ratings. The allowable current differs by voltage and utilization category, so the circuit must be designed within the applicable ratings.
Q7: What should I check if the auxiliary contact does not change state?
A: Check whether the module is correctly seated, the contactor mechanism operates properly, and the terminal wiring is secure. With the circuit safely isolated, inspect for contamination or mechanical damage. Replace the module if the contact fails continuity testing.
Q8: What precautions should be followed when wiring the CA5-10?
A: Disconnect and verify the absence of hazardous voltage before installation or maintenance. Use the correct wiring diagram, tighten screw terminals to the specified torque, and keep the auxiliary circuit within its rated electrical limits. Confirm correct operation before returning the equipment to service.
ABB CA5-10 1SBN010010R1010 Auxiliary Contact Module is in stock. Please contact us for a quick quote and competitive pricing.
