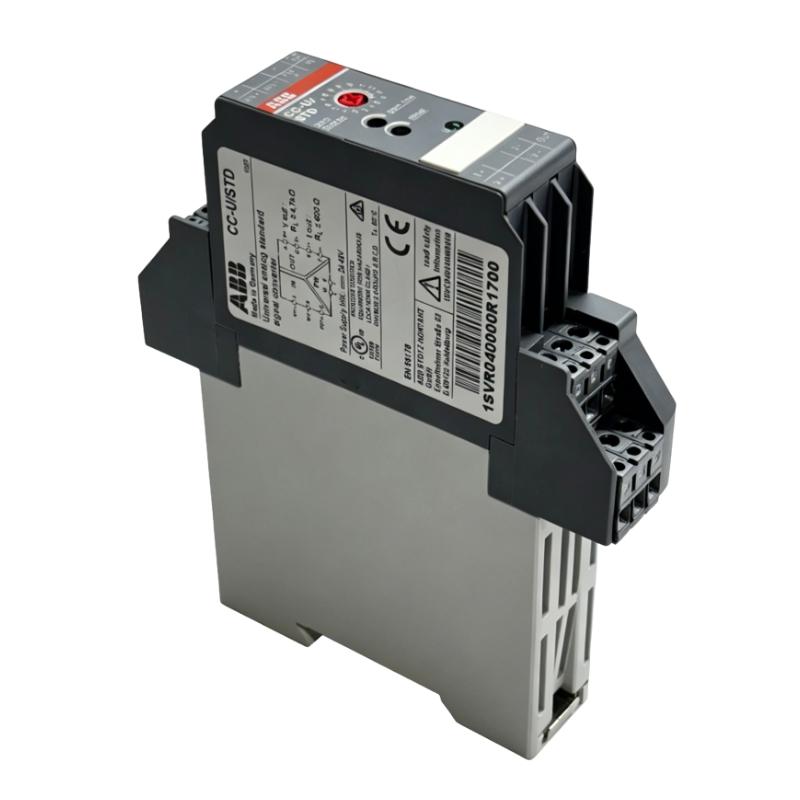

ABB CC-U/STD 1SVR040000R1700 Universal Signal Converter
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8613666084105 | |||||||
| +8613666084105 | ||||||||
| 13666084105 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | ABB |
| Model | CC-U/STD |
| Ordering Number | 1SVR040000R1700 |
| Product Type | Universal Signal Converter |
| Product Series | CC-U |
| Main Function | Analog signal conversion and electrical isolation |
| Rated Supply Voltage | 24 V AC, 24–48 V DC |
| Input Current Range | ±0.9 mA to ±55 mA |
| Input Voltage Range | ±45 mV to ±11 V |
| Resistance Input Range | 470 Ω to 1 MΩ |
| Output Current Range | 0 to ±55 mA |
| Output Voltage Range | 0 to ±11 V |
| Input Signal Configuration | 28 selectable input ranges, including standard and non-standard ranges |
| Output Signal Configuration | 41 selectable output ranges, including standard and non-standard ranges |

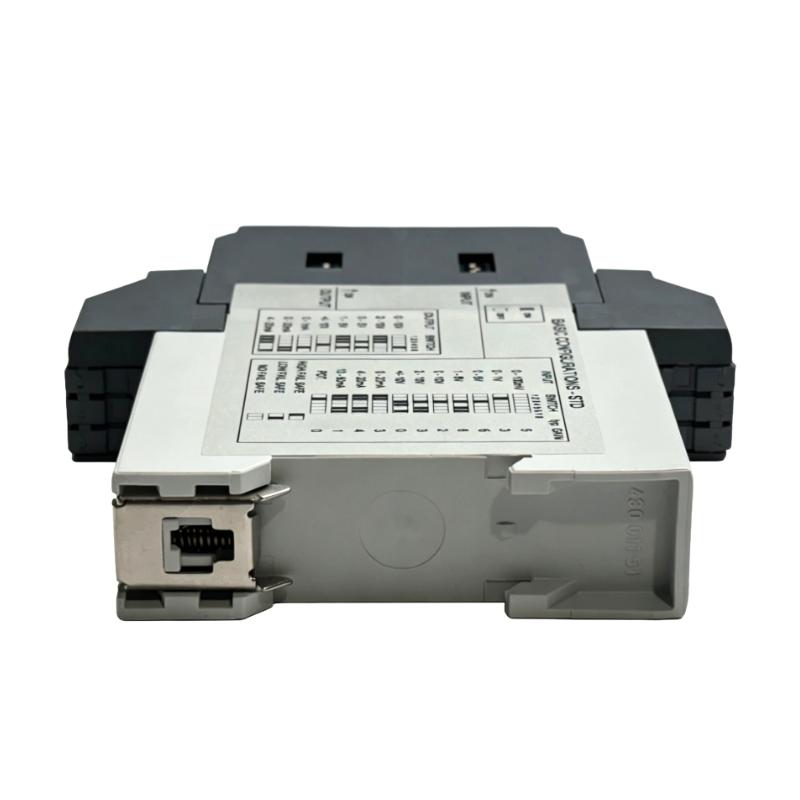

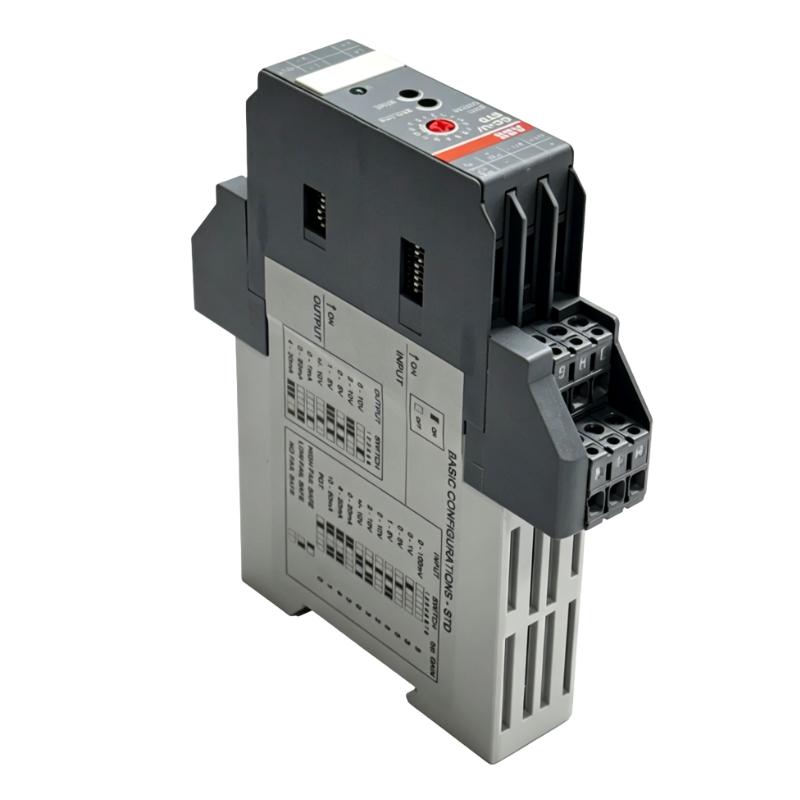

| Configuration Method | Side-mounted DIP switches |
| Gain Adjustment | Front-panel coarse and fine adjustment |
| Offset Adjustment | Front-panel adjustment |
| Electrical Isolation | Three-way isolation between input, output and power supply |
| Output Protection | Short-circuit protected |
| Input Signal Failure Response | Configurable low fail-safe or high fail-safe response for input voltage signal interruption |
| Response Time | Approximately 200 μs |
| Accuracy | Approximately ±0.1% of full scale |
| Status Indicator | Green LED for supply voltage |
| Electrical Connections | Plug-in terminals for input, output and power supply |
| Mounting Type | DIN rail mounting |
| Protection Rating | IP20 |
| Operating Temperature | Confirm the applicable operating range using the manufacturer’s documentation for the installed version |
| Dimensions | 120 × 22.5 × 105 mm |
| Weight | 0.125 kg |
FAQ
Q1: What is the main function of the ABB CC-U/STD Universal Signal Converter?
A: The CC-U/STD converts configurable analog input signals into standardized output signals for PLC, DCS and industrial control systems. It can also provide signal amplification and electrical isolation, helping ensure that field instrument signals are compatible with the receiving control equipment.
Q2: Which input signals does the CC-U/STD support?
A: The converter supports a wide range of current, voltage and resistance inputs. Depending on the DIP-switch configuration, it can accept signals such as 0–20 mA, 4–20 mA, 0–10 V, bipolar voltage signals and resistance values. The selected input range must match the connected sensor or transmitter.
Q3: What output signals can this converter provide?
A: The CC-U/STD supports configurable voltage and current outputs, including commonly used industrial signals such as 0–10 V and 4–20 mA. The output range is selected using the side-mounted DIP switches. Confirm that the receiving PLC or DCS analog input supports the chosen signal type.
Q4: What is the purpose of the converter’s three-way electrical isolation?
A: Three-way isolation separates the input, output and power supply circuits electrically. This helps reduce ground-loop problems, limits the transfer of electrical interference between circuits and provides additional protection for connected control equipment. It does not replace proper grounding or external surge protection where required.
Q5: How are the input and output ranges configured?
A: The CC-U/STD uses accessible DIP switches on the side of the unit to select the input and output signal ranges. After setting the switches, use the front-panel gain and offset adjustments to fine-tune the output. Always consult the configuration table and wiring diagram before applying power.
Q6: What do the gain and offset adjustments control?
A: Gain adjusts the relationship between changes in the input signal and changes in the output signal, while offset shifts the output level. These adjustments help calibrate the converter to the required signal range. For accurate results, apply known input values and verify the corresponding output with a suitable meter.
Q7: How does the CC-U/STD respond if the input signal is interrupted?
A: The converter supports configurable fail-safe behavior for input voltage signal interruption. Depending on the selected setting, the output can move to the adjusted minimum value (low fail-safe) or maximum value (high fail-safe). A no-fail-safe setting is also available. Select the behavior according to the process’s fault-handling requirements.
Q8: What should be checked if the output signal is incorrect or unstable?
A: First, verify the supply voltage and confirm that the green power LED is illuminated. Then check the input and output DIP-switch settings, wiring polarity, terminal connections and the configured fail-safe mode. Measure the input and output signals independently, and adjust gain or offset only after confirming the correct ranges. If the problem persists, inspect the field wiring and connected PLC/DCS input for grounding or interference issues.
ABB CC-U/STD 1SVR040000R1700 Universal Signal Converter is in stock. Please contact us for a quick quote and competitive pricing.
