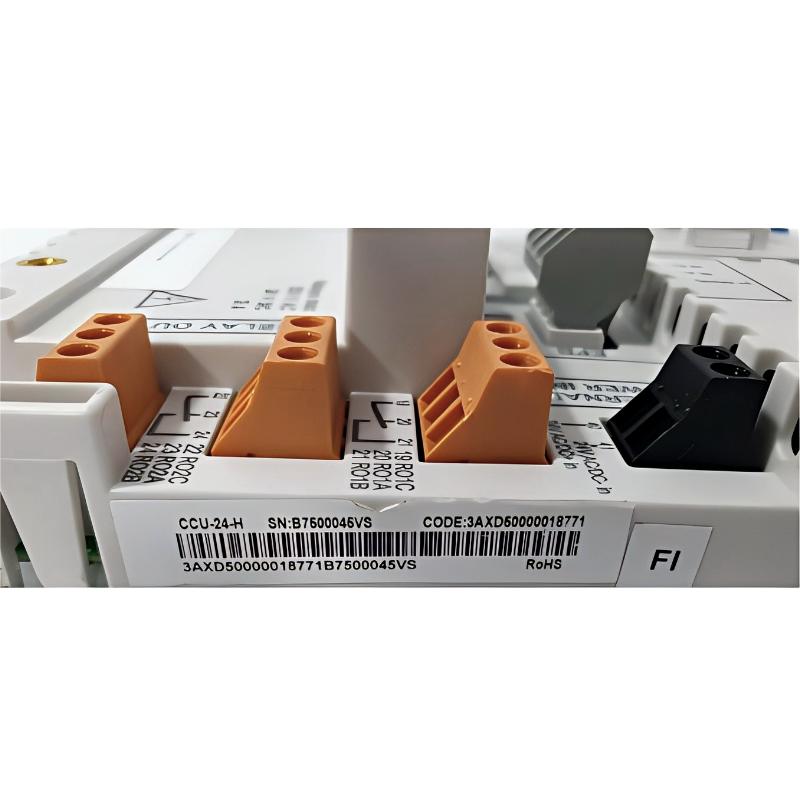

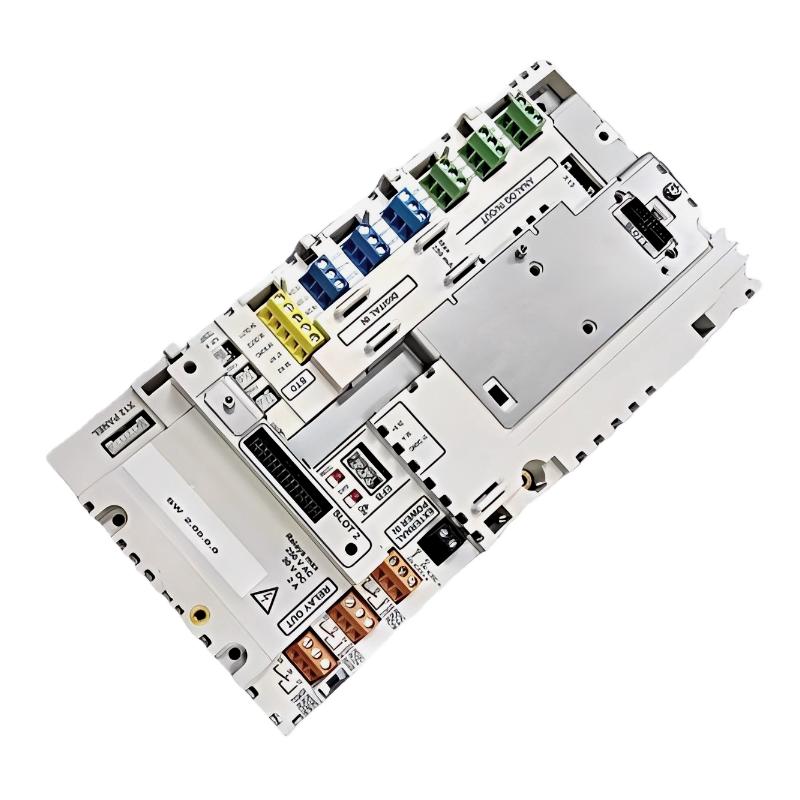

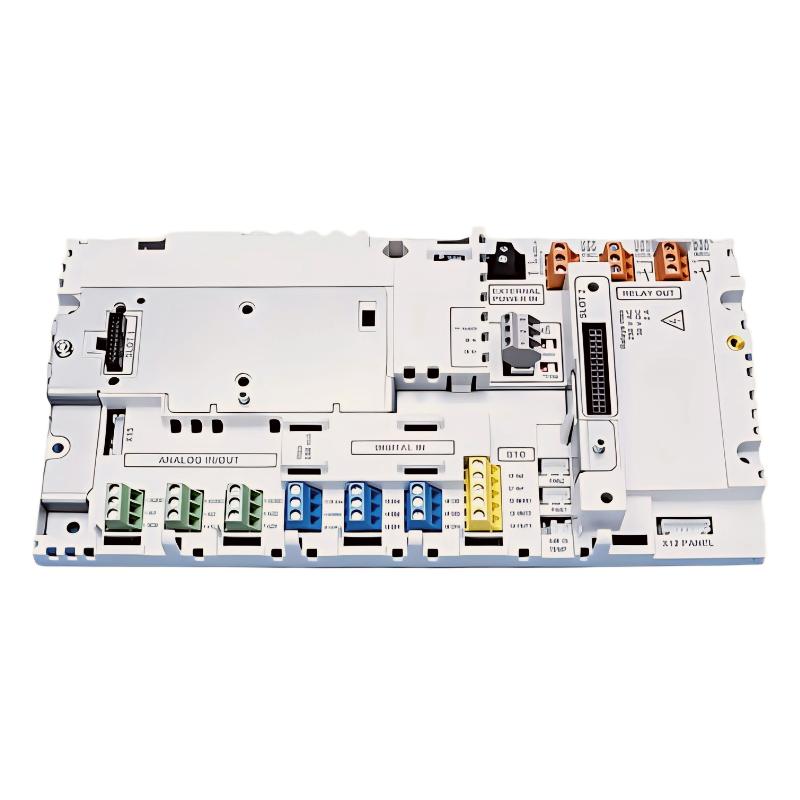

ABB CCU-24-H 3AXD50000018771 Control unit Frequency Converter Accessories
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CCU-24-H |
| Order Number | 3AXD50000018771 |
| Product Type | Control Unit for Frequency Converter Accessories |
| Function | Core system control and communication module |
| Applicable Systems | ABB frequency converters and drive systems |
| Communication Interfaces | Internal bus and industrial communication ports |
| Power Supply | Powered via connected drive system |
| Installation Type | Cabinet installation / drive-integrated mounting |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20°C to +70°C |
| Protection Class | IP20 |
| Cooling Method | Passive cooling (fanless) |
| Material | Industrial-grade electronic components |
| Dimensions | 120 × 90 × 60 mm |
| Weight | 0.5 kg |
FAQ
1. What is the role of this control unit within a drive system?
This control unit functions as the central processing and coordination module of the drive system. It interprets control commands from higher-level systems or operator interfaces and translates them into precise actions for the frequency converter. Additionally, it manages internal communication between different modules, ensuring synchronized operation and reliable system performance.
2. In which industrial applications is it typically used?
It is commonly used in industrial automation environments such as manufacturing lines, pump and fan systems, conveyor systems, and other applications requiring accurate motor speed control. Its design supports continuous operation and high reliability, making it suitable for demanding industrial processes.
3. What are the key features of its communication capabilities?
The unit supports internal drive communication buses and interfaces for interaction with external control systems. It enables parameter configuration, real-time monitoring, and remote control. The communication design focuses on stability, fast data exchange, and resistance to electromagnetic interference in industrial environments.
4. What should be considered during installation?
Proper mounting within a control cabinet or drive enclosure is essential. Adequate ventilation should be ensured to support heat dissipation. It is also important to avoid installation near strong electromagnetic interference sources and to follow correct wiring practices to prevent communication or operational issues.
5. Does it support system expansion or integration?
Yes, it can operate as a central unit within a modular system and work alongside additional modules or expansion components. This allows the system to be adapted to different control requirements and application scenarios.
6. How does it maintain stable operation over time?
The unit is built with industrial-grade components and designed for high resistance to electrical noise and environmental influences. Its robust internal communication structure and control logic help maintain consistent performance even during long-term continuous operation.
7. What steps should be taken if communication issues occur?
First, check all physical connections to ensure they are secure. Then verify configuration settings and interface parameters. It is also advisable to assess potential sources of interference. If the issue persists, system diagnostics can be used to identify specific faults and guide troubleshooting.
8. Is it suitable for continuous operation in industrial environments?
Yes, it is designed for continuous-duty applications. Under specified environmental conditions, it can operate reliably over extended periods, making it well-suited for systems that require uninterrupted performance and high operational stability.
ABB CCU-24-H 3AXD50000018771 Control unit Frequency Converter Accessories is in stock. Please contact us for a quick quote and competitive pricing.
