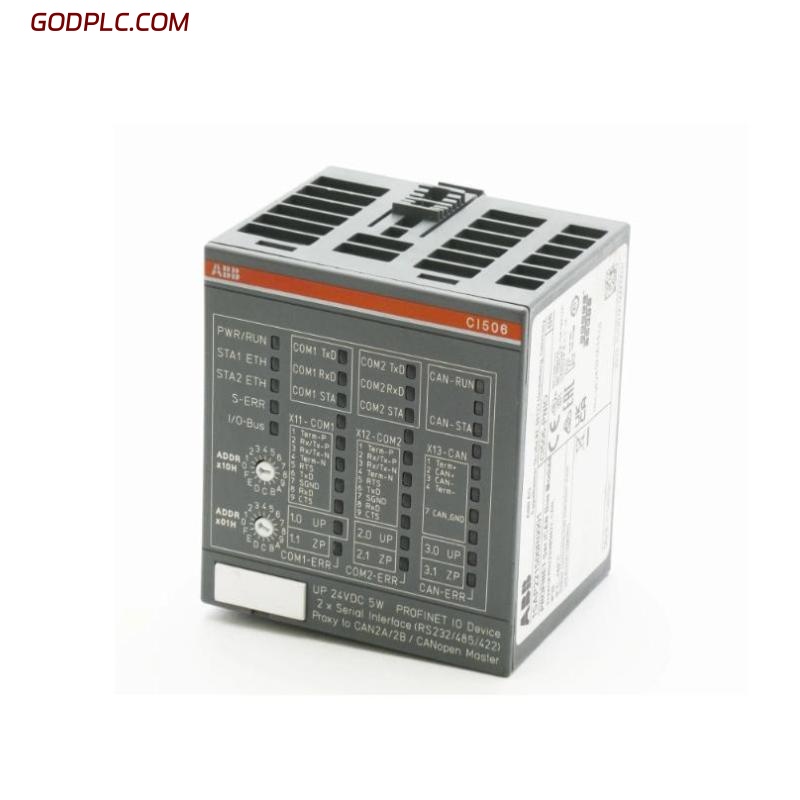

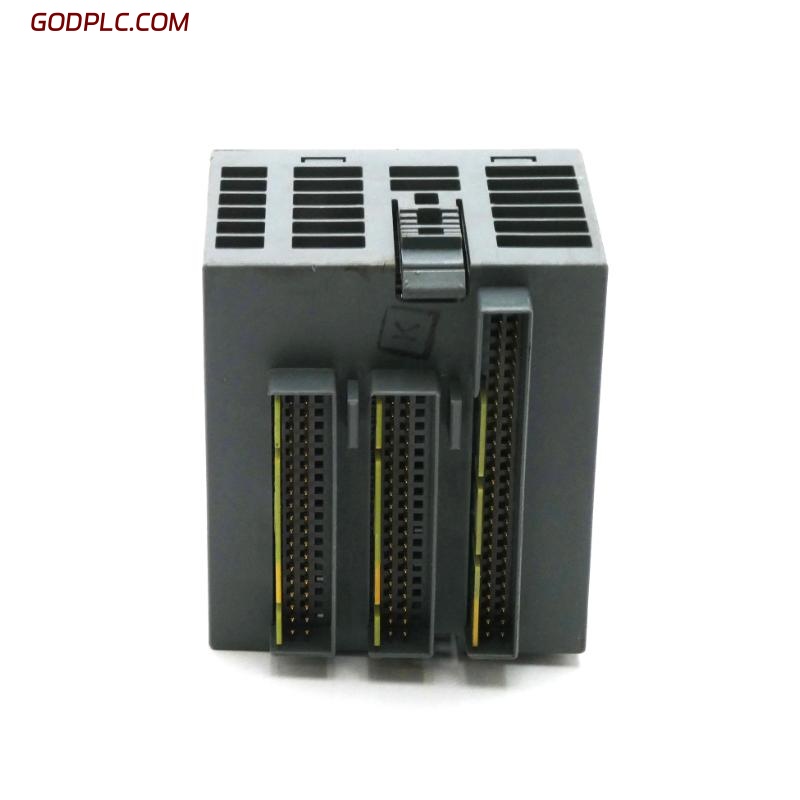

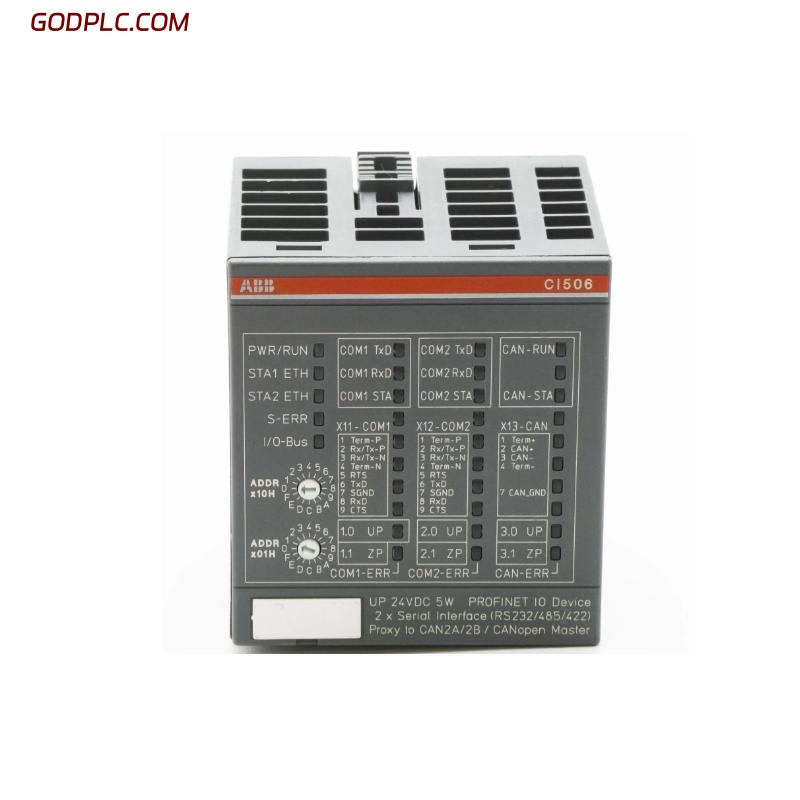

ABB CI506-PNIO 1SAP221500R0001 S500 Interface Module
Product Overview
The ABB CI506-PNIO 1SAP221500R0001 is a high-performance PROFINET IO communication interface module developed for the ABB S500 I/O system. It enables seamless and deterministic communication between remote I/O devices and PROFINET-enabled controllers, making it a core component in distributed automation systems.
Engineered for flexibility and reliability, the CI506-PNIO module is ideal for use in complex industrial environments such as manufacturing, energy, water treatment, and infrastructure automation. It supports fast data exchange, multiple topology options, and streamlined integration into ABB AC500 PLC platforms or any PROFINET-compliant control architecture.
Key Features
-
PROFINET IO Support – Enables high-speed communication with PROFINET-compatible PLCs and controllers
-
Dedicated for S500 I/O – Directly interfaces with ABB S500 remote I/O modules
-
Dual Ethernet Ports – Supports line, star, and ring topologies for flexible network design
-
Real-Time Data Exchange – Ensures reliable and timely process control in distributed applications
-
Integrated Diagnostics – Features onboard LEDs and system status indicators for easy troubleshooting
-
Compact and Modular – DIN rail mountable with easy plug-in installation for S500 I/O racks
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 62 x 76 x 67.5mm |
| Weight | 0.144 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC (via system backplane) |
| Power Consumption | Approx. 3.5 W |
| Communication Protocol | PROFINET IO (IEC 61158 / IEC 61784) |
| Network Interfaces | 2 x RJ45 Ethernet ports (10/100 Mbps) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB AC500 PLCs, S500 Remote I/O, PROFINET IO Masters |
| Integration | Seamless connection to PROFINET-based control systems |
Industry Applications
-
Factory Automation – Integrates distributed sensors and actuators for smart production lines
-
Process Industries – Connects field I/O in scalable, modular control architectures
-
Energy and Utilities – Facilitates real-time control in power distribution and utility systems
-
Water & Wastewater – Enables decentralized monitoring and control in treatment plants
-
Building Automation – Interfaces distributed control points in large infrastructure systems
The ABB CI506-PNIO 1SAP221500R0001 S500 Interface Module delivers robust PROFINET IO communication for ABB S500 remote I/O systems. With its high-speed performance, modular design, and industrial-grade reliability, it is a vital component for expanding and optimizing distributed control applications.
ABB CI506-PNIO 1SAP221500R0001 S500 Interface Modules is in stock. Please contact us for a quick quote and competitive pricing.
