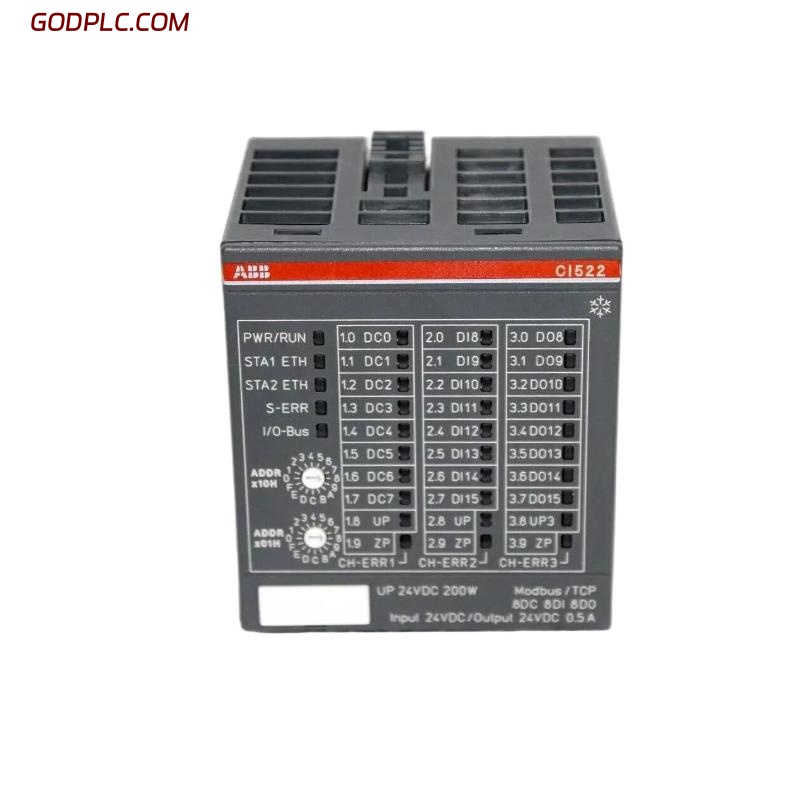

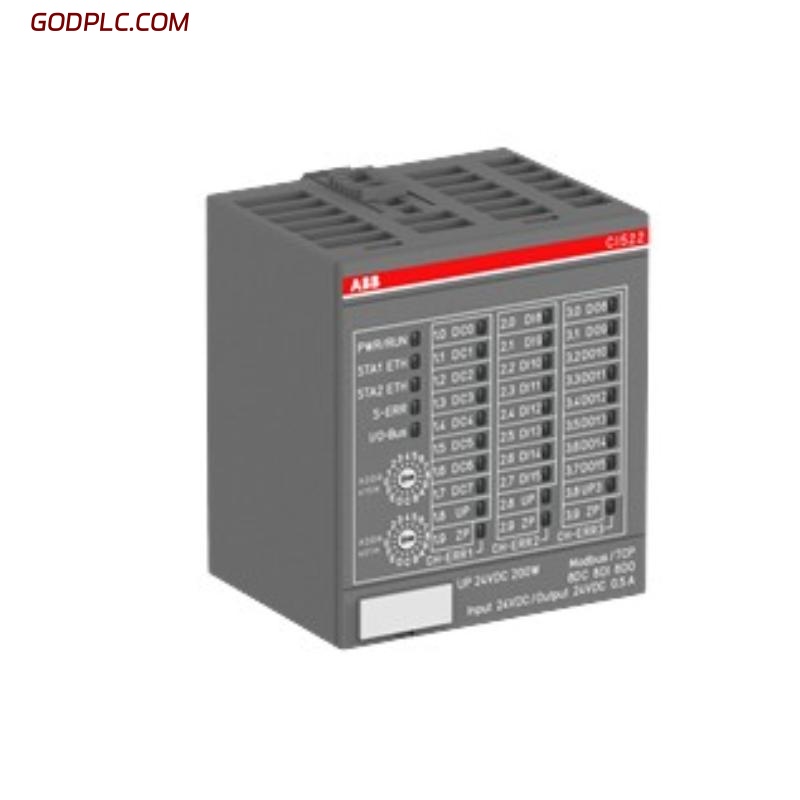

ABB CI522-MODTCP 1SAP222200R0001 Interface Module
Product Overview
The ABB CI522-MODTCP 1SAP222200R0001 Interface Module is designed to provide seamless communication between ABB’s control systems and external devices using Modbus TCP/IP protocol. This interface module acts as a bridge for data transfer, ensuring reliable communication and integration within industrial automation environments. The CI522-MODTCP module is ideal for applications requiring fast, real-time communication and high data throughput, such as power plants, manufacturing processes, and chemical industries.
This compact and efficient module supports a wide range of configurations and can be easily integrated with existing automation setups. It facilitates smooth data exchange with a variety of third-party devices, ensuring compatibility with diverse communication standards, and enabling more effective control and monitoring across complex systems.
Key Features
-
Modbus TCP/IP Communication – Supports Modbus TCP/IP for reliable and high-speed communication with other devices, ensuring effective data exchange.
-
Flexible Integration – Easily integrates with ABB control systems and third-party devices, allowing for versatile communication within diverse industrial applications.
-
Real-Time Data Transfer – Optimized for real-time data transmission, providing up-to-the-minute status updates, alarms, and control signals to the system.
-
High Throughput – Capable of handling large amounts of data, ensuring that information is transferred quickly and efficiently across the network.
-
Compact and Space-Saving – Designed for minimal space requirements, ideal for environments where space is limited without compromising on performance.
-
Built-in Diagnostics – Features diagnostic LEDs and error indicators for easy troubleshooting, reducing system downtime and maintenance costs.
-
Enhanced System Reliability – Equipped with robust communication capabilities to ensure reliable and stable connections, even in electrically noisy environments.
-
Easy Configuration and Setup – User-friendly interface for configuring communication settings and integrating the module into existing systems.
-
Wide Compatibility – Compatible with a variety of control systems, including both ABB and third-party devices, ensuring flexible communication setups.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 62 x 76 x 67.5 mm |
| Weight | 0.133 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 VDC ± 10% |
| Power Consumption | 5 W (max) |
| Communication Protocol | Modbus TCP/IP |
| Port | 1 Ethernet Port (10/100 Mbps) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 10% to 90% RH (non-condensing) |
| Vibration Resistance | 5 g (continuous), 25 g (shock) |
| Enclosure Rating | IP20 (protected against solid objects larger than 12mm, not waterproof) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with ABB control systems and third-party devices supporting Modbus TCP/IP |
| Mounting | DIN rail mounted |
Industry Applications
-
Power Generation – Used to facilitate communication between ABB control systems and field devices, ensuring real-time data transfer for efficient power plant operations.
-
Oil & Gas – Facilitates data exchange in oil and gas facilities, including refineries and offshore platforms, ensuring smooth integration between automation and monitoring systems.
-
Chemical and Petrochemical – Enables seamless integration with control systems for chemical processes, improving operational efficiency and safety.
-
Manufacturing – Used in industrial automation setups to communicate with a range of devices and systems, optimizing production processes and reducing downtime.
-
Water Treatment – Facilitates communication between control systems and field devices in water treatment plants, enhancing monitoring and control of pumps, valves, and sensors.
The ABB CI522-MODTCP 1SAP222200R0001 Interface Module provides a reliable and high-performance communication solution for integrating ABB control systems with a wide range of industrial devices. Its support for Modbus TCP/IP, real-time data transfer, and ease of configuration make it an essential component for ensuring efficient communication across diverse industrial applications.
