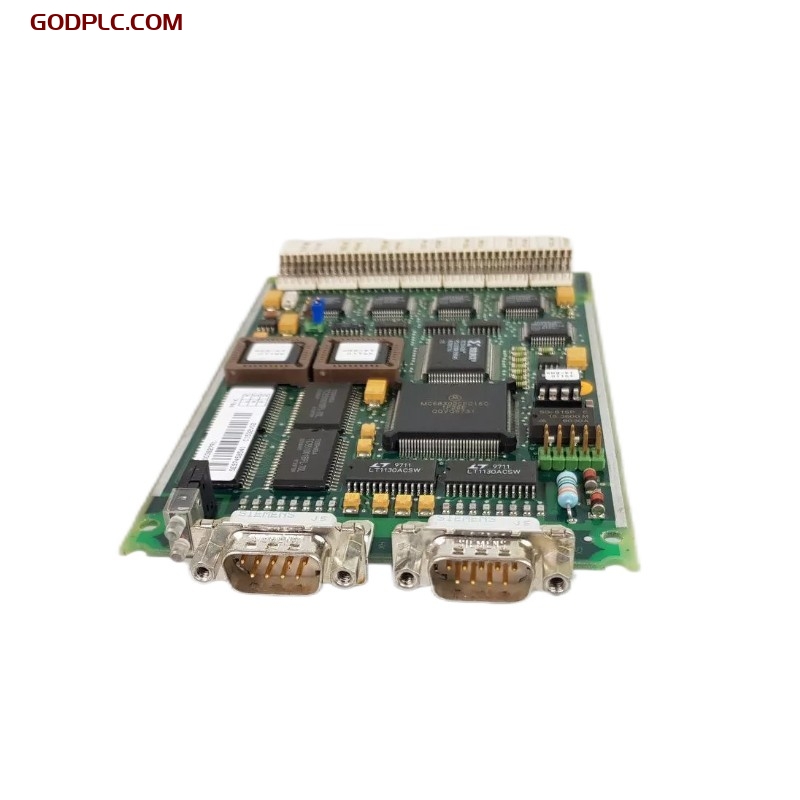

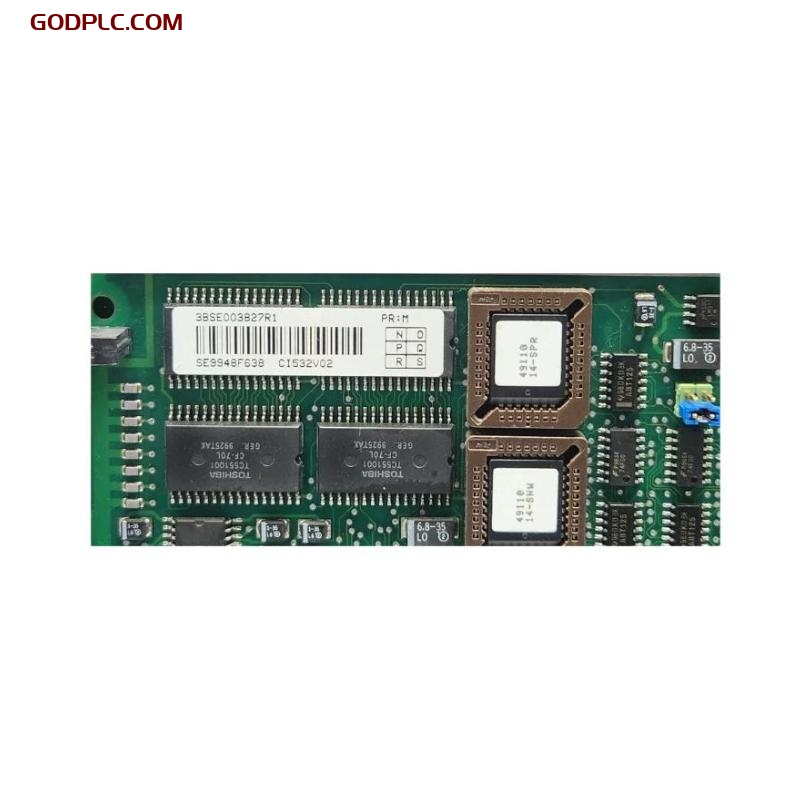

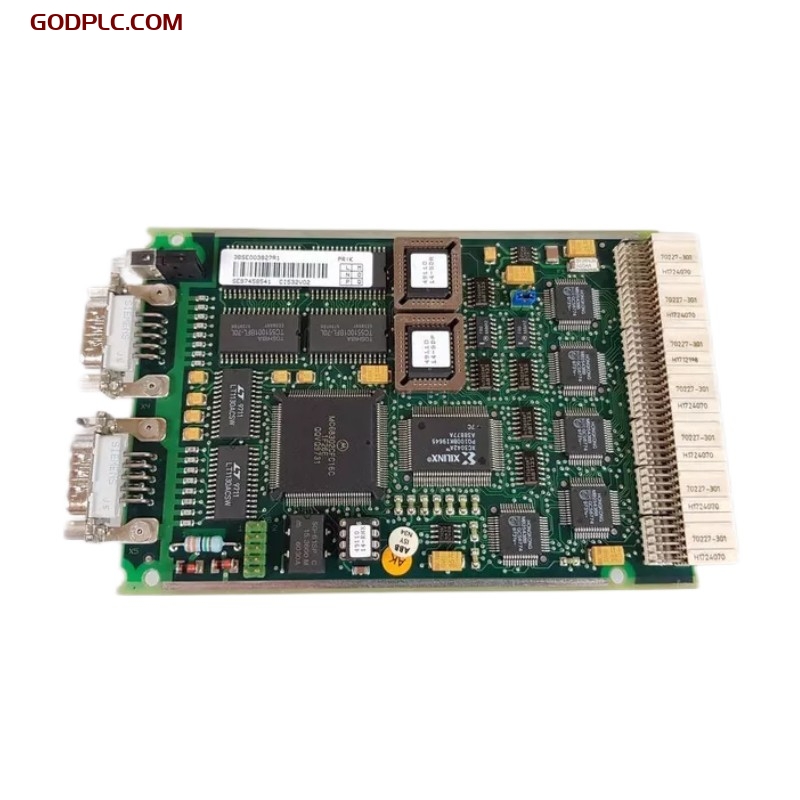

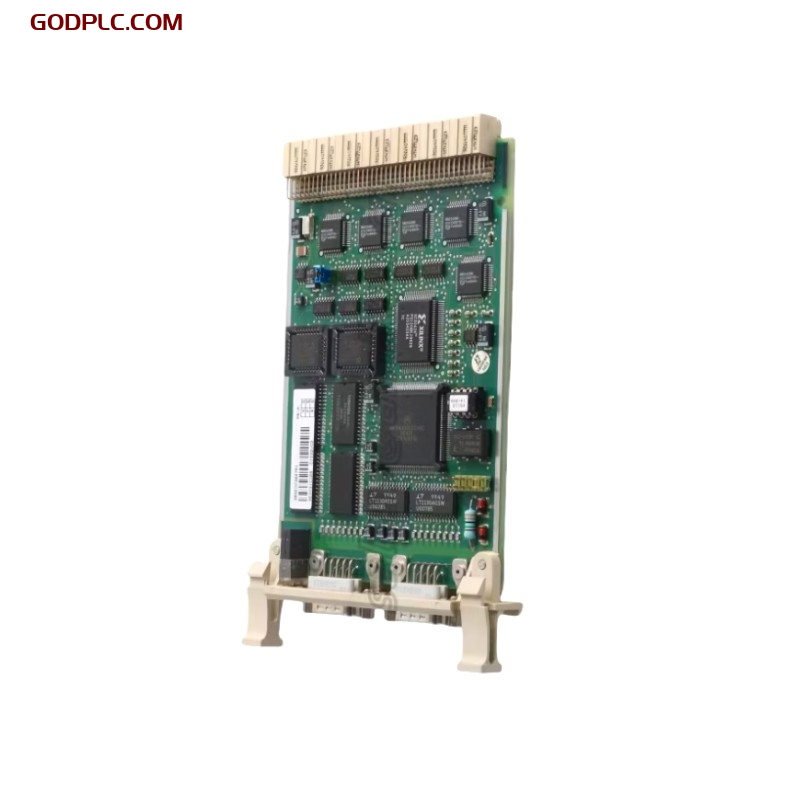

ABB CI532V02 3BSE003827R1 Interface Module
Product Overview
The ABB CI532V02 (part number 3BSE003827R1) is a PROFIBUS DP interface module used with ABB’s AC 800M controller in the 800xA control system. It enables reliable and high-speed communication between the AC 800M system and remote field devices using the PROFIBUS DP protocol. Designed for distributed automation, this module facilitates deterministic data exchange and supports integration with a wide range of intelligent field devices in process and factory automation.
Key Features
-
PROFIBUS DP Slave Communication – Connects AC 800M to PROFIBUS DP field devices
-
AC 800M Integration – Compatible with PM861/862/864 CPUs via CEX-Bus
-
Redundancy Support – Can be configured in redundant pairs for fault-tolerant applications
-
DIN Rail Mountable – Compact design allows easy installation in control cabinets
-
Diagnostics & LED Indicators – Monitors communication status and fault conditions
-
High Device Compatibility – Supports integration with third-party PROFIBUS DP equipment
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 234 x 22.5 x 108mm |
| Weight | 0.155 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | 24 VDC via CEX-Bus |
| Power Consumption | Approx. 2.5 W |
| Bus Interface | PROFIBUS DP, RS-485 |
| Baud Rate | Up to 12 Mbps |
| Isolation | Galvanic isolation from CEX-Bus |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +55°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (when installed in enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Controllers | ABB AC 800M (PM861, PM862, PM864) |
| Mounting | DIN rail |
| Configuration Tool | Control Builder M (800xA) |
| Protocol Compliance | PROFIBUS DP (EN 50170) |
Industry Applications
-
Oil & Gas – Connects PROFIBUS-based transmitters and valve controllers in hazardous environments
-
Power Generation – Integrates PROFIBUS-enabled I/O in turbines, substations, and balance-of-plant systems
-
Chemicals & Refining – Supports real-time data from intelligent process field devices
-
Pharmaceutical Manufacturing – Interfaces with PROFIBUS DP field equipment in validated automation environments
-
Water & Wastewater – Enables remote control of PROFIBUS DP-compatible pumps, sensors, and actuators
The ABB CI532V02 3BSE003827R1 PROFIBUS DP Interface Module provides seamless and robust communication between the AC 800M controller and PROFIBUS DP field networks, delivering reliable performance in complex and safety-critical automation systems.
ABB CI532V02 3BSE003827R1 Interface Modules is in stock. Please contact us for a quick quote and competitive pricing.
