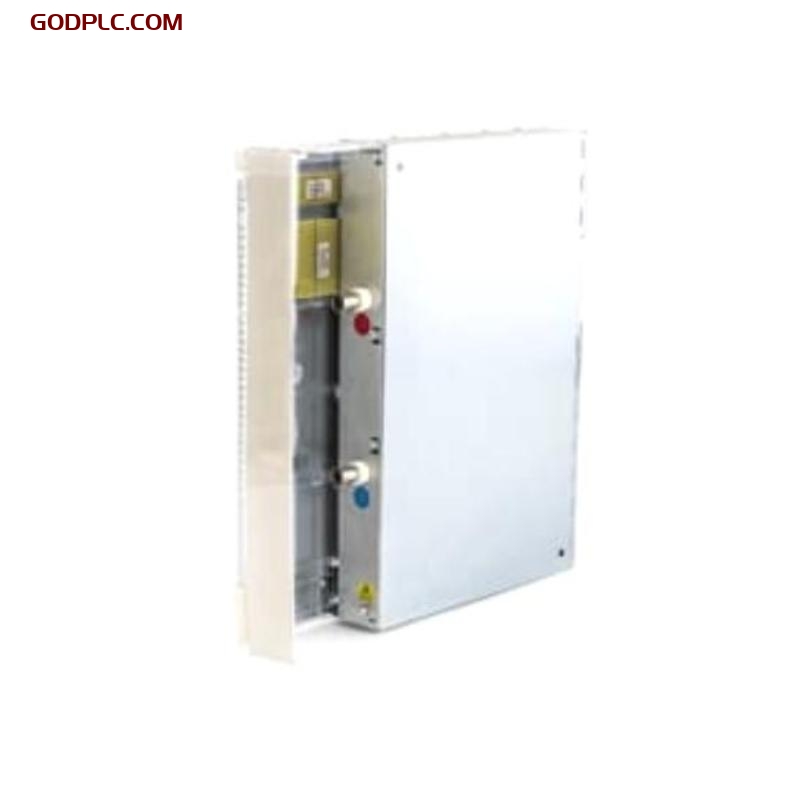

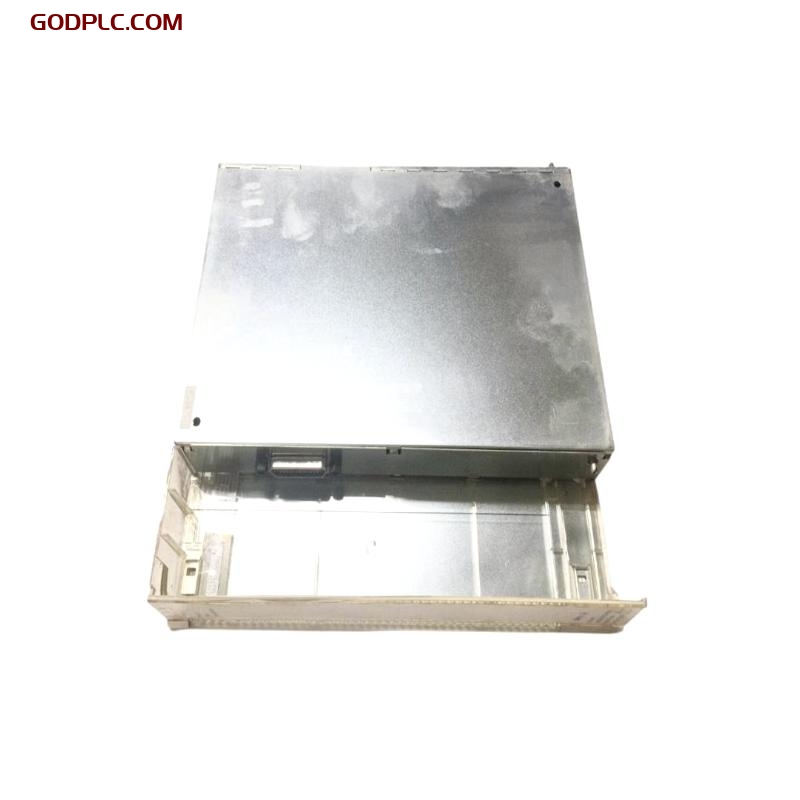

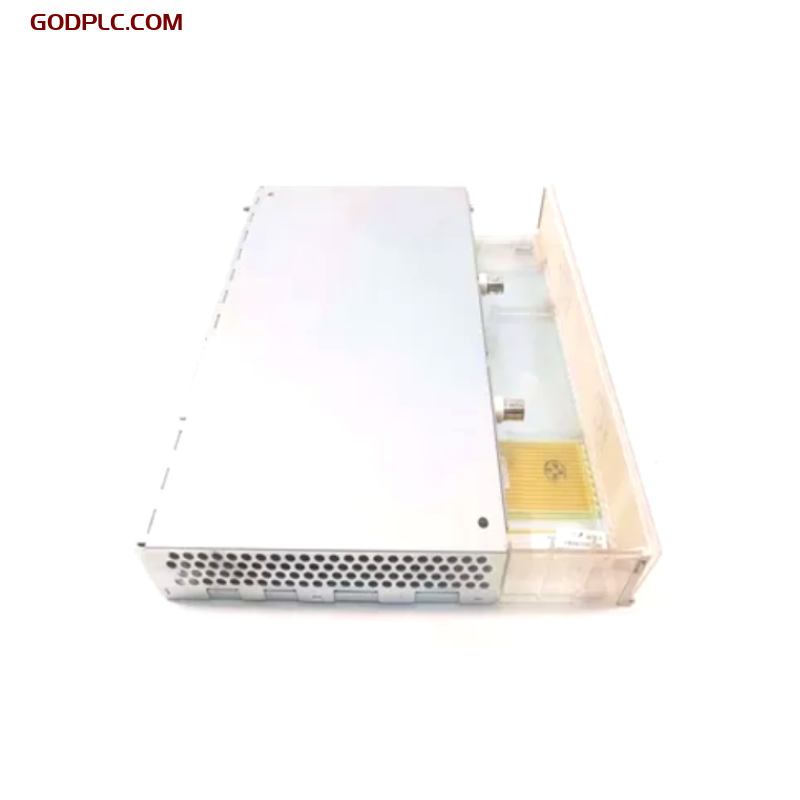

ABB CI630 3BSE011000R1 Interface Module
Product Overview
The ABB CI630 3BSE011000R1 Interface Module is a communication interface designed to connect ABB’s S800 I/O system with Fieldbus Communication Interfaces (FCI) within the AC 800M controller family. It provides high-speed and reliable data exchange between the I/O modules and the controller through the PROFIBUS DP protocol. The CI630 module is engineered to ensure accurate, real-time signal transmission for demanding automation tasks in process industries.
The CI630 supports redundant configurations, enhancing system availability and reliability. It is particularly well-suited for mission-critical applications in industries such as oil & gas, power generation, chemicals, and water treatment, where system uptime and stability are essential.
Key Features
-
PROFIBUS DP Communication – Acts as a PROFIBUS DP slave, enabling integration of S800 I/O modules with various DCS and PLC systems
-
High-Speed Operation – Supports baud rates up to 12 Mbps for real-time performance in process automation
-
Redundancy Support – Designed for dual-module operation to ensure continuous system communication in the event of module failure
-
Diagnostics Functions – Built-in monitoring features for fast fault identification and simplified maintenance
-
Hot-Swap Capability – Modules can be replaced without shutting down the system, minimizing process disruption
-
Flexible Deployment – Integrates seamlessly into existing control structures, supporting both centralized and distributed configurations
-
Compact Design – Space-efficient layout suitable for control panels and industrial cabinets
-
Industrial-Grade Reliability – Designed for long-term operation in harsh environments with high EMC tolerance
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 252 x 273 x 40 mm |
| Weight | 1.42 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | 24 VDC (via backplane) |
| Power Consumption | Approx. 1.5 W |
| Fieldbus Type | PROFIBUS DP (slave) |
| Baud Rate | Up to 12 Mbps |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +55°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection | IP20 (when installed in enclosure) |
| EMC Compliance | IEC 61000-6-2 / IEC 61000-6-4 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | ABB AC 800M / S800 I/O system |
| Communication | PROFIBUS DP (slave interface) |
| Compatible Modules | S800 I/O series and AC 800M controllers |
Industry Applications
-
Oil & Gas – Ensures reliable communication between field devices and control systems in drilling platforms and refineries
-
Power Generation – Connects S800 I/O modules with turbine, generator, and plant control systems for safe and efficient operation
-
Chemical Processing – Facilitates accurate data exchange in batch control and continuous process environments
-
Water & Wastewater – Used in monitoring and control of pumps, valves, and sensors in treatment facilities
-
Metals & Mining – Supports rugged automation networks for demanding conditions in mining and metal refining plants
The ABB CI630 3BSE011000R1 Interface Module delivers high-speed, robust, and scalable communication for ABB’s S800 I/O systems. Its redundant capabilities, diagnostics functions, and proven performance in critical industries make it a reliable choice for modern industrial automation networks.
ABB CI630 3BSE011000R1 Interface Modules is in stock. Please contact us for a quick quote and competitive pricing.
