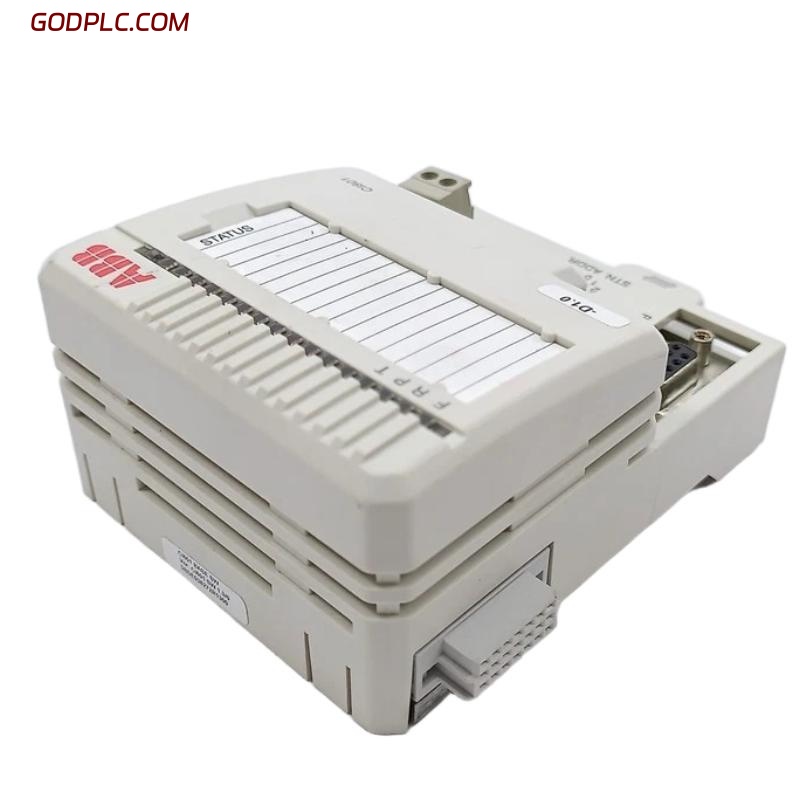

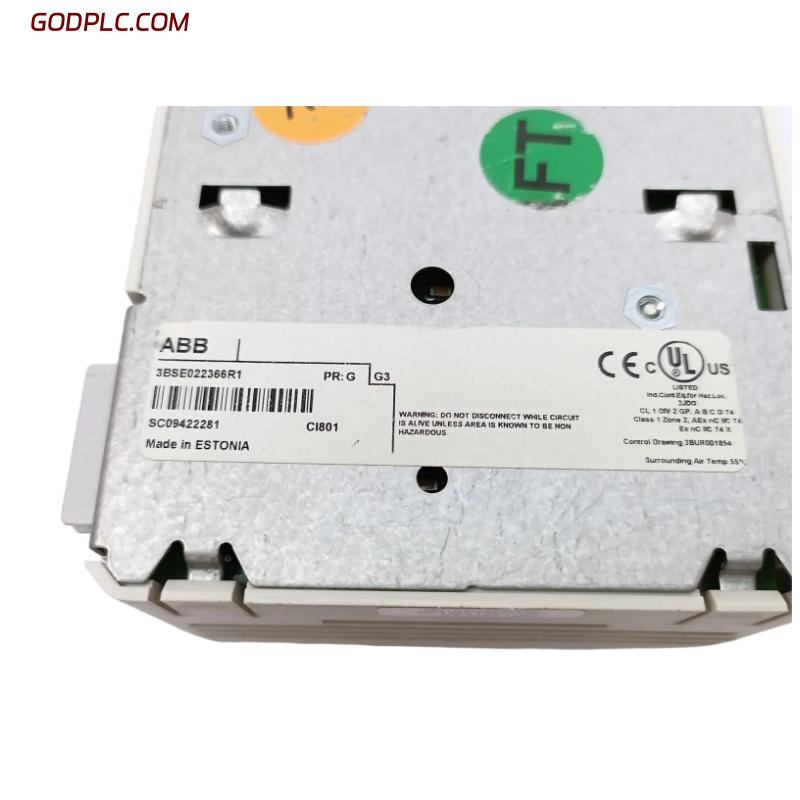

ABB CI801-eA 3BSE022366R2 modular communication interface
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The ABB CI801-eA (part number 3BSE022366R2) is a modular communication interface—specifically a PROFIBUS DP-V1 Fieldbus Communication Interface (FCI)—designed for use within ABB’s S800 I/O system architecture. It enables reliable and high-speed data exchange between S800 I/O modules and PROFIBUS DP controllers, offering flexibility for configuration, diagnostics, and HART transparent communication.
Main Features
-
Supports PROFIBUS DP-V1 protocol for seamless integration with industry-standard networks.
-
Supervisory capabilities via ModuleBus for gathering of operational and diagnostic data.
-
Hot Configuration (In-Run) allows changes without shutting down the system.
-
Provides galvanically isolated power supply to I/O modules with built-in input power fusing.
-
Supports HART signal pass-through for advanced instrumentation diagnostics.
-
Compact form factor with DIN-rail or panel mounting options.
Technical Specifications
Dimensions & Weight
| Item | Specification |
|---|---|
| Dimensions | Width: 85.8 mm; Height: 136 mm; Depth: 58.5 mm |
| Weight | Approx. 0.3 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | CI801-eA / 3BSE022366R2 |
| Product Type | PROFIBUS DP-V1 Fieldbus Communication Interface |
| System Platform | ABB S800 I/O System |
| Mounting | DIN-rail or panel-mounted |
| Country of Origin | Varies by batch (commonly Sweden, Germany, or Switzerland) |
Communication & Interface Details
| Item | Specification |
|---|---|
| Protocol | PROFIBUS DP-V1 |
| Baud Rate | Up to 12 Mbps |
| Supported I/O Modules | Up to 24 S800 I/O modules |
| Hot Swap / Configuration | Supports Hot Configuration In-Run |
Power & Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC |
| Power Consumption | Approx. 140 mA (about 2.5 W) |
| Isolation/Protection | Galvanic isolation and fused input power |
Environmental & Certification Specifications
| Item | Specification |
|---|---|
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | −40 °C to +70 °C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20 |
| Certifications | CE, UL, ATEX Zone 2, Class I Div 2; Marine approvals (ABS, BV, DNV-GL, LR) |
| Pollution & Corrosion | Pollution Degree 2; Corrosion Level G3 |
| Compliance | RoHS and WEEE compliant |
Industry Applications
The ABB CI801-eA is primarily used in:
-
Process automation systems using ABB S800 I/O architecture.
-
Applications requiring high-speed PROFIBUS DP communication to external controllers or DCS platforms.
-
Industrial environments where online configuration and diagnostics are essential for continuous operation.
-
Instrumentation systems that require HART signal transparency for field device diagnostics.
ABB CI801-eA 3BSE022366R2 modular communication interface is in stock. Please contact us for a quick quote and competitive pricing.
