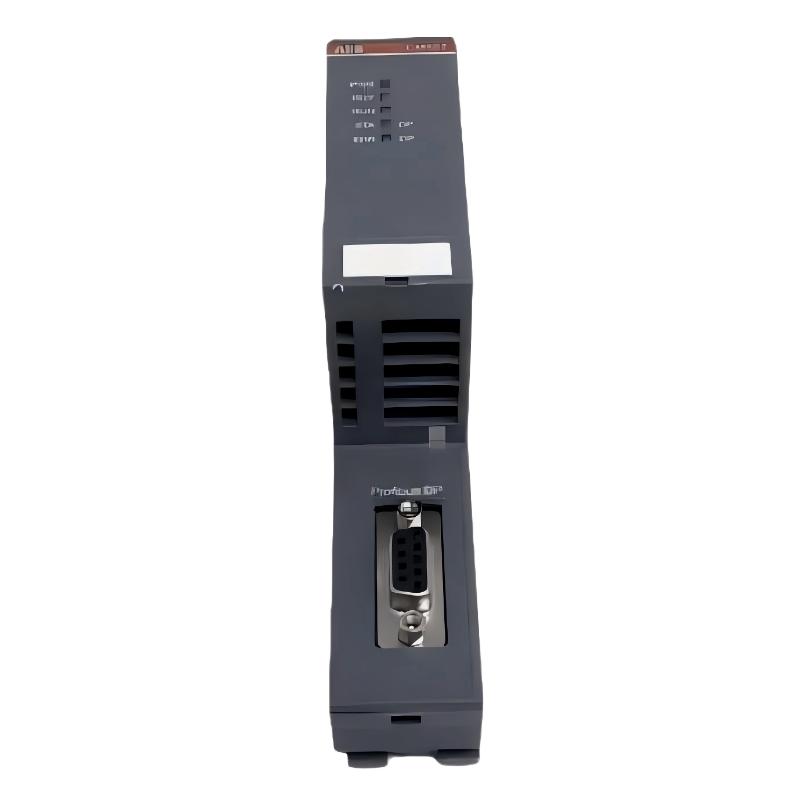

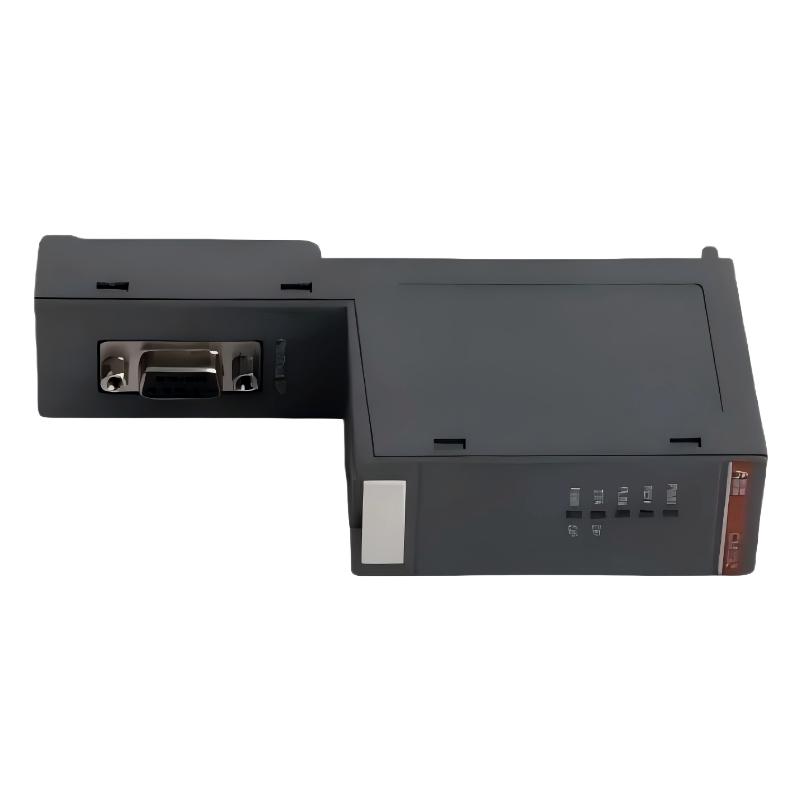

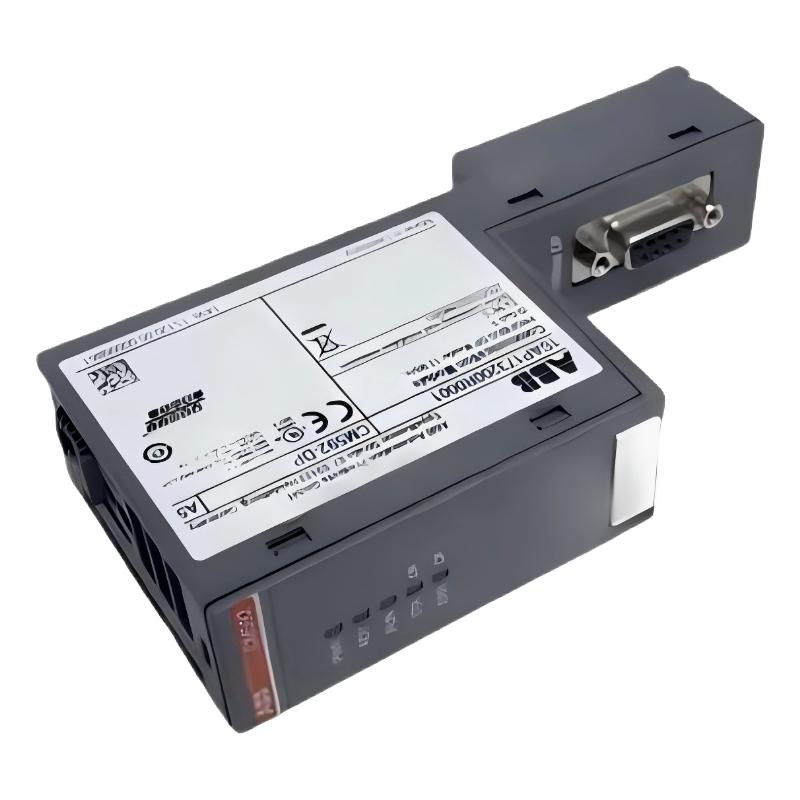

ABB CM592-DP 1SAP173200R0001 Communication Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | CM592-DP |
| Order Number | 1SAP173200R0001 |
| Manufacturer | ABB |
| Communication Protocol | PROFIBUS-DP |
| Interface Type | RS-485 |
| Transmission Rate | Up to 12 Mbit/s |
| Operating Voltage | 24 V DC |
| Power Consumption | Typical 1.6 W |
| Mounting Type | DIN Rail |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Protection Degree | IP20 |
| Dimensions | 62 × 135 × 28 mm |
| Weight | 0.092 kg |
FAQ
1. What is the main function of the CM592-DP module?
The CM592-DP is a PROFIBUS-DP communication module designed to enable data exchange between a PLC and field devices on a PROFIBUS network. It connects the controller with distributed I/O modules, drives, and other field equipment, allowing real-time communication and centralized system control in industrial automation applications.
2. Which PLC systems is this module compatible with?
The module is primarily designed for ABB AC500 series PLC systems. It integrates directly into the AC500 architecture and can also communicate with third-party devices that comply with the PROFIBUS-DP standard, making it suitable for mixed-vendor automation environments.
3. What are the key features of PROFIBUS-DP communication?
PROFIBUS-DP provides fast, deterministic communication with strong resistance to electromagnetic interference. It is widely used in industrial environments where reliable cyclic data exchange and real-time control are required, such as manufacturing lines and process automation systems.
4. How is the module installed in a system?
The module is installed on a standard DIN rail inside a control cabinet. It is designed to be mounted alongside the PLC and other expansion modules. Its compact design and clear terminal layout simplify wiring and support efficient installation and maintenance.
5. How is the communication speed selected?
The module supports transmission speeds up to 12 Mbit/s. The actual baud rate should be selected based on network size, cable length, and system complexity. Higher speeds are suitable for shorter distances and simpler networks, while lower speeds improve stability in larger installations.
6. How is the module configured?
Configuration is performed using ABB engineering software. Users define parameters such as node address, baud rate, and network structure. Once configured, diagnostic tools within the software allow monitoring of communication status and troubleshooting of network issues.
7. What are the advantages of using RS-485 in this module?
RS-485 offers robust differential signaling, which provides strong immunity to electrical noise. It also supports long-distance communication and multi-drop network configurations, making it highly suitable for industrial fieldbus systems like PROFIBUS-DP.
8. How can stable operation be ensured in industrial environments?
Stable operation depends on proper installation practices, including correct grounding, use of shielded PROFIBUS cables, and proper termination resistors. Regular inspection of wiring and network diagnostics also helps maintain communication reliability and prevent data transmission issues.
ABB CM592-DP 1SAP173200R0001 Communication Module is in stock. Please contact us for a quick quote and competitive pricing.
