FAQ

1. What is the main function of the ABB CP-S 24/5.0 power supply module?

The ABB CP-S 24/5.0 is an industrial switching power supply designed to convert AC or DC input power into a stable 24 V DC control supply. With a rated output of 24 V DC at 5 A, it provides up to 120 W of output power for PLCs, relays, sensors, actuators and other industrial automation equipment. The power supply features a wide input range, allowing it to operate with different industrial power systems. Its output voltage can also be adjusted within the specified range to accommodate different control circuit requirements. The CP-S 24/5.0 includes short-circuit and overload protection and supports parallel operation. These features make it suitable for automation control cabinets where reliable and stable DC power is required. In applications requiring higher availability, multiple units can be configured in parallel or used as part of a redundant power supply architecture.

2. What input voltage does the CP-S 24/5.0 support?

The CP-S 24/5.0 has a rated AC input range of 110–240 V AC and can operate across an input range of 85–264 V AC. It also supports a DC input range of 100–350 V DC. For AC operation, the input frequency range is 47–63 Hz, making the unit suitable for common industrial power systems. The wide input range allows the power supply to be used in different industrial installations without requiring a separate input voltage version for every application. Before installation, the actual supply voltage should be measured and verified to ensure that it falls within the specified operating range. The input terminals must also be wired according to the applicable connection arrangement. Applying an input voltage outside the specified range can cause unstable operation or damage to the power supply, so the supply characteristics should always be confirmed before energizing the unit.

3. What is the output capacity of the CP-S 24/5.0?

The CP-S 24/5.0 provides a nominal output of 24 V DC and 5 A, corresponding to a rated output power of 120 W. The output voltage can be adjusted within approximately 22–28 V DC, allowing the power supply to be adapted to the requirements of different control circuits. The unit also provides a certain amount of power reserve and can deliver a typical peak output current of approximately 7.25 A under suitable conditions. This additional capacity can be useful when connected equipment has a temporary increase in current demand during startup or switching. However, continuous operation should remain within the rated 5 A output current. When selecting the power supply for an automation cabinet, the total current consumption of PLCs, I/O modules, sensors, relays, solenoid valves and other 24 V DC loads should be calculated. Additional capacity should be reserved where the system contains loads with high startup or transient current requirements.

4. Can the CP-S 24/5.0 be used to power a PLC control system?

Yes. The 24 V DC output of the CP-S 24/5.0 is well suited to industrial PLC control systems. It can supply power to PLCs, digital and analog I/O equipment, sensors, relays and other 24 V DC control devices. In a typical control cabinet, the CP-S 24/5.0 can serve as the main control power supply for multiple low-voltage DC loads. When selecting the unit, the total operating current of all connected devices should be calculated to ensure that the combined load remains within the rated 5 A output capacity. Startup current and transient loads should also be considered, particularly when the system contains solenoid valves, contactors or other inductive devices. For critical PLC systems, additional measures such as redundant power supplies, load distribution and individual circuit protection can be used to reduce the impact of a single power supply or downstream load failure.

5. Does the CP-S 24/5.0 support parallel operation?

Yes. The CP-S 24/5.0 supports parallel operation, with up to five units that can be connected according to the appropriate system design. Parallel operation can be used to increase the available 24 V DC power capacity or to create a higher-availability power supply arrangement. In an industrial automation system, multiple power supplies can be used to reduce the effect of a single power supply failure, provided the overall circuit is designed correctly. Multiple outputs should not simply be connected together without considering the required wiring and power distribution arrangement. The output voltage settings of the parallel units should be matched, and the load-sharing behavior should be considered. For critical PLC, DCS or industrial control applications, a suitable redundancy architecture can be used together with appropriate monitoring and protection equipment. Before commissioning a parallel configuration, each power supply should be tested individually and the complete system should be verified under the expected load conditions.

6. What protection functions are built into the CP-S 24/5.0?

The CP-S 24/5.0 incorporates several protection functions designed to improve operating reliability. These include short-circuit protection, overload protection and transient overvoltage protection. During a short circuit, the power supply limits the output current to protect the unit and the connected circuit. The short-circuit current limitation is approximately 11 A. Thermal protection is also provided to protect the power supply when excessive temperature occurs as a result of overload or abnormal operating conditions. On the input side, a varistor provides protection against transient overvoltage, while an internal 4 A slow-blow fuse provides additional input protection. These protection functions are intended to protect the power supply during abnormal conditions but do not mean that continuous overload operation is acceptable. If the unit repeatedly enters a protective state, the downstream wiring and connected loads should be inspected for short circuits, excessive current consumption, incorrect wiring or damaged equipment.

7. Why might the CP-S 24/5.0 output voltage become unstable?

An unstable or abnormal output voltage can have several possible causes. The first step is to check whether the input voltage is stable and within the specified range. The connected load should then be checked to determine whether the total current exceeds the rated 5 A output capacity. A short circuit, incorrect wiring or a faulty downstream device can also cause the power supply to enter a protective operating condition. Since the CP-S 24/5.0 has an adjustable output voltage, the adjustment setting should also be checked if the measured output is different from the expected value. In industrial systems, loads such as contactors, solenoid valves and relays can create transient current demands when switching, which may cause temporary output fluctuations. Measuring the 24 V DC output under no-load, normal-load and switching conditions can help identify the source of the problem. If the external load and input power are confirmed to be normal but the output remains abnormal, the terminals and power supply itself should be inspected for signs of damage or malfunction.

8. What should be checked when replacing an ABB CP-S 24/5.0?

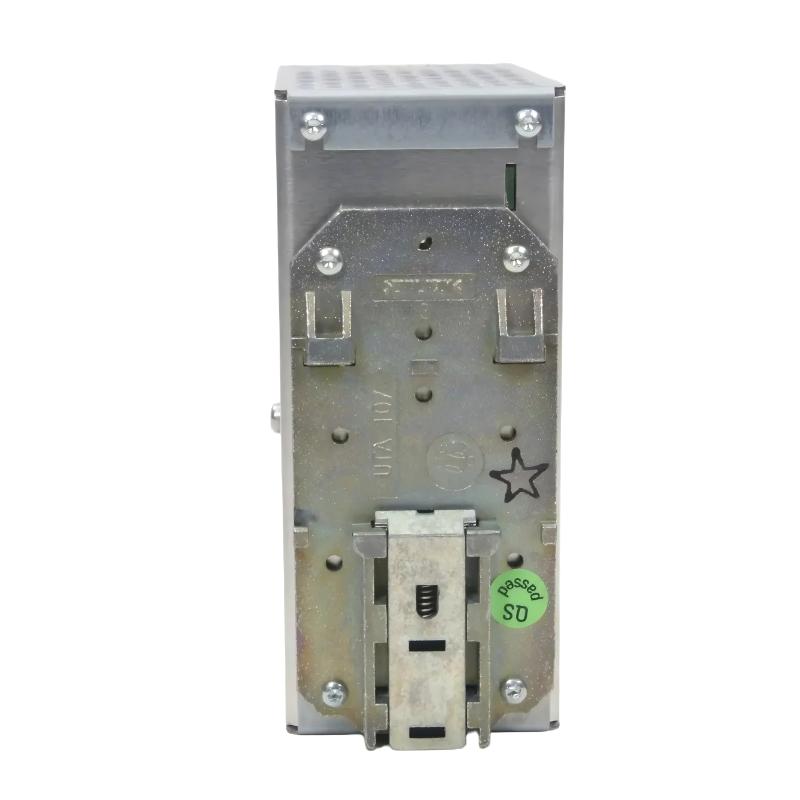

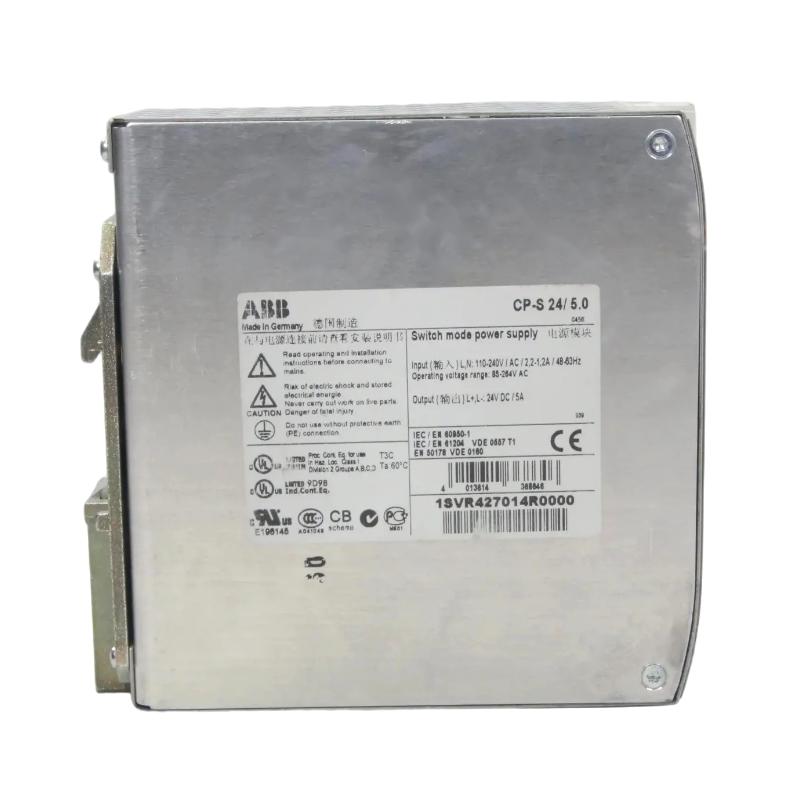

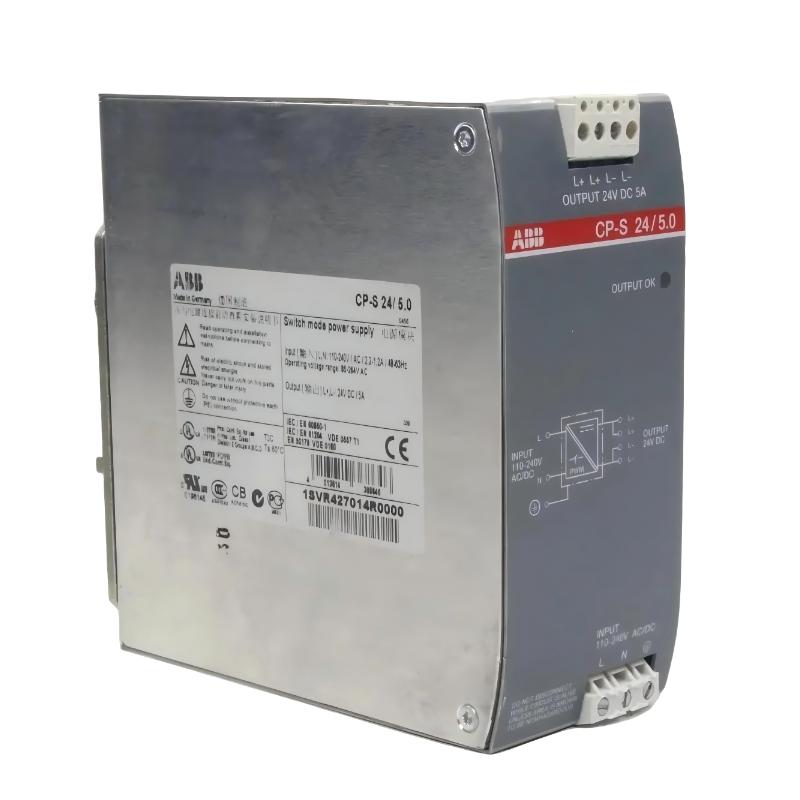

Before replacing a CP-S 24/5.0, the original model and order number should be verified. The specified model is CP-S 24/5.0 and the order number is 1SVR427014R0000. Before removing the existing power supply, the input and output wiring should be documented and the electrical supply should be isolated according to the applicable safety procedures. After installing the replacement unit, verify that the AC or DC input voltage is within the specified range and confirm that the 24 V DC output polarity is correctly connected. Correct polarity is particularly important when the power supply is connected directly to PLCs, sensors and electronic control equipment. After energizing the unit, the output voltage should be measured before reconnecting or fully loading the downstream equipment. The green OUTPUT OK indicator should also be checked. If the original system uses parallel or redundant power supplies, the output settings and wiring arrangement of all units should be verified. Finally, the connected automation equipment should be tested to ensure that the new power supply provides stable 24 V DC power under both normal and transient operating conditions.
