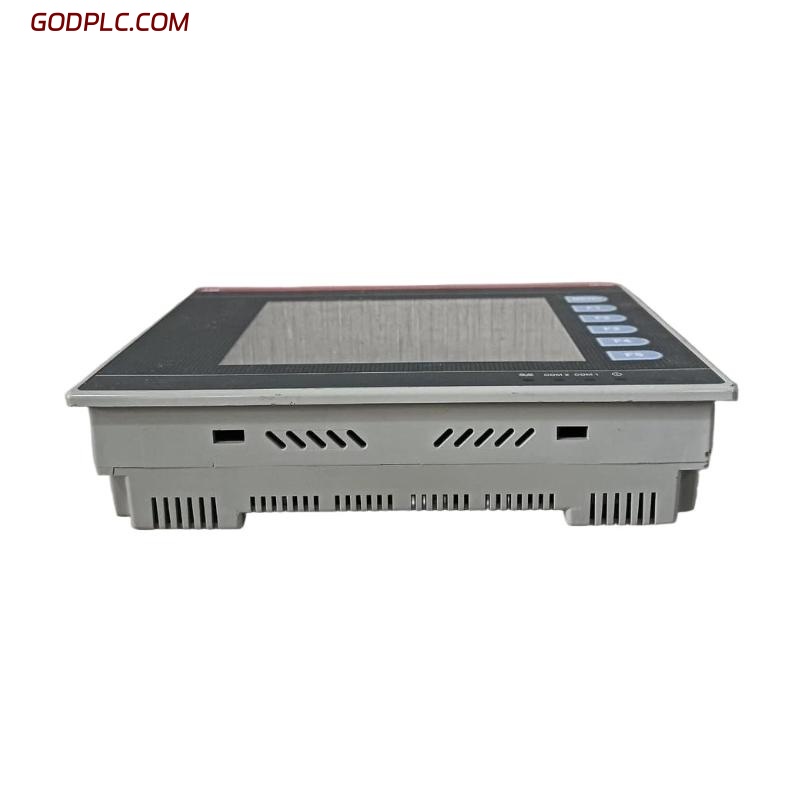

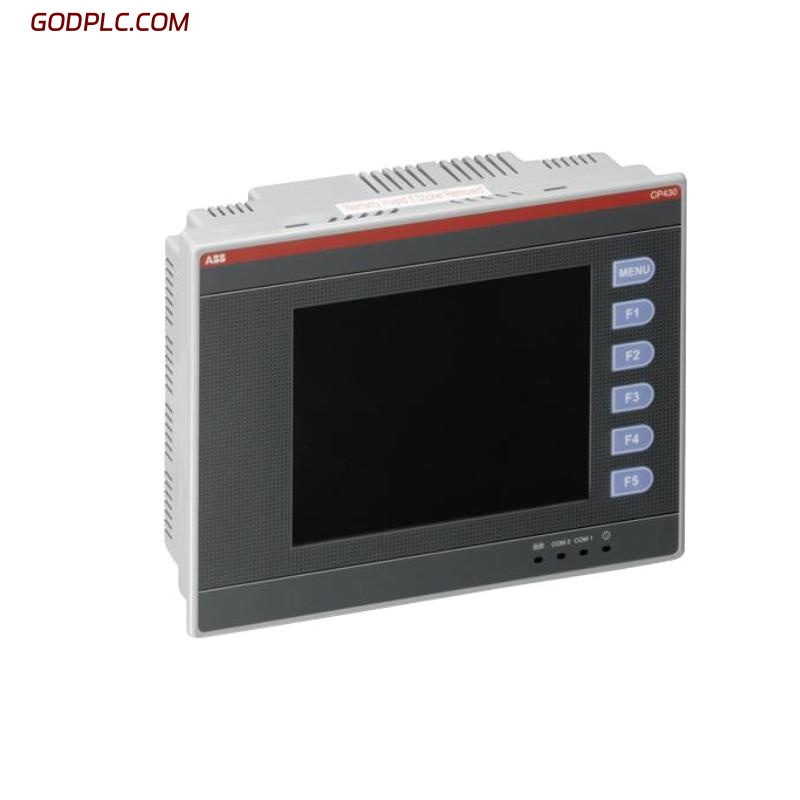

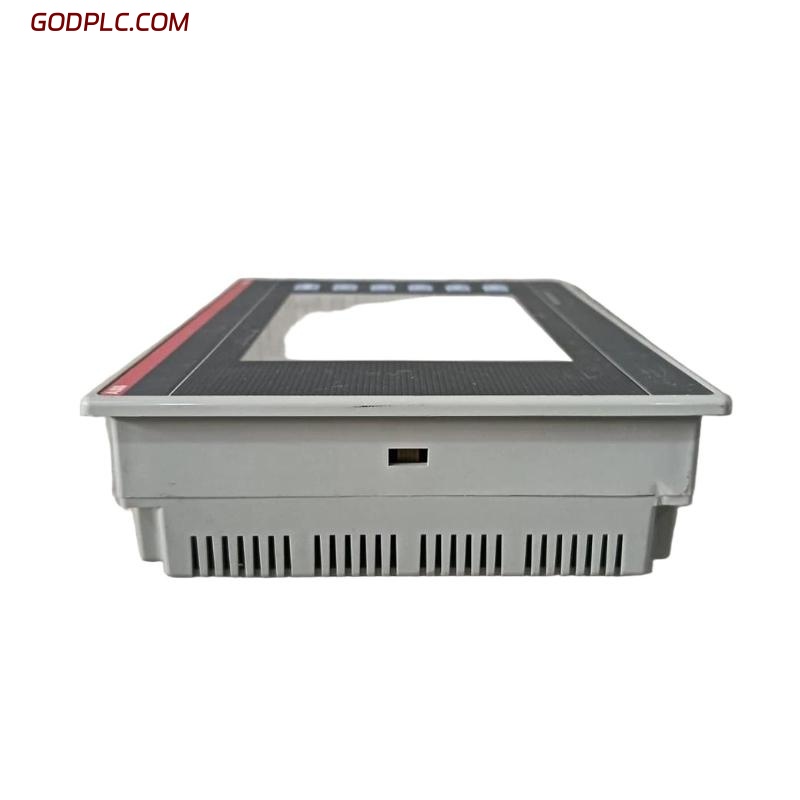

ABB CP430B 1SBP260183R1001 Touch Screen
Product Overview
The ABB CP430B 1SBP260183R1001 is a compact, high-performance touch screen Human-Machine Interface (HMI) designed for use in demanding industrial environments. With a 4.3-inch color TFT display and intuitive touchscreen functionality, the CP430B offers streamlined control, monitoring, and configuration of automation processes. It supports a range of industrial protocols, making it a flexible choice for machine builders and process automation integrators.
Key Features
-
4.3-Inch Color Touchscreen – TFT LCD with LED backlight for clear, vibrant display and user-friendly operation
-
High Connectivity – Supports multiple communication ports including RS232, RS485, and Ethernet
-
Rugged Design – Industrial-grade housing with IP66-rated front panel for dust and water resistance
-
Flexible Protocol Support – Compatible with Modbus RTU/TCP, ABB AC500, and other common industrial protocols
-
User-Friendly Software – Configurable using ABB’s Panel Builder 600 HMI development software
-
Compact Footprint – Space-saving design ideal for tight control panel installations
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 60 x 145 x 195 mm |
| Weight | 0.81 kg |
3.2 Display Characteristics
| Item | Specification |
|---|---|
| Display Type | TFT LCD, 65K colors |
| Display Size | 4.3 inches (diagonal) |
| Resolution | 480 x 272 pixels |
| Touch Technology | Resistive touch panel |
| Backlight | LED, adjustable brightness |
3.3 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 VDC ±20% |
| Power Consumption | < 6 W |
3.4 Communication Interfaces
| Port | Specification |
|---|---|
| Serial Port | 1 x RS232, 1 x RS485 |
| Ethernet Port | 1 x 10/100Base-T RJ45 |
| USB Host | 1 x USB 2.0 Type-A |
| USB Client | 1 x USB 2.0 Mini-B (for programming) |
3.5 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +60°C |
| Humidity | 10%–90% RH (non-condensing) |
| Front Panel Protection | IP66 (front), IP20 (rear) |
Industry Applications
-
Machine Automation – Provides operators with real-time interaction for machine status and control
-
Process Control – Allows visualization and adjustment of critical process parameters
-
Packaging Lines – Streamlines recipe selection and diagnostics for packaging equipment
-
HVAC Systems – Offers intuitive interfaces for environmental and energy control systems
-
Water Treatment – Enables control room integration and local field operation for treatment processes
The ABB CP430B 1SBP260183R1001 Touch Screen combines reliability, flexibility, and user-centric design to deliver a powerful yet compact HMI solution, ideal for a wide range of industrial automation applications.
ABB CP430B 1SBP260183R1001 Touch Screen is in stock. Please contact us for a quick quote and competitive pricing.
