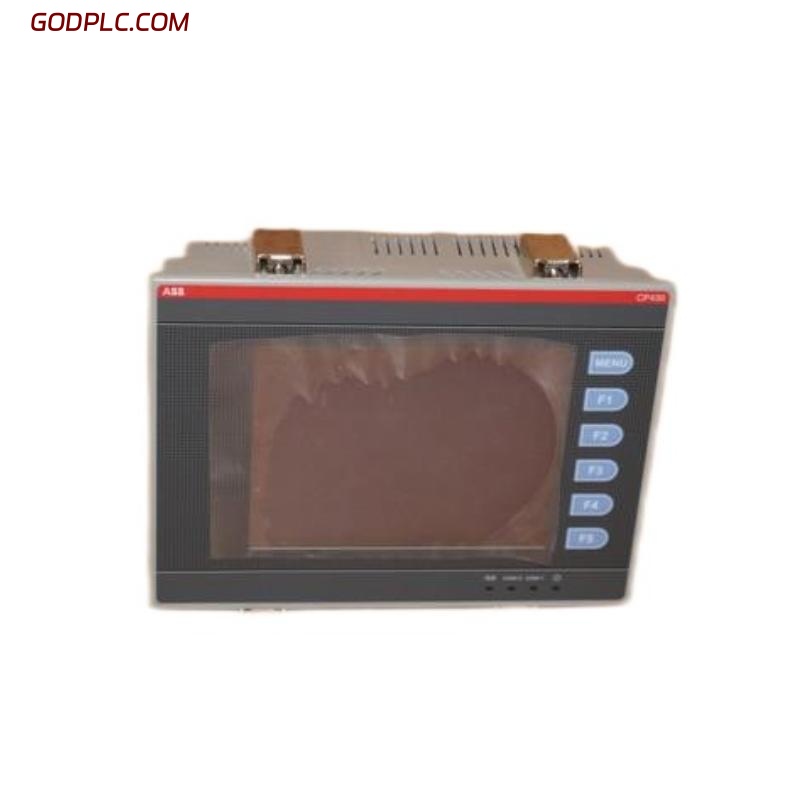

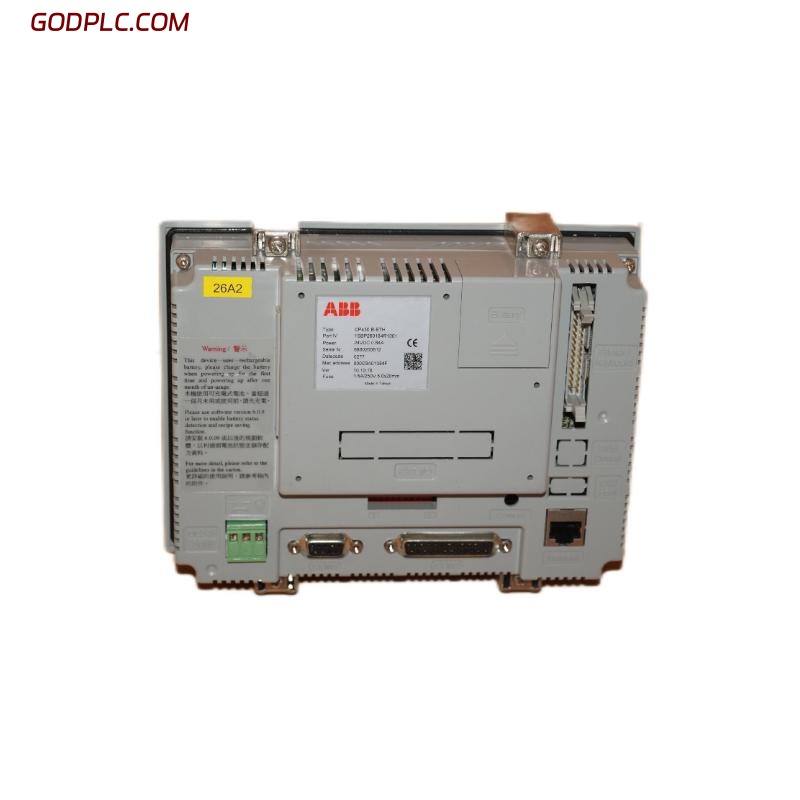

ABB CP430BP-ETH 1SBP260194R1001 Touch Screen
Product Overview
The ABB CP430BP-ETH 1SBP260194R1001 is a high-performance, multi-functional touchscreen designed for integration into ABB’s industrial control and automation systems. Offering a user-friendly interface with high-resolution graphics, the CP430BP-ETH enhances operator interaction with control systems, providing real-time monitoring, control, and diagnostics. Built for industrial environments, this touchscreen features a robust design, fast processing capabilities, and seamless integration with ABB’s controllers and supervisory systems. It is ideal for applications where intuitive control and visibility into system operations are critical, such as manufacturing, energy, and process industries.
Key Features
-
High-Resolution Touchscreen Display – Delivers clear, detailed visual feedback with high-quality graphics for system control and diagnostics
-
Intuitive User Interface – Easy-to-use, responsive touchscreen for quick navigation and system adjustments
-
Ethernet Connectivity – Supports Ethernet communication for seamless integration into networked control systems
-
Robust Industrial Design – Engineered to withstand challenging industrial conditions such as temperature extremes, vibration, and dust
-
Real-Time Monitoring and Diagnostics – Provides live data, alarms, and system performance feedback for proactive troubleshooting and decision-making
-
Wide Compatibility – Works seamlessly with ABB PLCs, DCS, and SCADA systems, allowing for flexible system integration
-
Space-Saving Design – Compact form factor designed for easy installation into control panels or enclosures
-
Environmental Protection – Features IP65 protection when mounted, making it suitable for use in harsh industrial environments
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 60 x 145 x 195 mm |
| Weight | 0.86 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | 24 V DC |
| Current Consumption | Approx. 1.0 A |
| Display Type | TFT LCD, high-resolution touch display |
| Communication | Ethernet (TCP/IP, Modbus TCP, Profinet) |
| Input Interface | Capacitive touchscreen (multi-touch) |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -10°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP65 (when mounted) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | ABB control and automation systems |
| Module Type | Touchscreen |
| Compatible Systems | ABB PLCs, DCS, SCADA systems, HMI platforms |
Industry Applications
-
Industrial Automation – Provides intuitive control and monitoring for automated manufacturing processes
-
Energy and Utilities – Displays critical data for power generation, distribution, and grid monitoring systems
-
Chemical Processing – Monitors system parameters and provides operator control in chemical production facilities
-
Building Automation – Interfaces with HVAC, lighting, and other building management systems for real-time monitoring and control
-
Machine Control – Offers direct interaction with machine systems, providing operators with real-time status and control options
The ABB CP430BP-ETH 1SBP260194R1001 Touch Screen is a highly advanced, user-friendly interface designed to improve control, monitoring, and diagnostics in industrial automation systems. With its intuitive touchscreen, robust construction, and seamless integration with ABB’s control platforms, it offers operators an efficient and effective tool for managing complex industrial processes. Ideal for demanding environments, this touchscreen enhances operational efficiency and ensures reliable performance across a wide range of applications.
