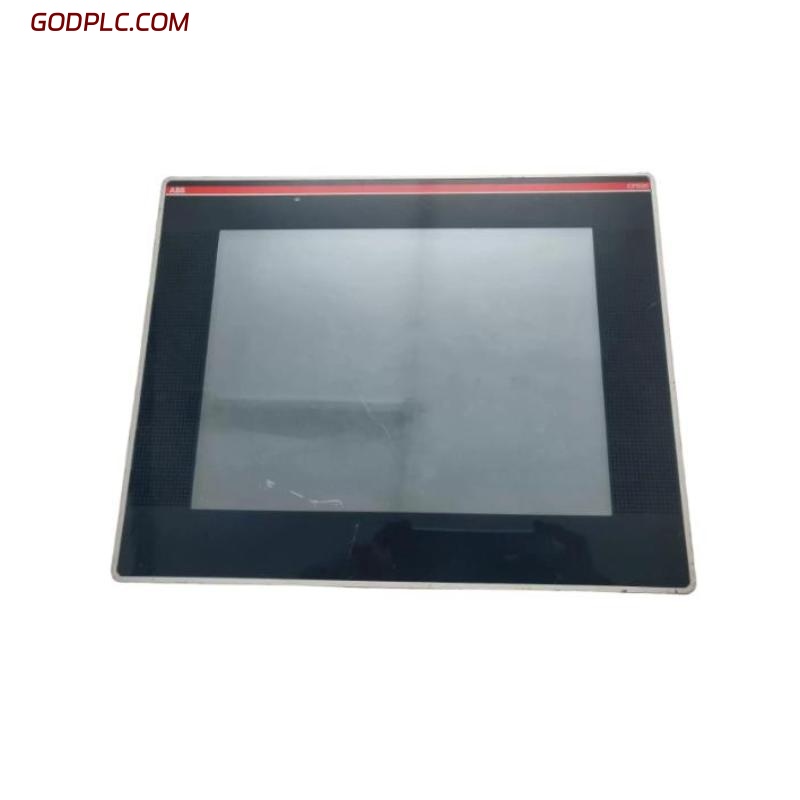

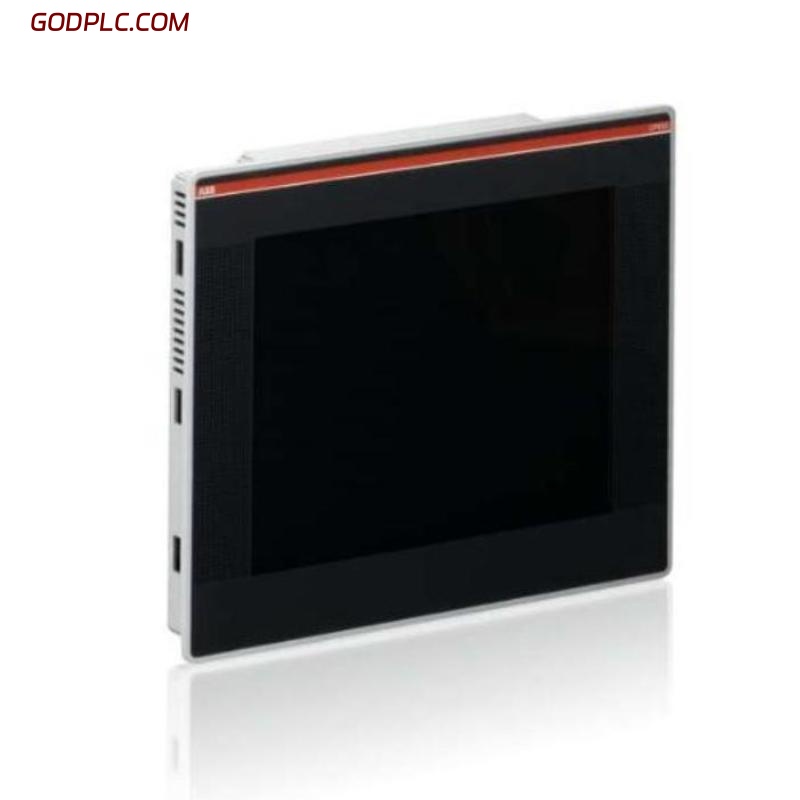

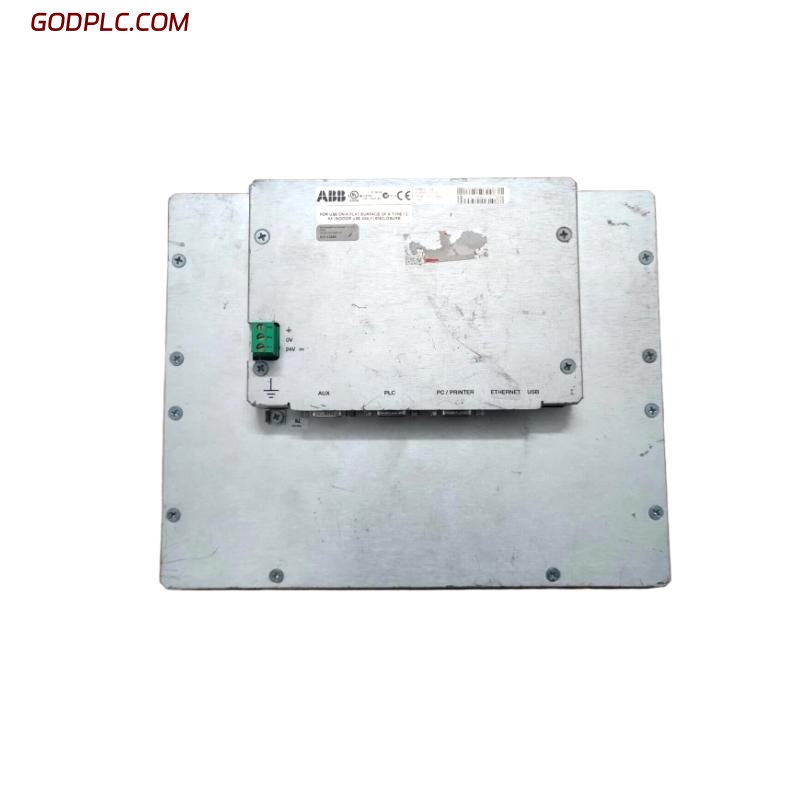

ABB CP650 1SAP550100R0001 Touch Screen
Product Overview
The ABB CP650 1SAP550100R0001 Touch Screen is a rugged, high-resolution Human-Machine Interface (HMI) designed for monitoring, control, and visualization tasks in industrial automation systems. Part of ABB’s CP600 series, the CP650 model offers a 15-inch widescreen display with intuitive touch operation, enabling operators to efficiently manage processes, machines, and production lines. Engineered for reliability and usability, this HMI is ideal for demanding industrial environments requiring real-time process interaction.
Key Features
-
15-Inch High-Resolution Display – Provides clear, widescreen visualization for process data and system status
-
Intuitive Touch Operation – Capacitive touch technology ensures precise, user-friendly interaction
-
Robust Industrial Design – Withstands vibration, temperature fluctuations, and harsh environmental conditions
-
Powerful Performance – Equipped with a fast processor and ample memory for smooth graphical operation
-
Flexible Communication – Supports multiple industrial protocols, including Ethernet, Modbus, and OPC connectivity
-
Seamless Integration – Fully compatible with ABB automation platforms and third-party control systems
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 370 x 120 x 270mm |
| Weight | 0.65 kg |
Performance Characteristics
| Item | Specification |
|---|---|
| Display Resolution | 1366 × 768 pixels (HD) |
| Touch Technology | Capacitive multi-touch |
| Processor | High-performance ARM-based CPU |
| RAM/Flash Memory | 512 MB RAM / 4 GB Flash memory |
| Operating System | Embedded system with ABB visualization tools |
Communication and Connectivity
| Item | Specification |
|---|---|
| Ethernet Ports | 2 × 10/100/1000 Mbps Ethernet |
| Serial Ports | 2 × RS232/RS485 combo ports |
| USB Ports | 2 × USB 2.0 for peripherals and updates |
| Protocol Support | Modbus TCP/RTU, OPC UA, Ethernet/IP, and more |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | Compliant with IEC industrial standards |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB AC500, CP600 series, and third-party PLCs |
| Mounting | Panel-mounted with IP66 front protection |
Industry Applications
-
Factory Automation – Provides user-friendly control interfaces for machinery, production lines, and equipment
-
Power Generation – Enables real-time visualization of turbine, generator, and auxiliary system status
-
Water and Wastewater Treatment – Offers intuitive control and monitoring for treatment processes
-
Oil & Gas – Suitable for onshore and offshore operations requiring rugged HMI solutions
-
Process Industries – Ensures reliable operation for chemical, pharmaceutical, and food processing environments
The ABB CP650 1SAP550100R0001 Touch Screen combines high-resolution graphics, robust construction, and flexible connectivity to deliver a reliable HMI solution for industrial control systems. Its intuitive operation and seamless integration capabilities make it ideal for enhancing process visibility and operator efficiency in demanding environments.
