1. What is the primary function of the ABB D685A1156U01 FMU Backplane?

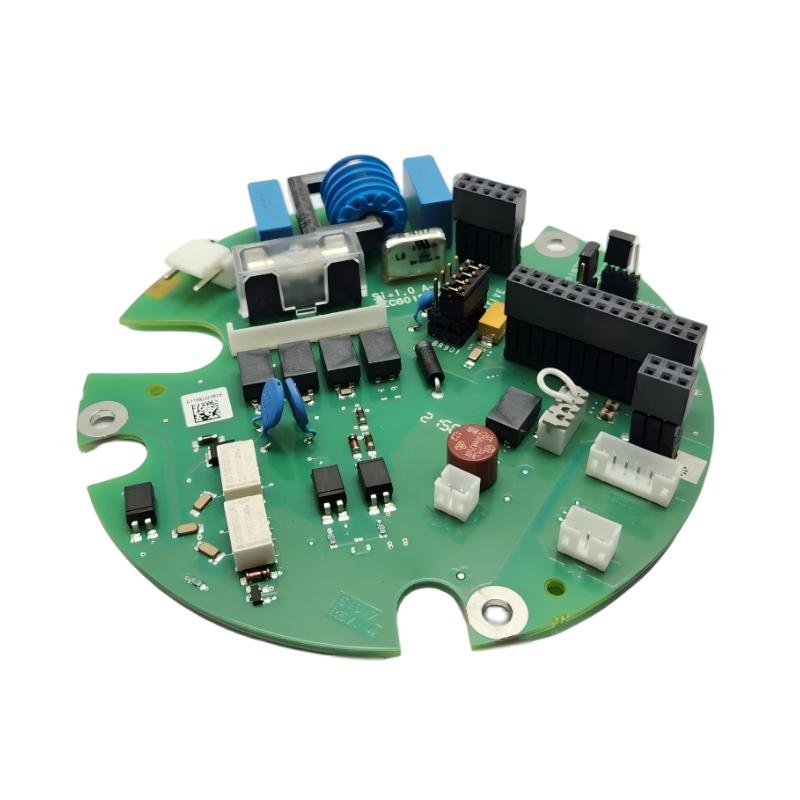

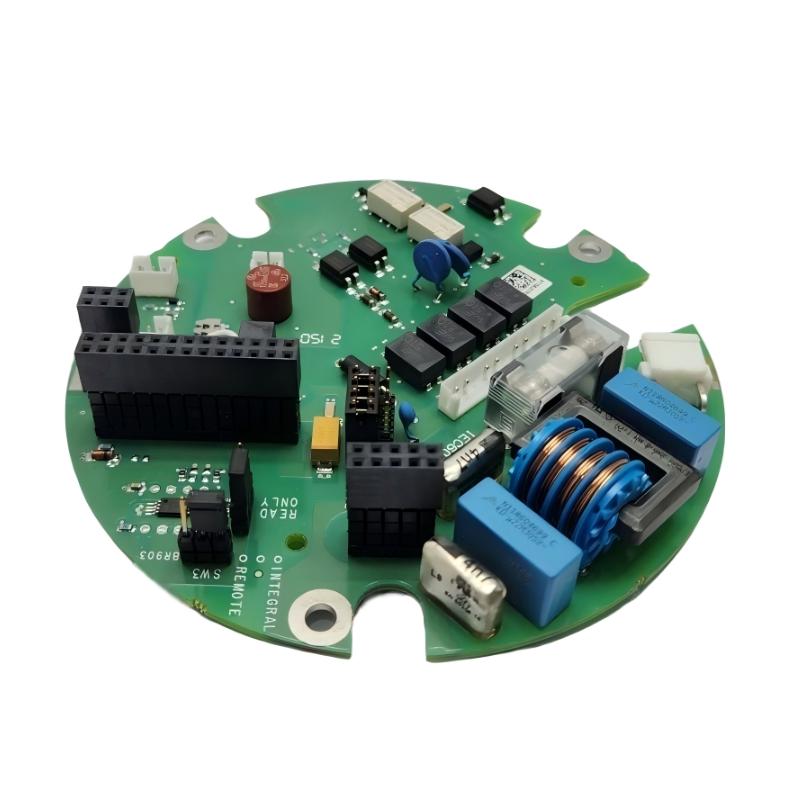

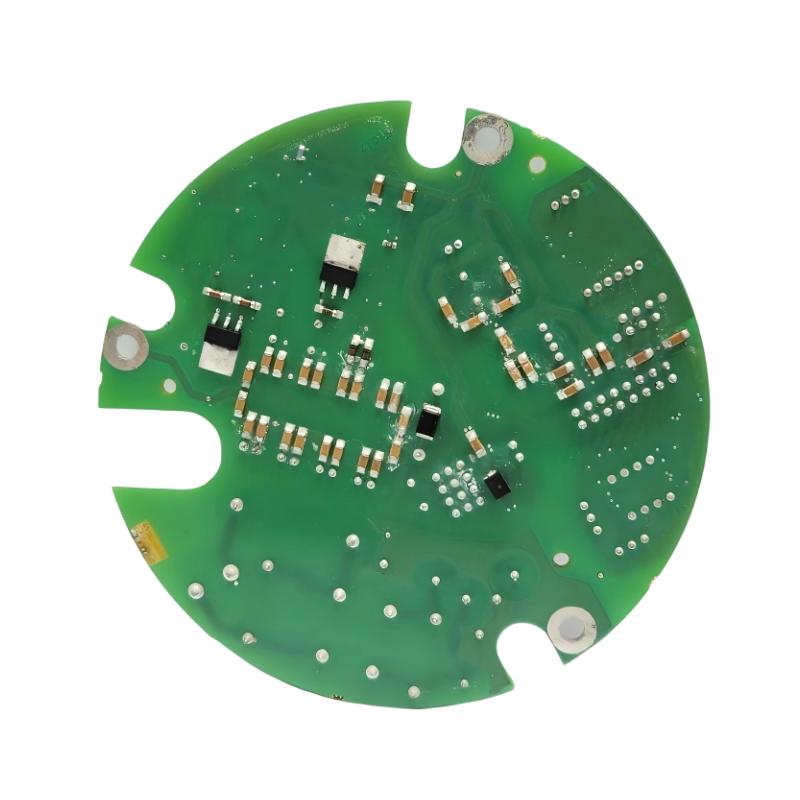

The D685A1156U01 is a universal backplane used within ABB electromagnetic flowmeter transmitter assemblies. Its main function is to provide the electrical interconnection between the transmitter electronics, contact board, and other components installed in the field housing. It provides organized signal and power paths so that the associated electronics can operate as an integrated transmitter system. The backplane is therefore an important internal connection component rather than an independent measuring or control module. A damaged or incorrectly connected backplane can affect power distribution, signal transmission, communication, or the overall operation of the associated transmitter.

2. Which ABB flowmeter systems use the D685A1156U01?

The D685A1156U01 is associated with ABB electromagnetic flowmeter systems including the FEP300, FEP500, FET300, and FET500 product families. ABB spare-parts documentation identifies this part as a universal backplane for transmitter field-housing configurations. It can be used with compatible dual-compartment transmitter housing arrangements and related field-mounted equipment. When selecting a replacement, the complete flowmeter model and housing configuration should be checked rather than relying only on the part number, because different transmitter generations and housing arrangements can use different backplane assemblies.

3. Is the D685A1156U01 a measurement board?

No. The D685A1156U01 is a backplane/interconnection component rather than the primary measurement electronics of the electromagnetic flowmeter. The measurement system uses dedicated electronics to process the signals generated by the flow sensor, while the backplane provides the required electrical connections between compatible transmitter components. Its role is therefore mainly related to internal signal routing, power distribution, and component interconnection. If the flowmeter has an accuracy, measurement, or signal-processing problem, the backplane should not automatically be considered the source of the fault. The transmitter electronics, sensor wiring, grounding, and process conditions should also be checked.

4. What symptoms can indicate a faulty D685A1156U01 backplane?

A faulty backplane may cause several types of abnormal behavior depending on which electrical paths are affected. Possible symptoms include intermittent transmitter operation, loss of power to an internal module, unstable communication, missing signals, unexpected diagnostic alarms, or complete failure of the transmitter electronics. Loose or oxidized contacts can produce intermittent faults that are particularly difficult to diagnose because the system may operate normally and then fail under vibration or temperature changes. When troubleshooting, technicians should inspect connectors and contact points carefully and compare the affected signals with the expected system configuration before replacing the backplane.

5. How should the D685A1156U01 be checked when a transmitter develops an internal communication fault?

The troubleshooting process should begin by confirming that the transmitter has a stable power supply and that the associated electronics are correctly installed. Next, inspect the backplane connections, contact board, plugs, and mating connectors for contamination, bent contacts, corrosion, or poor mechanical engagement. If communication is intermittent, gently checking the mechanical stability of the connections during an approved maintenance procedure can help identify contact-related problems. The transmitter’s diagnostic information should also be reviewed to determine whether the fault is associated with a particular electronic module or communication path. If the external wiring and connected electronics are confirmed to be healthy, the D685A1156U01 can then be considered as a possible source of the internal connection problem.

6. Can the D685A1156U01 be replaced independently from the transmitter electronics?

Yes. The D685A1156U01 is supplied as a replaceable backplane spare component and can be replaced independently when the backplane itself is defective, provided the transmitter housing and associated electronics are compatible with the replacement. Before replacement, the exact transmitter model, housing configuration, and original backplane part number should be verified. During removal, technicians should document the position of all connectors and associated components to ensure correct reassembly. After installation, the transmitter should be checked for proper power, signal transmission, communication, and diagnostic status before being returned to normal service.

7. What precautions are important when installing the D685A1156U01?

The transmitter should be placed in a safe maintenance condition before the backplane is removed. Power should be isolated according to the applicable site procedure, and any process-related hazards associated with the flowmeter installation should also be considered. Since the backplane is an electronic assembly, appropriate ESD protection should be used during handling. Connectors should be kept clean and should not be forced into position. During installation, the board must be correctly aligned with the housing and mating components. After reassembly, verify that all connections are secure and that no cable or connector is under mechanical stress. The transmitter should then be powered up under controlled conditions and checked for diagnostic or communication errors.

8. What should be verified after replacing the D685A1156U01?

After replacement, the first step is to confirm that the transmitter powers up normally and that all associated electronic modules are recognized correctly. The technician should then check the transmitter diagnostic status and verify that previously reported communication or internal connection faults have disappeared. Signal transmission between the transmitter electronics and the flow sensor should also be checked according to the applicable commissioning procedure. If the transmitter provides communication or process outputs, these should be verified for stable operation. Finally, the flowmeter should be monitored during normal operation to confirm that the replacement backplane has restored reliable electrical interconnection and that no intermittent faults remain.
