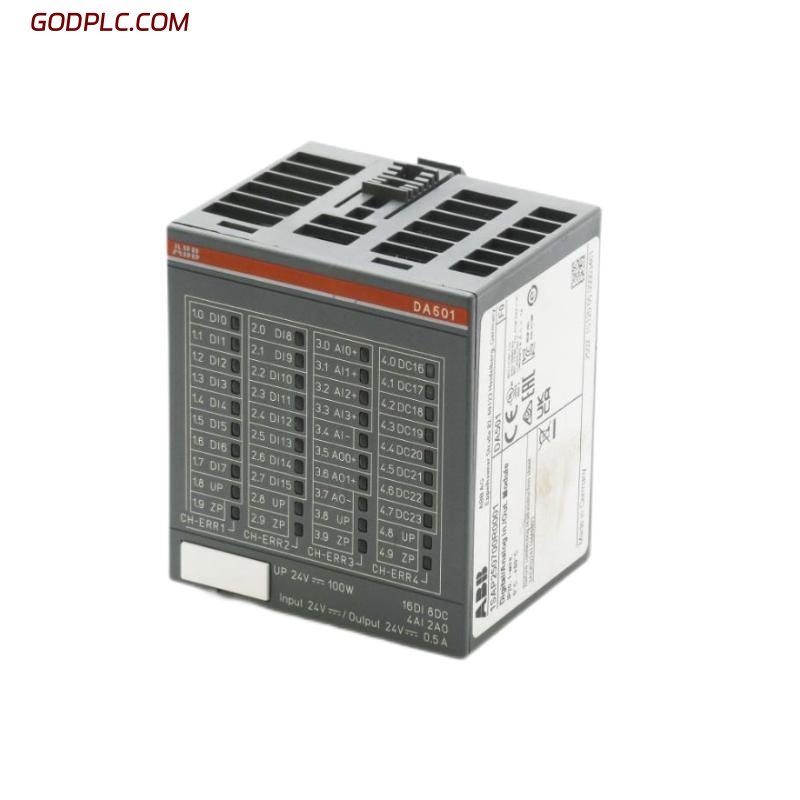

ABB DA501 1SAP250700R0001 Digital Analog Input/Output Modules
Product Overview
The ABB DA501 1SAP250700R0001 module combines digital and analog input/output functionalities into a single compact unit designed for industrial automation and control systems. It provides precise signal conversion and processing capabilities, allowing the seamless integration of both digital and analog devices within ABB’s control architectures. The DA501 module supports a wide range of signal types, enabling real-time monitoring and control in applications such as process automation, manufacturing, energy management, and building automation. Its robust design ensures reliable performance in demanding industrial environments.
Key Features
-
Integrated Digital and Analog I/O – Combines digital input/output and analog input/output channels in one module, reducing system complexity.
-
High Accuracy and Resolution – Supports precise analog signal measurement and output with high resolution and low noise.
-
Wide Signal Compatibility – Accepts various signal types, including voltage, current, and digital pulses, for flexible interfacing.
-
Fast Response Time – Enables real-time data acquisition and control for critical process parameters.
-
Robust and Reliable – Designed for harsh industrial conditions with wide temperature and vibration tolerance.
-
Easy Integration – Compatible with ABB’s automation controllers and supports standard communication protocols.
-
Diagnostic Capabilities – Built-in diagnostics facilitate early detection of faults and improve system uptime.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 62 x 76 x 67.5 mm |
| Weight | 0.121 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Types | Analog inputs (voltage/current), digital inputs (on/off) |
| Output Types | Analog outputs (voltage/current), digital outputs (on/off) |
| Analog Input Range | 0–10 V, 0–20 mA (configurable) |
| Analog Output Range | 0–10 V, 0–20 mA (configurable) |
| Digital Input Voltage | 24 VDC nominal |
| Digital Output Voltage | 24 VDC nominal |
| Response Time | <10 ms |
| Isolation Voltage | 500 VAC |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Vibration Resistance | 5 g (continuous), 25 g (shock) |
| Enclosure Rating | IP20 (protection against solid objects >12 mm) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with ABB automation controllers and I/O systems |
Industry Applications
-
Process Automation – Accurate measurement and control of analog and digital signals in chemical, oil & gas, and manufacturing plants.
-
Energy Management – Monitors and controls electrical parameters in power generation and distribution systems.
-
Building Automation – Integrates sensor data and control signals for HVAC, lighting, and security systems.
-
Water and Wastewater – Controls and monitors pumps, valves, and sensors in treatment plants.
-
Industrial Manufacturing – Provides versatile I/O support in automated production lines and robotic systems.
The ABB DA501 1SAP250700R0001 Digital Analog Input/Output Module delivers precise, versatile, and reliable I/O functionality for complex industrial control applications. Its combined digital and analog capabilities enable streamlined system design and improved operational efficiency.
ABB DA501 1SAP250700R0001 Digital Analog Input/Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
