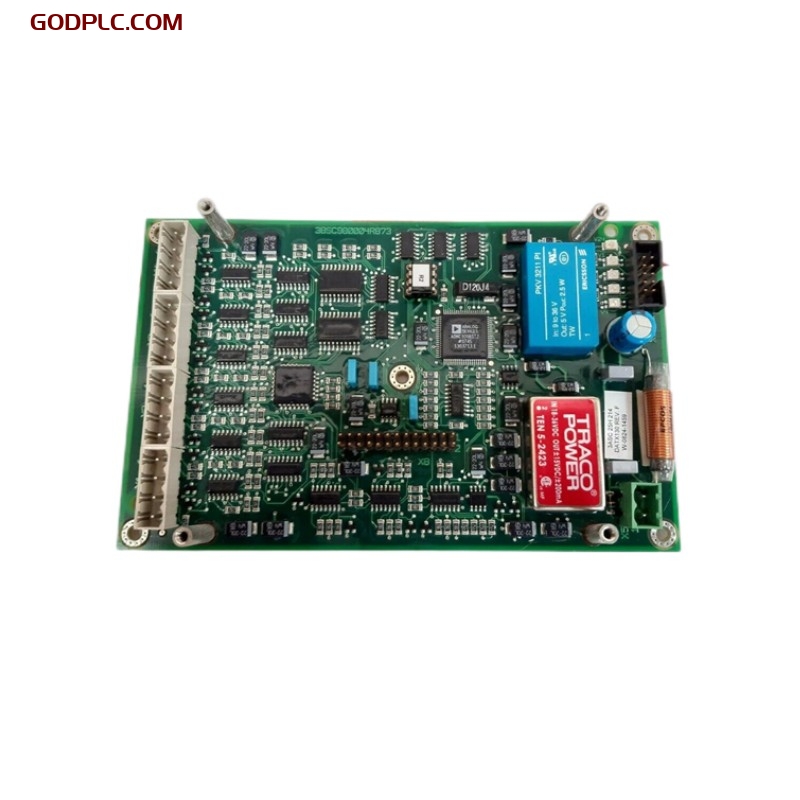

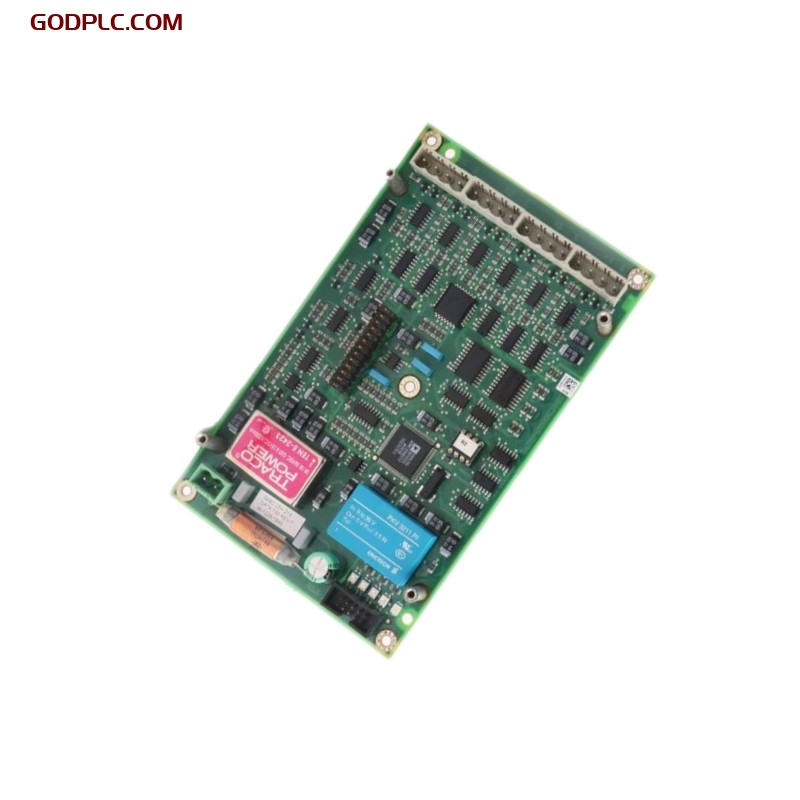

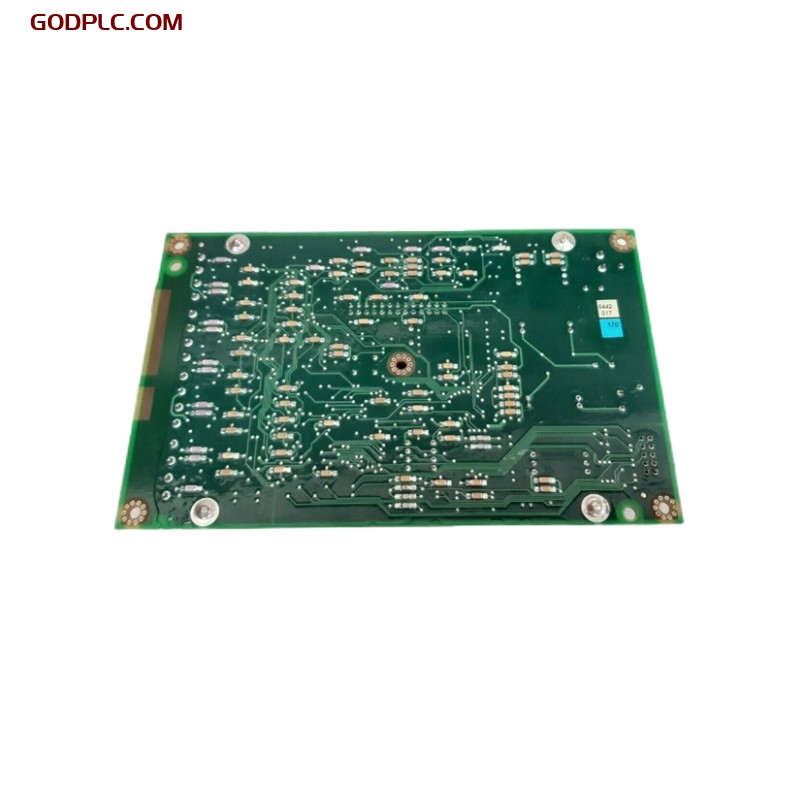

ABB DATX130 3ASC25H214 Rotor Feedback Plate
Product Overview
The ABB DATX130 3ASC25H214 Rotor Feedback Plate is a precision-engineered component designed for rotor position feedback in high-performance motor control systems. As part of ABB’s advanced automation and drive solutions, this module provides critical real-time position data, enabling precise control of rotor speed and torque. It ensures stable performance and reliable feedback in demanding industrial environments, making it an essential component in servo drive systems and advanced motion control applications.
Key Features
-
High-Accuracy Rotor Feedback: Provides precise rotor position data for improved speed and torque control.
-
Integrated Signal Processing: Features onboard processing for enhanced signal clarity and reduced noise interference.
-
Robust Construction: Designed to operate reliably in harsh industrial environments with high vibration and temperature variations.
-
Easy Integration: Compatible with ABB drive systems and configurable using ABB engineering tools.
-
Real-Time Data Output: Enables accurate, time-sensitive feedback for dynamic motor performance.
-
Compact Design: Minimizes panel space requirements and supports flexible mounting options.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 185 x 64 x 210mm |
| Weight | 1 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | DATX130 |
| Part Number | 3ASC25H214 |
| Module Type | Rotor Feedback Plate |
| Application | Motor Feedback in Drive Systems |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Supply Voltage | 5 V DC (±5%) |
| Signal Output | Differential Encoder Signals |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible System | ABB Industrial Drive Systems |
| Interface Type | Encoder/Resolver Interface |
| Software Support | ABB Drive Configuration Tools |
Industry Applications
-
Motion Control: Ideal for servo motors and precision motion systems requiring accurate rotor positioning.
-
Industrial Drives: Enhances the performance and feedback accuracy of ABB AC and DC drive systems.
-
Robotics: Enables precise control and coordination in robotic arms and automated machinery.
-
Machine Tools: Supports high-speed feedback for CNC machines and automated fabrication systems.
-
Renewable Energy: Applicable in wind turbines and energy systems where rotor feedback is crucial for performance optimization.
The ABB DATX130 3ASC25H214 Rotor Feedback Plate provides high-precision rotor position feedback essential for dynamic motor control. With its robust design, real-time signal output, and seamless integration with ABB systems, it ensures efficient and accurate operation in a wide range of industrial applications.
ABB DATX130 3ASC25H214 Rotor Feedback Plate is in stock. Please contact us for a quick quote and competitive pricing.
