1. What is the main function of the ABB DCS800-S02-0140-05?

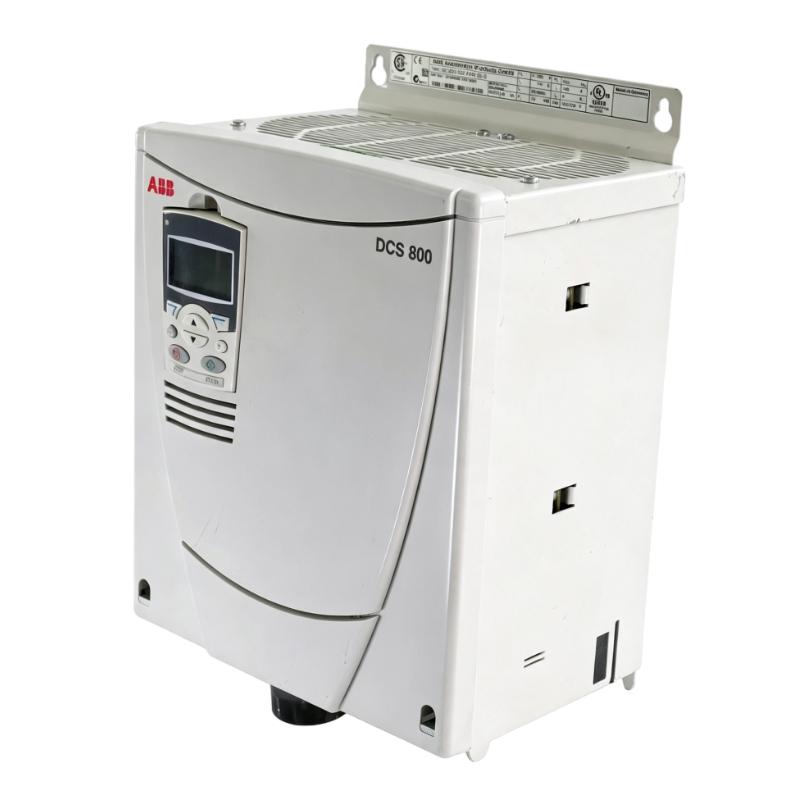

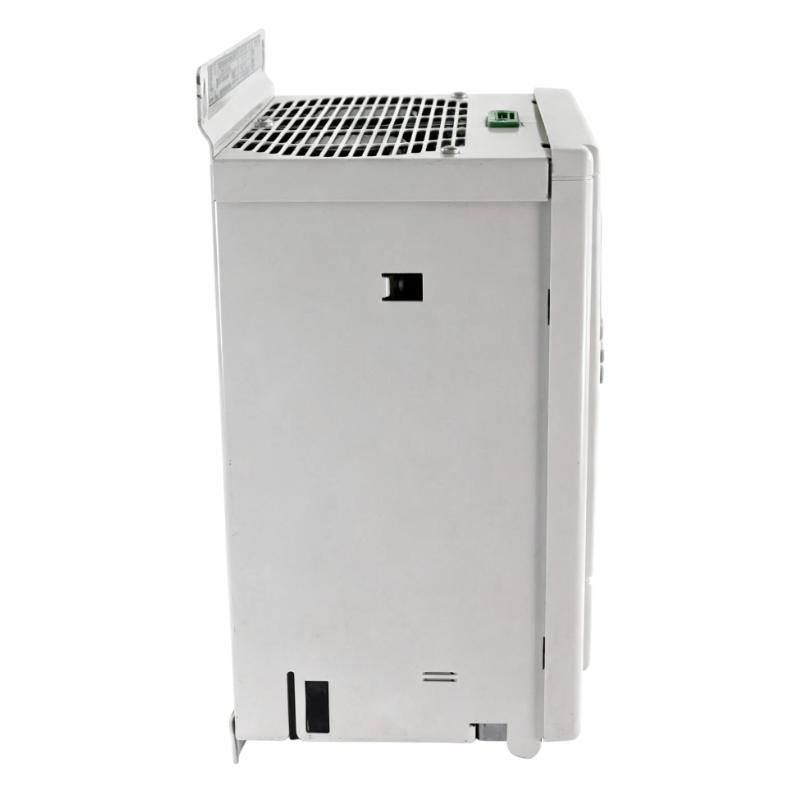

The ABB DCS800-S02-0140-05 is a high-performance industrial DC motor speed controller designed for applications that require accurate control of motor speed, torque, direction, acceleration, and braking. It regulates the DC voltage and current supplied to the motor armature and coordinates these values with the motor field system to achieve stable operation under changing load conditions. The four-quadrant architecture allows the drive to control both forward and reverse motoring as well as regenerative operation. This makes the DCS800-S02-0140-05 suitable for demanding industrial machinery where conventional single-quadrant DC control would not provide sufficient dynamic performance. Typical applications include production machinery, metal processing equipment, paper machinery, material handling systems, plastics processing equipment, and other continuous industrial processes.

2. What is the rated armature current of the DCS800-S02-0140-05?

The DCS800-S02-0140-05 is a 140 A rated DC converter in the DCS800-S02 product family. The rated armature current represents the current level around which the drive is designed to operate under its specified operating conditions. When selecting this drive for a DC motor, the motor’s rated armature current should be compared with the drive rating, but current alone should not be the only selection criterion. The application’s overload requirements, acceleration profile, braking duty, ambient conditions, motor field requirements, and load cycle should also be considered. A motor that operates close to the drive’s current limit for extended periods may require additional consideration regarding thermal performance and application duty. Correct parameter configuration is also important because incorrect current limits can affect both motor performance and drive protection.

3. Does the DCS800-S02-0140-05 support four-quadrant operation?

Yes. The DCS800-S02-0140-05 is designed for four-quadrant DC motor operation, allowing controlled motoring and regenerative operation in both forward and reverse directions. This capability is particularly valuable for machinery that frequently accelerates, decelerates, reverses direction, or handles loads that can drive the motor during braking. During regenerative operation, mechanical energy from the motor and connected load can be transferred back through the converter toward the AC supply rather than being dissipated entirely as heat. Proper commissioning is important because regenerative applications require suitable current limits, speed control settings, field parameters, and system-level configuration. The motor, mechanical load, converter, and incoming power system should all be considered when setting up regenerative operation.

4. What feedback options can be used with the DCS800-S02-0140-05?

The DCS800-S02-0140-05 can be configured for different motor feedback arrangements, including armature feedback, tachometer feedback, and encoder feedback, depending on the requirements of the application. Armature feedback can be suitable for applications where extremely high speed regulation is not required, while tachometers or encoders can provide more direct motor-speed information for applications requiring improved dynamic response and speed accuracy. When a feedback device is installed, its wiring, polarity, scaling, signal type, and direction must be correctly configured. A reversed feedback signal can cause incorrect speed control and may result in unstable motor behavior. If the motor speed fluctuates after commissioning, feedback wiring and configuration should therefore be checked before changing the speed-control tuning parameters.

5. How does the field control system affect DC motor operation?

Field control is an important part of a separately excited DC motor system because the motor field determines the magnetic flux used to produce torque. The DCS800-S02-0140-05 provides controlled field excitation with a field current capability of approximately 6 A for the specified configuration. During commissioning, the field current should be matched to the motor manufacturer’s rated field requirements. Insufficient field current can reduce available motor torque and may allow the motor to accelerate beyond the expected speed range under certain operating conditions. An open or incorrectly connected field circuit can also cause drive protection functions to operate. For this reason, field wiring, field current, field-related parameters, and field feedback should be verified before the motor is operated at high speed or under significant load.

6. How should an overcurrent fault on the DCS800-S02-0140-05 be diagnosed?

An overcurrent fault should be diagnosed systematically because it can originate from the motor, mechanical load, wiring, feedback system, parameter settings, or the drive’s power section. Start by checking whether the motor or driven machine is mechanically blocked, overloaded, or experiencing abnormal friction. Next, inspect the armature circuit for loose connections, damaged cables, short circuits, or insulation problems. The motor’s rated armature current should be compared with the drive configuration, and the current limit should be checked to make sure it is appropriate for the motor. If the fault occurs during acceleration, examine the acceleration ramp because an excessively short ramp can demand a very high current from the motor. If the fault occurs during deceleration, regenerative current and the configured braking behavior should also be investigated. Repeated overcurrent faults with a normal mechanical load may indicate problems with the motor, current measurement, feedback system, or drive power electronics and require further testing.

7. What should be checked if the motor speed is unstable with the DCS800-S02-0140-05?

Unstable motor speed can have several causes, so troubleshooting should begin by separating feedback problems from control-parameter and mechanical problems. If a tachometer or encoder is installed, inspect the feedback cable, shielding, grounding, connector condition, signal quality, polarity, and configured feedback scaling. Electrical noise on a feedback signal can cause the controller to continuously adjust the motor command, resulting in visible speed fluctuations. If the feedback signal is stable, review the speed controller settings and the stability of the speed reference signal. The mechanical system should also be inspected for changing load torque, backlash, coupling problems, belt or gearbox issues, and other mechanical disturbances. Motor field stability should be verified as well. Changing multiple drive parameters simultaneously is not recommended because it makes it difficult to determine which adjustment actually corrected the problem.

8. What precautions should be followed when installing or replacing the DCS800-S02-0140-05?

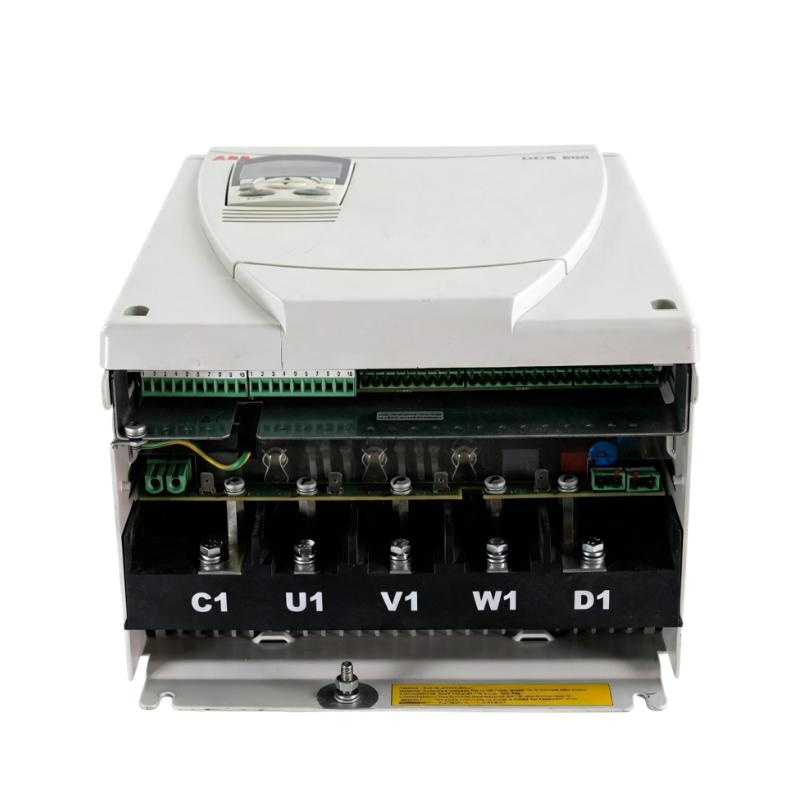

Before installing or replacing the DCS800-S02-0140-05, the complete drive system should be stopped and isolated according to the applicable electrical safety procedure. The AC input must be disconnected, and the DC circuit and other energy-storage components must be allowed to discharge for the required period before any internal work is performed. The absence of hazardous voltage should be verified using an appropriate measurement procedure. Because the drive uses an IP00 open-chassis construction, it must be installed inside a suitable electrical cabinet or enclosure that provides the required environmental protection, clearance, ventilation, and cooling. During wiring, carefully verify the three-phase input, motor armature connections, field circuit, feedback wiring, control terminals, communication connections, and protective grounding. After installation, verify the motor parameters, field settings, feedback direction, current limits, and speed limits before starting the motor. Initial commissioning should be performed under controlled conditions, beginning with low-risk operating conditions and gradually testing acceleration, steady-state speed, reversing, torque response, and regenerative braking. This approach helps identify incorrect wiring or configuration before the equipment is returned to full production duty.
