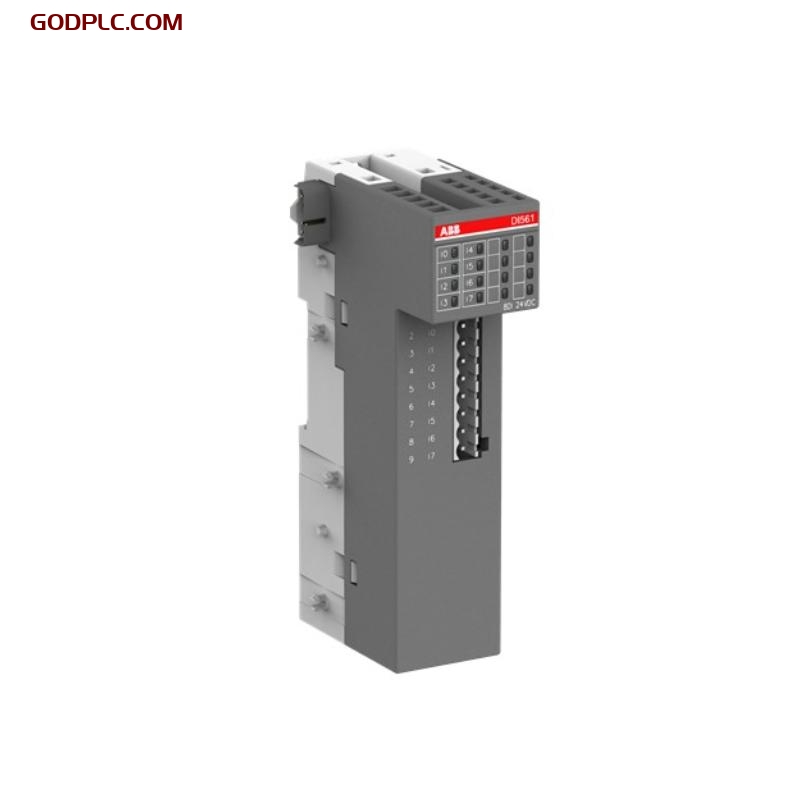

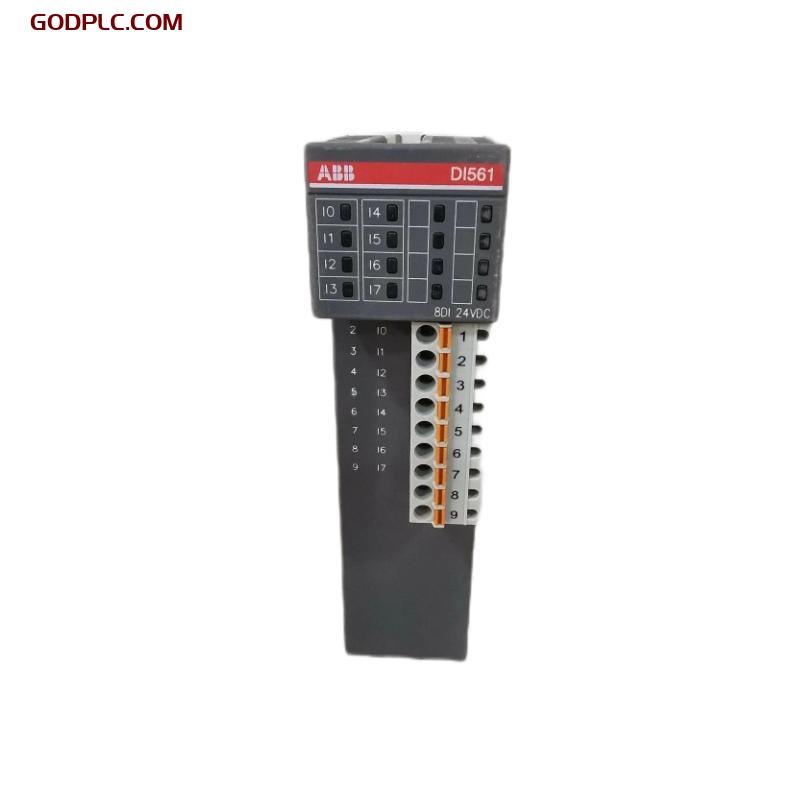

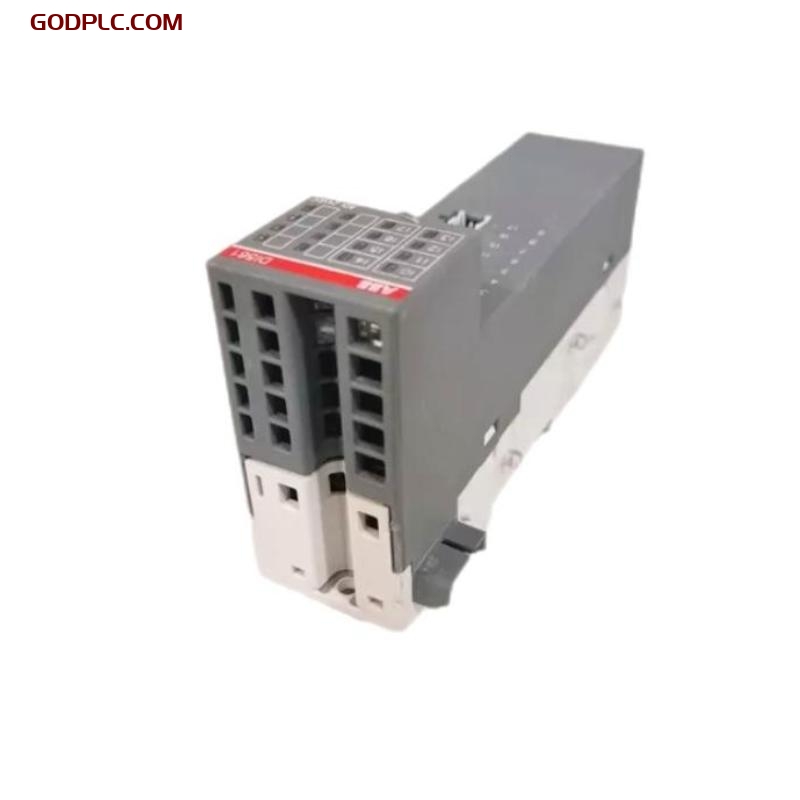

ABB DI561 1TNE968902R2101 Digital Input Module
__________________________________________________________________________________________
Product Overview
The ABB DI561 1TNE968902R2101 Digital Input Module is a high-performance I/O component designed for use in ABB’s AC500 PLC systems. It facilitates the reliable acquisition of digital signals from field devices such as sensors, switches, and contactors, enabling accurate and real-time monitoring within industrial automation systems. Engineered for easy integration, robust operation, and dependable performance in diverse automation environments, the DI561 enhances system responsiveness and scalability.
Key Features
-
16 Digital Inputs: Allows simultaneous monitoring of up to 16 channels, optimizing signal acquisition in control systems.
-
Sink/Source Input Type: Supports both sinking and sourcing input configurations, enhancing installation flexibility.
-
Compact and Modular Design: Saves panel space and fits seamlessly within the AC500 modular architecture.
-
LED Indicators: Provides per-channel status indicators for efficient diagnostics and system monitoring.
-
Robust Performance: Designed to operate reliably under harsh industrial conditions, ensuring long-term system availability.
-
Seamless Integration: Fully compatible with ABB’s AC500 PLC platform for quick configuration and commissioning.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 135 x 74 x 34 mm |
| Weight | 0.113 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | DI561 1TNE968902R2101 |
| Module Type | Digital Input Module |
| Mounting | DIN Rail Mountable |
| Number of Inputs | 16 Channels |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC (nominal) |
| Input Current | Approx. 3 mA per channel |
| Isolation | Galvanic isolation between channels and system |
| Operating Temp | -25°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB AC500 Programmable Logic Controller (PLC) |
| Communication Interface | I/O Bus via AC500 backplane |
| Software Configuration | ABB Automation Builder |
Industry Applications
-
Factory Automation: Collects digital signals for control and monitoring of production line machinery and conveyors.
-
Building Automation: Interfaces with switches and detectors for intelligent lighting, HVAC, and access systems.
-
Energy Systems: Used for monitoring binary status signals in energy generation and distribution systems.
-
Water and Wastewater: Integrates with control panels for pumping stations and treatment plants.
-
Infrastructure and Utilities: Enables digital signal interfacing in smart infrastructure and substation systems.
The ABB DI561 1TNE968902R2101 Digital Input Module is a reliable and efficient solution for monitoring digital inputs in a wide range of industrial applications. With its flexible configuration, compact design, and robust operation, it is an essential component in modern PLC-based automation systems.
ABB DI561 1TNE968902R2101 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
