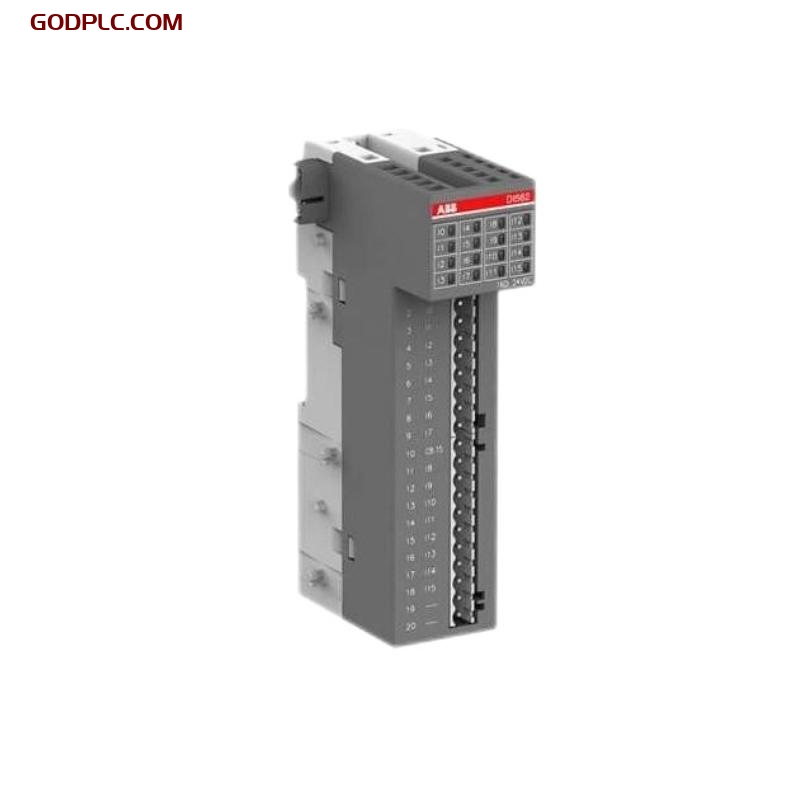

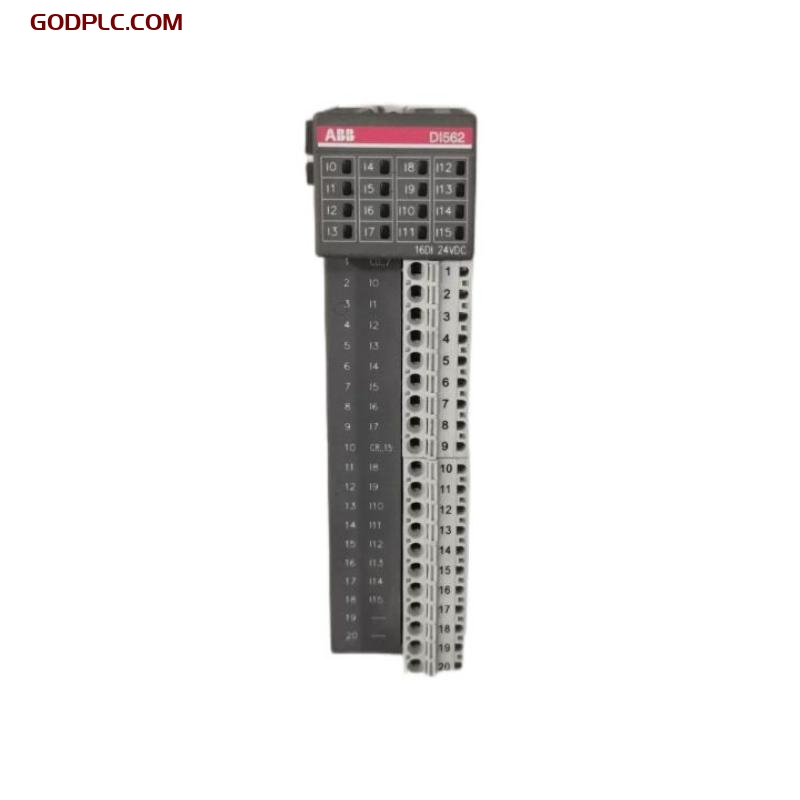

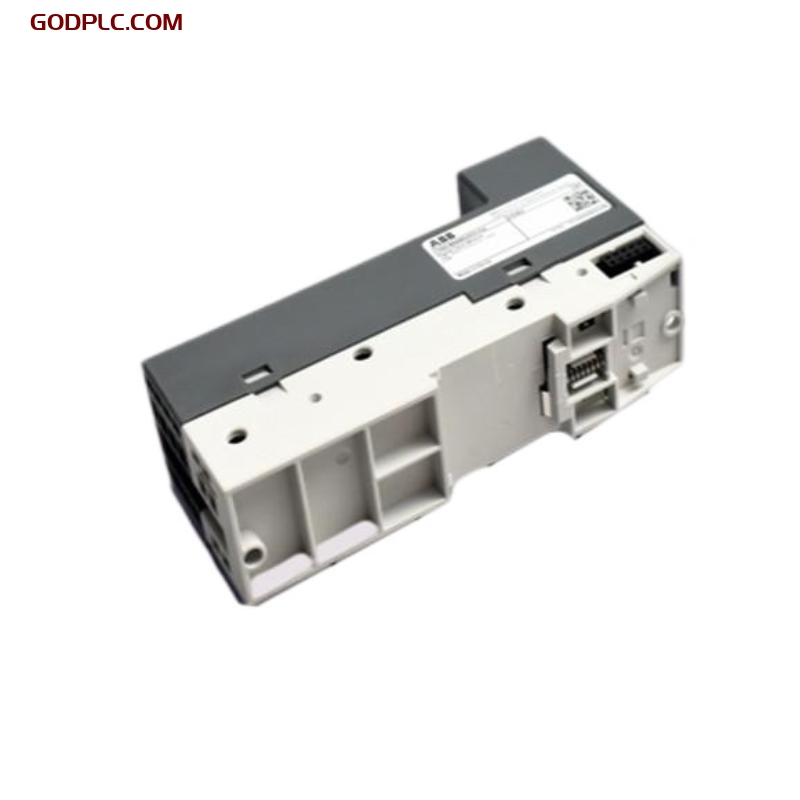

ABB DI562 1TNE968902R2102 Digital Input Module
Product Overview
The ABB DI562 1TNE968902R2102 Digital Input Module is designed for use within ABB’s 800xA and AC500 control systems. It offers reliable and accurate digital input functionality, designed to interface with a wide range of digital signals, including those from sensors, switches, and relays. The module features high-speed input processing, robust signal isolation, and is engineered for use in industrial automation environments where precise monitoring and control of discrete signals are required.
Key Features
-
Wide Input Range: Supports a wide range of digital input signals, including both AC and DC sources.
-
High-Speed Processing: Capable of processing high-speed digital signals for time-sensitive applications.
-
Signal Isolation: Provides reliable isolation between the module and connected devices, ensuring protection against electrical surges and noise.
-
Compact Design: Designed for easy installation in control cabinets, minimizing space requirements.
-
LED Status Indicators: Equipped with clear LED indicators for real-time status monitoring of input signals.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 135 x 74 x 34 mm |
| Weight | 0.113 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Type | Digital (AC/DC) |
| Input Voltage Range | 24 V DC (typical) |
| Input Current | 10 mA (per input channel) |
| Isolation | 500 V AC between channels |
| Power Consumption | 1.5 W per module |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | –20°C to +60°C |
| Storage Temp | –40°C to +85°C |
| Humidity | 95% non-condensing |
| Environmental Seal | IP20 (for panel-mounted installation) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB 800xA, AC500 |
| Compatible I/O Modules | ABB DI 500 Series |
| Configuration Tools | ABB Control Builder, AC500 Programming Software |
Industry Applications
Industrial Automation: Ideal for use in process control, factory automation, and other industrial environments where discrete signal monitoring is necessary.
Oil & Gas: Supports reliable monitoring of digital signals from sensors and safety systems in the oil and gas industry.
Power Generation: Used for discrete signal input monitoring in power plants and distribution networks.
Manufacturing: Ensures precise control over machinery, sensors, and other devices within production lines.
Water Treatment: Commonly deployed in water treatment plants for monitoring switches and safety equipment.
The ABB DI562 1TNE968902R2102 Digital Input Module provides reliable and efficient digital signal processing for ABB control systems. Its robust design, high-speed processing, and wide input compatibility make it ideal for diverse industrial applications, ensuring accurate data collection and system control in demanding environments.
ABB DI562 1TNE968902R2102 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
