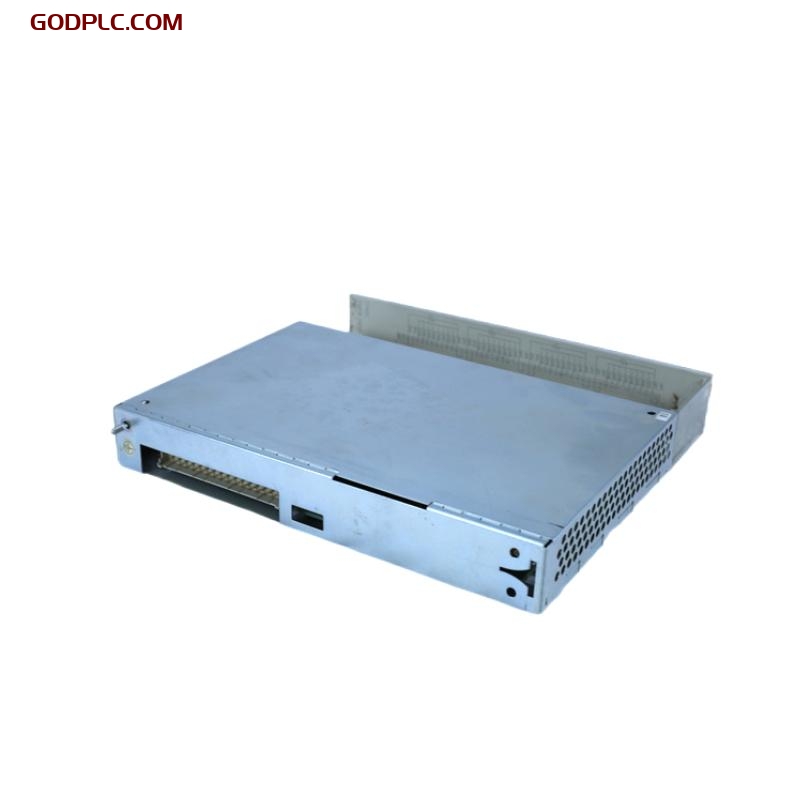

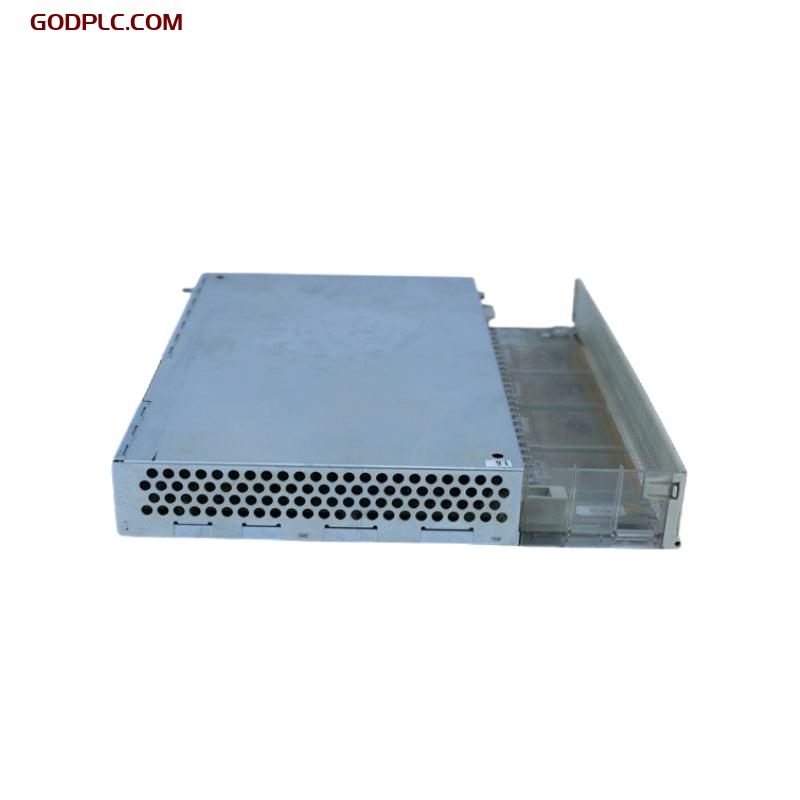

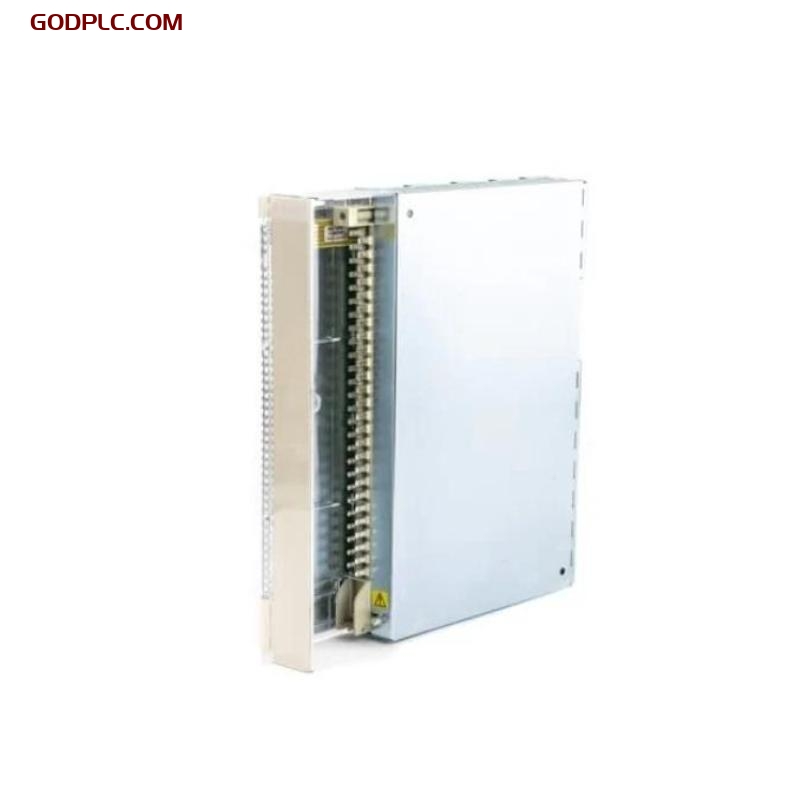

ABB DI610 3BHT300004R1 Digital Input Module
__________________________________________________________________________________________
Product Overview
The ABB DI610 3BHT300004R1 Digital Input Module is a robust and reliable I/O module designed for ABB’s Advant Controller 410/450 systems. It provides high-speed digital input functionality for monitoring binary signals from field devices such as sensors, limit switches, and push buttons. With its high channel density and durable design, the DI610 is ideal for demanding industrial automation and process control applications. It ensures accurate signal acquisition and integrates seamlessly into ABB’s control architecture for efficient and scalable system development.
Key Features
-
High Channel Density: Offers 16 individually isolated digital inputs, supporting extensive signal acquisition with a compact footprint.
-
Fast Response Time: Designed for time-critical applications, enabling real-time monitoring of binary conditions.
-
Galvanic Isolation: Each channel is isolated to prevent electrical interference and ensure signal integrity.
-
Diagnostic Capability: Integrated diagnostics enable quick detection of faults or abnormal conditions, minimizing downtime.
-
Modular Design: Easily fits into existing ABB Advant control systems, supporting flexible system expansion.
-
Rugged Construction: Built for harsh industrial environments with high resistance to temperature variations and electrical noise.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 40 x 230 x 120 mm |
| Weight | 0.4 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | DI610 3BHT300004R1 |
| Module Type | Digital Input Module |
| Mounting | Rack/Module Carrier Mounted |
| Number of Inputs | 16 Channels |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC (nominal), 18–30 V DC |
| Input Type | Sink or Source (configurable) |
| Isolation | Galvanically isolated per channel |
| Input Current | Approx. 3 mA per channel |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB Advant Controller 410/450 Series |
| Communication Interface | Backplane I/O Bus |
| Software Configuration | ABB Advant Engineering Tools, Composer |
Industry Applications
-
Power Generation: Monitors digital signals in turbine and generator control systems for safe and efficient operation.
-
Oil & Gas: Captures field signals for monitoring and control of compressors, valves, and safety systems in upstream and downstream processes.
-
Pulp & Paper: Enables status monitoring of motors, conveyor systems, and production lines in continuous processing environments.
-
Chemical Processing: Interfaces with sensors and interlocks for secure process monitoring and emergency shutdown systems.
-
Metals and Mining: Handles rugged operational demands, providing input for conveyors, crushers, and safety interlocks in mining operations.
The ABB DI610 3BHT300004R1 Digital Input Module is a dependable and efficient solution for digital signal acquisition in industrial automation. With its advanced isolation, diagnostic features, and compatibility with ABB Advant systems, it ensures reliable operation and simplified integration across a range of mission-critical industries.
ABB DI610 3BHT300004R1 Digital Input Modules is in stock. Please contact us for a quick quote and competitive pricing.
