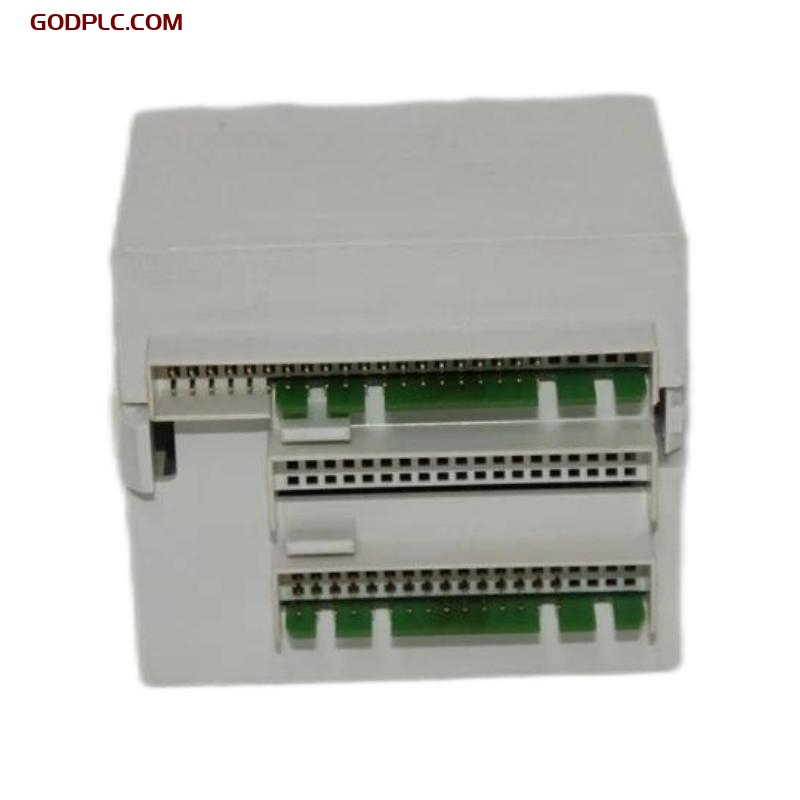

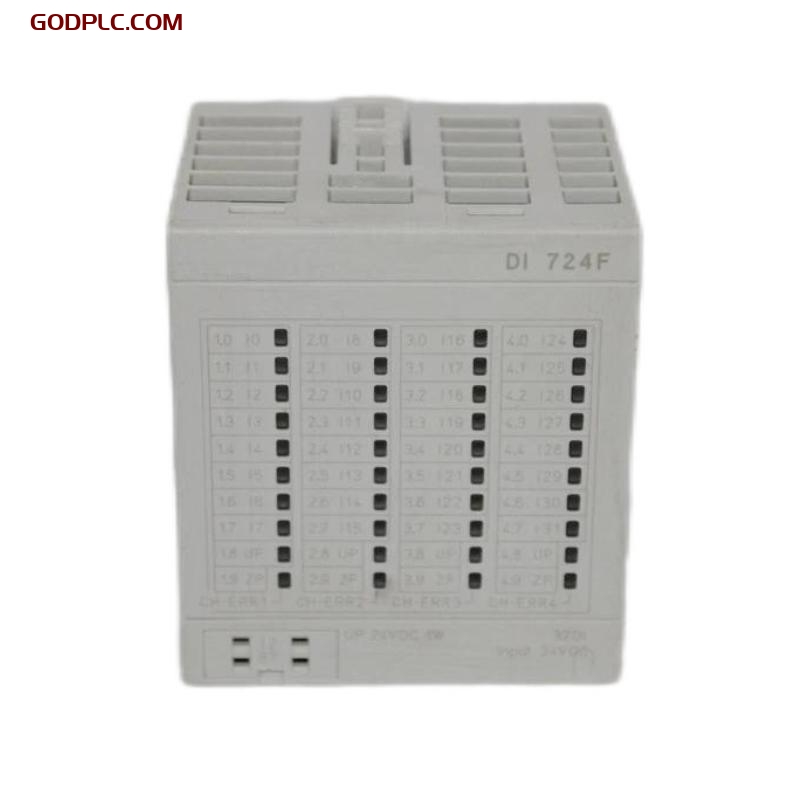

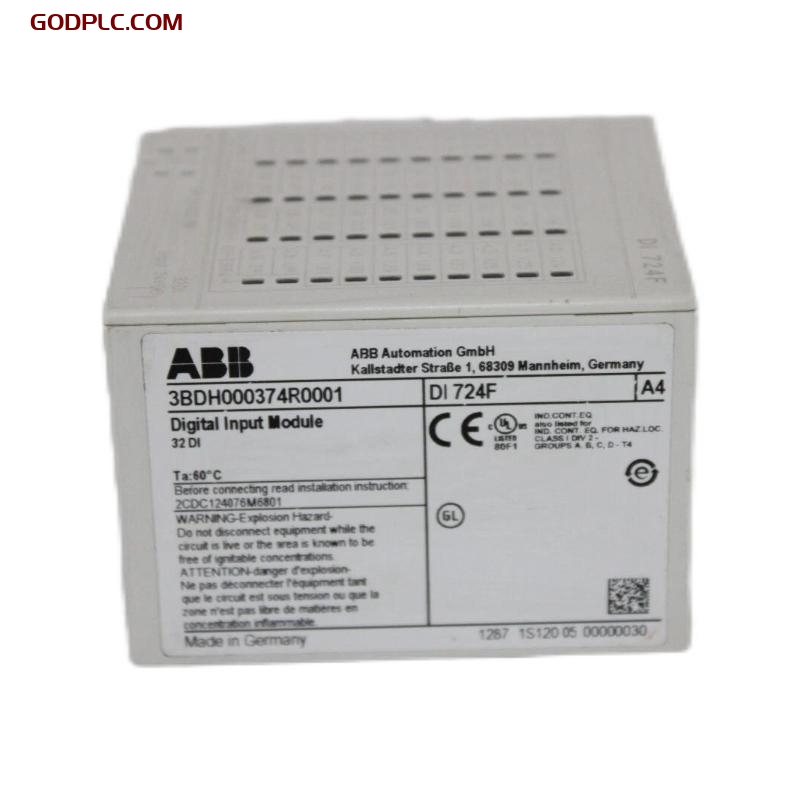

ABB DI724F 3BDH000374R0001 Digital Input Modules
Product Overview
The ABB DI724F 3BDH000374R0001 Digital Input Module is a high-performance digital input module designed for industrial control and automation systems. As part of ABB’s extensive range of modular I/O products, the DI724F offers precise and reliable input signal processing for a variety of digital devices and sensors. It is ideal for applications in industries such as manufacturing, process control, and energy management, where fast and accurate digital signal input is required.
This module is engineered to handle a wide range of input signals, from simple on/off switches to more complex signals from sensors, providing a seamless interface between field devices and control systems. The DI724F is built for flexibility, easy integration, and robust operation in harsh industrial environments, ensuring optimal performance and reliability in demanding applications.
Key Features
-
High-Speed Input Processing: Capable of processing fast digital inputs for time-critical applications.
-
Wide Input Range: Accepts a variety of digital signals from different devices and sensors, providing compatibility with a wide range of input sources.
-
Compact and Space-Efficient: Designed for use in confined spaces, offering high functionality in a compact form factor.
-
Industrial-Grade Durability: Engineered to withstand harsh industrial environments, including exposure to vibrations, dust, and temperature fluctuations.
-
Flexible Integration: Easily integrates with ABB control systems and automation platforms, enabling seamless communication and control.
-
User-Friendly Setup: Simplifies installation and configuration with intuitive software and hardware interfaces.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 54 × 76 × 67.5 mm |
| Weight | 0.105 kg |
3.2 Module Information
| Item | Specification |
|---|---|
| Model Number | DI724F |
| Part Number | 3BDH000374R0001 |
| Module Type | Digital Input Module |
| Mounting | DIN Rail Mountable |
3.3 Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Operating Voltage | 24 V DC |
| Power Consumption | < 5 W |
| Operating Temp | -20°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
3.4 Input Characteristics
| Item | Specification |
|---|---|
| Input Type | Digital (On/Off) |
| Number of Channels | 8 Channels |
| Input Voltage | 24 V DC |
| Input Current | 10 mA maximum per channel |
| Signal Type | Dry Contact, TTL, or 24 V DC |
| Input Signal Range | 0 V (Off) to 24 V DC (On) |
Industry Applications
-
Manufacturing Automation: Captures signals from switches, sensors, and other digital devices in manufacturing plants, enabling control of machinery and equipment.
-
Process Control: Interfaces with digital sensors and devices in process industries like chemicals, food & beverage, and pharmaceuticals.
-
Energy Management: Used in power generation and distribution systems to monitor digital input signals from various control and protection devices.
-
Building Automation: Integrates with building management systems to process signals from security systems, lighting controls, and HVAC systems.
-
Transportation: Utilized in systems that require the integration of digital input from various devices in vehicles, airports, and railway stations.
The ABB DI724F 3BDH000374R0001 Digital Input Module is a highly reliable and efficient solution for processing digital signals in industrial automation systems. With its high-speed input processing, wide compatibility, and robust design, it ensures seamless operation and integration in demanding applications.
