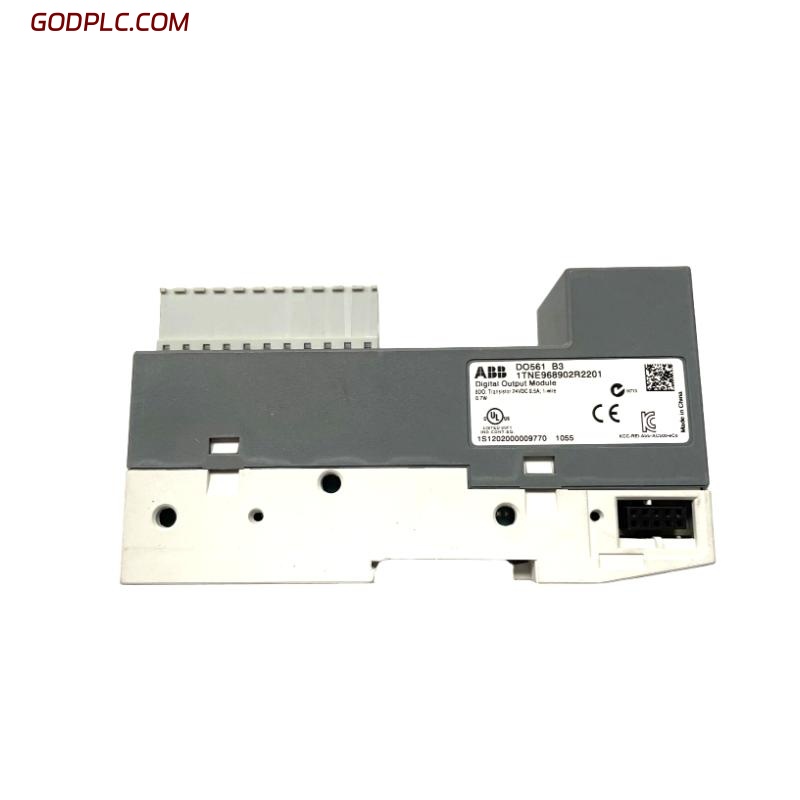

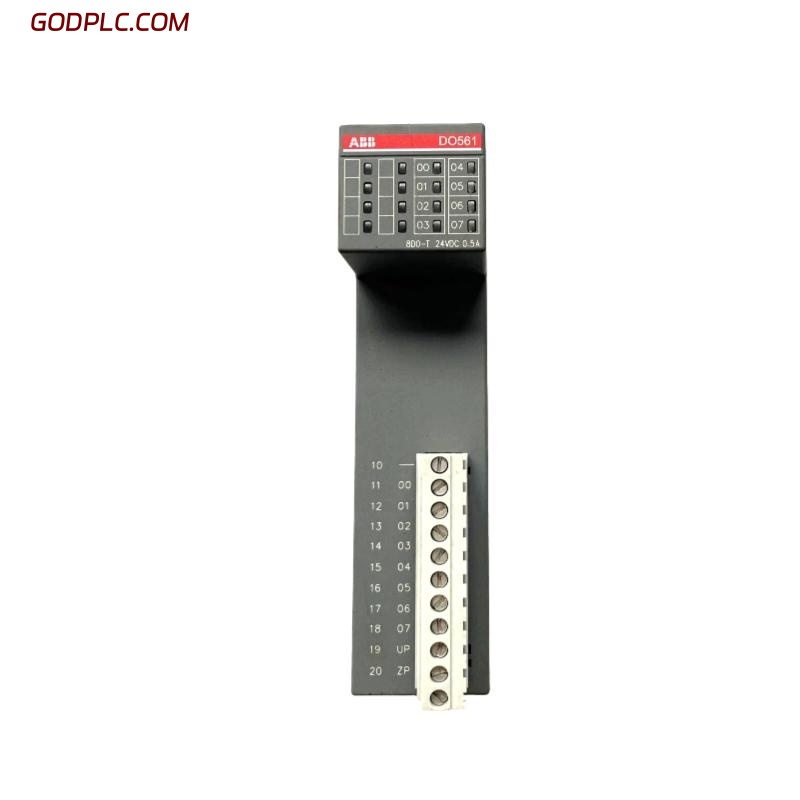

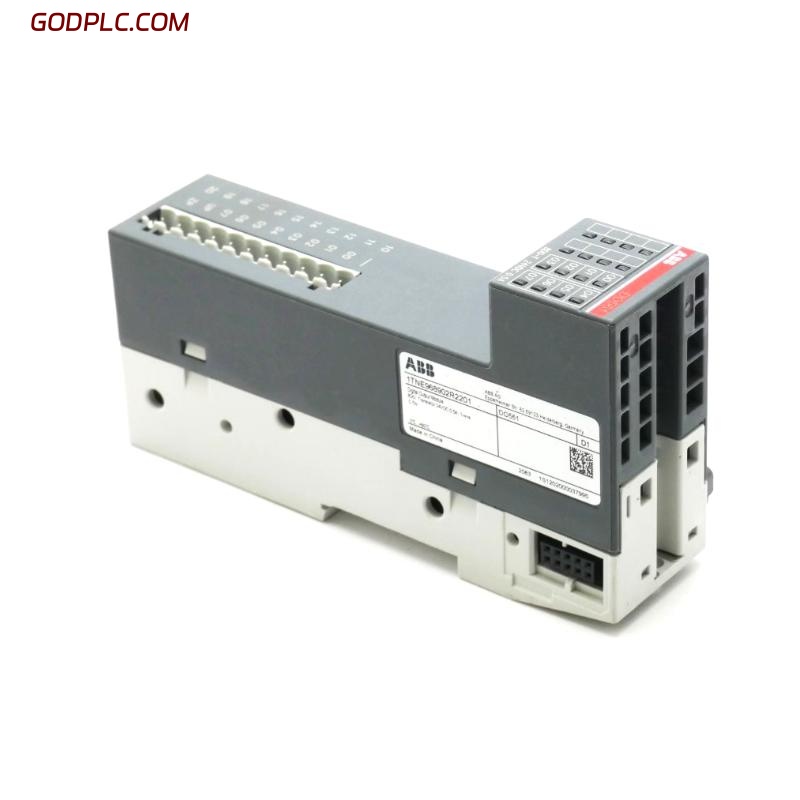

ABB DO561 1TNE968902R2201 Digital Output Modules
Product Overview
The ABB DO561 1TNE968902R2201 Digital Output Module is designed to provide high-performance digital signal outputs for ABB control systems, enabling precise control of actuators, indicators, relays, and other field devices. Engineered for use in demanding industrial environments, the DO561 ensures reliable signal switching, fast response times, and seamless integration with ABB’s automation platforms, supporting real-time control operations in process industries, energy, and manufacturing sectors.
Key Features
-
High-Speed Digital Output – Provides fast and reliable switching for control of field devices
-
Seamless ABB System Integration – Fully compatible with ABB’s control systems, ensuring reliable communication and operation
-
Compact, Robust Design – Space-efficient construction with durable components for harsh industrial environments
-
Channel Isolation – Electrical isolation between outputs and system electronics for enhanced reliability
-
Diagnostic Capabilities – Built-in status indicators and fault detection for easy maintenance and troubleshooting
-
Industrial-Grade Reliability – Designed for continuous operation in critical process control applications
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 75 x 135 x 34 mm |
| Weight | 0.118 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Number of Channels | 16 digital output channels |
| Output Type | 24 V DC digital output |
| Output Current | Up to 0.5 A per channel |
| Isolation Protection | 1500 V RMS isolation between field and system circuits |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Vibration Resistance | Complies with IEC industrial standards |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB Distributed Control Systems and automation platforms |
Industry Applications
-
Industrial Automation – Controls actuators, indicators, and equipment in production processes
-
Power Generation – Provides reliable output control for turbines, generators, and auxiliary equipment
-
Oil and Gas – Manages output signals for control valves, pumps, and safety systems
-
Water and Wastewater – Controls system components such as valves, pumps, and alarms in treatment plants
-
Chemical and Petrochemical – Offers precise digital output control for complex process operations
The ABB DO561 1TNE968902R2201 Digital Output Module is a dependable solution for high-speed digital output applications, providing reliable performance, system flexibility, and enhanced control capability in industrial environments.
ABB DO561 1TNE968902R2201 Digital Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
