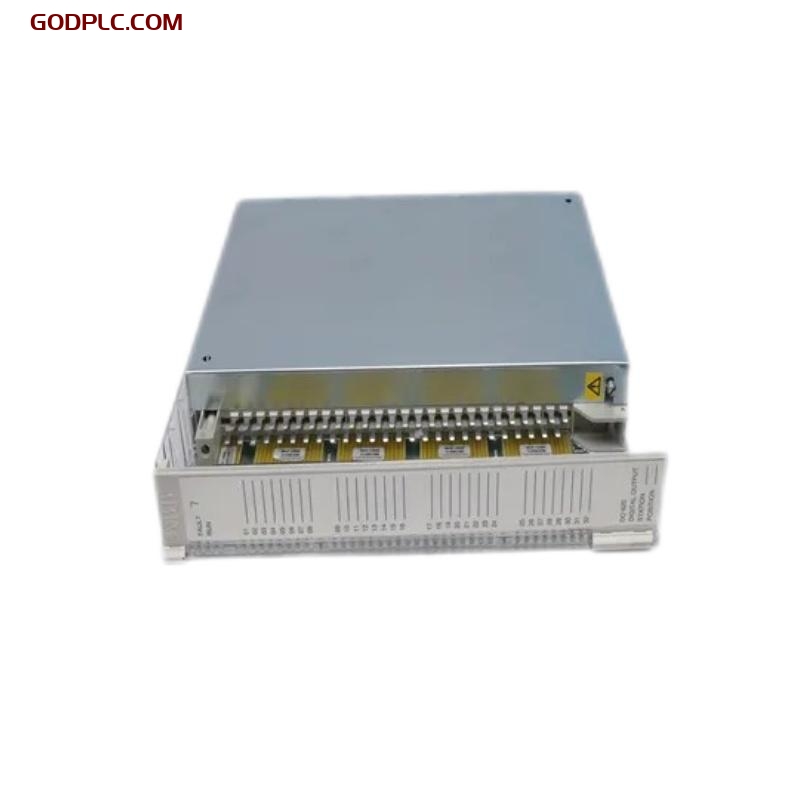

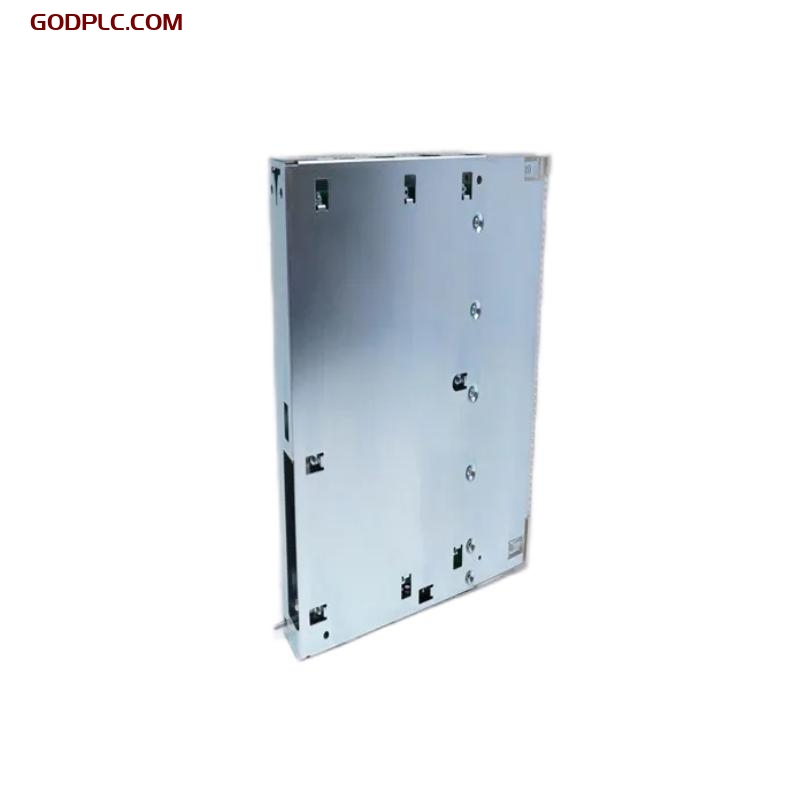

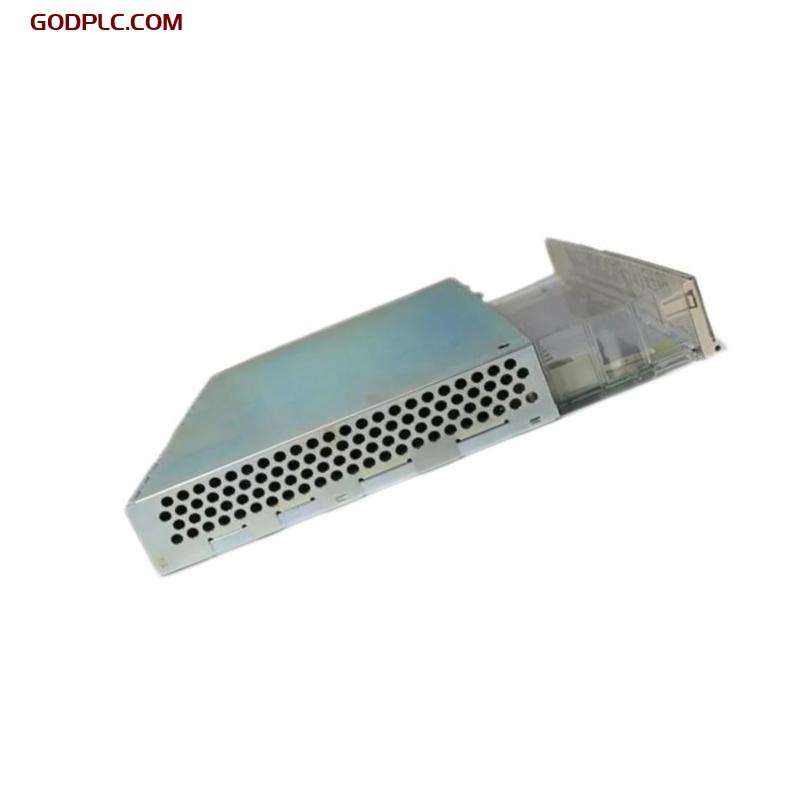

ABB DO620 3BHT300009R1 Digital Output Module
1. Product Overview
The ABB DO620 3BHT300009R1 Digital Output Module is a high-performance module designed for industrial automation control systems. It is used to convert digital signals from the control system into output signals that field devices, such as actuators and switches, can recognize and respond to. The module provides 16 output channels, enabling the control of multiple digital output devices, and operates stably in various industrial environments.
The DO620 module features high response speed and strong electromagnetic interference resistance, making it suitable for demanding industrial environments. Its modular design allows for greater flexibility in integration and installation, and it works seamlessly with other ABB automation system components, improving the overall reliability and maintainability of the control system.
2. Key Features
-
High Precision Output: Supports high-precision digital output to ensure accurate transmission of control signals to target devices.
-
Multi-Channel Output: Provides 16 output channels, allowing simultaneous control of multiple devices, enhancing system flexibility and operational efficiency.
-
Strong Anti-Interference: Excellent resistance to electromagnetic interference, ensuring stable operation even in noisy environments.
-
Fast Response: Quick response time, ensuring timely transmission and control of digital signals.
-
Easy Installation and Maintenance: Modular design makes it easy to integrate with other ABB products and simplifies installation and maintenance.
-
Complies with Industrial Standards: Meets IEC, ISO, and other international standards, ensuring global compatibility and reliability.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Value |
|---|---|
| Dimensions | 252 x 273 x 40 mm |
| Weight | 1.2 kg |
3.2 General Information
| Item | Value |
|---|---|
| Model | DO620 3BHT300009R1 |
| Manufacturer | ABB |
| Component Type | Digital Output Module |
| Power Supply | 24V DC |
| Output Channels | 16 Outputs |
| Output Type | Digital Output (Dry Contact) |
3.3 Performance and Functions
| Item | Value |
|---|---|
| Output Voltage Range | 24V DC ± 20% |
| Output Signal Type | Dry Contact Signals (Digital) |
| Response Time | < 10ms |
| Max Output Current | 0.5 A per Channel |
| Electrical Isolation | 1500 V AC (between output and power) |
3.4 Environmental Specifications
| Item | Value |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% to 95% Non-condensing |
| Protection Class | IP20 |
4. Industry Applications
The ABB DO620 3BHT300009R1 Digital Output Module is widely used across various industrial control systems, particularly in the following industries and applications:
-
Automated Production Lines: Converts digital signals from the control system into signals that actuators and sensors can respond to, ensuring automated and efficient operation on the production line.
-
Process Control Systems: Provides digital output control for industrial processes, ensuring smooth operation across different stages of the process.
-
Building Automation: Integrated into building control systems, it controls devices such as lighting and access systems, enhancing the intelligence of building management.
-
Energy Management Systems: Controls devices for energy monitoring and management systems, helping optimize energy usage.
-
Water Treatment and Environmental Control: Used in water treatment plants and environmental control facilities to control the operation of devices, ensuring proper system functionality.
The ABB DO620 3BHT300009R1 Digital Output Module plays a critical role in improving the performance and reliability of automation systems across multiple industries.
ABB DO620 3BHT300009R1 Digital Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
