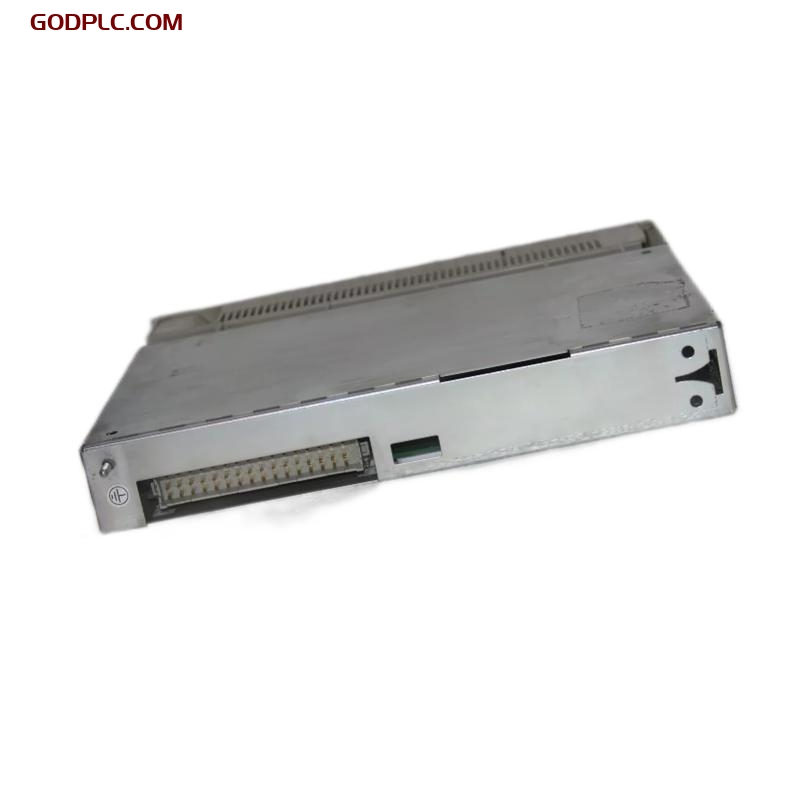

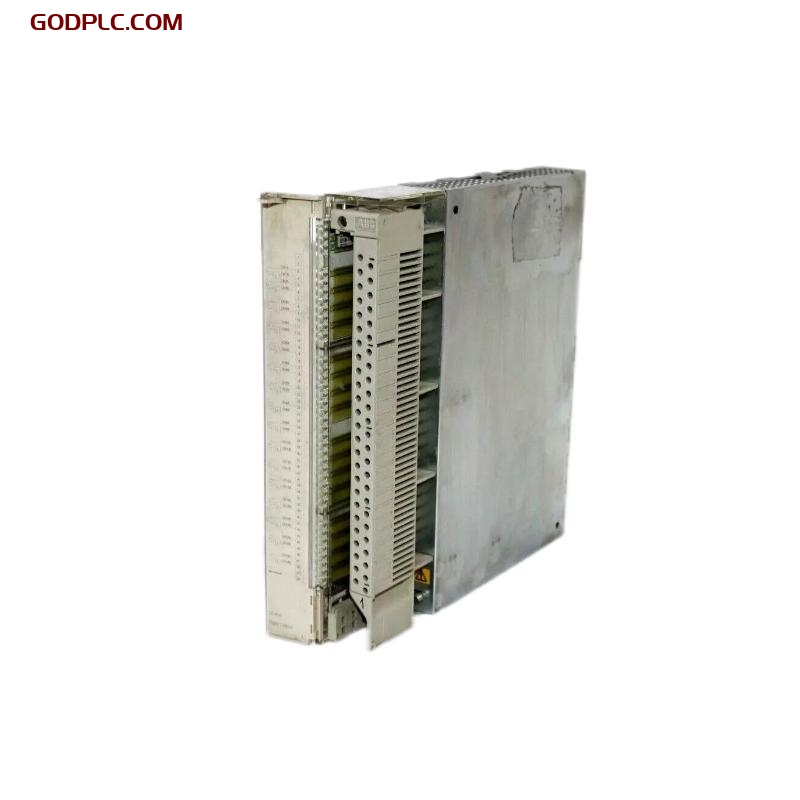

ABB DO630 3BHT300007R1 Digital Output Module
1. Product Overview
The ABB DO630 3BHT300007R1 Digital Output Module is a high-performance module designed for industrial automation control systems. It converts digital signals from the control system into output signals that field devices, such as actuators and switches, can recognize and respond to. The DO630 module offers 16 digital output channels, supporting various digital devices and is suitable for operation in complex industrial environments.
The module utilizes advanced technology to ensure fast response times and stable performance. Its modular design allows for easy integration with other ABB automation products, providing an efficient automation control solution. With strong electromagnetic interference resistance, the DO630 is built to withstand harsh industrial environments, ensuring reliable equipment operation.
2. Key Features
-
High Precision Output: Supports high-precision digital output, ensuring accurate transmission of control signals to target devices.
-
16 Output Channels: The module provides 16 independent output channels, enabling simultaneous control of multiple digital output devices, enhancing system flexibility and efficiency.
-
Strong Anti-Interference: Excellent resistance to electromagnetic interference, ensuring stable operation even in electrically noisy environments.
-
Fast Response Time: The module has a low response time, ensuring real-time control and signal transmission.
-
Easy Integration and Maintenance: The modular design simplifies integration with other ABB automation products, and streamlines system installation and ongoing maintenance.
-
Compliance with International Standards: Compliant with IEC, ISO, and other international standards, ensuring global compatibility and reliability.
3. Technical Specifications
3.1 Dimensions and Weight
| Item | Value |
|---|---|
| Dimensions | 252 x 273 x 40 mm |
| Weight | 1.32 kg |
3.2 General Information
| Item | Value |
|---|---|
| Model | DO630 3BHT300007R1 |
| Manufacturer | ABB |
| Component Type | Digital Output Module |
| Power Supply | 24V DC |
| Output Channels | 16 Outputs |
| Output Type | Digital Output (Dry Contact) |
3.3 Performance and Functions
| Item | Value |
|---|---|
| Output Voltage Range | 24V DC ± 20% |
| Output Signal Type | Dry Contact Signals (Digital) |
| Response Time | < 10ms |
| Max Output Current | 0.5 A per Channel |
| Electrical Isolation | 1500 V AC (between output and power) |
3.4 Environmental Specifications
| Item | Value |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% to 95% Non-condensing |
| Protection Class | IP20 |
4. Industry Applications
The ABB DO630 3BHT300007R1 Digital Output Module is widely used across multiple industrial control applications, particularly in the following industries:
-
Automated Production Lines: Converts control signals into actionable digital outputs, ensuring efficient automation of production line devices.
-
Process Control Systems: Provides precise digital output control for complex process systems, ensuring real-time control needs are met.
-
Building Automation: Integrated into building control systems to control devices such as lighting, HVAC, and access control, enhancing intelligent building management.
-
Energy Management Systems: Used in energy monitoring and management, controlling equipment start/stop to optimize energy usage.
-
Water Treatment and Environmental Control: Applied in water treatment plants, wastewater facilities, and other environmental control systems to ensure stable operation of equipment.
The ABB DO630 3BHT300007R1 Digital Output Module plays a crucial role in improving the performance and reliability of automation systems in various industries.
ABB DO630 3BHT300007R1 Digital Output Modules is in stock. Please contact us for a quick quote and competitive pricing.
