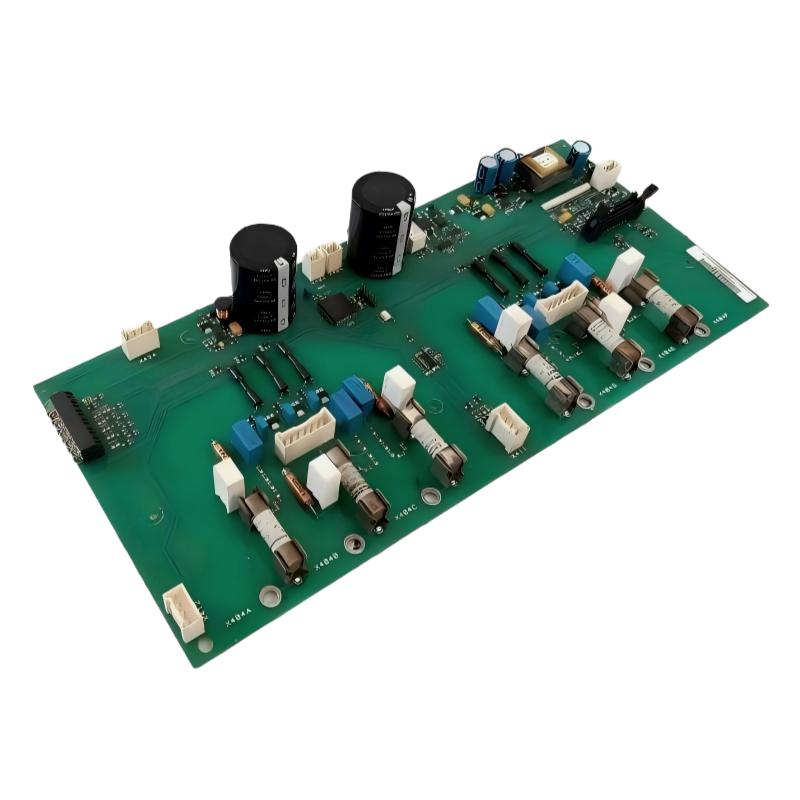

ABB DSAB-01C 64690701 Rectifier Control Board
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DSAB-01C |
| Order Number | 64690701 |
| Manufacturer | ABB |
| Series | ACS800 |
| Module Type | Rectifier Control Board / Diode Supply Control Unit |
| Input Voltage | 3-phase 380…690 V AC |
| Input Current | 816 A |
| Frequency | 48…63 Hz |
| Output Voltage | 513…932 V DC |
| Output Current | 1000 A DC |
| Protection Class | IP00 (Open Type) |
| Function | AC to DC rectification control and regulation |
| Compatibility | Designed for ABB ACS800 drives and rectifier systems |
| Mounting | Control cabinet installation / system integration |
| Country of Origin | Finland |
| Dimensions | 166 × 100 × 30 mm |
| Weight | 0.8 kg |
FAQ
1. What is the main function of the DSAB-01C rectifier control board?
The DSAB-01C is responsible for controlling the rectification process in industrial drive systems. It manages the conversion of AC input power into stable DC output by regulating the rectifier bridge and associated power components. This ensures consistent DC bus voltage, which is essential for the reliable operation of connected drives and motors in high-power applications.
2. In which systems is this module typically used?
This module is primarily used in ABB ACS800 series drive systems and associated diode supply units. It is commonly found in heavy industrial applications such as metallurgy, power generation, paper processing, and petrochemical industries where stable and high-capacity DC supply is required.
3. What type of input power does the DSAB-01C support?
The board is designed to operate with three-phase AC input within a wide voltage range. This flexibility allows it to be used in different industrial environments across various regions, accommodating variations in grid standards while maintaining stable performance.
4. Does the DSAB-01C provide fault detection or diagnostics?
Yes, the module works in conjunction with the overall drive system to enable monitoring and diagnostics. It can help identify abnormal conditions such as voltage fluctuations, rectification faults, or system imbalances, allowing operators to take corrective actions quickly and reduce downtime.
5. What should be considered during installation?
The DSAB-01C should be installed securely inside a properly designed control cabinet. Adequate grounding, ventilation, and protection against dust and environmental factors are essential. Proper wiring practices must be followed to avoid electrical faults, and installation should comply with industrial safety standards.
6. What does the IP00 protection rating imply?
An IP00 rating means the module has no inherent protection against solid objects or liquids. Therefore, it must be installed within an enclosed electrical cabinet that provides the necessary environmental protection to ensure safe and reliable operation.
7. How does the module ensure stable operation in demanding environments?
The DSAB-01C uses robust control logic and high-quality electronic design to maintain stable rectification even under fluctuating load or supply conditions. When integrated into the ACS800 system, it benefits from coordinated control and protection mechanisms that enhance overall system reliability.
8. Can the DSAB-01C be replaced with another model?
In some cases, alternative models within the same series may be used as replacements. However, compatibility must be carefully verified, including hardware interfaces, firmware versions, and system configuration. Using an incompatible module may result in improper operation or system faults, so consultation with technical documentation or support is recommended.
ABB DSAB-01C 64690701 Rectifier Control Board is in stock. Please contact us for a quick quote and competitive pricing.
