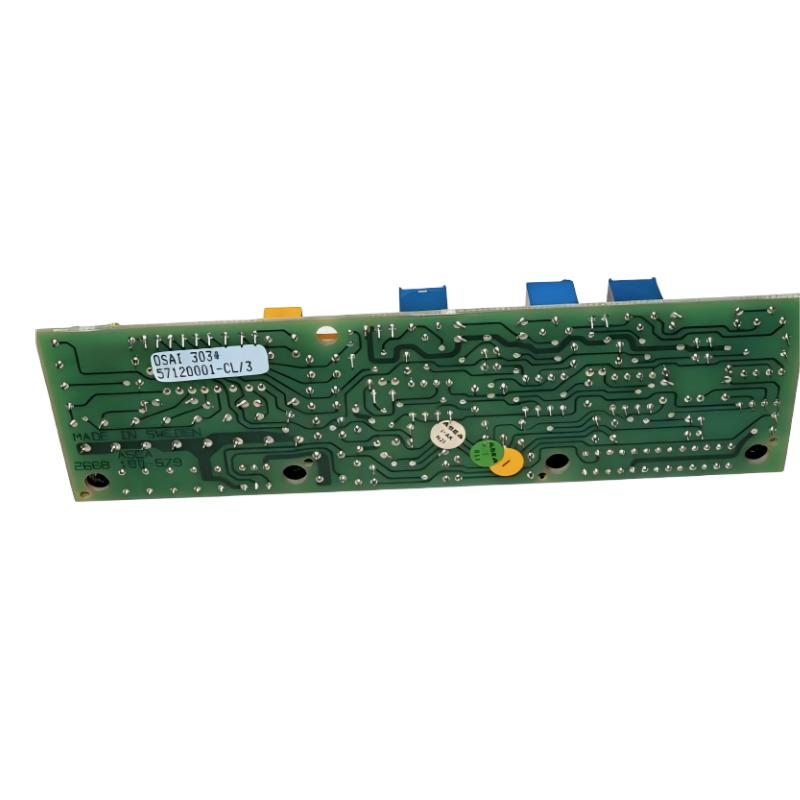

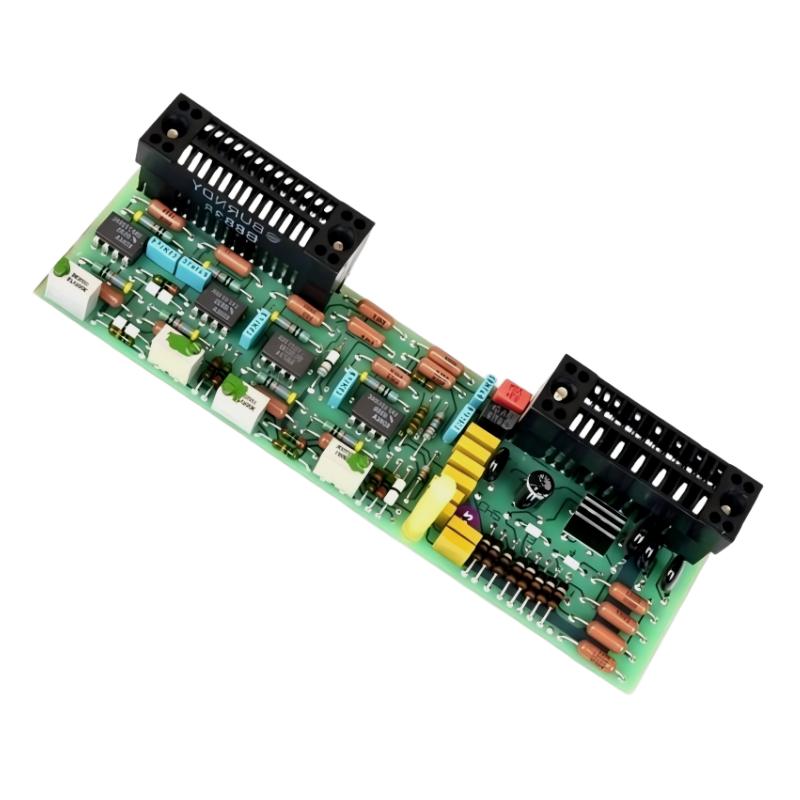

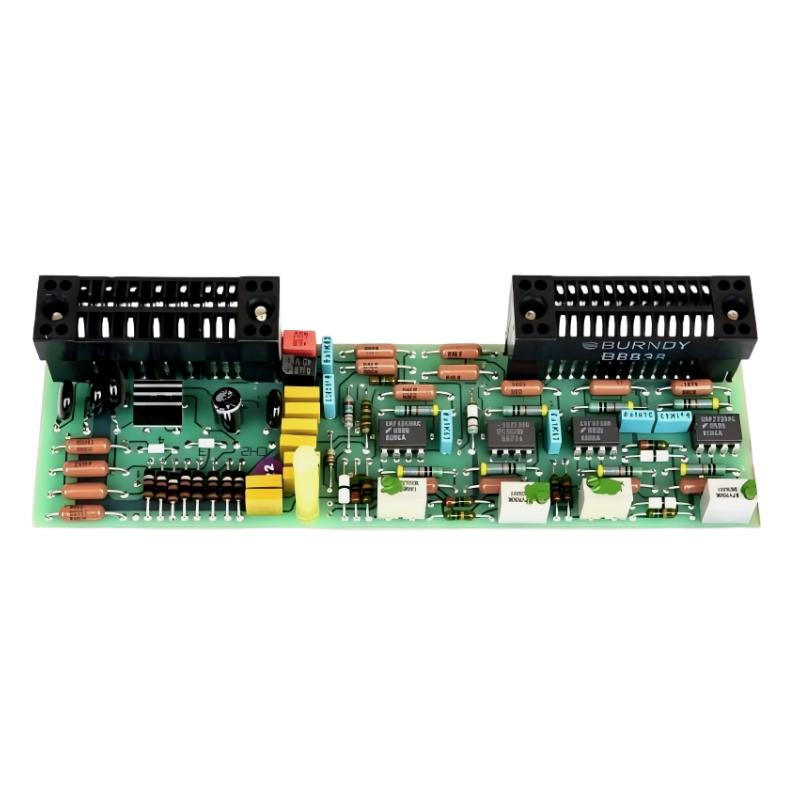

1. What is the primary function of the DSAI 303 module?
The DSAI 303 is designed to capture analog signals from field instruments and convert them into digital values that can be processed by a control system. It serves as a key interface between sensors and controllers, ensuring that real-time process data is accurately transmitted for monitoring and automation tasks.

2. What types of input signals are supported?
This module supports standard industrial analog inputs, including voltage signals (0–10 V) and current signals (4–20 mA). These input types are widely used in process industries, allowing the module to work with a variety of sensors such as temperature transmitters, pressure sensors, and flow meters.

3. Are the input channels independent from each other?
Yes, the module provides multiple input channels that operate independently. Each channel is designed with isolation features to minimize electrical interference, ensuring stable and reliable signal acquisition even in environments with significant electrical noise.

4. How accurate is the measurement performance?
The DSAI 303 offers high-resolution analog-to-digital conversion with consistent accuracy across its measurement range. This allows it to detect small variations in input signals, making it suitable for applications where precise monitoring and control are required.

5. How does the module communicate with the control system?
Communication is handled via the system backplane bus, which allows direct integration into the control rack. This eliminates the need for external communication wiring and improves overall system reliability and data transfer efficiency.

6. What should be considered during installation?
The module should be installed securely on a DIN rail or in a rack within a control cabinet. Proper grounding and shielding practices must be followed to protect against electromagnetic interference. Careful attention should also be given to signal wiring to maintain measurement integrity.

7. In what types of applications is this module commonly used?
The DSAI 303 is commonly used in industries such as power generation, water treatment, chemical processing, and manufacturing. It is ideal for systems that require continuous acquisition and monitoring of analog process variables.

8. How can signal abnormalities be diagnosed?
If abnormal readings occur, it is important to first verify the field device and signal source. Next, check all wiring connections and configuration settings within the control system. Diagnostic tools within the system can help identify channel faults or inconsistencies, and if necessary, the module should be tested or replaced.
