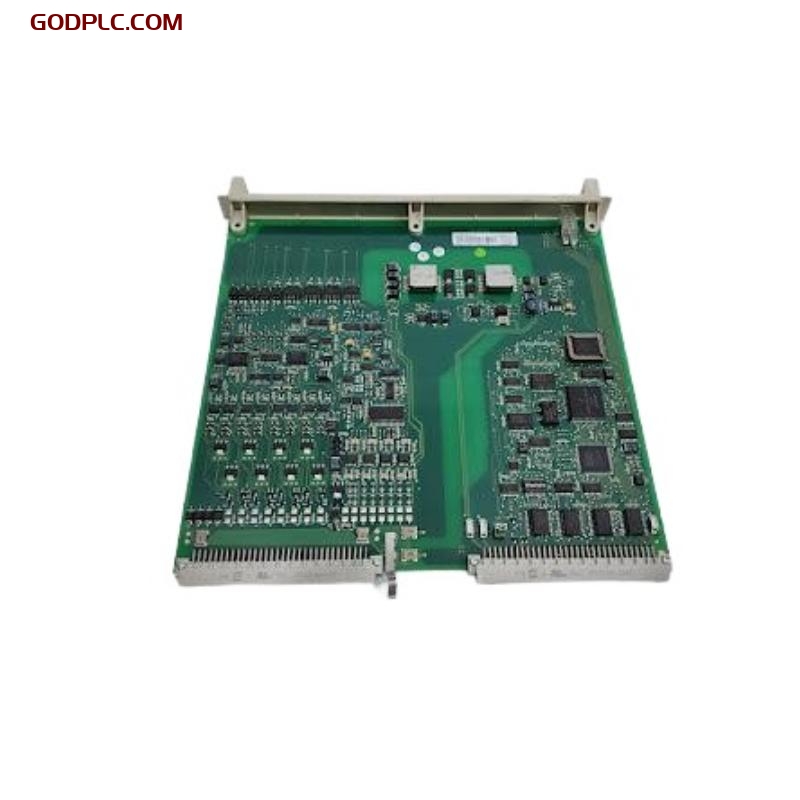

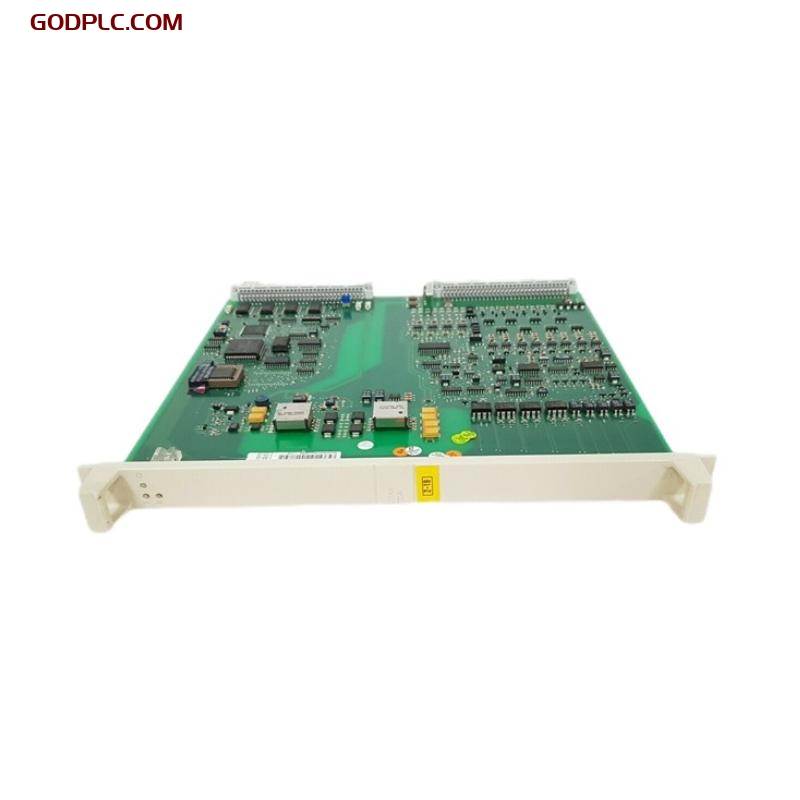

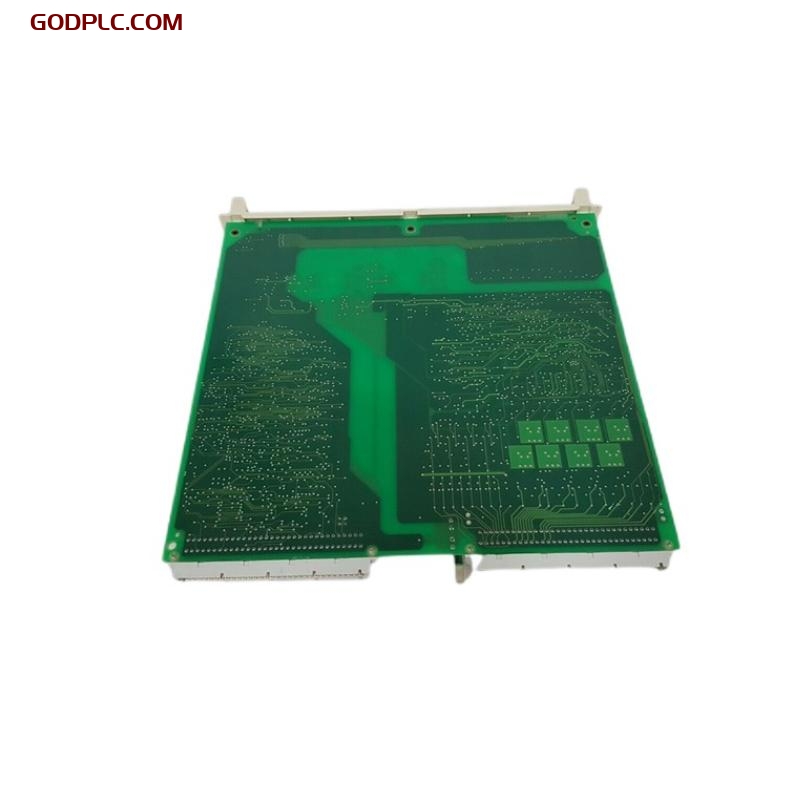

ABB DSAX 110A 3BSE018291R1 Analog Input/Output Board
Product Overview
The ABB DSAX 110A (Part Number: 3BSE018291R1) is a high-performance Analog Input/Output (I/O) board designed for use with the ABB AC 800M controller series within the ABB 800xA distributed control system (DCS). This module enables precise analog signal acquisition and output in a compact form factor, supporting a wide range of industrial automation and process control applications. With its ability to handle multiple input and output channels, the DSAX 110A provides flexible, scalable, and reliable analog connectivity for complex process environments.
Key Features
-
Integrated Analog I/O – Combines analog input and output functions in a single board, optimizing panel space and reducing wiring complexity
-
High Accuracy – Delivers precise measurement and control of analog signals for critical process variables such as temperature, pressure, and flow
-
Multiple Channels – Supports multiple analog input and output channels to meet the needs of large-scale process systems
-
Seamless System Integration – Fully compatible with ABB AC 800M controllers and the 800xA system architecture
-
Modular Design – Easy to install and replace, supporting fast system expansion or maintenance with minimal downtime
-
Industrial Reliability – Designed to operate under tough industrial conditions with robust insulation, shielding, and diagnostic support
-
Configurable Signal Ranges – Accommodates different analog signal standards including 4–20 mA, 0–10 V, and more via configuration
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 324 x 18 x 234mm |
| Weight | 0.5 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | Supplied via I/O system backplane |
| Input Channels | Typically 8 analog inputs |
| Output Channels | Typically 4 analog outputs |
| Input Signal Types | 0–10 V, 0–20 mA, 4–20 mA (configurable) |
| Output Signal Types | 0–10 V, 4–20 mA |
| Resolution | 12-bit or higher (depending on config) |
| Isolation | Channel-to-channel and channel-to-ground |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +55°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection Class | IP20 (installed in enclosure) |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Controller Platform | ABB AC 800M series |
| DCS Platform | ABB 800xA |
| Configuration Tool | Control Builder M, System 800xA Tools |
Industry Applications
-
Power Generation – Interfaces sensors and actuators for temperature, pressure, and flow regulation in turbines and boilers
-
Oil & Gas – Enables precise control of analog process variables in upstream and downstream automation systems
-
Chemical Processing – Provides accurate analog data acquisition and control in reactors, mixers, and pipelines
-
Water & Wastewater – Supports monitoring and control of level, flow, and chemical dosing systems
-
Pulp & Paper – Interfaces with continuous process control systems for pressure, tension, and temperature regulation
-
Pharmaceuticals – Delivers high-resolution analog control in validated manufacturing processes requiring precise measurement
The ABB DSAX 110A 3BSE018291R1 Analog Input/Output Board offers an efficient and reliable solution for managing analog signals in ABB AC 800M control systems. With its versatile signal support, accurate performance, and robust integration into the 800xA platform, this board ensures optimal process control and system scalability across a broad spectrum of industrial applications.
ABB DSAX 110A 3BSE018291R1 Analog Input/Output Board is in stock. Please contact us for a quick quote and competitive pricing.
