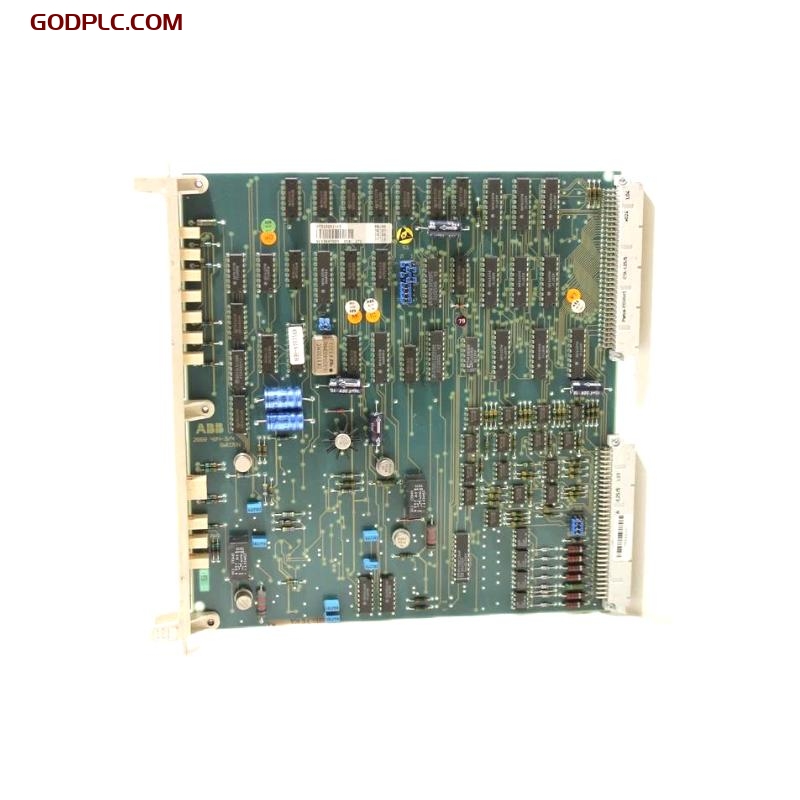

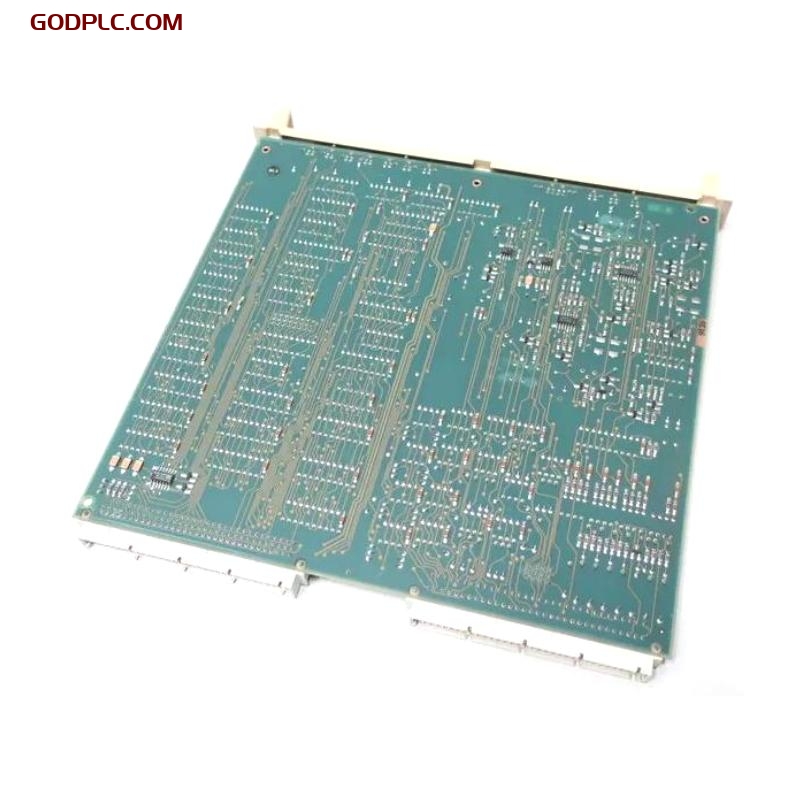

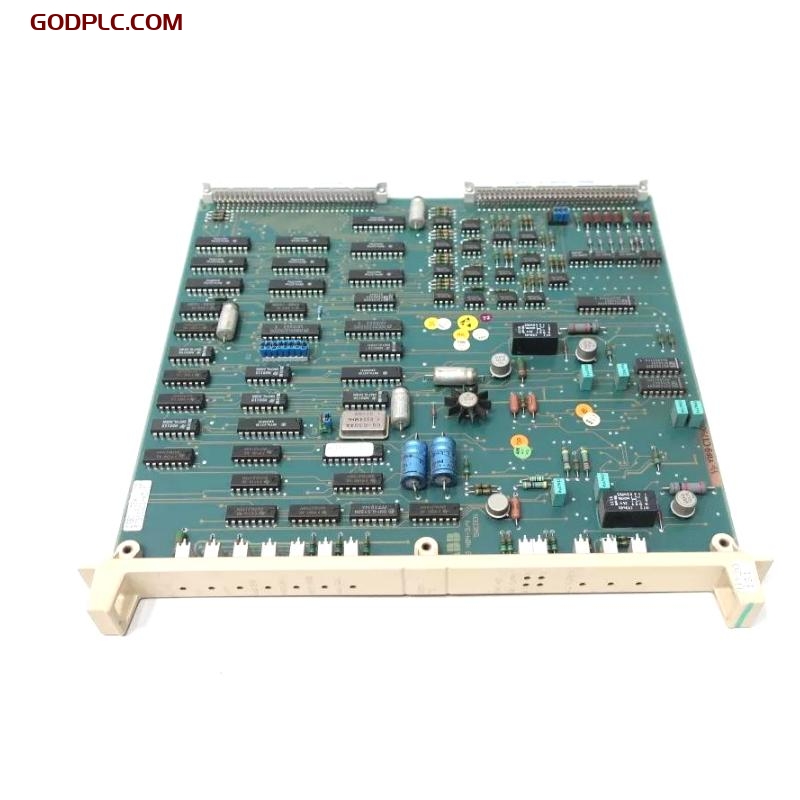

ABB DSBC 172 57310001-KD Bus Repeater Master
Product Overview
The ABB DSBC 172 57310001-KD is a Bus Repeater Master module used in ABB Advant Controller 400 series systems. This module is designed to extend the communication distance and improve signal integrity in high-performance industrial control networks. It serves as a master interface for connecting and repeating I/O bus signals across different I/O clusters or remote locations, ensuring reliable communication between control units and field devices in large-scale distributed systems.
Key Features
-
Bus Repeater Functionality – Repeats and regenerates I/O bus signals to extend communication distances.
-
Master Configuration – Operates as the main control interface for multiple DSBC 173 repeater slave modules.
-
Signal Integrity – Ensures high-quality signal transmission in electrically noisy environments.
-
Galvanic Isolation – Isolates segments to prevent ground loops and enhance system protection.
-
System Synchronization – Supports synchronized data communication across distributed nodes.
-
Robust Compatibility – Designed for seamless integration with ABB Advant Controller 400 series systems.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 324 x 22.5 x 234 mm |
| Weight | 0.4 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | Supplied via system backplane |
| Communication Ports | I/O bus master, repeater bus interface |
| Max Number of Slaves | Supports up to 4 DSBC 173 units |
| Isolation Voltage | >500 V channel-to-system isolation |
| Current Consumption | Approx. 200 mA @ 5 VDC |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Environmental Seal | IP20 standard |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB Advant Controller 400 Series |
| Mounting | Rack-mounted (standard system slot) |
Industry Applications
-
Power Generation – Facilitates communication in distributed turbine and generator control systems.
-
Oil and Gas – Supports long-distance control infrastructure in drilling platforms and refineries.
-
Chemical Processing – Ensures reliable bus communication in hazardous and expansive process areas.
-
Water and Wastewater – Extends communication for large treatment plants with remote field devices.
-
Metals and Mining – Maintains signal quality in noisy environments with extended field connectivity.
The ABB DSBC 172 57310001-KD Bus Repeater Master delivers reliable and efficient bus signal distribution in complex industrial automation systems. With robust signal isolation, master-slave architecture, and compatibility with ABB’s high-performance control systems, it is an essential module for scalable and dependable system communication.
ABB DSBC 172 57310001-KD Bus Repeater Master is in stock. Please contact us for a quick quote and competitive pricing.
