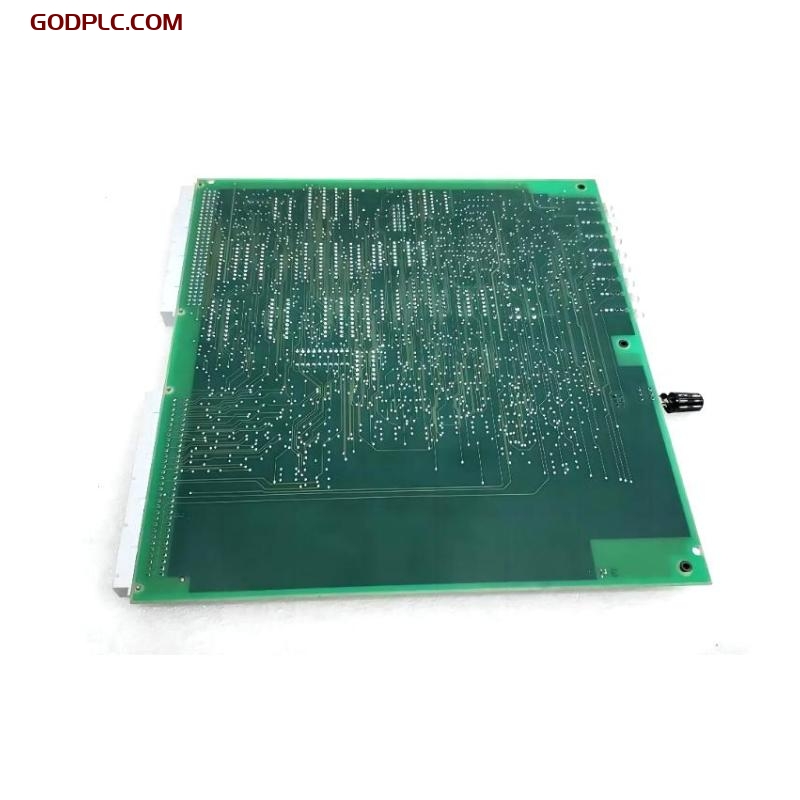

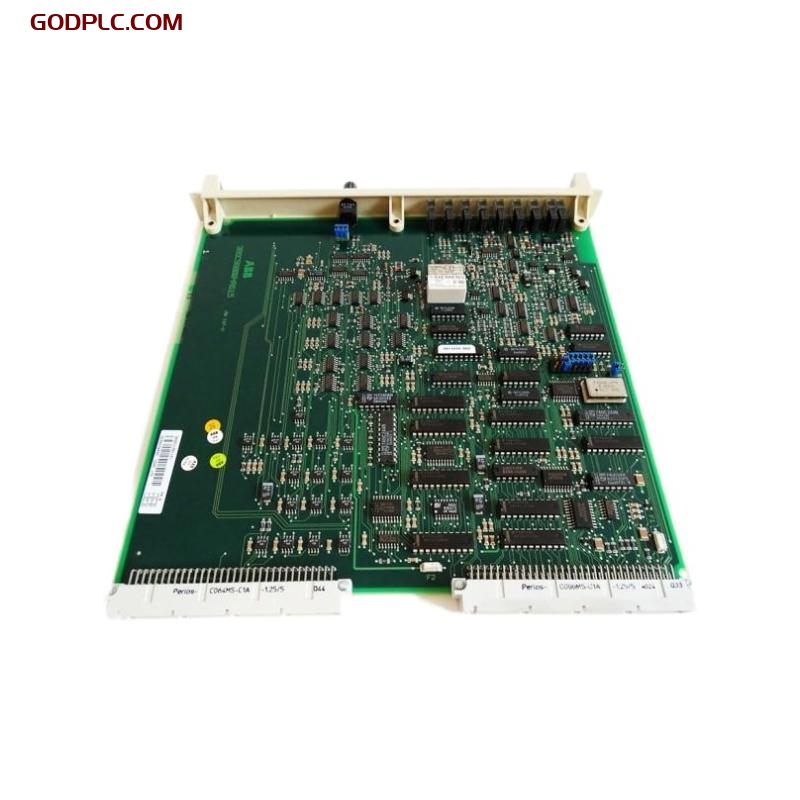

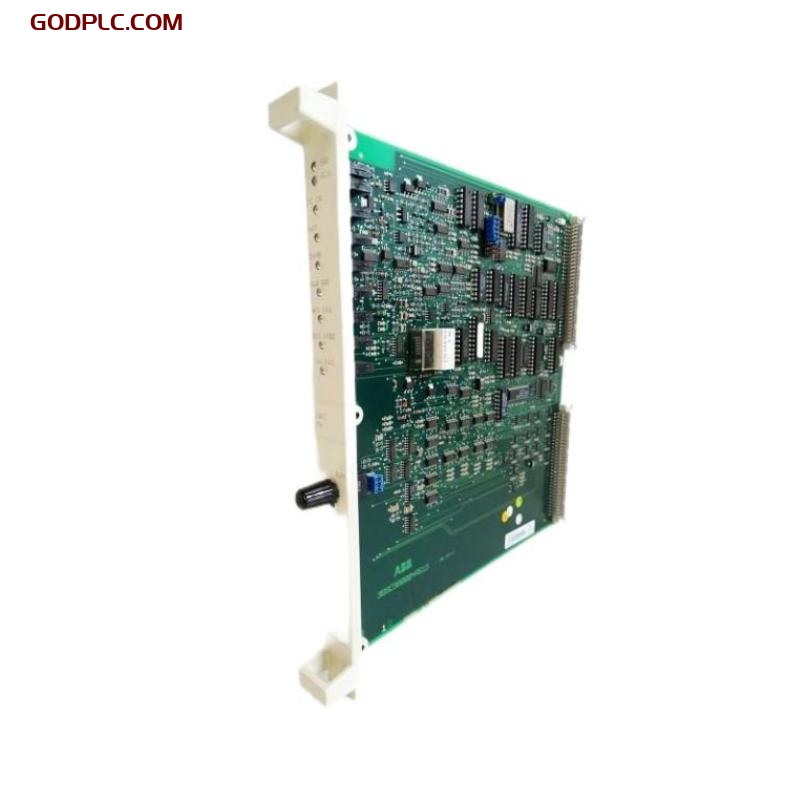

ABB DSBC 174 3BSE012211R1 Bus Extender
Product Overview
The ABB DSBC 174 3BSE012211R1 is a Bus Extender module used in ABB’s Advant and Symphony Plus control systems to extend I/O bus signals between controller units and remote I/O stations. Designed for high-reliability industrial automation environments, the DSBC 174 enables long-distance communication while maintaining signal integrity, synchronization, and noise immunity. It is a crucial component in large-scale, distributed control system architectures.
Key Features
-
Bus Extension Capability – Extends I/O bus communication between main and remote racks or units.
-
High Signal Integrity – Maintains accurate and stable signal quality over extended distances.
-
Plug-and-Play Integration – Designed for easy installation and direct compatibility with ABB control systems.
-
Galvanic Isolation – Electrically isolates system segments to protect against ground potential differences.
-
Redundant Operation Support – Suitable for systems with redundancy requirements.
-
Industrial Durability – Engineered for robust operation in harsh industrial environments.
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 360 x 20 x 260 mm |
| Weight | 0.34 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Power Supply | Supplied via system backplane |
| Communication Ports | Bus extender interface |
| Data Transmission | High-speed differential signal lines |
| Isolation Voltage | >500 V channel-to-system isolation |
| Current Consumption | Approx. 150 mA @ 5 VDC |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Environmental Seal | IP20 standard |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB Symphony Plus, Advant Controller Series |
| Mounting | Rack-mounted (standard system slot) |
Industry Applications
-
Power Plants – Facilitates distributed control in turbine and substation automation.
-
Oil and Gas Facilities – Extends I/O communication across processing and field areas.
-
Water Treatment Systems – Connects remote monitoring units in large-scale infrastructure.
-
Chemical Processing Plants – Maintains stable control communication in high-noise environments.
-
Metals and Mining – Enables rugged control system extension in complex operations.
The ABB DSBC 174 3BSE012211R1 Bus Extender is a reliable and high-performance solution for extending bus communication in ABB’s advanced control environments. It provides the scalability and robustness needed to support modern industrial automation systems with distributed architectures.
ABB DSBC 174 3BSE012211R1 Bus Extender is in stock. Please contact us for a quick quote and competitive pricing.
