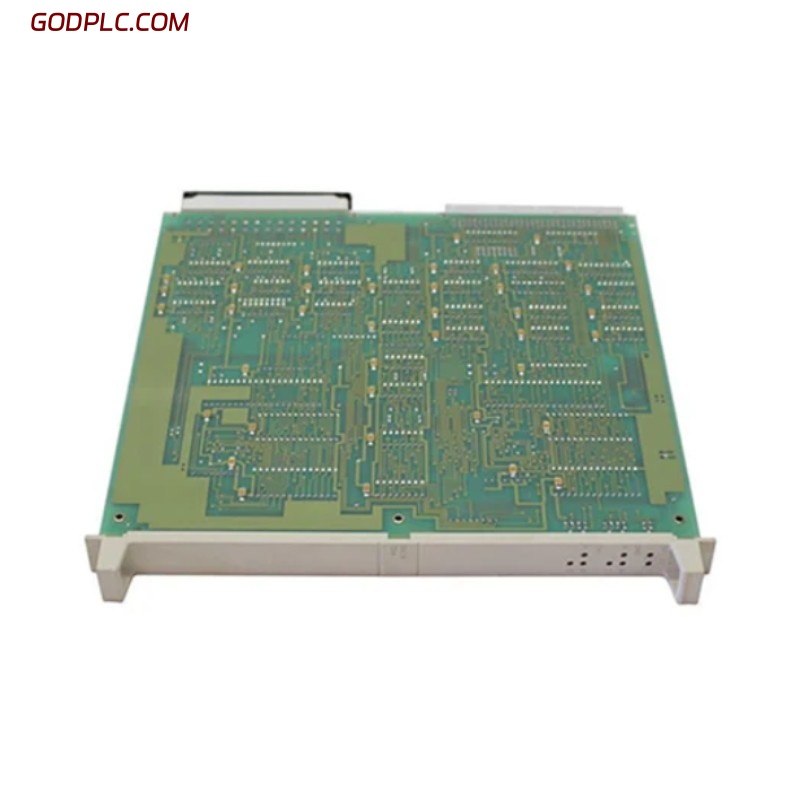

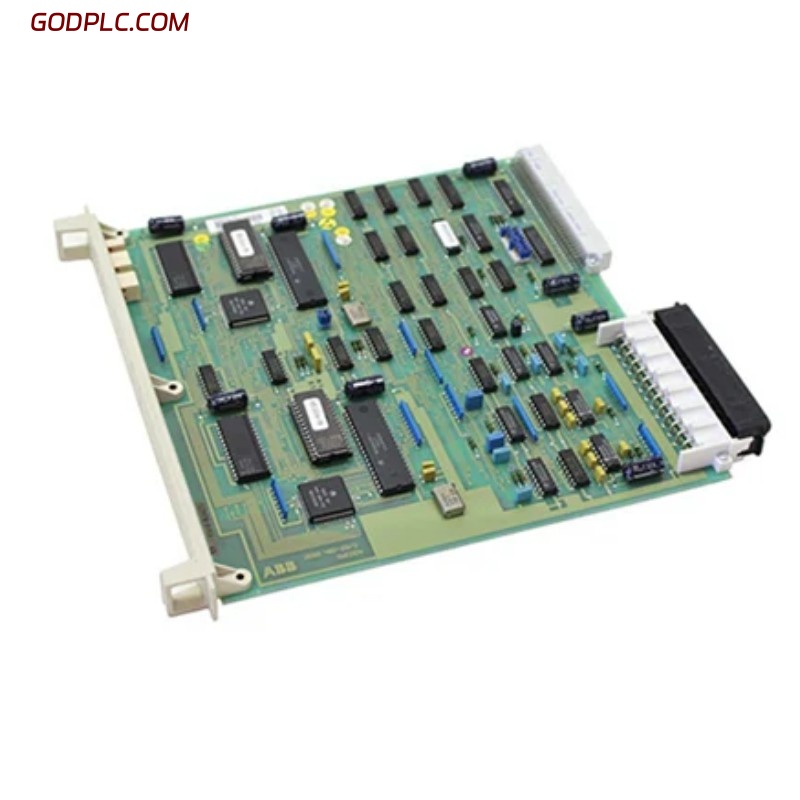

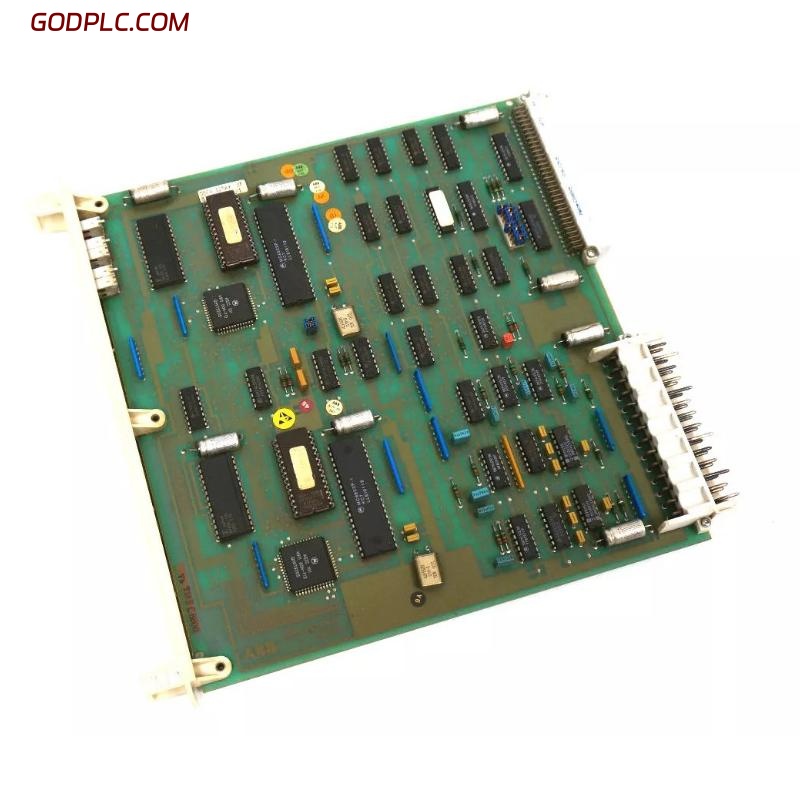

ABB DSCA 125A 57520001-CY Communication Board
Product Overview
The ABB DSCA 125A 57520001-CY Communication Board is an analog input signal conditioning module designed for integration with ABB’s Symphony and Advant control systems. It enables precise transmission of low-level analog signals over long distances by providing galvanic isolation, amplification, and conversion capabilities. The DSCA125A ensures the integrity of critical process measurements, making it ideal for use in harsh industrial environments.
Key Features
-
Isolated Analog Signal Input – Provides input signal isolation to protect control systems
-
Wide Input Range Support – Compatible with a variety of analog input types, including thermocouples, RTDs, and millivolt sources
-
High Accuracy and Linearity – Ensures precise signal conversion for process reliability
-
Galvanic Isolation – Protects the system from electrical noise and ground loops
-
DIN-Rail Mountable – Compact module design allows easy integration into control cabinets
-
System Compatibility – Seamlessly connects with ABB Symphony and Advant control platforms
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 324 x 22 x 234 mm |
| Weight | 0.42 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Input Signal Types | Millivolt, RTD, Thermocouple (model-dependent) |
| Input Range | ±100 mV (typical) |
| Output | Isolated analog signal (e.g., 4–20 mA, ±10 V) |
| Isolation Voltage | ≥1500 V RMS (input to output) |
| Accuracy | ±0.1% of span |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -25°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Protection Class | IP20 (when installed) |
| Vibration Resistance | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| System Platform | ABB Symphony / Advant |
| Mounting Type | DIN rail |
| Module Type | Signal Conditioning / Communication Board |
Industry Applications
-
Power Generation – Interfaces with sensors for turbine, boiler, and plant monitoring systems
-
Oil & Gas – Facilitates safe and accurate signal transmission in upstream/downstream operations
-
Chemical and Petrochemical – Ensures high fidelity analog input for process control
-
Water and Wastewater – Connects field sensors to control logic in treatment facilities
-
Pharmaceutical – Enables precise monitoring of environmental and process parameters
The ABB DSCA 125A 57520001-CY Communication Board is engineered to deliver dependable, isolated analog signal conditioning for critical industrial processes. Its rugged design and superior accuracy make it a trusted component in ABB’s automation ecosystem.
ABB DSCA 125A 57520001-CY Communication Board is in stock. Please contact us for a quick quote and competitive pricing.
