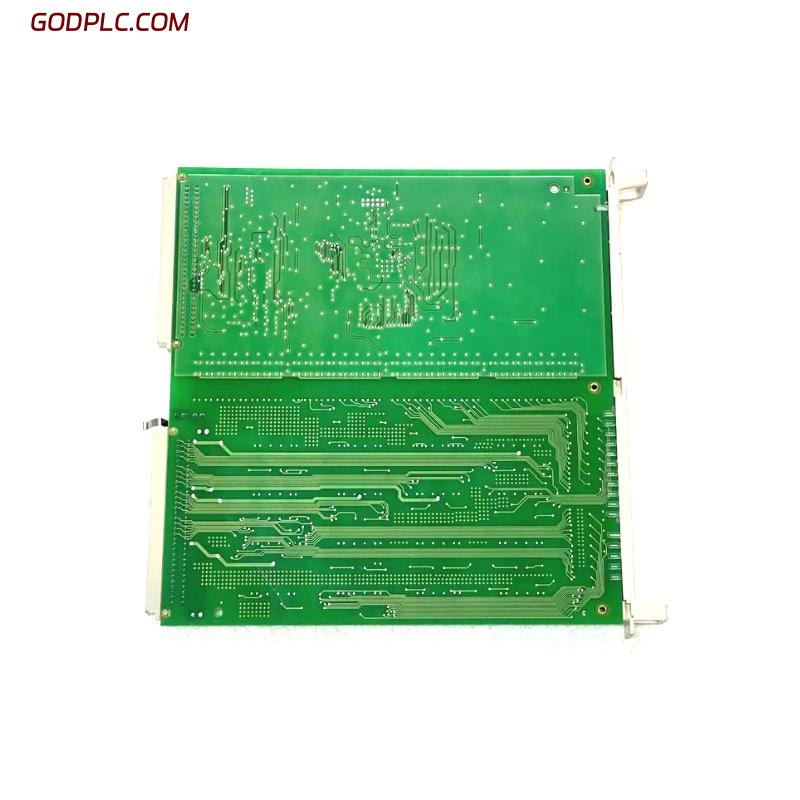

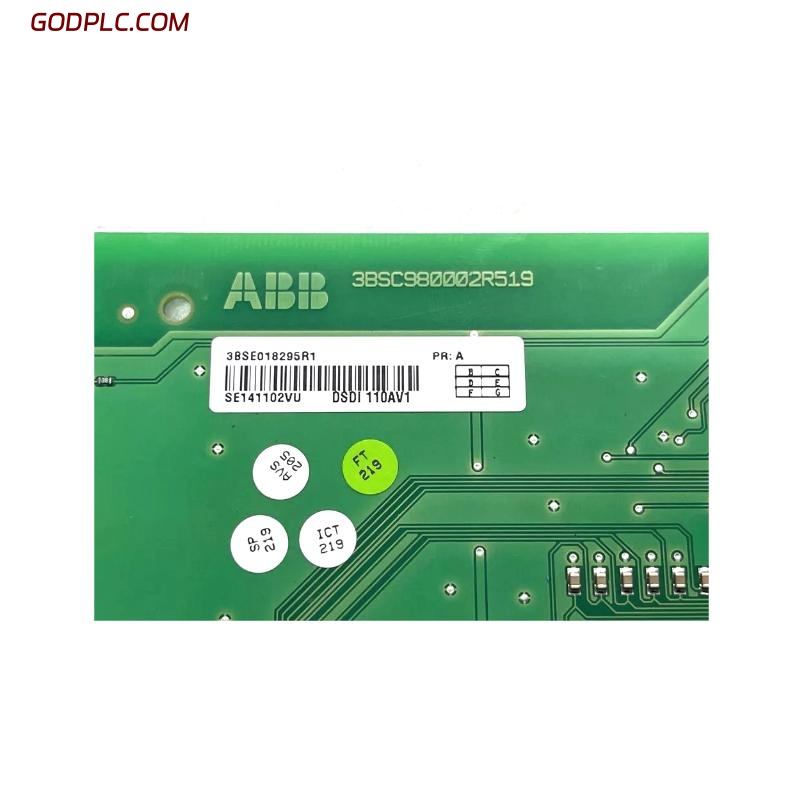

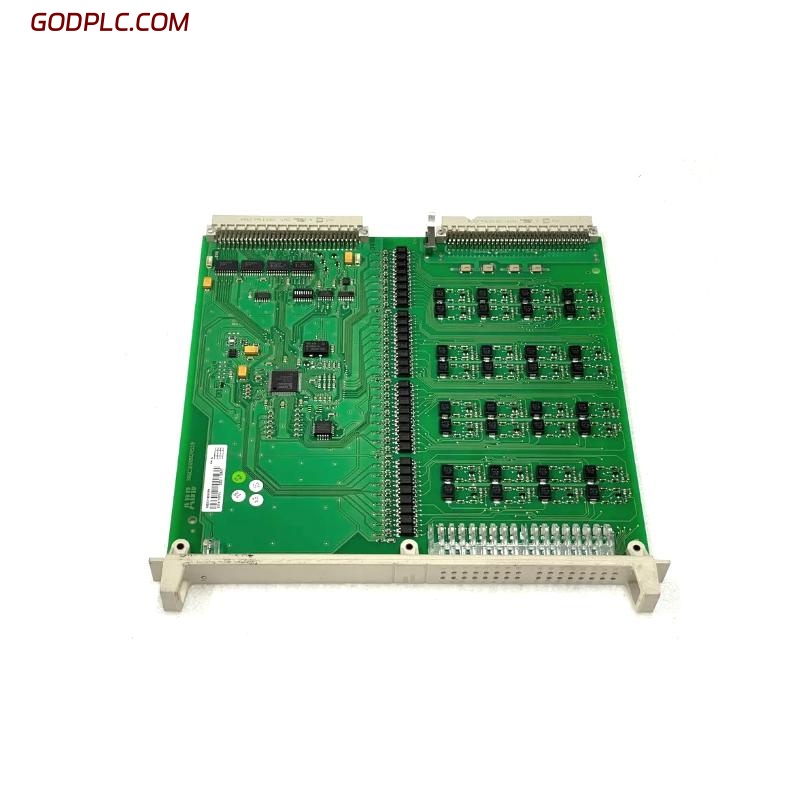

ABB DSDI 110AV1 3BSE018295R1 DS Digital Input Module
Product Overview
The ABB DSDI 110AV1 (Part No. 3BSE018295R1) is a 16-channel digital input module designed for high-voltage AC signal acquisition in industrial automation systems. It is part of ABB’s Symphony Plus and 800xA families, enabling reliable interface between field devices and control systems. Supporting 120 V AC input signals, the module is ideal for monitoring limit switches, push buttons, and relay contacts in a variety of process automation applications.
Key Features
-
16 Digital Inputs – Enables high-density signal acquisition in a compact form factor
-
120 V AC Input Capability – Suitable for standard industrial voltage levels
-
Electrical Isolation – Galvanic isolation between field and system circuits enhances reliability
-
Status LEDs – Channel-level indicators for easy diagnostics and monitoring
-
Redundant System Support – Compatible with redundant architectures in ABB 800xA and Symphony Plus systems
-
TÜV Certified – Compliant with safety and environmental standards for industrial applications
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 234 x 18 x 229.5 mm |
| Weight | 0.332 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 16 |
| Input Voltage | 120 V AC (nominal) |
| Input Frequency | 47–63 Hz |
| Input Current | Approx. 2 mA @ 120 V AC |
| Isolation | Galvanically isolated channels |
| Input Delay | < 20 ms filtering (typical) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration Resistance | IEC 60068-2-6 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | ABB 800xA, Symphony Plus, Advant Master DCS |
| Mounting Type | DIN rail or module carrier |
Industry Applications
-
Power Generation – Monitors turbine and switchgear status signals
-
Chemical Processing – Interfaces with field instruments and safety systems
-
Oil & Gas – Collects control signals from field devices in upstream/downstream operations
-
Water & Wastewater – Supports signal acquisition from pumps, valves, and instrumentation
-
Pulp & Paper – Tracks machine and process signals in distributed automation systems
The ABB DSDI 110AV1 3BSE018295R1 DS Digital Input Module delivers robust digital input performance for demanding industrial environments. With 120 V AC input capability and high reliability, it plays a vital role in modern process control systems where dependable signal acquisition is critical.
ABB DSDI 110AV1 3BSE018295R1 DS Digital Input Module is in stock. Please contact us for a quick quote and competitive pricing.
