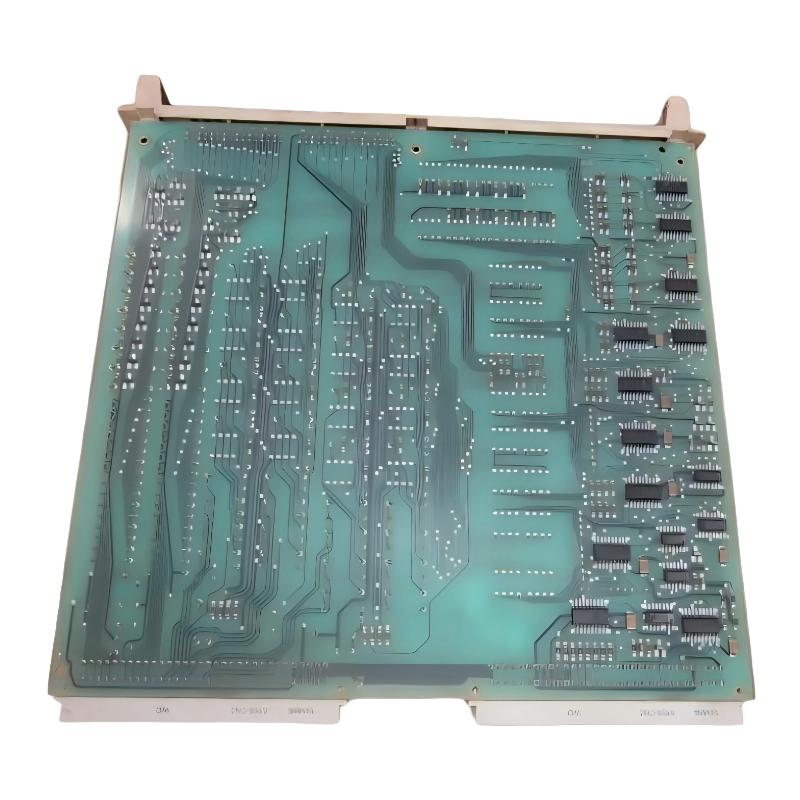

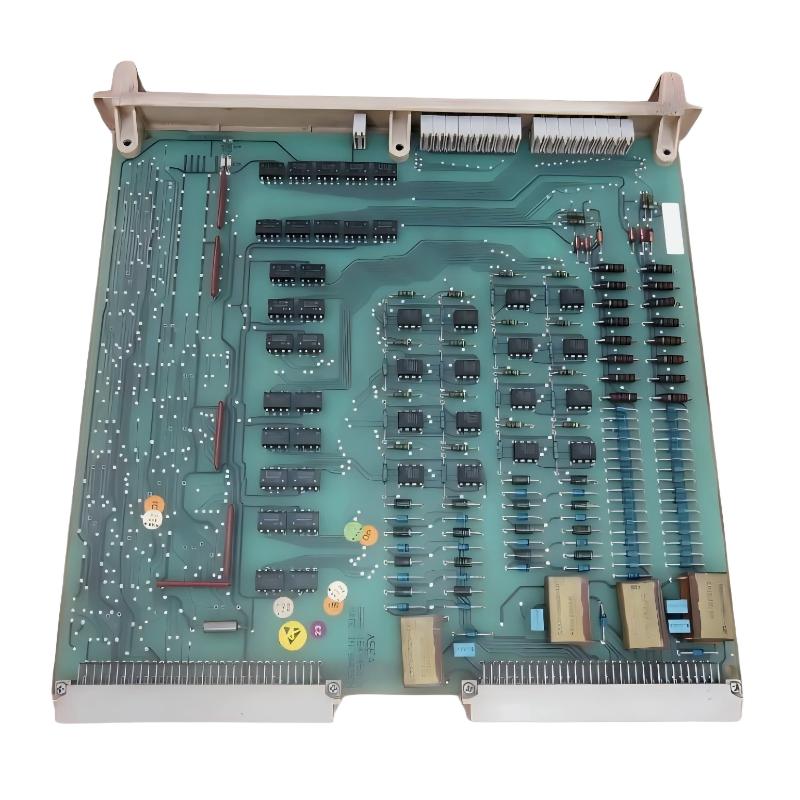

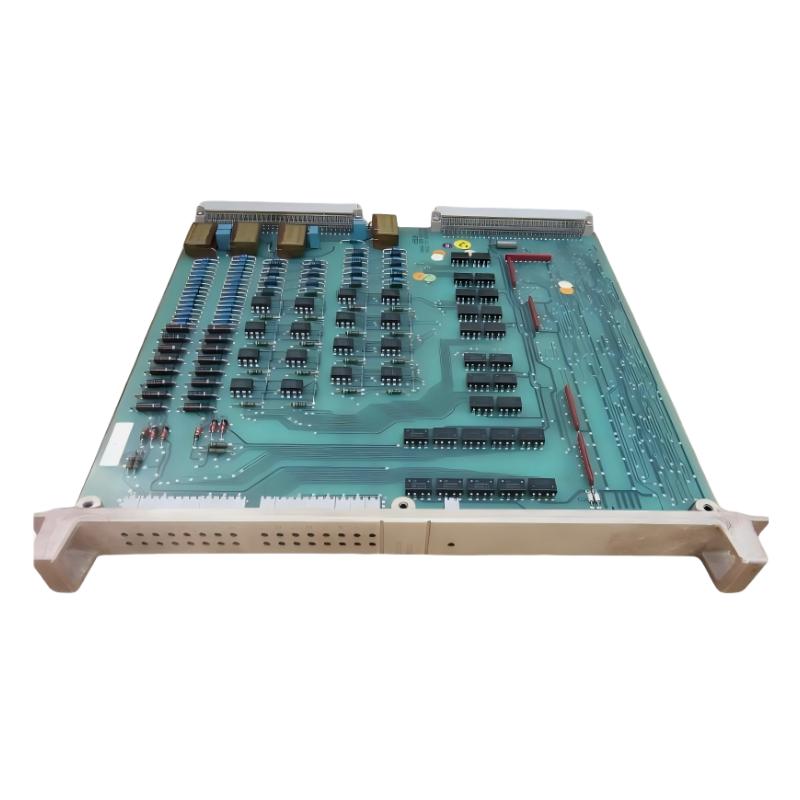

ABB DSDX B001 57160001-TP/1 DS Digital Input/Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Description |
|---|---|
| Model | DSDX B001 |
| Order Number | 57160001-TP/1 |
| Manufacturer | ABB |
| Module Type | Digital Input/Output Module |
| I/O Type | Combined input/output module |
| Input Channels | 8–16 points (typical, system dependent) |
| Output Channels | 8–16 points (typical, system dependent) |
| Signal Type | Discrete signals (dry contact / wet contact) |
| Rated Voltage | 24 V DC |
| Input Current | Typical 5–10 mA |
| Output Type | Transistor output |
| Output Load Capacity | 0.5 A per channel (typical) |
| Isolation | Electrical isolation between channels and system |
| Input Response Time | ≤ 5 ms |
| Output Response Time | ≤ 1 ms |
| Communication | System backplane communication |
| Power Supply | Via system backplane |
| Mounting | Rack-mounted |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions | 220 × 110 × 35 mm |
| Weight | 0.17 kg |
FAQ
1. What is the main function of the DSDX B001 module?
The DSDX B001 is a compact digital input/output module used in industrial automation systems. It is designed to handle both signal acquisition from field devices and output control to actuators, enabling basic automation logic, status monitoring, and device control within a control system.
2. What types of field devices can be connected to this module?
The module supports standard discrete industrial devices such as push buttons, limit switches, relay contacts, proximity sensors, and small actuators. It is suitable for typical ON/OFF control and status feedback applications in automation environments.
3. How flexible is the input/output configuration?
The I/O configuration can be defined through the system engineering software. Depending on the system setup, channels can be assigned as inputs or outputs, allowing flexible adaptation to different control requirements without hardware modification.
4. How does the module ensure signal stability in industrial environments?
Signal stability is ensured through electrical isolation between channels and the system, which reduces the impact of electrical noise and ground loop interference. Proper grounding and the use of shielded cabling further improve reliability in harsh environments.
5. Can the output channels directly drive loads?
The output channels are transistor-based and are intended for low-power switching applications. They can directly drive small loads such as indicator lamps or relay coils. For inductive or higher-power loads, external protection devices or intermediate relays are recommended.
6. How is the module integrated into a control system?
Integration is performed through system configuration tools where I/O mapping, channel assignment, and addressing are defined. The module communicates via the system backplane, so no separate communication wiring is required.
7. Does the module provide diagnostic or status information?
Yes, the module supports basic diagnostics including channel status monitoring and communication health checks. These functions allow operators to quickly identify faults such as wiring issues, signal loss, or communication errors.
8. In which industrial applications is the DSDX B001 commonly used?
The module is widely used in manufacturing automation, power systems, chemical processing, water treatment, and building automation. It is suitable for applications requiring reliable digital signal acquisition and control in compact control architectures.
ABB DSDX B001 57160001-TP/1 DS Digital Input/Output Module is in stock. Please contact us for a quick quote and competitive pricing.
